INTERFACE COMPONENTS

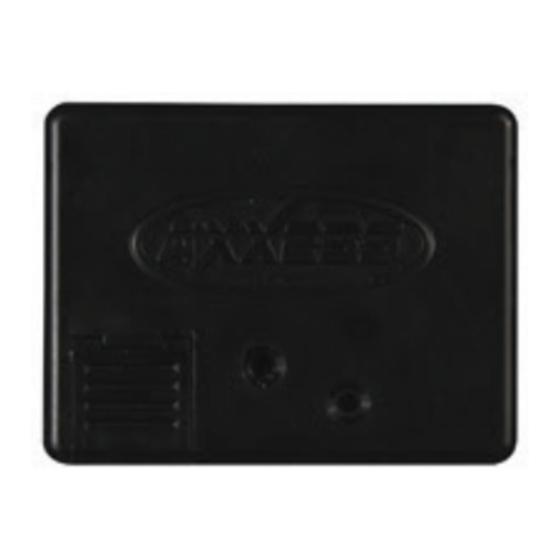

• ASWC-1 Interface
• ASWC-1 harness (12-pin harness with male 3.5mm jack)
• Female 3.5mm connector with stripped leads
AxxessInterfaces.com
ASWC-1 GENERAL INSTRUCTIONS
ASWC-1 General Instructions
Visit
AxxessInterfaces.com
for more detailed information about the product and up-to-date
vehicle specific applications
INTERFACE FEATURES
• One interface does it all, no
• Can be manually programmed
additional interfaces needed
• Designed to be compatible
• Retains settings even after
with all major radio brands
• Auto detects vehicle type, radio
connection, and preset controls
• All connections done at the
• Ability to dual assign steering
wheel control buttons
• Micro-B USB updatable
© COPYRIGHT 2018 METRA ELECTRONICS CORPORATION
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Installation Preparation ........................................2
Installation .............................................................2
Programming .........................................................3
Wire Description ....................................................3
for most vehicles
battery disconnection or
interface removal
TOOLS REQUIRED
radio location
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
Attention!
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
Let the vehicle sit with the key
REV. 11/15/18 INSTASWC-1 General Instructions
Advertisement
Related Manuals for Axxess ASWC-1
Summary of Contents for Axxess ASWC-1
- Page 1 When testing the • ASWC-1 Interface aftermarket equipment, ensure that all factory • ASWC-1 harness (12-pin harness with male 3.5mm jack) equipment is connected before cycling the key to ignition. • Female 3.5mm connector with stripped leads AxxessInterfaces.com...
- Page 2 • For the radios listed below: Connect the female 3.5mm connector with stripped leads, to the male notified if your vehicle will work or not with the ASWC-1 interface. If the interface is compatible, 3.5mm SWC jack from the ASWC-1 harness. Any remaining wires tape off and disregard.
- Page 3 PROGRAMMING WIRE DESCRIPTION • Program the ASWC-1 as noted in the ASWC-1 vehicle specific document. Pin Cavity Wire Color Input Description Pink CAN-HI or Serial Data White/Green Negative SWC Yellow/Green Positive SWC Green/Orange Negative SWC Gray/Red Negative SWC Black Chassis Ground Blue/Pink CAN-LO...
- Page 4 ASWC-1 GENERAL INSTRUCTIONS I N S TA L L AT I O N I N S T R U C T I O N S If you are having difficulties with the installation of this product, contact our Tech Support line either by phone at 1-800-253-TECH, or email at techsupport@metra-autosound.com.
