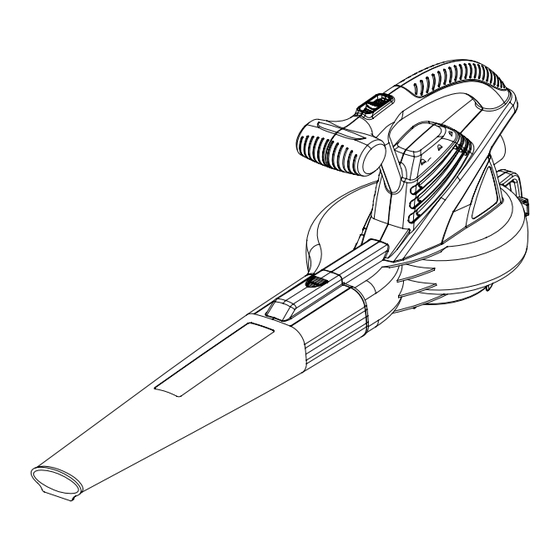

- Page 1 7 AMP ELECTRIC BLOWER 267-4931 Owner’s Manual 1-888-266-7096 TOLL-FREE HELPLINE: Read all safety rules and instructions carefully before operating this tool.
-
Page 2: Table Of Contents
CONTENTS Contents ..........................2 ........................2 Important Safety Instructions ....................3 - 4 Specific Safety Rules ......................5 - 6 Symbols ..........................7- 8 Electrical ......................... 9 -10 Know Your Blower .......................11 Assembly ........................12-13 Operation ........................14-15 Maintenance ........................1 6 Troubleshooting ......................... 17 Warranty .......................... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ AND UNDERSTAND ALL INSTRUCTIONS. personal injury. READ THESE INSTRUCTIONS BEFORE USING THE BLOWER • liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes. • Avoid body contact with grounded surfaces such as pipes, radiators, ranges, and refrigerators. There is an increased risk of electric shock if your body is grounded. -
Page 4: Important Safety Instructions ............................................................................................3
IMPORTANT SAFETY INSTRUCTIONS • Do not force tool. Use the correct tool for your application. The correct tool will do the job better and safer at the rate for which it is designed. • can result in loss of balance. •... -
Page 5: Specific Safety Rules
SPECIFIC SAFETY RULES FOR BLOWER • Extension Cord – To reduce the risk of disconnection of appliance cord from the extension cord during operating, it is possible to tie the extension cord and power cord in a knot to then connect the plug end of the power cord into the receptacle end of the extension cord. This method can also be used to tie two extension cords together. - Page 6 SPECIFIC SAFETY RULES FOR BLOWER • Save these instructions. Refer to them frequently and use them to instruct others who may use this power tool. If you loan someone this power tool, loan them these instructions also. WHILE OPERATING UNIT AS A BLOWER •...
- Page 7 SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper inter-pretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles per second)
-
Page 8: Symbols ............................................................................................................................ 7
SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING DANGER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WARNING Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury. -
Page 9: Electrical
ELECTRICAL W A R N I N G THIS BLOWER IS FOR OUTDOOR USE ONLY. DO NOT EXPOSE TO RAIN OR USE IN DAMP LOCATIONS. GUIDELINES FOR USING EXTENSION CORDS USE THE PROPER EXTENSION CORD. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one of heavy enough gauge to carry the current your product will draw. - Page 10 ELECTRICAL W A R N I N G CHECK EXTENSION CORDS BEFORE EACH USE. IF DAMAGED REPLACE IMMEDIATELY. NEVER USE TOOL WITH A DAMAGED CORD SINCE TOUCHING THE DAMAGED AREA COULD CAUSE ELECTRICAL SHOCK RESULTING IN SERIOUS INJURY. ELECTRICAL CONNECTION This tool is powered by a precision built electric motor.
-
Page 11: Know Your Blower
KNOW YOUR BLOWER The safe use of this product requires an understanding of the information on the tool and in this operator’s manual as well as a knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features and safety rules. (See Fig. 2) BLOWER TUBE The blower tube can be easily installed on the blower without any additional tools. -
Page 12: Assembly
ASSEMBLY UNPACKING • This product requires assembly. W A R N I N G This new product has been shipped in a partially assembled condition as described below. Carefully check the packing list below to ensure all items are included in the package; the packing list describes all loose items that are not assembled to the product as shipped. -
Page 13: Operation
ASSEMBLY ASSEMBLING THE BLOWER TUBE (See Fig. 3) Slide blower tube forward until the notched areas on the blower housing locks into the slots on the tube. NOTCHED AREA SLOT BLOWER TUBE OUTLET Fig. 3 OPERATION W A R N I N G To reduce the risk of electrical shock, this appliance has a polarized plug (one blade is wider than the other). - Page 14 OPERATION CONNECTING THE POWER CORD 1. Secure the extension cord to the motor housing using the notch at rear of blower. This prevents accidental removal of the electrical cord. 2. Plug the female end of the electrical cord into the receptacle at the back of the unit. STARTING/STOPPING THE BLOWER (See Fig.
- Page 15 OPERATION • Watch out for children, pets, open windows, or freshly washed cars, and blow debris safely away. • Hold the blower with the handle in your right hand. (Proper operating position is shown in figure 6.) • Operate power equipment at reasonable hours only— not early in the morning or late at night when people might be disturbed.
-
Page 16: Maintenance
MAINTENANCE SERVICING DOUBLE-INSULATED UNITS This unit is double insulated. In a double-insulated unit, two systems of insulation are provided instead of grounding. There is no grounding provided and no means of grounding should be added to this unit. Extreme care and knowledge of the system is required when servicing a double-insulated unit. -
Page 17: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Unit will not blow. 1. Blocked tube. 1. Clear the blockage as described on page 11. 2. Unit unplugged. 2. Plug into an outlet or an extension cord. Unit will not start. 1. Unit is unplugged. 1. -
Page 18: Warranty
LIMITED TWO-YEAR WARRANTY YARDWORKS™ hereby warranties this product, to the original purchaser with proof of purchase, for a period of two(2) years against defects in materials, parts or workmanship. YARDWORKS™, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. -
Page 19: Exploded View
EXPLODED VIEW... -
Page 20: Parts List
PARTS LIST ITEM NO. PART NO. DESCRIPTION 3410879-1 Tube 3410679-6 Tube buckle 34101204-2 Switch board 31301204-2.R Right housing 31301204-2.L Left housing 3420311 Foam washer 3610279-2 Motor 36301204 Slide switch 3320179 Bushing 3410779 3340427 Tooth locked washer Ф8 3410127-1 Fan cap 3640179 Plug 36504161...
