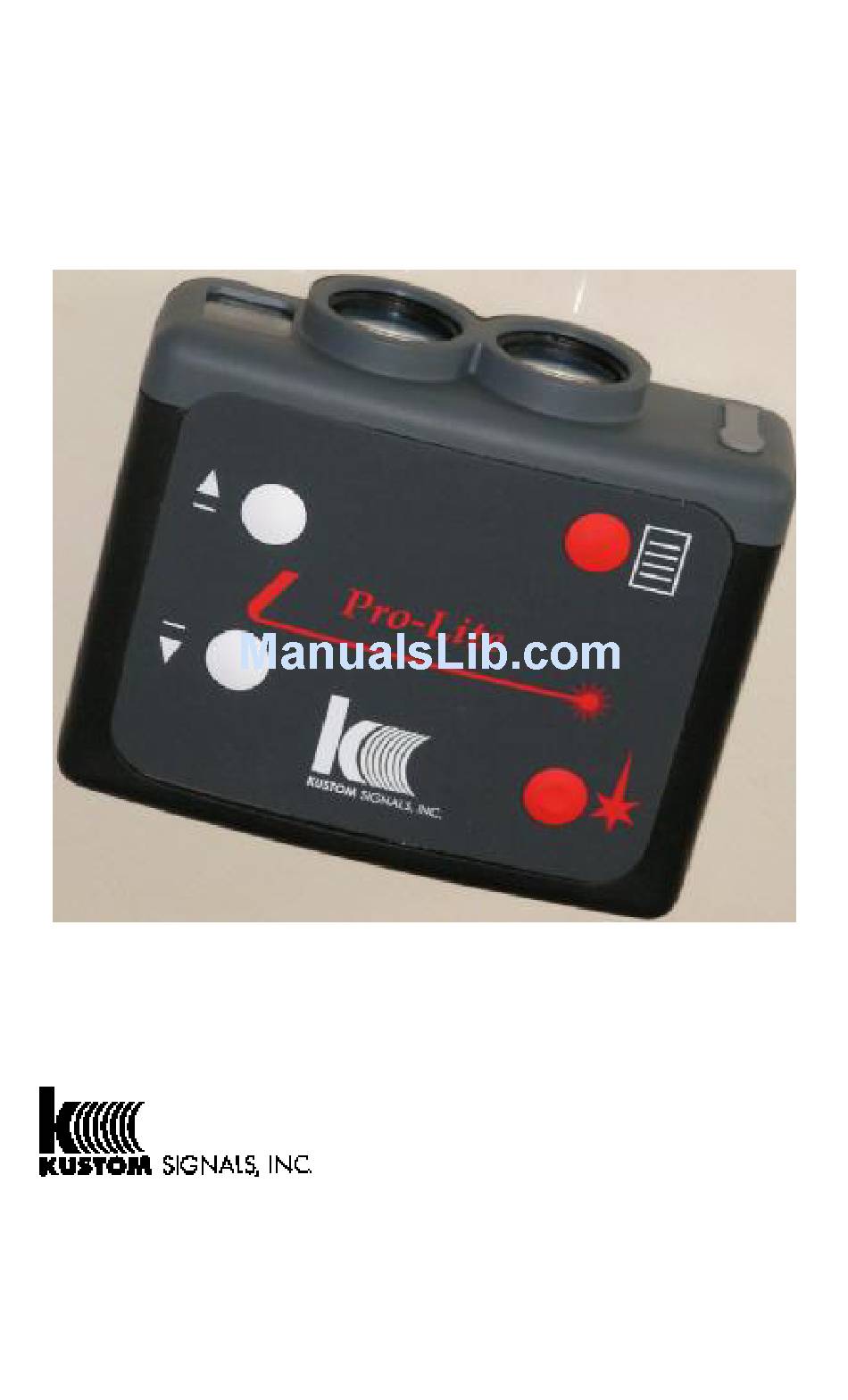

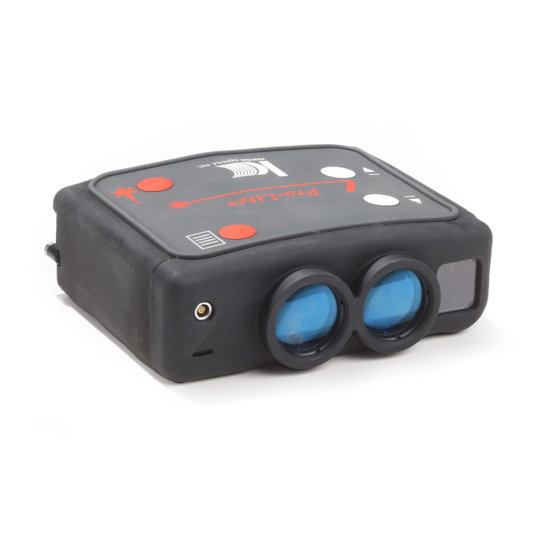

  • Page 1 Pro-Lite/Pro-Lite + REFERENCE MANUAL KPN 006-0821-00 Rev. 0...
  • Page 3 Kustom Signals, Inc., 9325 Pflumm Road, Lenexa, Kansas 66215-3347. Customer Service (800) 835-0156 (620) 431-2700...

  • Page 5: Table Of Contents

    Functional Description ..........3 Control Locations ............4 Control Descriptions..........6 Displays and Indicators ...........8 Heads-Up-Display ...........8 HUD (Heads-Up-Display) ..........8 Pro-Lite HUD version ............9 Pro-Lite + HUD version ..........10 Status Displays.............10 Operation..............11 Setup ................11 SELF-TEST sequence............14 Mode/option selection ..........16 Minimum and Maximum Distance/Range (DIST) ..17 Backlight ..............18...
  • Page 6 TABLE OF CONTENTS Operating Procedures ..........27 Speed Mode ..............27 Range Mode ..............28 Stopwatch Mode ............30 Stopwatch Enter Mode..........30 Stopwatch Measure Mode ..........32 External Output Signal..........34 Power Conservation Features.........34 Battery Operation..........34 Care and Maintenance...........36 Troubleshooting Procedures........37 Regulatory Compliance..........38 Eye Safety.............38 FCC Information ...........40 Specifications............41 Operational ..............42 Warranty ..............43...

  • Page 7: General Information

    In a compact, handheld package, the Pro-Lite offers the versatility of direct range and speed measurement. The unit offers a number of improved operating features and specifications, which make it easier to use and service, and easier to train personnel in its use.

  • Page 8: Unpacking

    Operators who are familiar with the use of conventional traffic safety radar or laser systems will find it a simple matter to become accustomed to the Pro-Lite, since it comes from a company with over 36 years of experience in the industry.

  • Page 9: Functional Description

    Pro-Lite, the timer is stopped. From the elapsed time taken for the laser pulse to strike and return from the target, the distance to the object is calculated with the known speed-of-light through the atmosphere.

  • Page 10: Control Locations

    Operation of the Pro-Lite primarily involves using the integrated LCD located on the back panel of the unit and the four pushbutton switches located on the top of the unit.
  • Page 11 Pro-Lite Operator’s Manual H. ¼ x 20 Mounting Screw: provides a mounting point for a tripod, monopod connection or lanyard. IGURE G. I/O Connector D. Mode/ ▲ Arrow E. Menu/ESC C. Test/ ▼ Arrow B. Fire/On/Enter A. LCD Aiming Sight H.

  • Page 12: Control Descriptions

    The preceding section of this Operator's Manual introduced you to the locations of the operating controls and features of the Pro-Lite. This section provides detailed descriptions of the function of each control. CAUTION: Use of controls or adjustments or performance of procedures other than those specified is not recommended.
  • Page 13 Pro-Lite Operator’s Manual The "ON" function is used to turn on primary power to the Pro-Lite. The unit automatically turns off after 20 minutes from the last function or button push. The "ENTER" function: Pressing the trigger button when a Menu or Menu option is displayed on the LCD accesses the selected Menu or selects the displayed option.

  • Page 14: Displays And Indicators

    HEADS-UP-DISPLAY The Heads-Up-Display, or HUD, performs two critical functions in the operation of the Pro-Lite and Pro-Lite +. First, it provides the aiming reticle which the operator uses to aim the unit at the desired target. Secondly, it displays...

  • Page 15: Pro-Lite Hud Version

    Pro-Lite Operator’s Manual 2. When the trigger is depressed and laser pulses are being transmitted, the HUD will display four dashes "----" indicating that the laser is being fired and that the instrument's range and speed measurement functions are activated. Display of the dashes in the HUD occurs simultaneously with the illumination of LCD characters directly beneath the "Speed"...

  • Page 16: Pro-Lite + Hud Version

    If your unit has "+" in the upper right corner of the rear panel LCD, it is the full tracking history Pro-Lite+. The basic functions of the Pro-Lite are present in the Pro-Lite + with the additional features of Full Tracking History on vehicles and greater targeting range.

  • Page 17: Operation

    In selecting a location for monitoring traffic, be aware that the Pro-Lite is subject to the cosine effect in the same manner as conventional microwave radar and other laser- based speed measuring systems. The cosine effect is a...
  • Page 18 Pro-Lite Operator’s Manual The greater the angle between the Pro-Lite and the direction of traffic, the greater the cosine error produced. For small angles, the cosine effect is relatively insignificant. For example, at angles of less than 8°, the cosine error is under 1% , and at angles of less than 14°, the error is...
  • Page 19 Speed accuracy is not affected by windshield or side glass, only targeting range. Due to the extremely narrow beam width of the Pro-Lite that makes precise target identification possible, it may be difficult to aim at long ranges if operated handheld. For those situations, using a monopod or tripod to assist in stabilizing the instrument is helpful.

  • Page 20: Self-Test Sequence

    Pro-Lite Operator’s Manual SELF-TEST sequence Test Messages Upon power up or a user-initiated test using the TEST/▼ Button, the unit performs the following tests: Indicator Test: checks all digits of the LCD and the HUD for correct operation < < < < < < < < < < < < < < < <...
  • Page 21 Pro-Lite Operator’s Manual Program Version: Displays the version of software installed in Pro-Lite. Self Test Version X.X Units of Measure: In addition to the self-test, the unit briefly flashes the units of measure before entering the default-operating mode. The screen is displayed below.

  • Page 22: Mode/Option Selection

    LCD, and the HUD displays speed measurements. MENU/ESC The MENU display is used to provide access to set-up and operating features of the Pro-Lite. Enter this mode after the unit has been powered up and completed self-test. Using the MENU pushbutton switch enables the operator to refine the set-up for a particular situation.

  • Page 23: Minimum And Maximum Distance/Range (Dist)

    Pro-Lite Operator’s Manual Minimum and Maximum Distance/Range (DIST) The distance control sets the minimum and maximum ranges at which target vehicle speeds are displayed. When the DISTANCE Menu selection is activated, the input screen appears as: Distance limits MINIMUM Minimum Distance Display and Control...

  • Page 24: Backlight

    ENTER pushbutton switch. This action returns you to the main Menu. Each time the Pro-Lite is powered up, the maximum range control setting defaults to its last setting selected by the operator.

  • Page 25: Audio Volume

    As the quality of range data from a target improves, the "chirp rate" increases, indicating proper aiming of the Pro-Lite. When a range or speed is actually displayed, the chirping simultaneously changes to a solid tone.

  • Page 26: Brightness

    Pro-Lite Operator’s Manual The audible alert volume can be adjusted in the same manner as the HUD brightness. The screen appears as below: Buzzer Volume < < < < There are six (6) LCD blocks corresponding to the volume level of the audio annunciator. Use the arrows to adjust the volume.

  • Page 27: Diff Distance (Differential Distance Test) - Optional

    Avoid using excessively bright settings for lower level ambient light conditions, as this makes target identification more difficult. Upon being powered up, the Pro-Lite automatically defaults to the last brightness level set by the user. NOTE: The Pro Lite will remember any change to this feature.

  • Page 28: Environment Menu (Weather Or Obstruction Mode)

    The environment feature is used to improve the unit’s sensitivity and performance in adverse weather conditions or when using the Pro-Lite through windshields or other obstructions. Fog, rain, snow and blowing dust can sometimes interfere with the performance of the Pro-Lite.

  • Page 29: Target Direction Menu

    Note that a continuous, audible tone is still emitted when a vehicle speed is determined in a direction opposite that of the direction mode selected (HUD tracking versions only). If "BOTH" is selected, the Pro-Lite displays speeds for all vehicles. Page 23...

  • Page 30: Accuracy Tests

    (Listening to the audio "chirp" indicating reflection of laser pulses is helpful when using overhead wires.) Rotate the Pro-Lite so that it is at right angles to its normal operating position, (positioned on its side) and repeat the process to verify horizontal alignment.

  • Page 31: Diff Distance (Differential Distance Test) - Optional

    (measurement point) be carefully marked. The minimum target separation should be 10 feet. Position the Pro-Lite so that the front face of the unit is precisely placed at the zero foot point. You may find that using a tripod or monopod will be useful, but is not a requirement.
  • Page 32 80 feet and 55 feet, with a final separation of 25 feet, the final speed-reading on the Pro-Lite must be 49, 50, or 51. This assumes the target has moved this distance in 1/3 second. Other range differences can work.

  • Page 33: Operating Procedures

    ACCURACY TESTS section of this manual, you are now ready to make range and speed measurements. Orient the Pro-Lite toward the traffic flow in as nearly a parallel direction to traffic flow as the setup location permits. Looking through the HUD, aim the Pro-Lite at the desired target, and depress the trigger.

  • Page 34: Range Mode

    Pro-Lite has calculated a speed and you will see the speed and direction indicated below the reticle, the same as the Pro-Lite +. The speed and last target distance are also shown on the rear panel LCD. To take another speed-reading, depress the trigger pushbutton switch again and the locked speed and range readings will be erased.
  • Page 35 1,500’. The Pro-Lite + has a maximum targeting distance of 2,000’. If the Pro-Lite + is aimed at a fairly large, distant object, and then "panned" or swept across the surface of the structure, you may occasionally hear the intermittent aiming tone sound.

  • Page 36: Stopwatch Mode

    Pro-Lite Operator’s Manual Stopwatch Mode The stopwatch mode of the Pro-Lite is used to calculate average speed based on the elapsed time taken by a vehicle to travel a predetermined distance. To use the stopwatch mode, press MENU and use the arrows to move to the STPW selection.
  • Page 37 Pro-Lite Operator’s Manual Using the arrows, adjust reading to the pre-measured distance the target vehicle will be traveling during the measurement. The minimum range that can be used is 300 feet. Press ENTER to confirm your selection. Once ENTER is pushed, the Audio On/Off screen displays as...

  • Page 38: Stopwatch Measure Mode

    Dist2 If the second point is the location where the operator is standing, simply press TEST / ▼ ARROW and the Pro-Lite uses "Dist1" as the total distance, or you can obtain a second range by aiming the unit at another target and depressing the trigger.
  • Page 39 Pro-Lite Operator’s Manual The range appears in the area next to "Dist2". After a suitable range is obtained, press TEST / ▼ ARROW. Note that "Distance too short" appears if the range difference is less than 300 feet. The difference between the two ranges displays on the...

  • Page 40: External Output Signal

    Pro-Lite Operator’s Manual EXTERNAL OUTPUT SIGNAL The I/O connector on the front side of the Pro-Lite provides a means to connect an external computer, data storage or Giant Display device to the instrument. In a typical application, this might be used to display or store speed-readings from the Pro-Lite.
  • Page 41 Pro-Lite Operator’s Manual The figure below illustrates the correct insertion of the 2 "AA" size batteries. FIGURE 2 A figure is provided in the battery compartment to assist in the proper orientation of the batteries. Please check your local or state regulations on disposal of batteries.

  • Page 42: Care And Maintenance

    Pro-Lite Operator’s Manual CARE AND MAINTENANCE The Pro-Lite is designed and constructed so that only a minimal amount of maintenance is required. Maintenance consists of periodic cleaning of the external optical surfaces. This should be done only when necessary, as evidenced by degradation in performance of the unit or by visible contamination on the optics surfaces.

  • Page 43: Troubleshooting Procedures

    In the event of suspected instrument malfunction, double-check the setup and operational procedures, as well as the power source. If all these appear satisfactory and the Pro-Lite still does not perform properly, it should be returned to the Kustom Signals factory for service. Visit www.kustomsignals.com and click on the Parts &...

  • Page 44: Regulatory Compliance

    CDRH is an agency of the Federal Food and Drug Administration that has the responsibility of ensuring the safety of all laser products sold in the US. The Pro-Lite is certified as a Class I device in accordance with the safety standards of CDRH.
  • Page 45 In all respects of normal operation, excluding intentional abuse, the Pro-Lite is completely safe for human exposure. Persons interested in receiving further information...

  • Page 46: Fcc Information

    Pro-Lite Operator’s Manual FCC INFORMATION Since the Pro-Lite is not designed to transmit RF (radio frequency) radiation, an FCC station license is not required for operation of the device. However, the Pro-Lite does employ internal high frequency digital circuitry to perform...

  • Page 47: Specifications

    Pro-Lite Operator’s Manual SPECIFICATIONS Nominal Power Requirements Voltage (VDC) Current (ma) Speed mode, laser firing Range mode, laser firing, backlight on Idle Sleep Power Down 0.05 ALERT! (Low voltage) 2.0 VDC nominal WARNING! (Low volt) 1.8 VDC nominal Battery 2 each 1.5 VDC nominal, AA size Alkaline Operating Temperature -30 to +60°C (-22 to +140°F)

  • Page 48: Operational

    Pro-Lite Operator’s Manual OPERATIONAL Speed Range 5 to 200 mph (8 to 320 km/h) Speed Display Accuracy +/- 1 mph (+/- 2 km/h) Target Range + HUD 10 feet min., up to 2000 feet unit (3.048 m up to 609.6 m) Target Range HUD 10 feet min., up to 1500 feet...

  • Page 49: Warranty

    Owner or Lessee. • This Warranty applies only to the original registered Owner or Lessee on file at Kustom Signals, Inc., and cannot be assigned or transferred to a third party. • The Owner or Lessee shall use the Equipment in accordance with the manufacturer’s operational...
  • Page 50 • The liability of Kustom Signals, Inc., if any, with respect to the equipment, shall be limited as provided in this Warranty. Kustom Signals, Inc. disclaims any obligation or liability for the loss of use of the...
