Kustom Signals Eagle 3 North Carolina Quick Reference Manual

4

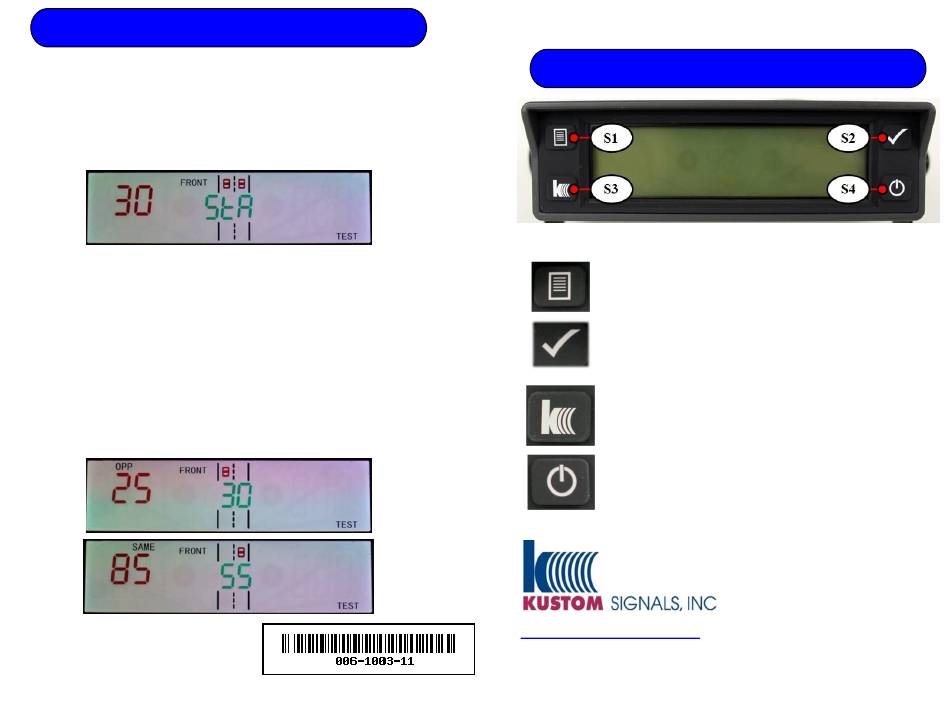

Eagle 3 Tuning Fork Test

Stationary Tuning Fork Test

1. Place the Eagle 3 in stationary mode, select Front antenna.
2. Press the Test button or touch screen lower right.
3. Lightly strike the low fork (30 mph) and place in front of the
antenna. Verify the speed displayed is ± 1 mph.
4. Repeat for the high fork and rear antenna (if equipped.)

Moving Mode Tuning Fork Tests

1. Place in the Moving Opposite mode, select Front antenna.
2. Press the Test button or touch screen lower right.
3. Lightly strike the low fork (30 mph) and place in front of the
antenna. Verify the Patrol speed displayed is ± 1 mph.
4. While holding the lower speed fork in front of the antenna,
lightly strike the high fork (55 mph) and place in front of the
antenna. Verify the Target speed displayed is the difference
between forks (25 mph) with a tolerance of ± 1 mph.
5. Repeat for Same direction with the High, then Low forks.
6. Verify the speed is the sum of the forks (85) ± 1 mph.
7. Repeat for the rear antenna (if equipped.)
Eagle 3 Quick Reference Guide
KSI Part # 006-1003-11 Rev 2
Eagle 3 Quick Reference Guide
North Carolina Edition
1

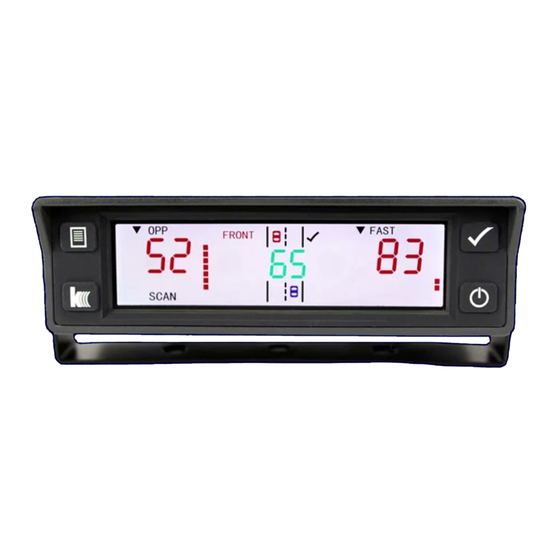

Eagle 3 Front Panel Controls

S1 - Press to enter Menus. In Menus, pressing
increments Menu screens.
S2 - Initiates the display, internal and tuning fork
tests. In Menus, pressing will save selection and
return to Main Enforcement screen.
S3 - Programmable soft key for shortcut to
favorite menu. Toggles Patrol Speed Blanking
with a locked target and antennas in hold.
S4 - Control for power on / off. Power off to save
current menu selections.
