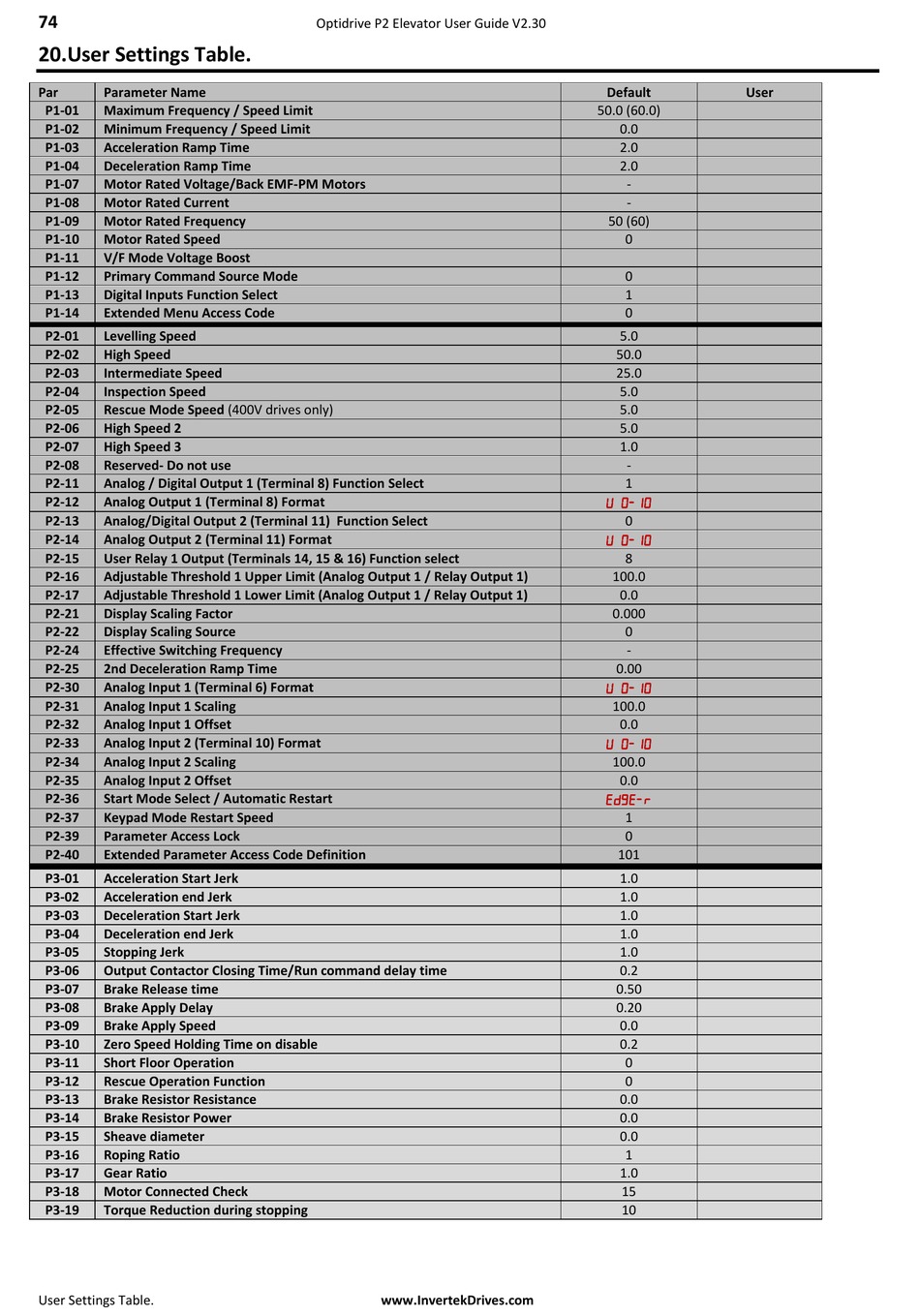

20. User Settings Table.

Par Parameter Name
P1-01 Maximum Frequency / Speed Limit
P1-02 Minimum Frequency / Speed Limit
P1-03 Acceleration Ramp Time
P1-04 Deceleration Ramp Time
P1-07 Motor Rated Voltage/Back EMF-PM Motors
P1-08 Motor Rated Current
P1-09 Motor Rated Frequency
P1-10 Motor Rated Speed
P1-11 V/F Mode Voltage Boost
P1-12 Primary Command Source Mode
P1-13 Digital Inputs Function Select
P1-14 Extended Menu Access Code
P2-01 Levelling Speed
P2-02 High Speed
P2-03 Intermediate Speed
P2-04 Inspection Speed
P2-05 Rescue Mode Speed (400V drives only)
P2-06 High Speed 2
P2-07 High Speed 3
P2-08 Reserved- Do not use
P2-11 Analog / Digital Output 1 (Terminal 8) Function Select
P2-12 Analog Output 1 (Terminal 8) Format
P2-13 Analog/Digital Output 2 (Terminal 11) Function Select
P2-14 Analog Output 2 (Terminal 11) Format
P2-15 User Relay 1 Output (Terminals 14, 15 & 16) Function select
P2-16 Adjustable Threshold 1 Upper Limit (Analog Output 1 / Relay Output 1)
P2-17 Adjustable Threshold 1 Lower Limit (Analog Output 1 / Relay Output 1)
P2-21 Display Scaling Factor
P2-22 Display Scaling Source
P2-24 Effective Switching Frequency
P2-25 2nd Deceleration Ramp Time
P2-30 Analog Input 1 (Terminal 6) Format
P2-31 Analog Input 1 Scaling
P2-32 Analog Input 1 Offset
P2-33 Analog Input 2 (Terminal 10) Format
P2-34 Analog Input 2 Scaling
P2-35 Analog Input 2 Offset
P2-36 Start Mode Select / Automatic Restart
P2-37 Keypad Mode Restart Speed
P2-39 Parameter Access Lock
P2-40 Extended Parameter Access Code Definition
P3-01 Acceleration Start Jerk
P3-02 Acceleration end Jerk
P3-03 Deceleration Start Jerk
P3-04 Deceleration end Jerk
P3-05 Stopping Jerk
P3-06 Output Contactor Closing Time/Run command delay time
P3-07 Brake Release time
P3-08 Brake Apply Delay
P3-09 Brake Apply Speed
P3-10 Zero Speed Holding Time on disable
P3-11 Short Floor Operation
P3-12 Rescue Operation Function
P3-13 Brake Resistor Resistance
P3-14 Brake Resistor Power
P3-15 Sheave diameter
P3-16 Roping Ratio
P3-17 Gear Ratio
P3-18 Motor Connected Check
P3-19 Torque Reduction during stopping
