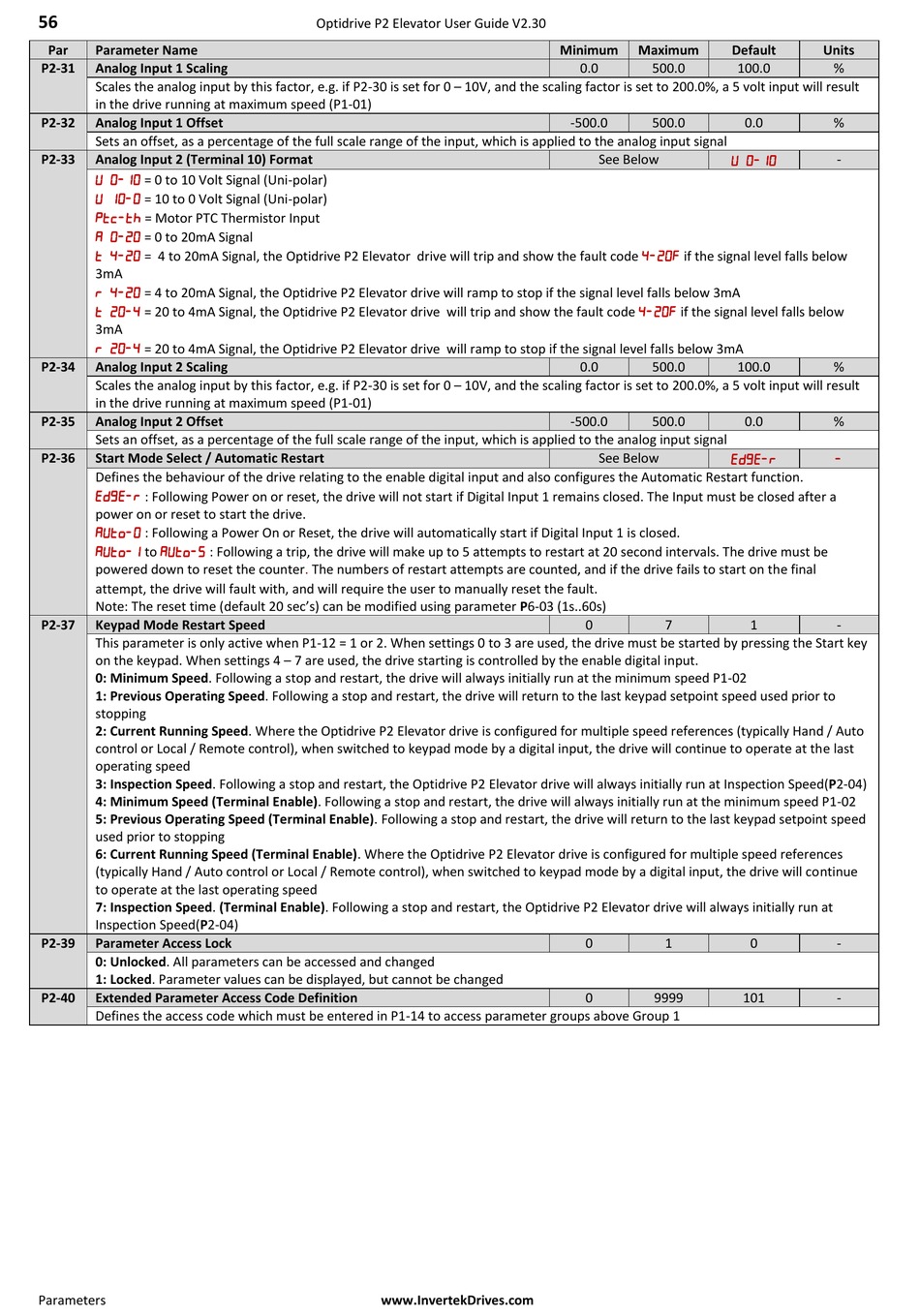

56
Par
Parameter Name
P2-31
Analog Input 1 Scaling
Scales the analog input by this factor, e.g. if P2-30 is set for 0 – 10V, and the scaling factor is set to 200.0%, a 5 volt input will result
in the drive running at maximum speed (P1-01)
P2-32
Analog Input 1 Offset
Sets an offset, as a percentage of the full scale range of the input, which is applied to the analog input signal
P2-33
Analog Input 2 (Terminal 10) Format

= 0 to 10 Volt Signal (Uni-polar)

= 10 to 0 Volt Signal (Uni-polar)

= Motor PTC Thermistor Input

= 0 to 20mA Signal

= 4 to 20mA Signal, the Optidrive P2 Elevator drive will trip and show the fault code
3mA

= 4 to 20mA Signal, the Optidrive P2 Elevator drive will ramp to stop if the signal level falls below 3mA

= 20 to 4mA Signal, the Optidrive P2 Elevator drive will trip and show the fault code
3mA

= 20 to 4mA Signal, the Optidrive P2 Elevator drive will ramp to stop if the signal level falls below 3mA
P2-34
Analog Input 2 Scaling
Scales the analog input by this factor, e.g. if P2-30 is set for 0 – 10V, and the scaling factor is set to 200.0%, a 5 volt input will result
in the drive running at maximum speed (P1-01)
P2-35
Analog Input 2 Offset
Sets an offset, as a percentage of the full scale range of the input, which is applied to the analog input signal
P2-36
Start Mode Select / Automatic Restart
Defines the behaviour of the drive relating to the enable digital input and also configures the Automatic Restart function.

: Following Power on or reset, the drive will not start if Digital Input 1 remains closed. The Input must be closed after a
power on or reset to start the drive.

: Following a Power On or Reset, the drive will automatically start if Digital Input 1 is closed.


to
: Following a trip, the drive will make up to 5 attempts to restart at 20 second intervals. The drive must be
powered down to reset the
attempt, the drive will fault with, and will require the user to manually reset the
Note: The reset time (default 20 sec's) can be modified using parameter P6-03 (1s..60s)
P2-37
Keypad Mode Restart Speed
This parameter is only active when P1-12 = 1 or 2. When settings 0 to 3 are used, the drive must be started by pressing the Start key
on the keypad. When settings 4 – 7 are used, the drive starting is controlled by the enable digital input.
0: Minimum Speed. Following a stop and restart, the drive will always initially run at the minimum speed P1-02
1: Previous Operating Speed. Following a stop and restart, the drive will return to the last keypad setpoint speed used prior to
stopping
2: Current Running Speed. Where the Optidrive P2 Elevator drive is configured for multiple speed references (typically Hand / Auto
control or Local / Remote control), when switched to keypad mode by a digital input, the drive will continue to operate at the last
operating speed
3: Inspection Speed. Following a stop and restart, the Optidrive P2 Elevator drive will always initially run at Inspection Speed(P2-04)
4: Minimum Speed (Terminal Enable). Following a stop and restart, the drive will always initially run at the minimum speed P1-02
5: Previous Operating Speed (Terminal Enable). Following a stop and restart, the drive will return to the last keypad setpoint speed
used prior to stopping
6: Current Running Speed (Terminal Enable). Where the Optidrive P2 Elevator drive is configured for multiple speed references
(typically Hand / Auto control or Local / Remote control), when switched to keypad mode by a digital input, the drive will continue
to operate at the last operating speed
7: Inspection Speed. (Terminal Enable). Following a stop and restart, the Optidrive P2 Elevator drive will always initially run at
Inspection Speed(P2-04)
P2-39
Parameter Access Lock
0: Unlocked. All parameters can be accessed and changed
1: Locked. Parameter values can be displayed, but cannot be changed
P2-40
Extended Parameter Access Code Definition
Defines the access code which must be entered in P1-14 to access parameter groups above Group 1
Parameters
Optidrive P2 Elevator User Guide V2.30
counter.
The numbers of restart attempts are counted, and if the drive fails to start on the final
www.InvertekDrives.com
Minimum
Maximum
Default
0.0
500.0
-500.0
500.0

See Below

if the signal level falls below

if the signal level falls below
0.0
500.0
-500.0
500.0

See Below
fault.
0
7
0
1
0
9999
Units
100.0
%
0.0
%
-
100.0
%
0.0
%
1
-
0
-
101
-
