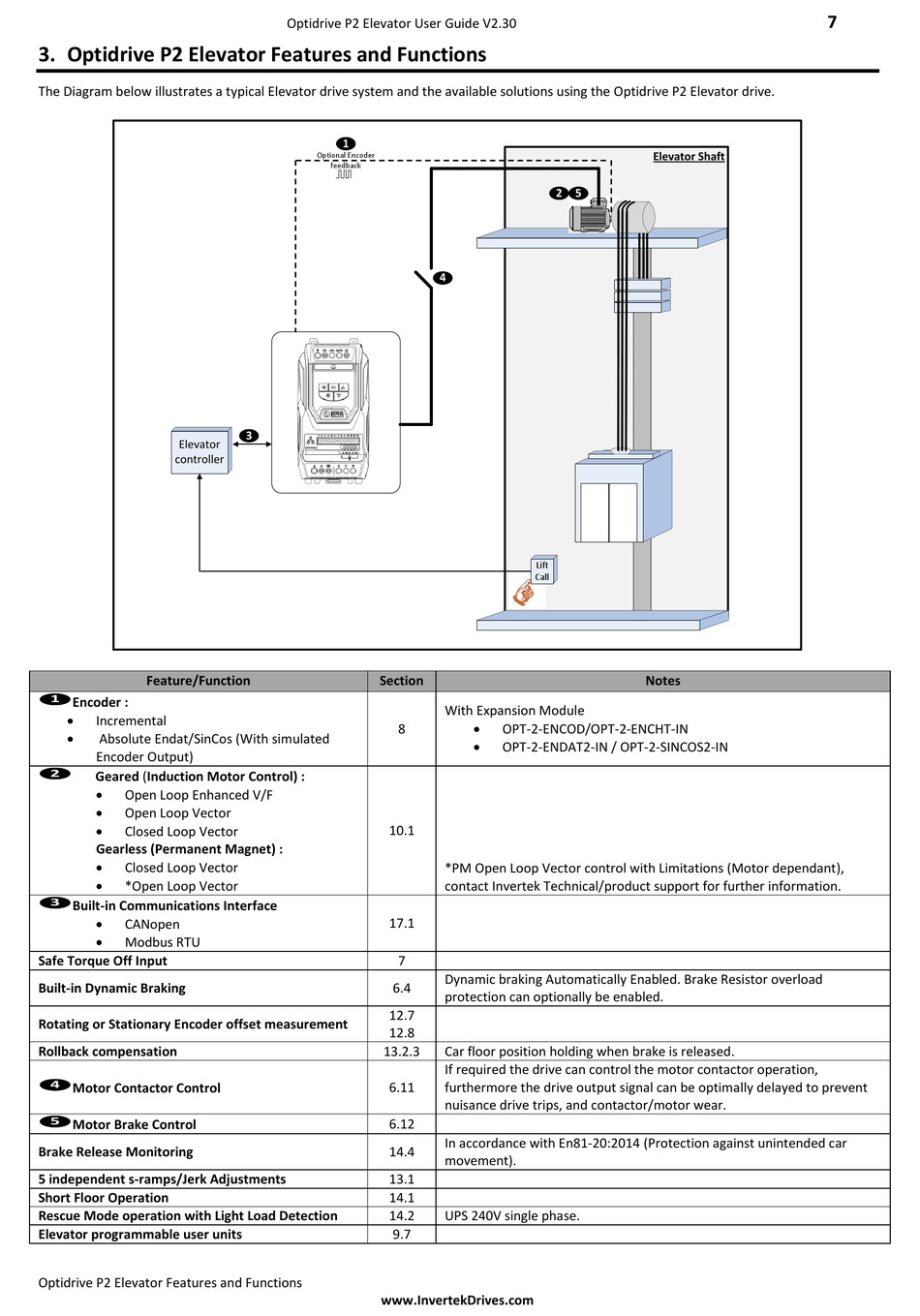

3. Optidrive P2 Elevator Features and Functions
The Diagram below illustrates a typical Elevator drive system and the available solutions using the Optidrive P2 Elevator drive.
Elevator
controller
Feature/Function
1
Encoder :
Incremental
Absolute Endat/SinCos (With simulated
Encoder Output)
2
Geared (Induction Motor Control) :
Open Loop Enhanced V/F
Open Loop Vector
Closed Loop Vector
Gearless (Permanent Magnet) :
Closed Loop Vector
*Open Loop Vector
3
Built-in Communications Interface
CANopen
Modbus RTU
Safe Torque Off Input
Built-in Dynamic Braking
Rotating or Stationary Encoder offset measurement
Rollback compensation
4
Motor Contactor Control
5
Motor Brake Control
Brake Release Monitoring
5 independent s-ramps/Jerk Adjustments
Short Floor Operation
Rescue Mode operation with Light Load Detection
Elevator programmable user units
Optidrive P2 Elevator Features and Functions
Optidrive P2 Elevator User Guide V2.30
1
Optional Encoder
feedback
3
Section
8
10.1
17.1
7
6.4
12.7
12.8
13.2.3
6.11
6.12
14.4
13.1
14.1
14.2
9.7
www.InvertekDrives.com
2
5
4
Lift
Call
With Expansion Module
OPT-2-ENCOD/OPT-2-ENCHT-IN
OPT-2-ENDAT2-IN / OPT-2-SINCOS2-IN
*PM Open Loop Vector control with Limitations (Motor dependant),
contact Invertek Technical/product support for further information.
Dynamic braking Automatically Enabled. Brake Resistor overload
protection can optionally be enabled.
Car floor position holding when brake is released.
If required the drive can control the motor contactor operation,
furthermore the drive output signal can be optimally delayed to prevent
nuisance drive trips, and contactor/motor wear.
In accordance with En81-20:2014 (Protection against unintended car
movement).
UPS 240V single phase.
Elevator Shaft
Notes
7
