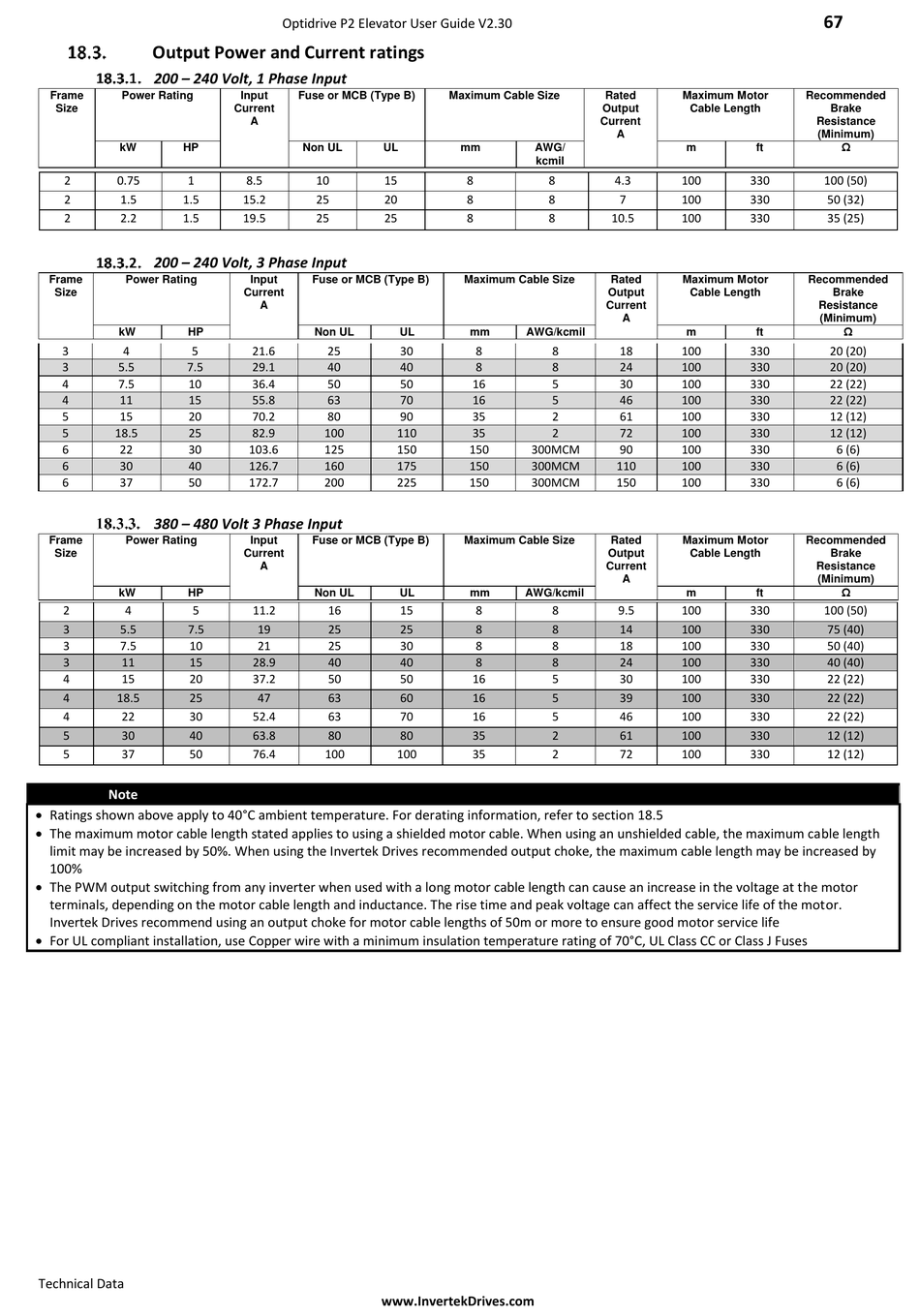

Output Power and Current ratings

200 – 240 Volt, 1 Phase Input
Frame Power Rating
Size
kW HP
2 0.75 1
2 1.5 1.5
2 2.2 1.5
200 – 240 Volt, 3 Phase Input
Frame Power Rating
Size
kW HP
3 4 5
3 5.5 7.5
4 7.5 10
4 11 15
5 15 20
5 18.5 25
6 22 30
6 30 40
6 37 50
380 – 480 Volt 3 Phase Input
Frame Power Rating
Size
kW HP
2 4 5
3 5.5 7.5
3 7.5 10
3 11 15
4 15 20
4 18.5 25
4 22 30
5 30 40
5 37 50
Note
 Ratings shown above apply to 40°C ambient temperature. For derating information, refer to section 18.5
 The maximum motor cable length stated applies to using a shielded motor cable. When using an unshielded cable, the maximum cable length
limit may be increased by 50%. When using the Invertek Drives recommended output choke, the maximum cable length may be increased by
100%
 The PWM output switching from any inverter when used with a long motor cable length can cause an increase in the voltage at the motor
terminals, depending on the motor cable length and inductance. The rise time and peak voltage can affect the service life of the motor.
Invertek Drives recommend using an output choke for motor cable lengths of 50m or more to ensure good motor service life
 For UL compliant installation, use Copper wire with a minimum insulation temperature rating of 70°C, UL Class CC or Class J Fuses
Technical Data
Optidrive P2 Elevator User Guide V2.30
Input Fuse or MCB (Type B)
Current
A
Non UL UL
8.5 10 15
15.2 25 20
19.5 25 25
Input Fuse or MCB (Type B)
Current
A
Non UL UL
21.6 25 30
29.1 40 40
36.4 50 50
55.8 63 70
70.2 80 90
82.9 100 110
103.6 125 150
126.7 160 175
172.7 200 225
Input Fuse or MCB (Type B)
Current
A
Non UL UL
11.2 16 15
19 25 25
21 25 30
28.9 40 40
37.2 50 50
47 63 60
52.4 63 70
63.8 80 80
76.4 100 100
