Installation; Preparation; Installation Environment; Unpacking And Inspection - Vertiv Liebert ITA2 Installation Manual

2.0

INSTALLATION

2.1

Preparation

2.1.1

Installation Environment

The Liebert ITA2 Battery Cabinet must be installed in an environment meeting the following requirements:
• Well-ventilated
• No direct sunlight on the system
• Free from water, heat source and flammable and explosive substances
• Free from dust, volatile gases and corrosive materials
Tools Required
• Phillips screwdriver: install the rack rails
• Flat-blade screwdriver, install the extension cable
2.2

Unpacking and Inspection

1. Unpack the battery cabinet and inspect its appearance. If any damage is found, notify the carrier immediately and report it
to your Vertiv representative.
2. Check against the delivery list to ensure that the items delivered match the order.
2.3

Attaching and Removing the Bezel

To attach the battery cabinet's plastic bezel:
1. Obtain the bezel from the accessories package.

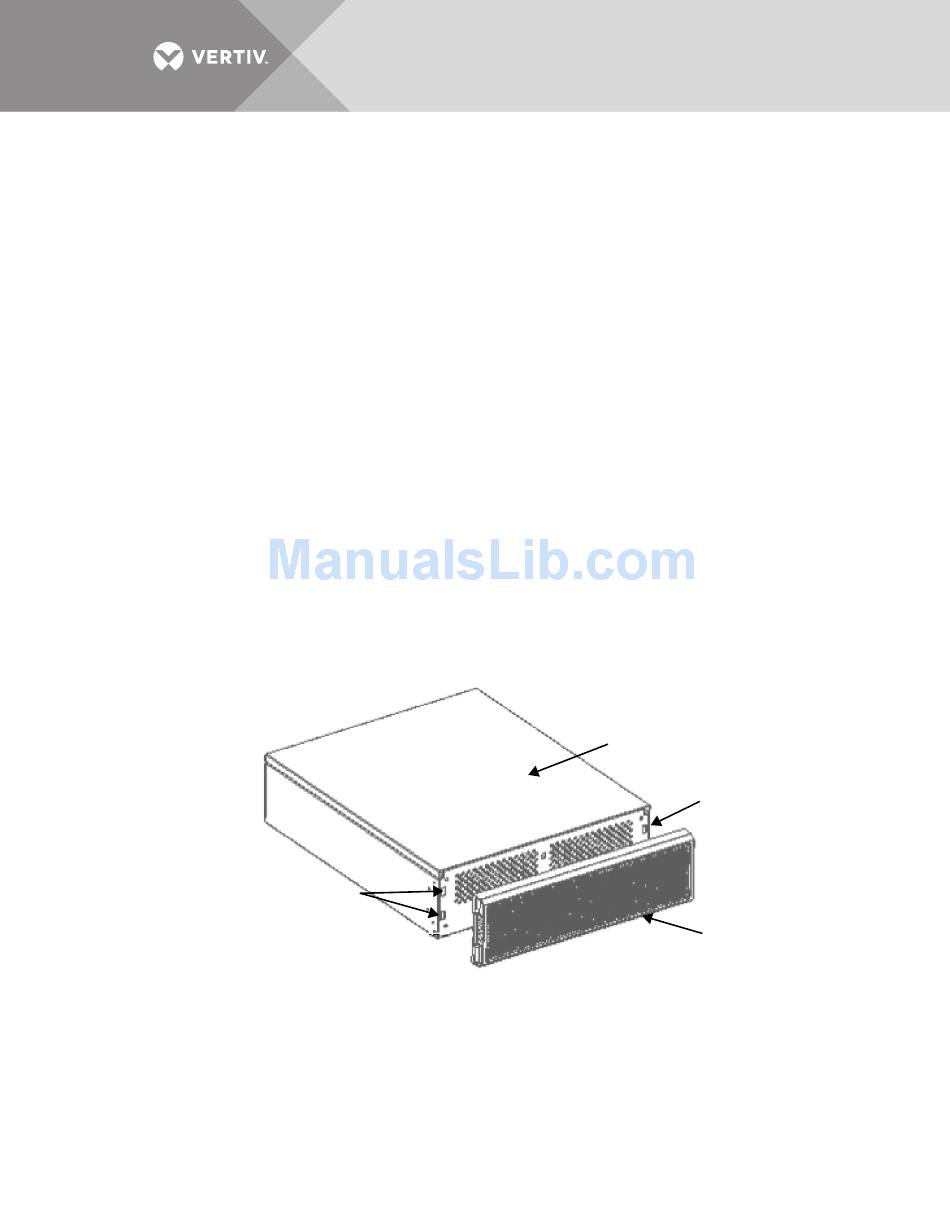

2. Align the bezel with the front panel of the battery cabinet as shown in Figure 3.
3. Press the fittings on both sides of the bezel into the rectangular holes on the battery cabinet.
Figure 3

Attaching the bezel

1. Battery 2. Rectangular Hole
Cabinet
To remove the bezel, press the two concave surfaces of the bezel, and pull it away from the cabinet.
