2.4 Mechanical Installation—Tower
1. Obtain the support base and extensions from the UPS accessories package.
2. Assemble the support bases and the support base extensions as shown in Figure 4. Four support bases are required for a
UPS.

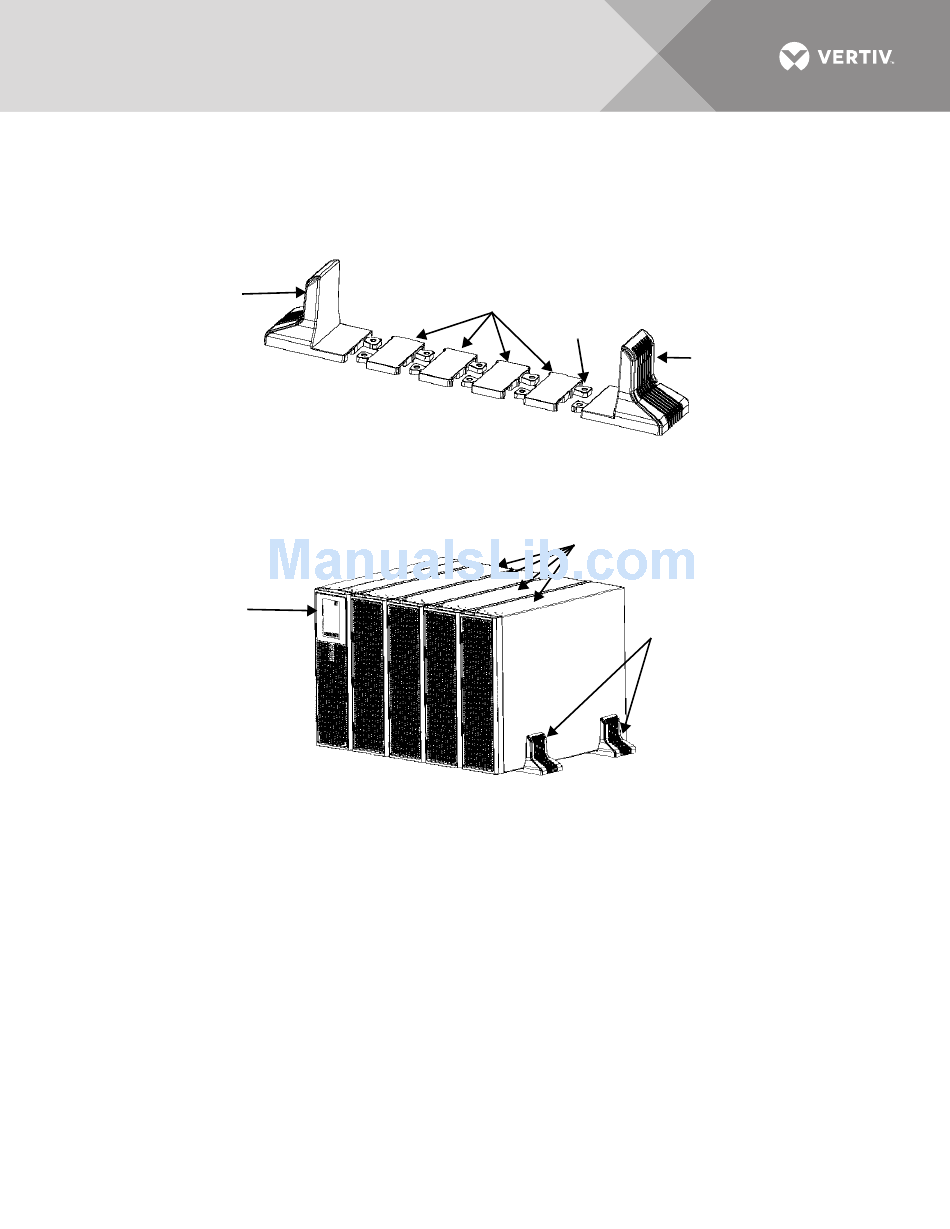

Figure 4 Installing support bases with support base extension
1
1. Support Base 2. Support Base Extensions
3. Place the battery cabinets and the UPS on the support bases, as shown in Figure 5.
Figure 5

Tower installation

1
1. Liebert ITA2 UPS 2. Liebert ITA2 Battery Cabinets, 4
4. Attach the bezel to each battery cabinet, see 2.3 - Attaching and Removing the Bezel.
