This appendix lists Ethernet module startup messages (both normal and error) that
can appear on the LCD or the terminal. Startup messages appear on the two-line,
24-character LCD located on the front panel of the NETBuilder II base system and on
the display of the terminal, which is attached to the console port on the CEC module's
connector/LED panel.
The messages displayed on the terminal usually provide more detail than the
messages displayed on the LCD. However, the self-test failure messages displayed on
the LCD provide more detail than the messages displayed on the terminal.
There are only a few messages specific to the Ethernet module. You can determine
most of the Ethernet module status by the LED status and activity lights on the
Ethernet module's connector/LED panel. Chapter 1, "Overview of the Ethernet
Module," describes the Ethernet LEDs.
This section describes Ethernet module-specific messages that can appear on the LCD.

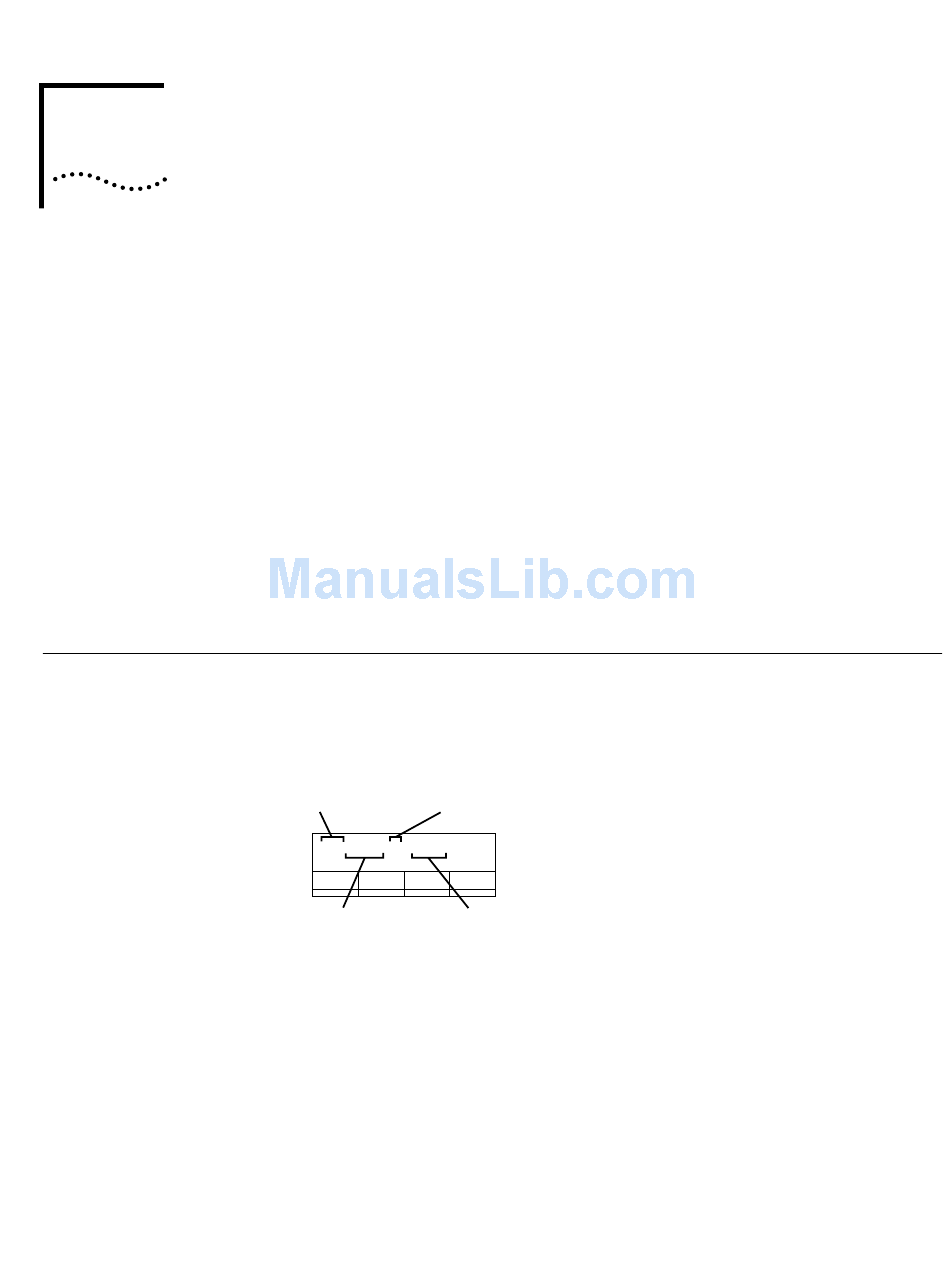

Figure C-1 shows a sample LCD self-test initialization message and explains the format.
Self test Slot number of module
ST:ENET: # : TTTT
Module Subtest being
being tested performed
on module
Figure C-1 Self-Test Initialization Message
The pound sign (#) represents the slot number of the module being tested, which can
be 1 through 8, depending on the NETBuilder II chassis you have.
Figure C-2 shows a sample LCD self-test failure message.
