3Com NETBUILDER II Installation Manual page 10

2-2 C 2: I
HAPTER NSTALLATION
Reviewers, where are the
MAC address and serial
number labels now located?
Front or back side,
and where on board?

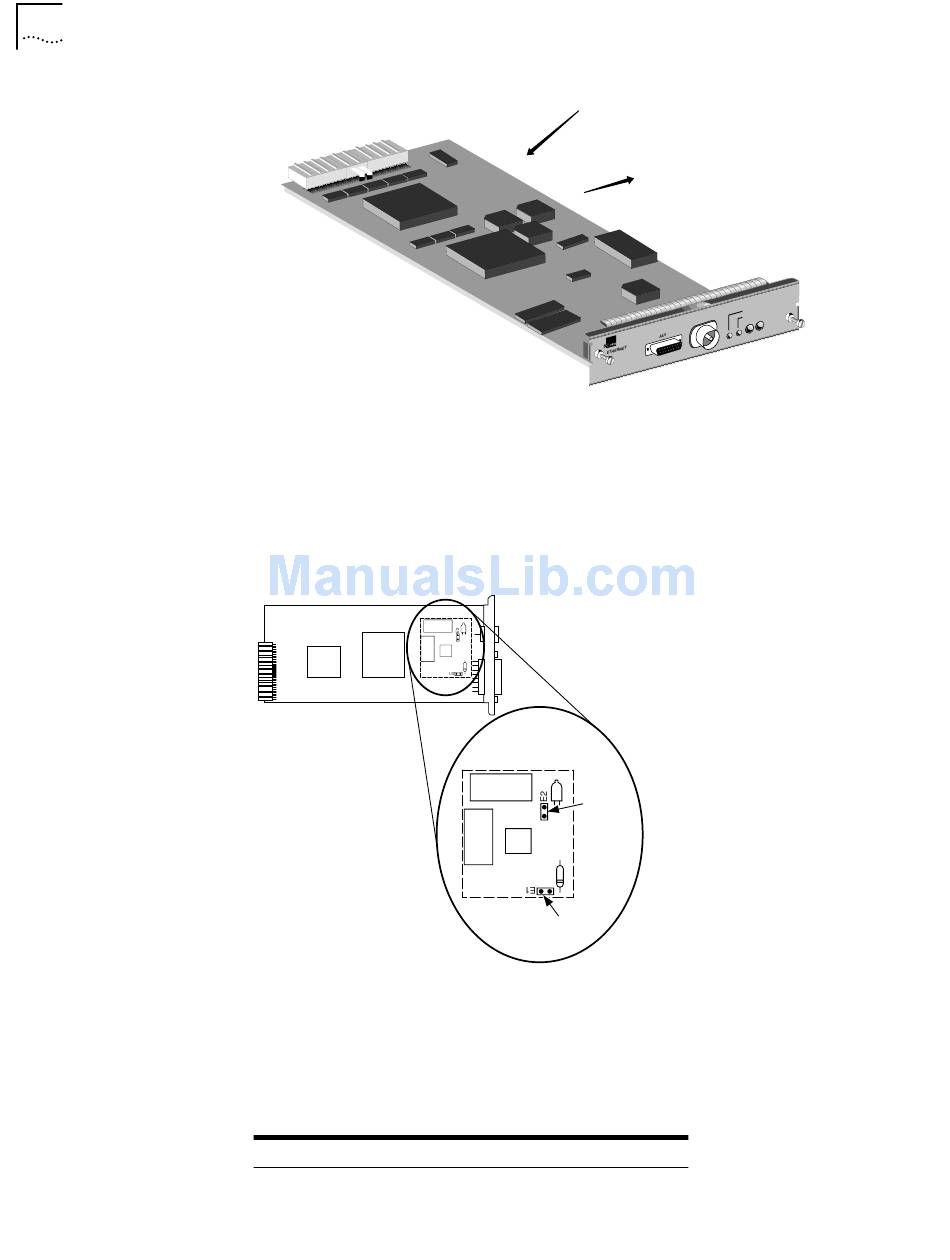

Figure 2-1 Serial Number and MAC Address on the Ethernet Module
5 Check the transceiver jumper position on the board.
If you are setting up a thin cable (BNC) network and want to use on-board
termination, you may have to move the jumper. If the jumper is installed at E1, move it
to position E2 to implement on-board termination.
Figure 2-2 shows the transceiver jumper and the E1 and E2 mounting sites.
Figure 2-2 Transceiver Jumper and E1, E2 Mounting Locations for BNC Connection
6 Verify that you have the appropriate cable and connector for use with an AUI network
connection. (This cable is not provided with the board.)
Table 2-1 lists the pinouts for AUI connectors.
Table 2-1 AUI Connector Pin Assignments
Pin Number
1
2
MAC address label
Serial number label
Jumper
E2
Jumper
E1
Function
Collision shield
Collision +
A U I
T X
B N C
T U S
S T A
®
