Figure 2-6 Internally and Externally Terminated Thin Ethernet Connections
The connector on the left is the AUI thick Ethernet cable connector. Connect one end
of the cable to the Ethernet module (see Figure 2-7) and the other end to the network
transceiver box. Secure the cable connector to the I/O connector with the sliding latch.
Thick Ethernet termination

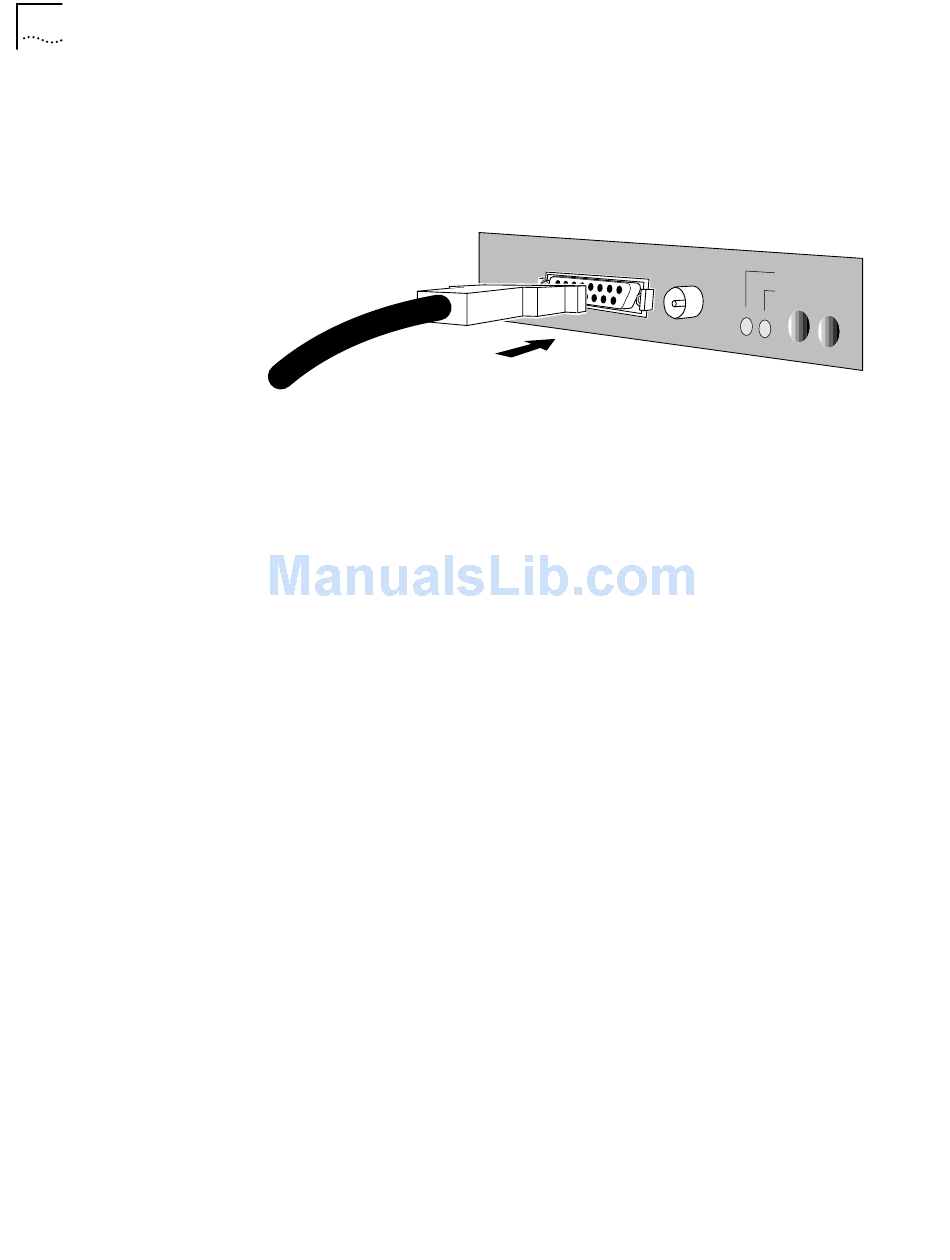

Figure 2-7 AUI Thick Ethernet Connection
Install and cable any other I/O modules, referring to the appropriate I/O module
installation guide.
When you have finished installing all I/O modules, refer to the NETBuilder II Base System
Installation Guide to complete the NETBuilder II base system installation steps.
