Connecting to a Recorder
You can also connect your Blackmagic Studio Camera to an external recorder, for example a
Blackmagic HyperDeck Studio disk recorder for indoor studio recording. Or even mount a
HyperDeck Shuttle or Blackmagic Video Assist to your studio camera and loop through to the
switcher for ISO recordings during an outside broadcast.
That's all there is to getting started! Live production is exciting and your Blackmagic Studio
Camera is designed to give you an easy and fun experience. Please keep reading the manual
to learn about all the different features and settings on your Blackmagic Studio Camera.

Camera Features

Blackmagic Studio Camera Features

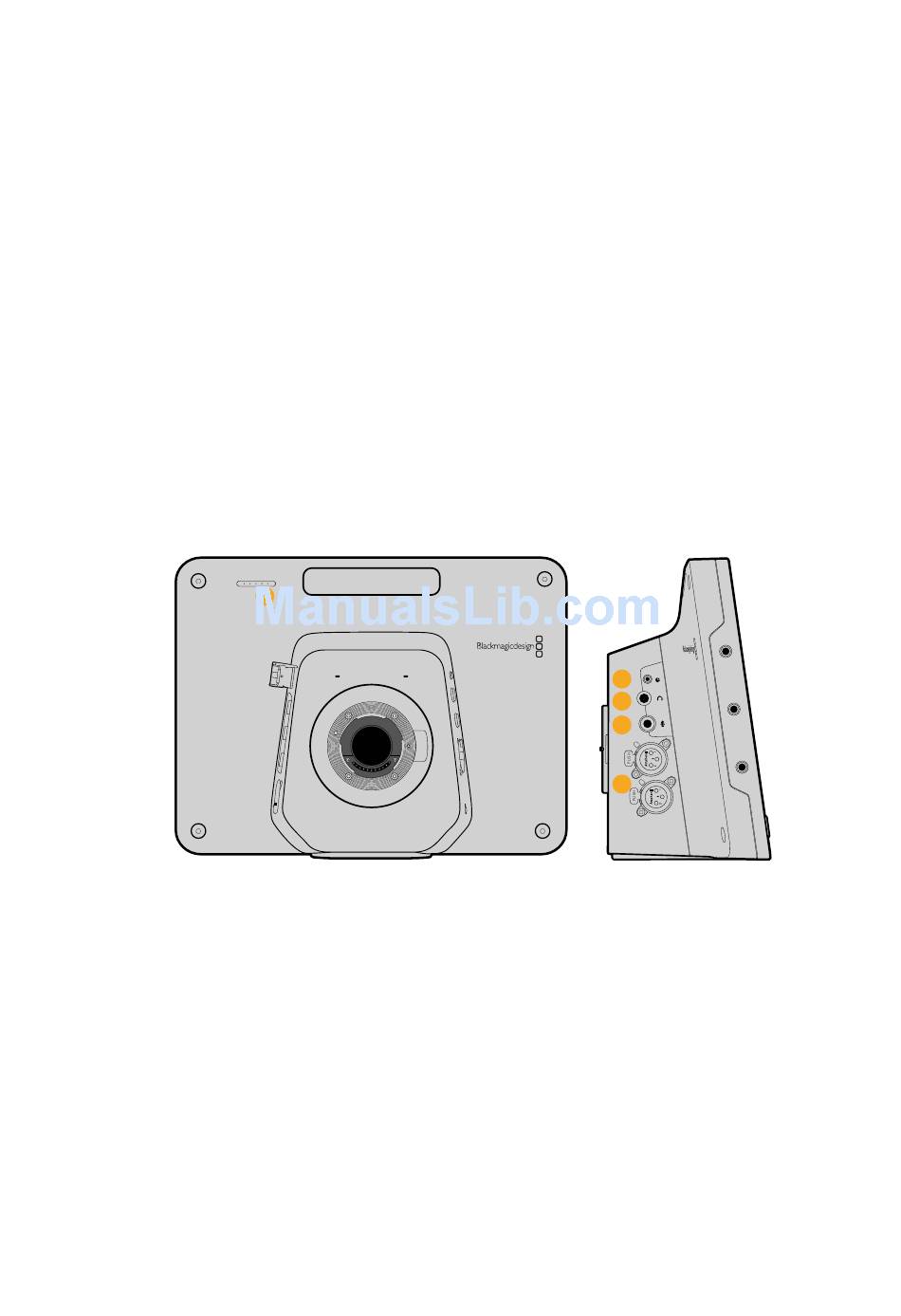

Front Panel
1 Front Tally Light
Indicates to the on-air talent which camera is currently "live". See the
'monitoring settings' section in this manual for more details.
1
Left Panel
2 LANC Remote
2.5mm stereo jack for LANC remote control supports iris, zoom and focus control.
3 Aviation Headphones
0.25" TRS connector for monitoring PGM and control room audio with aviation
style headsets.
4 Headphones Microphone Input
0.206" TRS connector for talking to the control room with aviation style headsets.
5 Audio Inputs
2 x 1/4" balanced XLR connectors for audio input. Refer to the 'Blackmagic Studio
Camera - left side' section in this manual for more details.
2
3
4
1
5
2
Camera Features 8 8
