Getting Started

Attaching a Lens

Getting started with your Blackmagic Studio Camera or Blackmagic Micro Studio Camera 4K is
as simple as attaching a lens and turning the camera on. To remove the protective dust cap
from the lens mount, hold down the locking button and rotate the cap counterclockwise until
it is released. We recommend you always turn off your Blackmagic camera prior to attaching or
removing a lens.
To attach a lens:
1 Align the dot on your lens with the dot on the camera mount. Many lenses have either
a blue, red or white dot or some other indicator.
2 Twist the lens clockwise until it locks into place.
3 To remove the lens, hold down the locking button, rotate the lens counterclockwise
until its dot or indicator reaches the 12 o'clock position and gently remove.
When no lens is attached to the camera, the lens mount is exposed to dust and other debris
so you'll want to keep the dust cap on whenever possible.

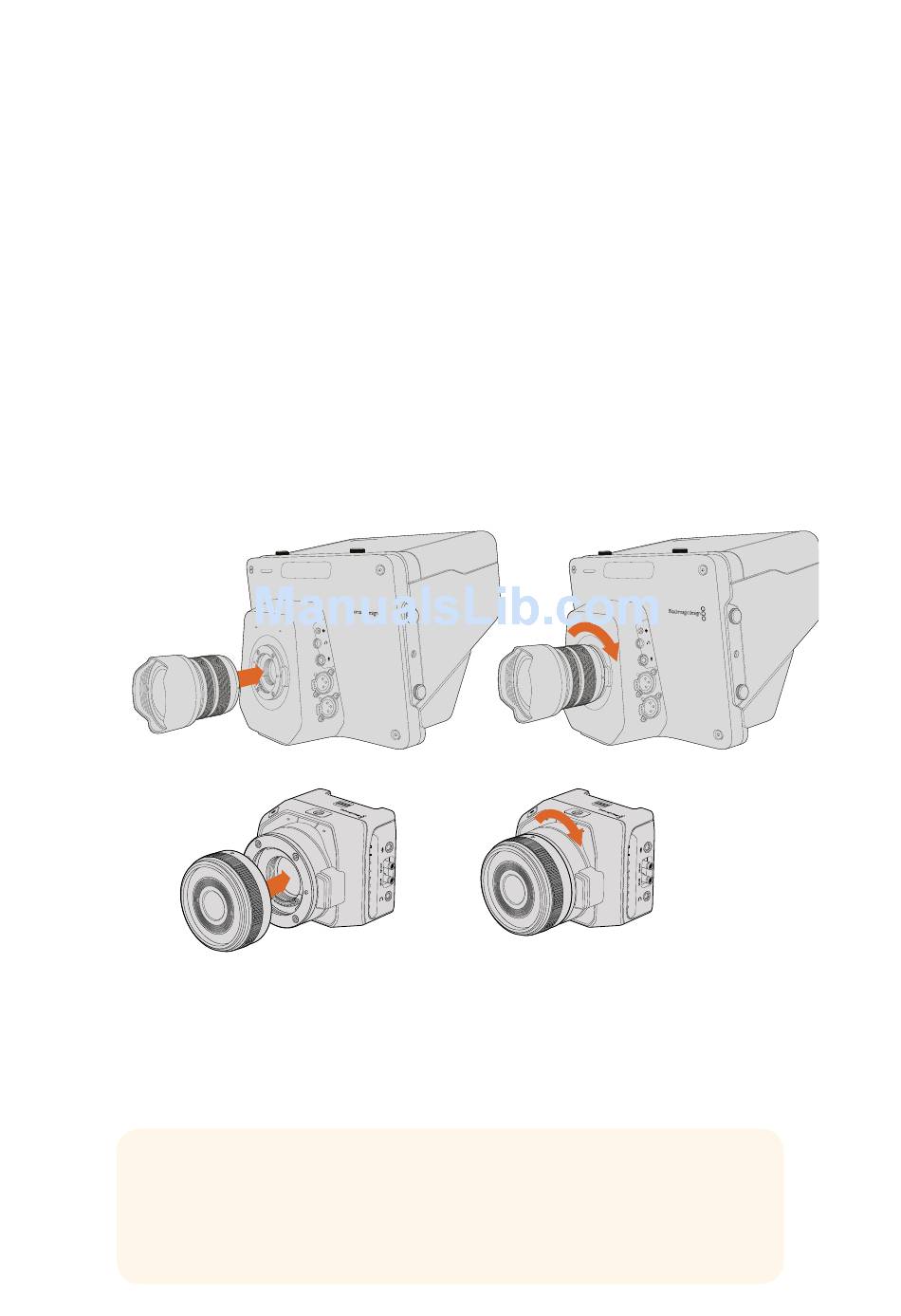

Attaching and removing a lens on Studio Camera.
Attaching and removing a lens on Micro Studio Camera 4K.

Turning Your Camera On

1
Press the power button below the LCD. On Blackmagic Studio Camera and Studio
Camera 4K models, the live camera image will appear on the LCD.
2 Press and hold the power button to switch off the camera.
TIP Blackmagic Studio Camera HD and Studio Camera 4K have internal batteries that
can be charged using the supplied power adapter. These camera can be charged and
operated while connected via external power and will switch between power sources
without interruption. Blackmagic Studio Camera 2 and Studio Camera 4K 2 does not
contain an internal battery and does not need to be charged.
