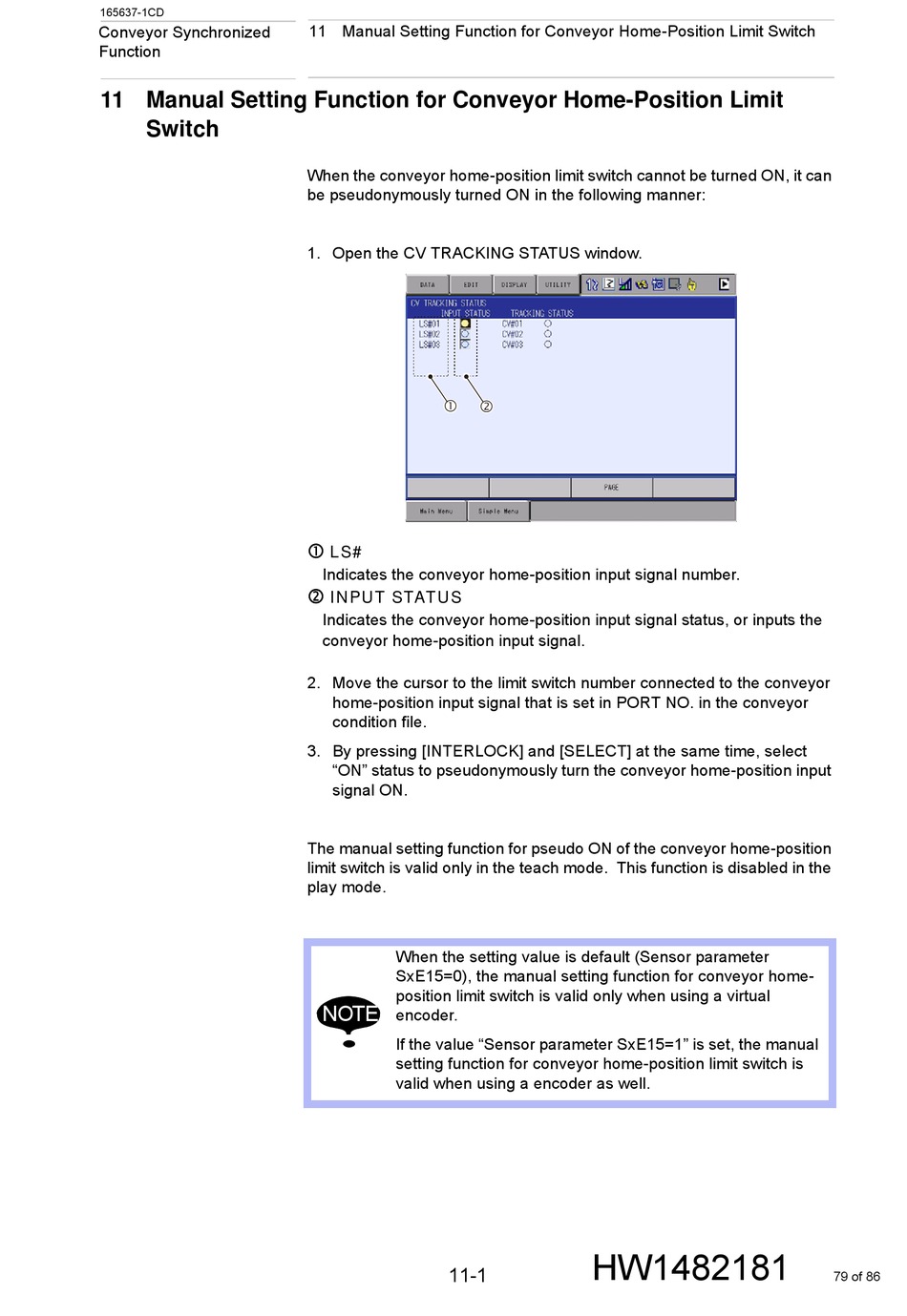

11 Manual Setting Function for Conveyor Home-Position Limit
Switch

11 Manual Setting Function for Conveyor Home-Position Limit Switch

When the conveyor home-position limit switch cannot be turned ON, it can
be pseudonymously turned ON in the following manner:
1. Open the CV TRACKING STATUS window.
 LS#
Indicates the conveyor home-position input signal number.
INPUT STATUS

Indicates the conveyor home-position input signal status, or inputs the
conveyor home-position input signal.
2. Move the cursor to the limit switch number connected to the conveyor
home-position input signal that is set in PORT NO. in the conveyor
condition file.
3. By pressing [INTERLOCK] and [SELECT] at the same time, select
"ON" status to pseudonymously turn the conveyor home-position input
signal ON.
The manual setting function for pseudo ON of the conveyor home-position
limit switch is valid only in the teach mode. This function is disabled in the
play mode.
When the setting value is default (Sensor parameter
SxE15=0), the manual setting function for conveyor home-
position limit switch is valid only when using a virtual
NOTE
encoder.
If the value "Sensor parameter SxE15=1" is set, the manual
setting function for conveyor home-position limit switch is
valid when using a encoder as well.
