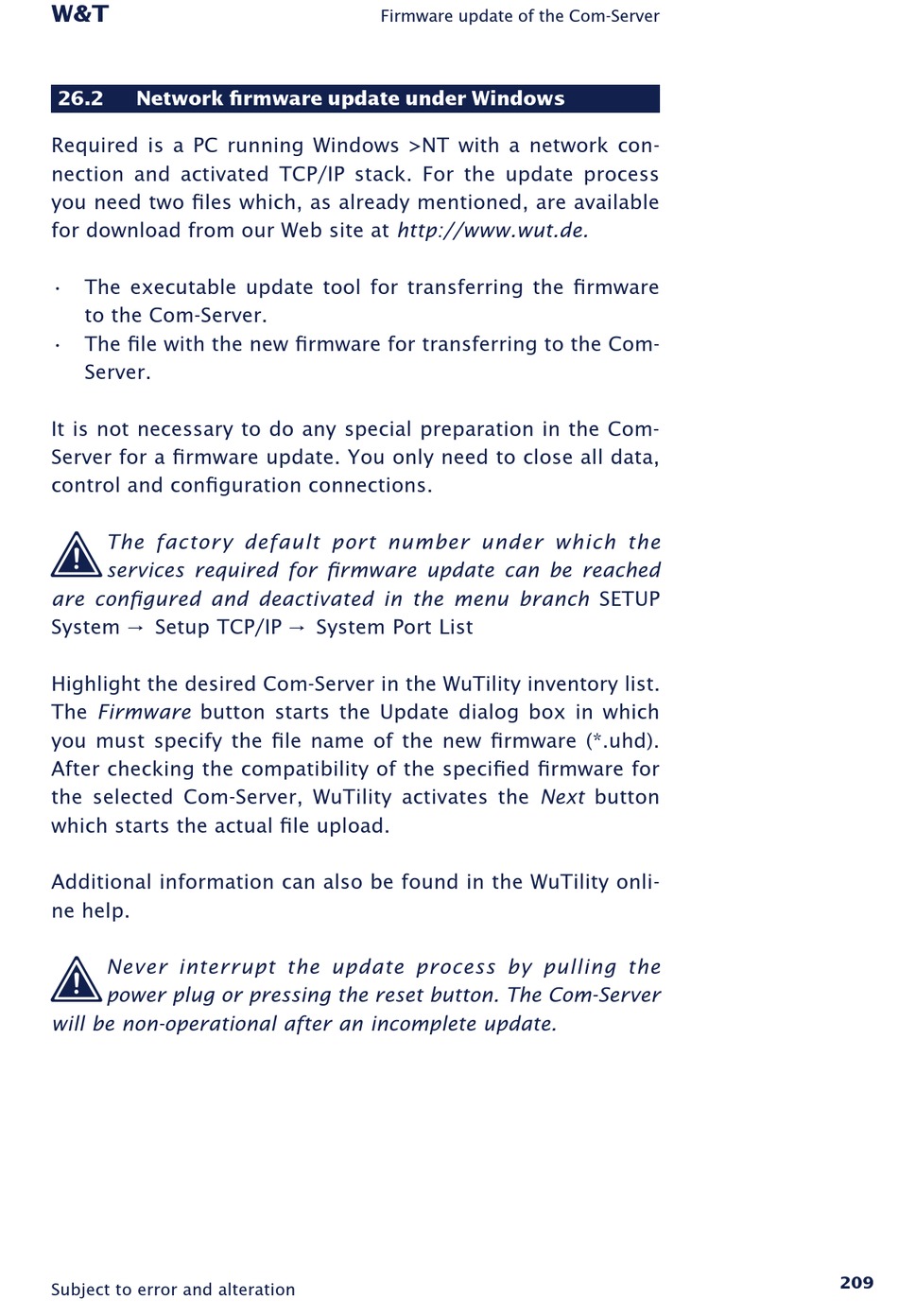

Network firmware update under Windows

Required is a PC running Windows >NT with a network con-
nection and activated TCP/IP stack. For the update process
you need two files which, as already mentioned, are available
for download from our Web site at http://www.wut.de.
• The executable update tool for transferring the firmware
to the Com-Server.
• The file with the new firmware for transferring to the Com-
Server.
It is not necessary to do any special preparation in the Com-
Server for a firmware update. You only need to close all data,
control and configuration connections.
1 The factory default port number under which the
services required for firmware update can be reached
are configured and deactivated in the menu branch SETUP
System r Setup TCP/IP r System Port List
Highlight the desired Com-Server in the WuTility inventory list.
The Firmware button starts the Update dialog box in which
you must specify the file name of the new firmware (*.uhd).
After checking the compatibility of the specified firmware for
the selected Com-Server, WuTility activates the Next button
which starts the actual file upload.
Additional information can also be found in the WuTility onli-
ne help.
1 Never interrupt the update process by pulling the
power plug or pressing the reset button. The Com-Server
will be non-operational after an incomplete update.
Subject to error and alteration
Firmware update of the Com-Server
209
