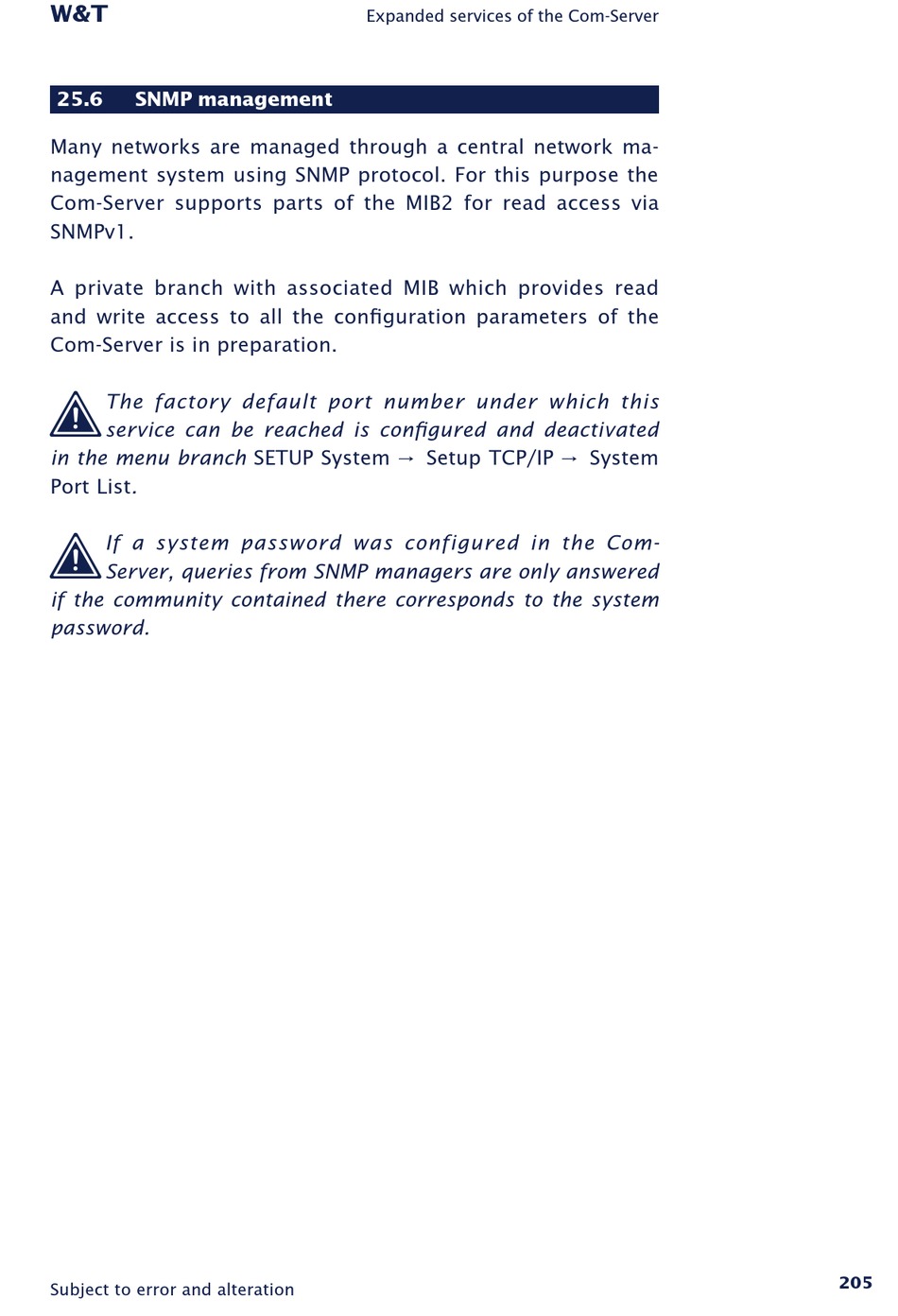

SNMP management

Many networks are managed through a central network ma-
nagement system using SNMP protocol. For this purpose the
Com-Server supports parts of the MIB2 for read access via
SNMPv1.
A private branch with associated MIB which provides read
and write access to all the configuration parameters of the
Com-Server is in preparation.
1 The factory default port number under which this
service can be reached is configured and deactivated
in the menu branch SETUP System r Setup TCP/IP r System
Port List.
1 If a system password was configured in the Com-
Server, queries from SNMP managers are only answered
if the community contained there corresponds to the system
password.
