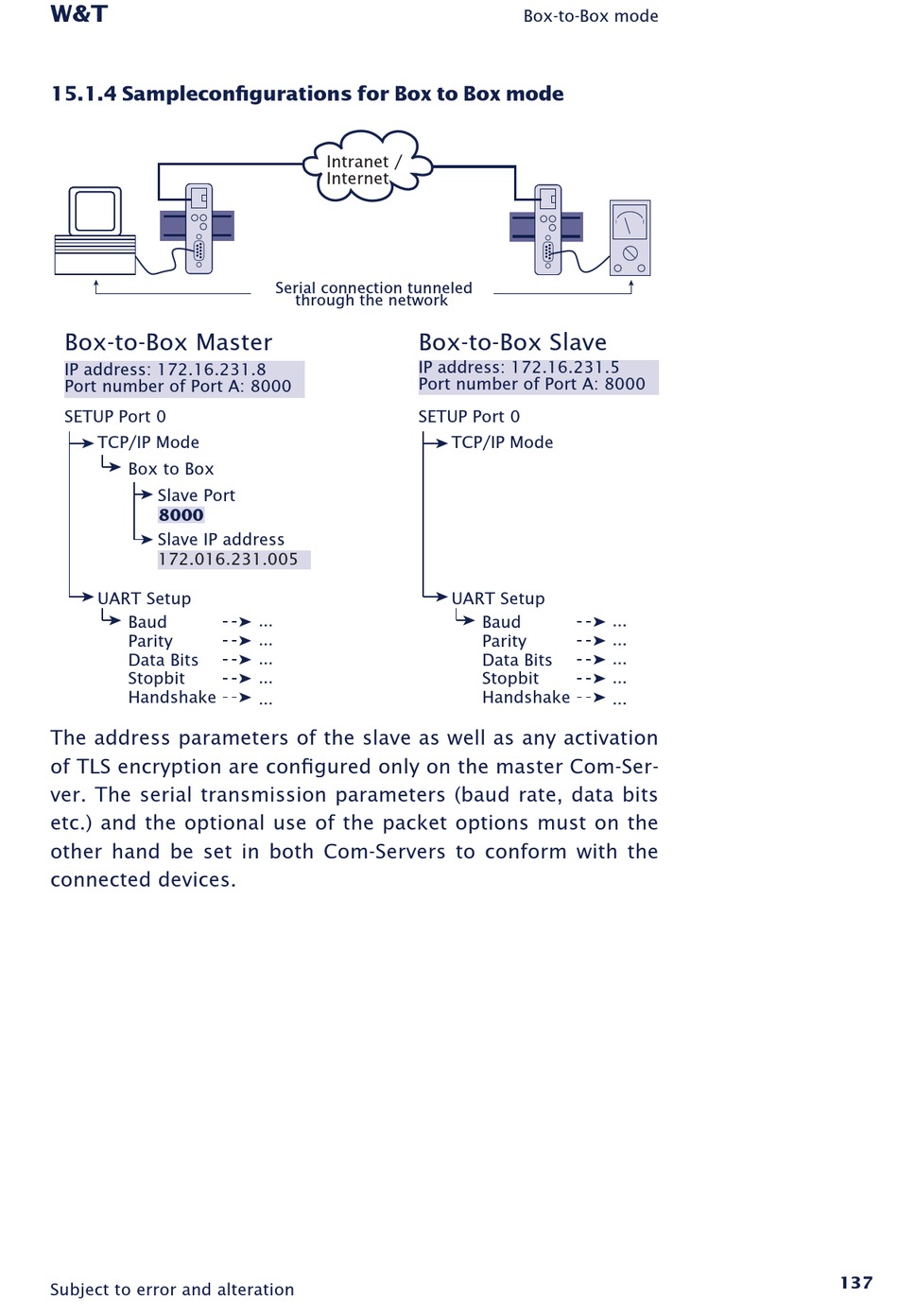

15�1�4 Sampleconfigurations for Box to Box mode
Box-to-Box Master
IP address: 172.16.231.8
Port number of Port A: 8000
SETUP Port 0
TCP/IP Mode
Box to Box
Slave Port
8000
Slave IP address
172.016.231.005
UART Setup
Baud
Parity
Data Bits
Stopbit
Handshake
The address parameters of the slave as well as any activation
of TLS encryption are configured only on the master Com-Ser-
ver. The serial transmission parameters (baud rate, data bits
etc.) and the optional use of the packet options must on the
other hand be set in both Com-Servers to conform with the
connected devices.
Subject to error and alteration
Intranet /
Internet
Serial connection tunneled
through the network
Box-to-Box Slave
IP address: 172.16.231.5
Port number of Port A: 8000
SETUP Port 0
...
...
...
...
...
Box-to-Box mode
TCP/IP Mode
UART Setup
Baud
...
Parity ...
Data Bits ...
Stopbit ...
Handshake
...
