- Page 1 CLUX-DVI2SDIA DVI to 3G SDI Converter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents ........1 4. System Requirements ......1 5. Features ............1 6. Operation Controls And Functions ..2 6.1 Front Panel ......... 2 6.2 Rear Panel .......... 3 7. Connection Diagram ......4 8. Specifications ..........5 9. -
Page 6: Introduction

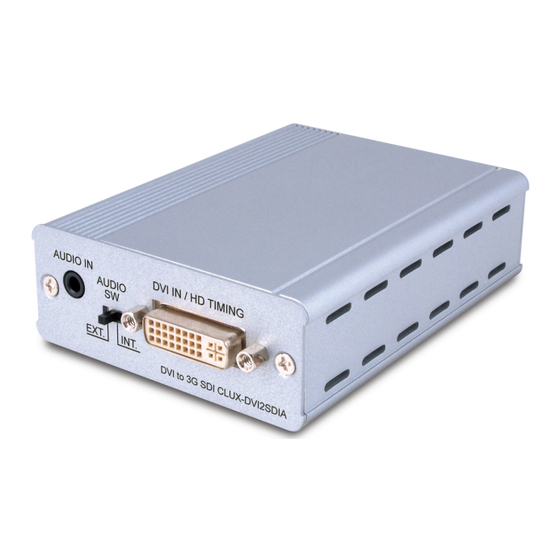

1. INTRODUCTION The DVI to SDI Converter allows DVI-D signals to be shown on SDI display while ensuring high bit rates of 2.970 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high definition DVI signal with audio to SDI for long distance transmission and display your work on SDI display. -
Page 7: Operation Controls And Functions
• Supports DVI input timings: 480i@59.94, 576i, 720p@50/59.94/60, 1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60 • Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI) Note: Tested with Belden 1694A Cable. Operating distances may vary if used with cables of different specifications. 6. -
Page 8: Rear Panel
6.2 Rear Panel DC 5V SDI OUT POWER LOCK DC 5V: Plug the 5 V DC power supply into the unit and connect the adaptor to AC wall outlet. POWER LED: This blue LED will illuminate when the device is connected to the power supply. -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM Laptop (Alternate Audio) Audio Cable DVI Cable (3.5mm) DVI to 3G-SDI Converter SDI Cable SDI Monitor... -
Page 10: Specifications
8. SPECIFICATIONS Video Bandwidth 225 MHz/6.75Gbps Input 1×DVI, 1×3.5 mm Phone Jack Output 1×BNC (SD/HD/3G-SDI) DVI Timing Support 480i@59.94, 576i, 720p@50/59.94/60 1080i@50/59.94/60 1080p@23.98/24/25/29.97/30/50/59.94/60 SDI Timing Support SD-SDI: SMPTE 259M-C, 270 Mbit/s HD-SDI: SMPTE 292M, 1.485 & 1.485/1.001 Gbit/s 3G-SDI: SMPTE 424M/425M-AB, 2.970 & 2.970/1.001 Gbit/s Audio Input Support Internal: PCM 2/5.1/7.1 CH... -
Page 11: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Bandwidth 2.94 Gbps ≈ 3G Serial Digital Interface... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
