Summary of Contents for CYP CLUX-DVI2SDIA

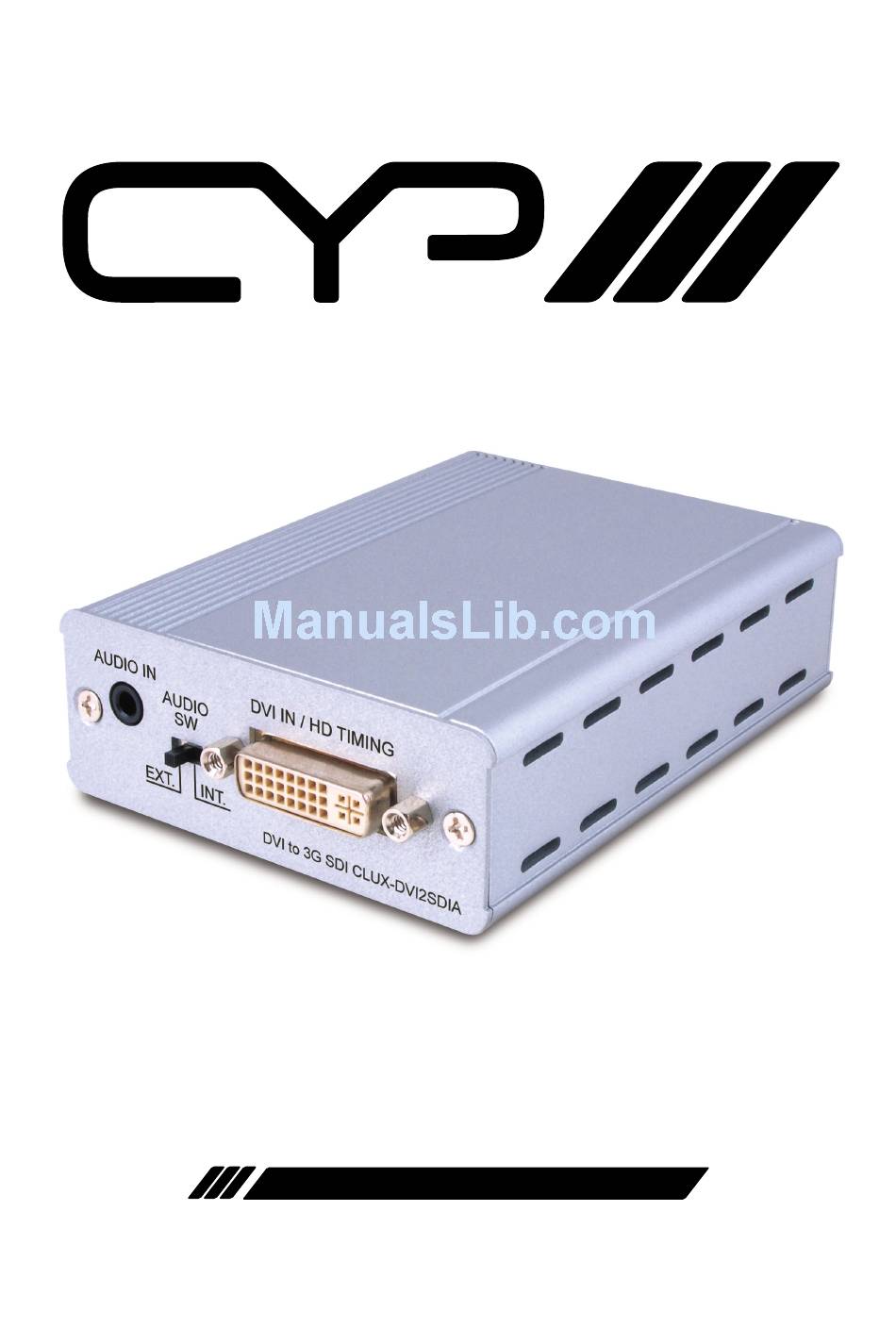

- Page 1 CLUX-DVI2SDIA DVI to 3G-SDI Converter with External Audio OPERATIONS MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls And Functions..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 7. Connection and Installation ....10 8. Specifications ........11 9. -
Page 6: Introduction
1. INTRODUCTION The DVI to SDI Converter allows DVI-D signals to be shown on SDI display while ensuring high bit rates of 2.970 Gbit/s to provide high resolution signals without any loss. For professionals this means that it is now easier to convert your high-def DVI signal with audio to SDI for long distance transmission and display your DVI-D content on an SDI display. -
Page 7: Features
5. FEATURES • DVI to SDI signal convertion • SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s • Supports SDI output distance up to 100m (3G-SDI), 200m (HD-SDI), or 300m (SD-SDI) •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel AUDIO IN Connect to the audio source equipment (such as DVD player) with a 3.5 mm phone jack for audio signal input. AUDIO SW This switch allows the user to choose between audio sources. Switch between the external (EXT) audio input (3.5 mm phone jack) or the internal (INT) audio from an HDMI to DVI adaptor input. -
Page 9: Rear Panel
6.2 Rear Panel DC 5V SDI OUT POWER LOCK DC 5V Plug the 5 V DC power supply into the unit and connect the adaptor to AC wall outlet. POWER LED This blue LED will illuminate when the device is connected to the power supply. -
Page 10: Connection And Installation
7. CONNECTION AND INSTALLATION Laptop (Alternate Audio) Audio Cable DVI Cable (3.5mm) DVI to 3G SDI Converter SDI Cable SDI Monitor... -
Page 11: Specifications
8. SPECIFICATIONS Operation Data 2.970 G bps, 2.970/1.001 G bps, 1.485 G bps, 1.485/1.001 G bps and 270 M bps Frequency Bandwidth MHz/link (HDMI 1.3) Input Port 1×DVI, 1×3.5 mm Phone Jack Output Port 1×BNC (SD-SDI/HD-SDI/3G-SDI) SDI Video Supports SD-SDI: 480i, 576i, HD-SDI: 720p@50/60,1080i@50/60, 1080p@23.98/24/25/29.97/30 3G-SDI: 1080p@50/60 Audio Input Support Internal: PCM 2/5.1/7.1CH, External: Analog 2CH ESD Protection Human body model: ... -
Page 12: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM 3G Bandwidth 2.94 Gbps ≈ 3G Serial Digital Interface... - Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com...
