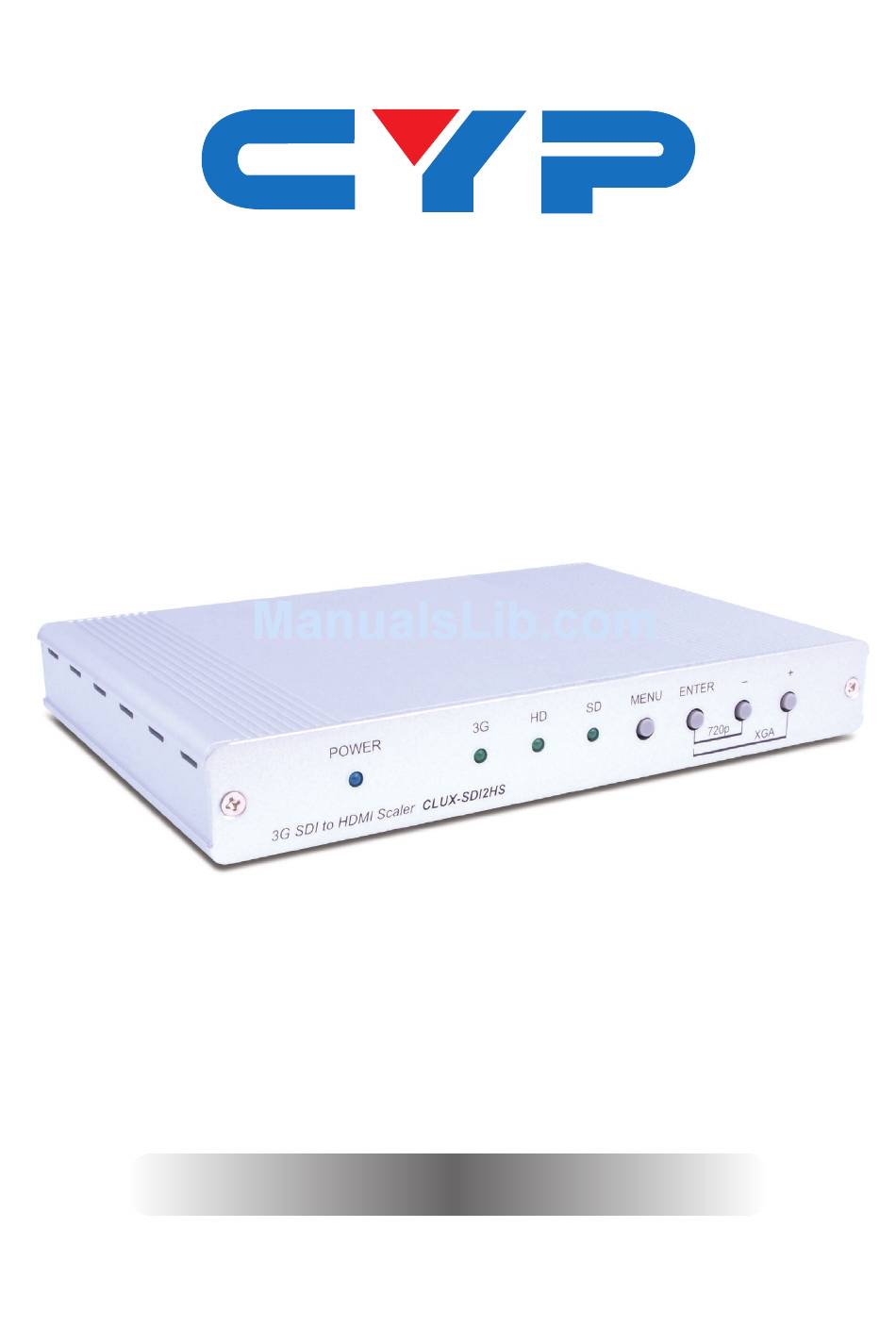

- Page 1 CLUX-SDI2HS SDI to HDMI Scaler with Audio Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 OSD Menu and Function List ...5 6.3.1 Display ..........7 6.3.2 Color ..........7 6.3.3 SDI Audio ........8... -
Page 6: Introduction
1. INTRODUCTION The SDI to HDMI Scaler allows SD, HD and 3G-SDI signals to be shown on HDMI and SDI display. This means that it is now easier for professionals to distribute and extend their SDI signal while giving the ability to display work on HDMI displays. -
Page 7: Features
5. FEATURES • Supports SD-SDI, HD-SDI and 3G-SDI input signals with auto-detection • Supports HDMI and SDI (bypass) output simultaneously • SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s • Scale any SDI input signal to HDMI: 1. -
Page 8: Operation Controls And Functions

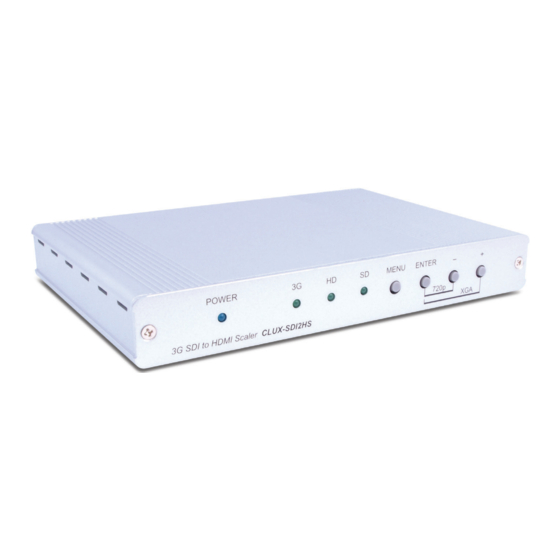

6.1 Front Panel POWER MENU ENTER 720p 3G SDI to HDMI Scaler CLUX-SDI2HS Power LED: The LED will illuminate blue when the device is connected to a power supply. 3G LED: This LED illuminate green when a 3G-SDI input signal is detected. -
Page 9: Rear Panel
6.2 Rear Panel AUDIO OUT DC 5V SDI IN SDI OUT HDMI OUT COAXIAL SDI IN: Connect to the SDI output of the SDI source device. Accepts SD,HD or 3G SDI signals. SDI OUT: Provides a 'loop-through' SDI signal output for connection to a SDI display. -
Page 10: Osd Menu And Function List
6.3 OSD Menu and Function List 1st Layer 2nd Layer 3rd Layer NATIVE 800 x 600 @60 1024 x 768 @60 1280 x 768 @60 1360 x 768 @60 1280 x 800 @60 1280 x 1024 @60 1440 x 900 @60 1400 x 1050 @60 1680 x 1050 @60 Output... - Page 11 Contrast 0~255 (105) Brightness 0~192 (96) 0~255 (128) 0~255 (128) Color 0~255 (128) R Offset 0~63 (32) G Offset 0~63 (32) B Offset 0~63 (32) Exit Group 1 Group 2 Group 3 SDI Audio Group 4 Auto Factory Reset Information Input Timing, Output Timing &...
-
Page 12: Display
6.3.1 Display • Output Timimgs: There are a total of 20 timings available for selection. • Size: Adjusts the displayed screen size from Full, Over Scan, Under Scan, Letter box or Pan scan to fit the current display size or aspect ratio. -
Page 13: Sdi Audio
6.3.3 SDI Audio • Selects the SDI audio output from 4 different audio groups and each group's 2CH contents or can be set to 'Auto' which contain up to 7.1 Channels of audio (dependent on the input source signal). If no audio output is required, the audio can also be muted by selecting 'OFF'. -
Page 14: Information
6.3.5 Information • Displays the source input format, the output display format and the unit's software version. -
Page 15: Connection Diagram
7. CONNECTION DIAGRAM SDI Camera SDI Display SDI Input SDI Output Power Supply AUDIO OUT DC 5V SDI IN SDI OUT HDMI OUT COAXIAL HDMI Output Coaxial Stereo Digital Audio Audio Output Output Amplifier HDTV/Monitor... -
Page 16: Specifications
8. SPECIFICATIONS SMPTE Standard 425M Level A & B, 424M, 292M, 259M-C SDI Transmission Rates 2.970 Gbps, 2.970/1.001 Gpbs 1.48 5 Gbps, 1.485/1.001Gbps and 270 Mbps Video Bandwidth 165 MHz/link Input 1×BNC (SD/HD/3G-SDI) Output 1×BNC (SD/HD/3G-SDI), 1×HDMI, 1×Coaxial, 1×L/R (RCA) SDI Timing Support SD-SDI: SMPTE 259M-C, 270 Mbit/s... -
Page 17: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Bandwidth 2.97G bps ≈ 3G Serial Digital Interface High Definition... - Page 20 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
