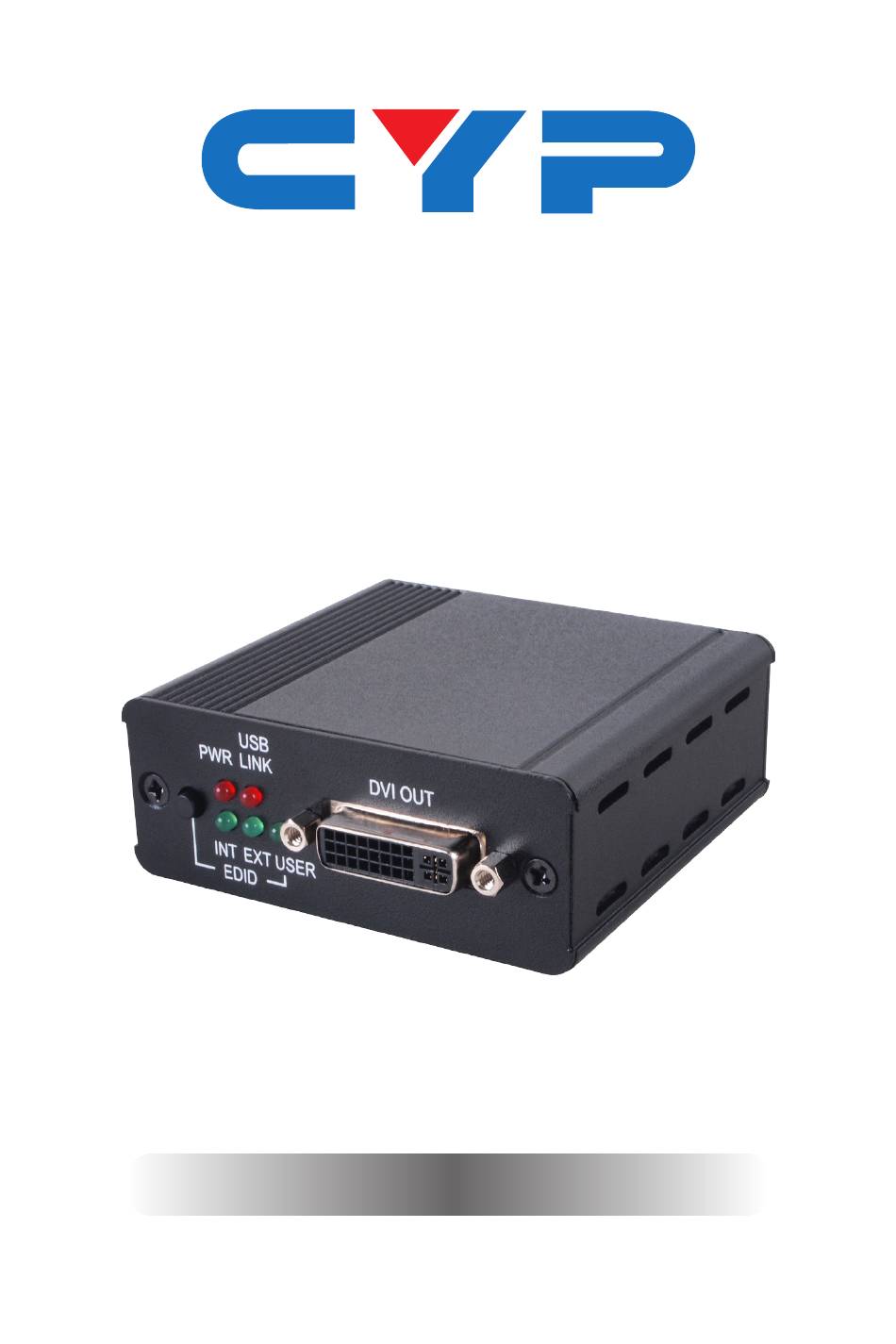

- Page 1 CLUX-DDP DVI to DVI Enhancer with EDID Management Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Front Panel ........2 6.2 Transmitter Rear Panel .....3 6.3 EDID Manager ........4 7. -
Page 6: Introduction
1. INTRODUCTION The DVI Enhancer with EDID Management is a handy device for your DVI signal extension and differentiation. With 3G bandwidth and EDID selection this device allows you with fast and clear viewing on the DVI signal status. Further, this device allows user to upload EDID for selection which create alternative EDID selection for specific usage. -
Page 7: Operation Controls And Functions

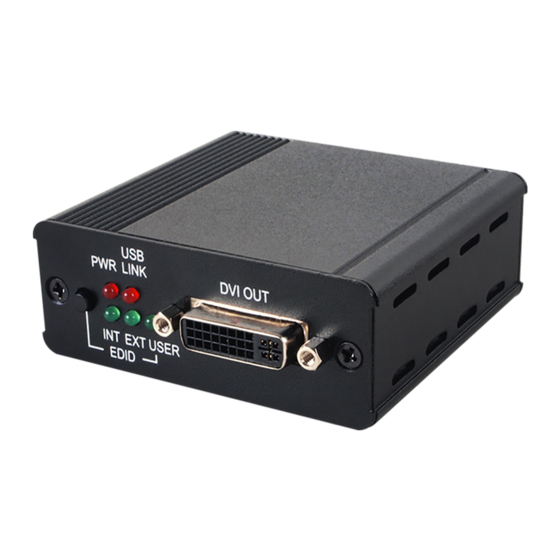

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel PWR LINK DVI OUT INT EXT USER EDID Power: This LED will illuminate when the device is connected to an active power supply. USB LINK: This LED will illuminate when the connected USB device is valid for PC control. -
Page 8: Transmitter Rear Panel
6.2 Transmitter Rear Panel DC 5V DVI IN SERVICE DVI IN: Connect with DVI source equipment such as PC or Graphic card devices. SERVICE: This is reserved for firmware update use and EDID Manager Tool only. DC 5V: Connect the adapter included in the package and connect to AC wall outlet for power supply. -
Page 9: Edid Manager
6.3 EDID Manager This unit includes an EDID Manager application that allows user to manage EDID from PC to display. The application can be downloaded from www.cypress.com.tw with file name CDPS 2016. Once the file has been downloaded successfully an icon of CDPS 2016 will appear. - Page 10 Click on System to learn the unit’s Current Firmware version. To update simply open the *.bin file and click on Update. Once the update is finished click on Disconnect and re-power on the unit will complete the update procedure. To use the advance features like EDID Analyzer and Creator requires registration and approval license.
-
Page 11: Connection Diagram
7. CONNECTION DIAGRAM PC or Notebook DVI Cable DC 5V DVI IN SERVICE PWR LINK DVI OUT INT EXT USER EDID DVI Cable Monitor or Display... -
Page 12: Specifications
8. SPECIFICATIONS 8.1 Technical Specification Video Bandwidth 300MHz/9Gbps Input Ports 1 x DVI 1 x mini-USB(Service) Output Ports 1 x DVI Supported Resolutions VGA~WUXGA(RB) 480i~1080p@24/50/60 4K2K@24/25/30/50/60(YUV420) DVI Cable Distance 5m@4K2K/60_YUV420 10m@1080p/12-bit 15m@1080p/8-bit Power Supply 5VDC/2.6A (US/EU standards, CE/FCC/ UL certified) ESD Protection Human Body model: ±... -
Page 13: Supported Resolutions
8.2 Supported Resolutions DVI AND HDMI SUPPORTED RESOLUTIONS INPUT OUTPUT 640x480@60/72/75/85 800x600@56/60/72/75/85 1024x768@60/70/75/85 1280x1024@60 1366x768@60 1600x1200@60 1920x1080@60 1920x1200@60 1440x576i@50 1440x480i@59.94/60 720x480p@59.94/60 ... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CLUXDDP...
