Summary of Contents for CYP CLUX-H2SDIA

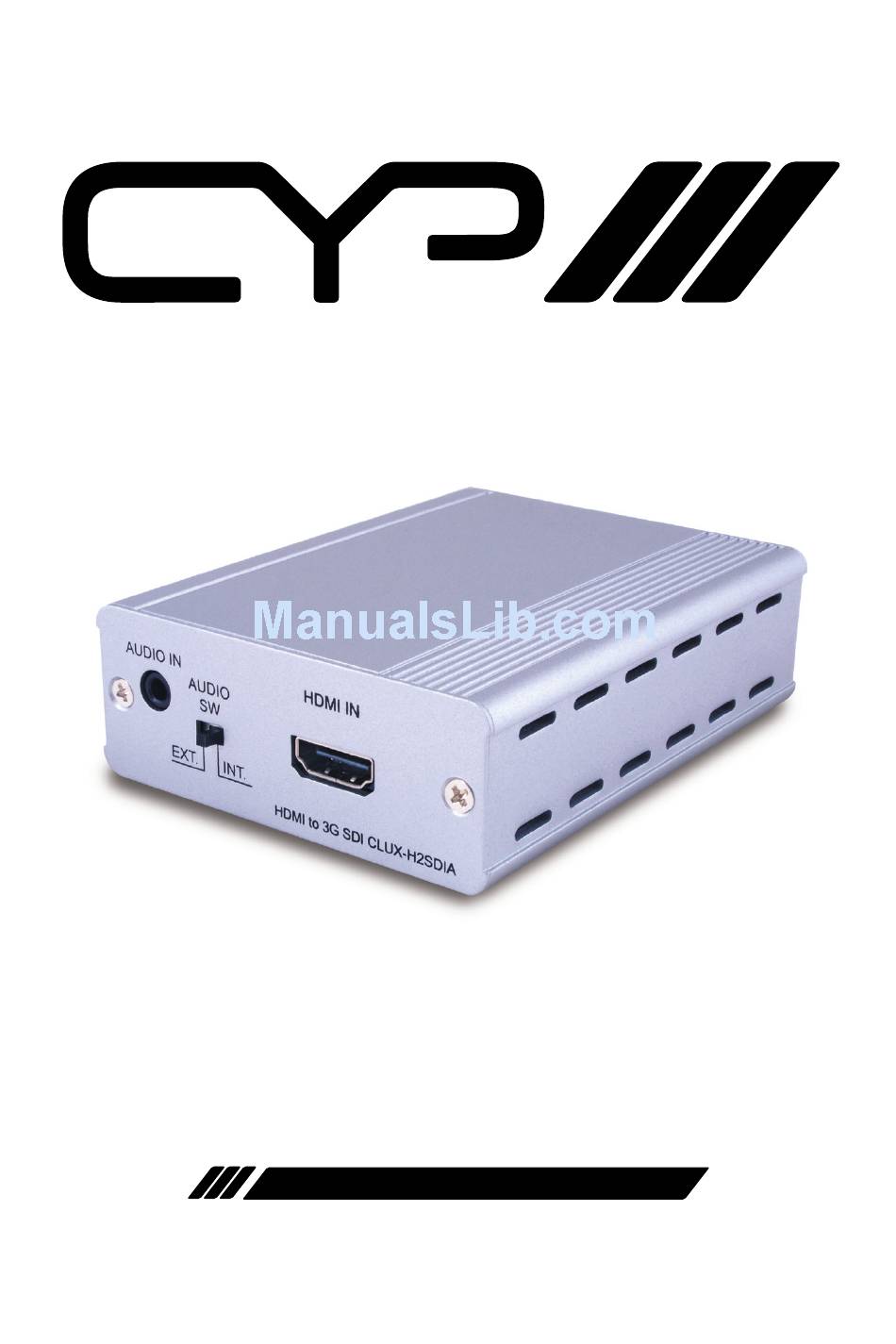

- Page 1 CLUX-H2SDIA HDMI to 3G SDI Converter OPERATIONS MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. - Page 5 CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ..........8 6.2 Rear Panel ............. 9 7. Connection Diagram ......10 8. Specifications ........11 9.
-
Page 6: Introduction
1. INTRODUCTION The CLUX-H2SDIA device is a HDMI to SDI converter which allows HDMI signals to be converted and shown on SDI displays. It utilises high bit-rate processing at 2.970 Gbps which ensures signal transmission without loss of quality. In addition, the external audio input allows the user to insert the audio from a different audio source instead of the HDMI audio on the SDI output. -
Page 7: Features
5. FEATURES • Operation at 2.970 Gbps, 2.970/1.001 Gbps, 1.485 Gbps, 1.485/1.001 Gbps and 270 Mbps • Integrated audio de-embedding for a maximum of 8 channels of 48 kHz audio • Automatic video mode detection (3G/SD/HD) • Connect using the SDI to HDMI converter (CLUX-SDI2HCA) to extend your signal over long distances •... -
Page 8: Operation Controls And Functions
6.1 Front Panel HDMI IN AUDIO IN AUDIO EXT. INT. HDMI to 3G SDI CLUX-H2SDIA • AUDIO IN • Connect to the audio source equipment (such as DVD player) with 3.5 mm phone jack for audio signal input. AUDIO SW •... -
Page 9: Rear Panel
6.2 Rear Panel DC 5V SDI OUT POWER LOCK DC 5 V • • Plug the 5 V DC power supply into the unit and connect the adaptor to AC wall outlet. POWER LED • This blue LED will illuminate when the device is connected to the power supply. -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM AUDIO IN HDMI IN AUDIO EXT. INT. HDMI to 3G SDI CLUX-H2SDIA DC 5V SDI OUT POWER LOCK... -
Page 11: Specifications
8. SPECIFICATIONS Operation Data 2.970 Gbps, 2.970/1.001 Gbps, 1.485 Gbps, 1.485/1.001 Gbps, and 270 Mbps Frequency Bandwidth 225 MHz/link (HDMI 1.3) Input Port 1×HDMI, 1×3.5mm Phone Jack OUTPUT PORT 1×BNC (SD-SDI/HD-SDI/3G-SDI) SDI Video Supports SD-SDI: 480i, 576i, HD-SDI: 720p@50/60,1080i@50/60, 1080p@23.98/24/25/29.97/30 3G-SDI: 1080p@50/60 HDMI Cable Distance 10 m... -
Page 12: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Bandwidth 2.97 Gbps≈3G Serial Digital Interface... - Page 18 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com...
