- Page 1 CLUX-SDI2VS SDI to PC/HD Scaler with Audio Operation Manual CLUX-SDI2VS...
- Page 2 Disclaimers The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 3: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents Introduction ……………………..……………………...…..….……. Applications …………………..………………….……....….. Package Contents ………………………...………....… Features …………………………………………..……..…...…… Specifications ………………………………...……..………..…. Operation Controls and Functions ……………...……....…… Front Panel ................Rear Panel .…………………………………..……..…...….… OSD Menu and Function List ....………..…..…..…... 7.1 Display ....…......……………..…..…..…. 7.2 Color ..…..…..............…. 7.3 SDI Audio ..............…..…..…. 7.4 Factory Reset ............…..…..…. -
Page 5: Introduction
1. Introduction The SDI to VGA Scaler with Audio allows SD, HD and 3G-SDI signals to be display on HD/PC displays while ensuring high bit rates of 2.970 Gbps gives you fast signal transmission without signal loss. For professional this means that it is now easier to distribute and extend your SDI signal while giving you the ability to display your work on the existing PC displays. -
Page 6: Features
4. Features Operation at 2.970Gbps, 2.970/1.001Gbps, 1.485Gbps, 1.485/1.001Gbps and 270Mbps Supports SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292M, SMPTE 259M-C Equalized and re-clocked loop output Alternative audio output to coaxial and analog 2CH ... -
Page 7: Specifications
5. Specifications SMPTE Standard 425M Level A & B, 424M, 292M, 259M-C SDI Transmission Rates 2.970 Gbps, 2.970/1.001 Gbps,1.485Gbps, 1.485/1.001 Gbps, and 270Mbps Input Port 1 x BNC (SD/HD/3G-SDI) Output Port 1 x BNC (SD/HD/3G-SDI), 1 x D-Sub 15pin, 1 x Coaxial, 2 x RCA Jack Video Output Supports PC: VGA ~ WUXGA@60RB, HD: 480p~1080p SDI In/Output... -
Page 8: Operation Controls And Functions

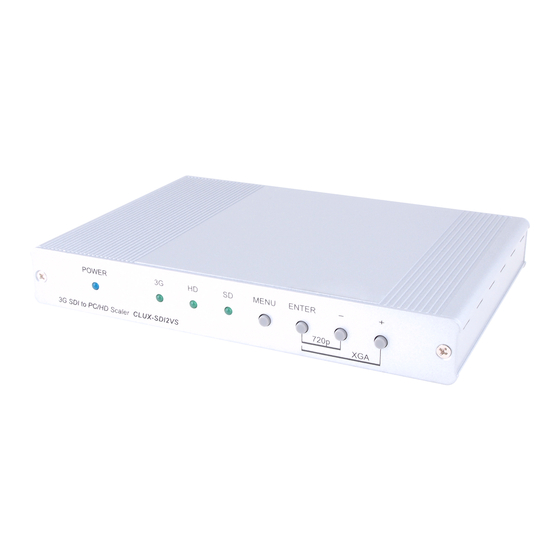

6. Operation Controls and Functions 6.1 Front Panel POWER MENU ENTER 720p 3G SDI to PC/HD Scaler CLUX-SDI2VS ① ② ③ ④ ⑤ ⑥ ⑦ ① POWER LED: This blue LED will illuminate when the device is connected with power supply. -
Page 9: Rear Panel
6.2 Rear Panel AUDIO OUT PC/HD OUT DC 5V SDI IN SDI OUT COAXIAL ① ② ③ ④ ⑤ ⑥ ① SDI IN: This slot is where you connect the SDI source output for SDI signal sending to be display on screen. ②... -
Page 10: Osd Menu And Function List
7. OSD Menu and Function List 1st Layer 2nd Layer 3rd Layer 640 x 480 @60 800 x 600 @60 1280 X 720@60 1024 x 768 @60 1280 x 768 @60 1360 x 768 @60 Output PC Timing 1280 x 800 @60 with D-Sub 15pin 1280 x 1024 @60 cable... -
Page 11: Color
Contrast 0~255(105) Brightness 0~192(96) 0~255(128) 0~255(128) Color Brightness 0~255(128) R Offset 0~64(32) G Offset 0~64(32) B Offset 0~64(32) Exit Group 1 Group 2 Group 3 SDI Audio Group 4 Auto Factory Reset Information 7.1 Display Output Timings: There are total 24 timings available for user’s selection. ... - Page 12 7.2 Color Adjust screen color RGB’s Contrast and or Brightness. 7.3 SDI Audio Select SDI audio output from 4 different group and each group contents 2CH. If no audio output is require the audio can also be mute by selecting off.
-
Page 13: Information
7.4 Factory Reset Select YES to return to the factory setting. Factory setting on display is at 1024 x 768@60Hz with full size screen, Color setting's factory default rate are as the value in the bracket of the OSD chart and SDI audio is on auto. 7.5 Information Displaying both input source and output display timing with software ... -
Page 14: Connection And Installation
8. Connection and Installation Camcorder SDI Monitor/Display PC/HD Monitor... -
Page 15: Acronyms
Acronyms Acronym Complete Term Bandwidth 2.97G bps ≈ 3G Serial Digital Interface... - Page 16 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20110127 MPM-CLUXSDI2VS...
