Summary of Contents for CYP CLUX-SDI2VS

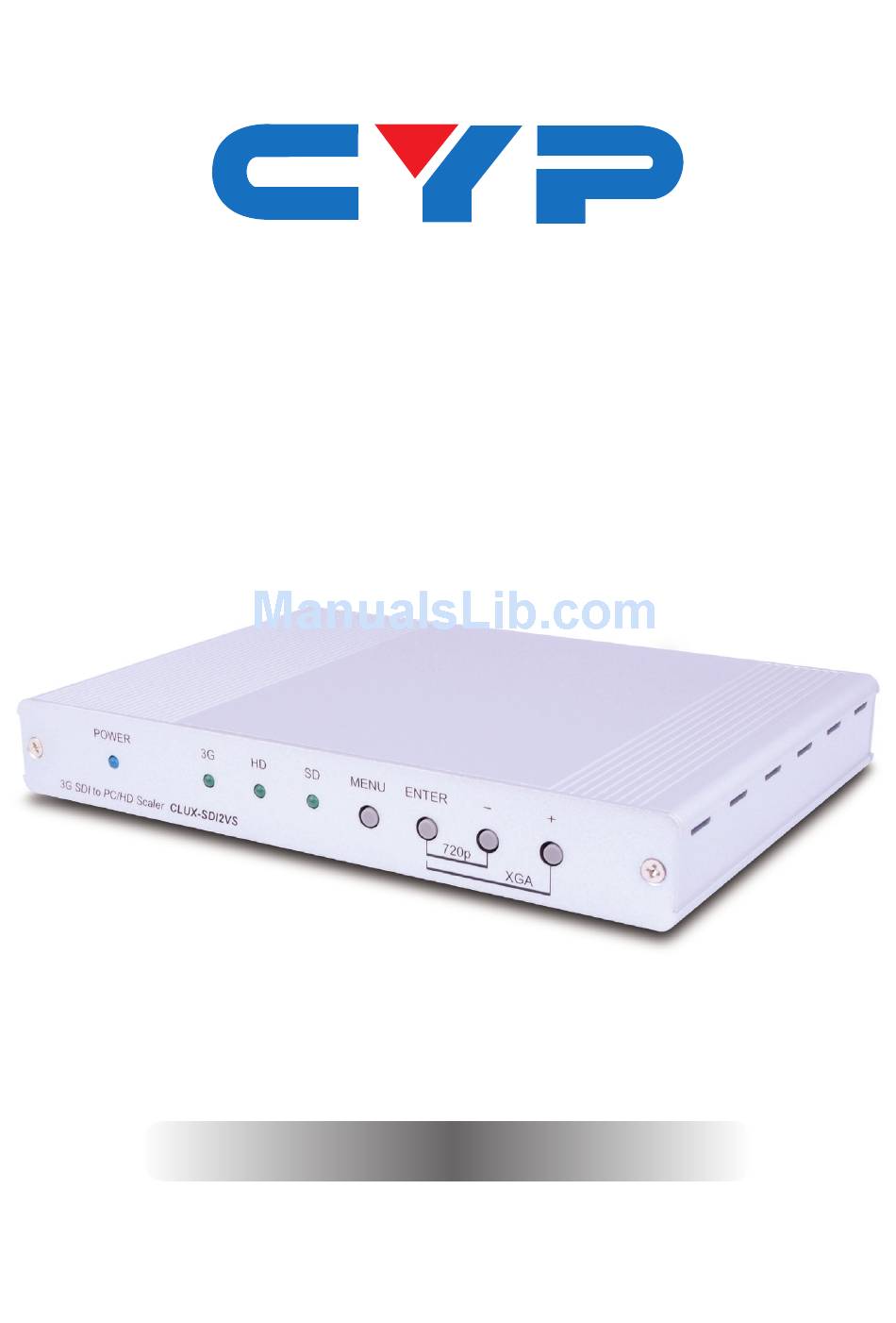

  • Page 1 CLUX-SDI2VS SDI to PC/HD Scaler with Audio Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 7 OSD Menu and Functions ...... 5 7.1 Display ..........6 7.2 Color ..........7 7.3 SDI Audio ........

  • Page 6: Introduction

    1. INTRODUCTION The SDI to VGA Scaler allows SD, HD and 3G-SDI signals to be shown on PC/HD display. This means that it is now easier for professionals to distribute and extend their SDI signal while giving the ability to display work on PC/HD display.

  • Page 7: Features

    5. FEATURES • Supports SD-SDI, HD-SDI and 3G-SDI input signals with auto-detection • Supports PC/HD and SDI (bypass) output simultaneously • SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s • Supports SDI input/output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI) •...

  • Page 8: Operation Controls And Functions

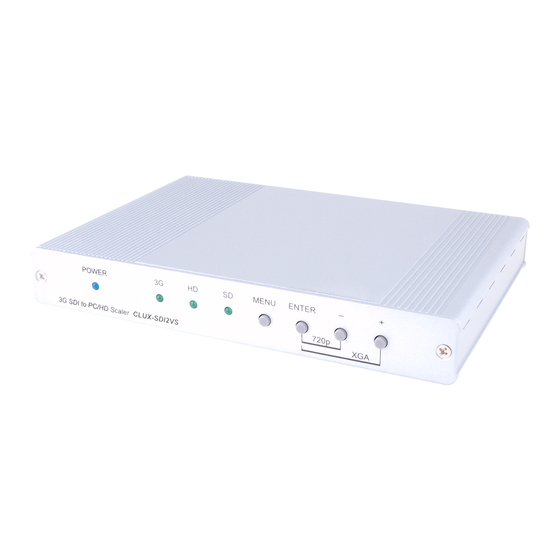

    6.1 Front Panel POWER MENU ENTER 720p 3G SDI to PC/HD Scaler CLUX-SDI2VS Power LED: The LED will illuminate blue when the device is connected to a power supply. 3G LED: This LED illuminate green when a 3G-SDI input signal is detected.

  • Page 9: Rear Panel

    6.2 Rear Panel AUDIO OUT PC/HD OUT DC 5V SDI IN SDI OUT COAXIAL SDI IN: Connect to the SDI output of the SDI source device. Accepts SD,HD or 3G SDI signals. SDI OUT: Provides a 'loop-through' SDI signal output for connection to a SDI display.

  • Page 10: Osd Menu And Functions

    7 OSD MENU AND FUNCTIONS First Layer Second Layer Third Layer 640×480@60 800×600@60 1280×720@60 1024×768@60 1280×768@60 1360×768@60 1280×800@60 Output PC Timing with D-Sub 15pin VGA cable 1280×1024@60 1440×900@60 1400×1050@60 1680×1050@60 1600×1200@60 1920×1200@60 1920×1080@60 720×480p@60 Display 1280×720p@60 1920×1080p@60 720×576p@50 1280×720p@50 Output HD Timing with D-Sub to 3 RCA cable 1920×1080p@50 1920×1080i@60...

  • Page 11: Display

    Contrast 0~255(105) Brightness 0~192(96) 0~255(128) 0~255(128) Color Brightness 0~255(128) R Offset 0~64(32) G Offset 0~64(32) B Offset 0~64(32) Exit Group 1 Group 2 Group 3 SDI Audio Group 4 Auto Factory Reset Information Input, Output and Revision 7.1 Display • Output Timimgs: There are a total of 24 timings available for selection.

  • Page 12: Color

    7.2 Color • Adjusts the screen's RGB Color, Contrast and/or Brightness. 7.3 SDI Audio • Selects the SDI audio output from 4 different audio groups and each group's 2CH contents. If no audio output is required, the audio can also be muted by selecting 'OFF'.

  • Page 13: Factory Reset

    7.4 Factory Reset • Selects YES to return the unit to the factory settings. The default Factory Setting for Video display is 'Full Screen' (1024×768@60Hz), Color setting's factory default rate is the same as shown on the OSD and SDI audio is 'AUTO'. 7.5 Information •...

  • Page 14: Connection Diagram

    8. CONNECTION DIAGRAM SDI Camera SDI Display SDI Input SDI Output Power Supply AUDIO OUT PC/HD OUT DC 5V SDI IN SDI OUT COAXIAL VGA or HD Output Coaxial Stereo Digital Audio Audio Output Output Amplifier Monitor...

  • Page 15: Specifications

    9. SPECIFICATIONS SMPTE Standard 425M Level A & B, 424M, 292M, 259M-C SDI Transmission Rates 2.970 Gbps, 2.970/1.001 Gbps,1.485 Gbps, 1.485/1.001 Gbps, and 270 Mbps Input Port 1×BNC (SD/HD/3G-SDI) Output Port 1×BNC (SD/HD/3G-SDI bypass), 1×D-Sub 15-pin, 1×Coaxial, 2×RCA Jack Video Output Support PC: VGA ~ WUXGA@60RB HD: 480p~1080p SDI Timging Support...

  • Page 16: Acronyms

    10. ACRONYMS ACRONYM COMPLETE TERM Bandwidth 2.97G bps ≈ 3G Serial Digital Interface High Definition...
  • Page 20 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
