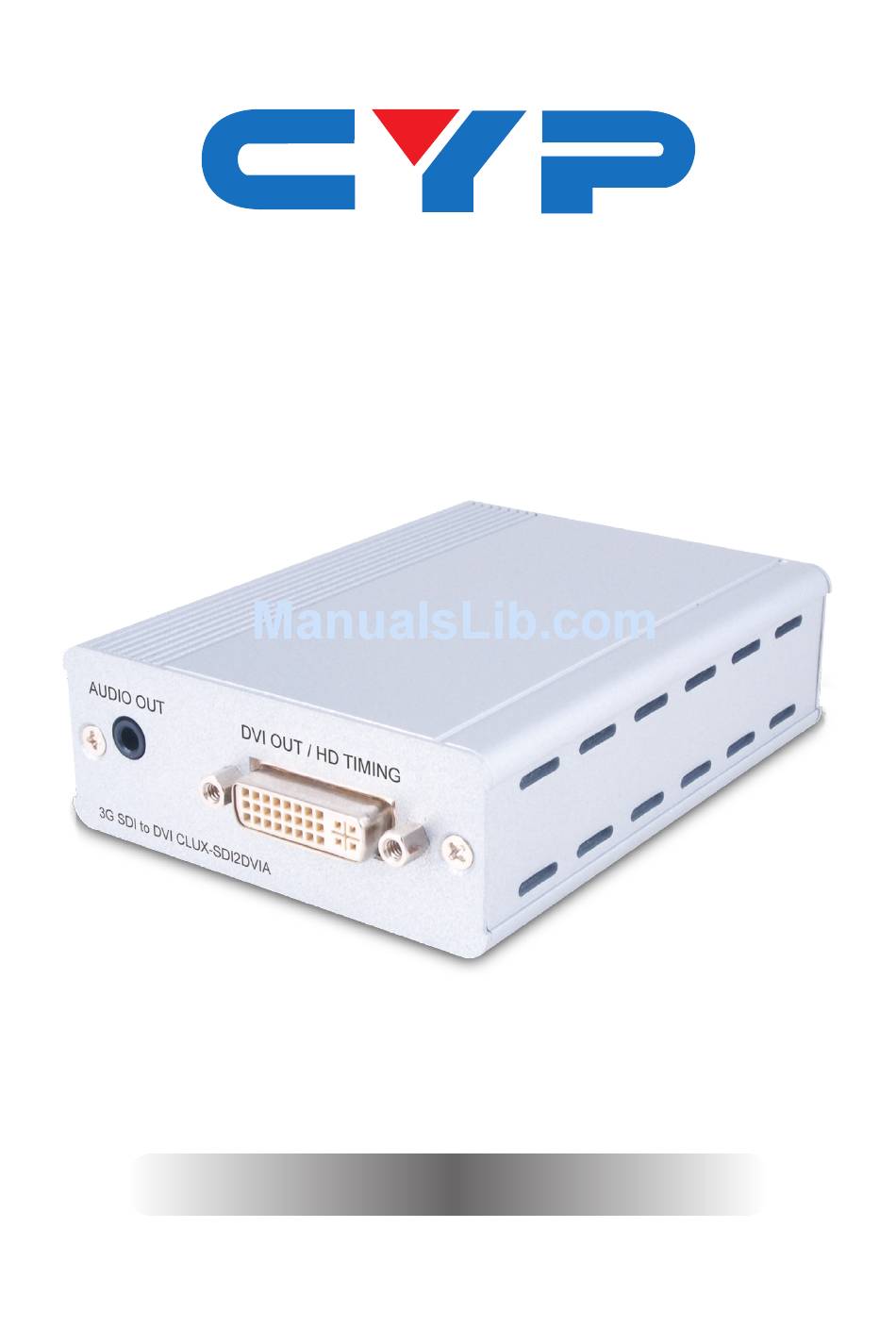

- Page 1 CLUX-SDI2DVIA 3G SDI to DVI Converter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ........... 1 2. Applications ..........1 3. Package Contents ........1 4. System Requirements ........1 5. Features ............1 6. Operation Controls and Functions ....2 6.1 Front Panel ..........2 6.2 Rear Panel ..........3 7. -
Page 6: Introduction
1. INTRODUCTION The SDI to DVI Converter allows SD, HD and 3G-SDI signals to be shown on DVI display. This means that it is now easier for professionals to distribute and extend their SDI signal while giving the ability to display work on DVI display. -
Page 7: Operation Controls And Functions
• Supports SDI input modes: 1. SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s) 2. HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s and 1.485/1.001 Gbit/s) 3. 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s) • Supports SDI input distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI) Note: Tested with Belden 1694A Cable. -
Page 8: Rear Panel

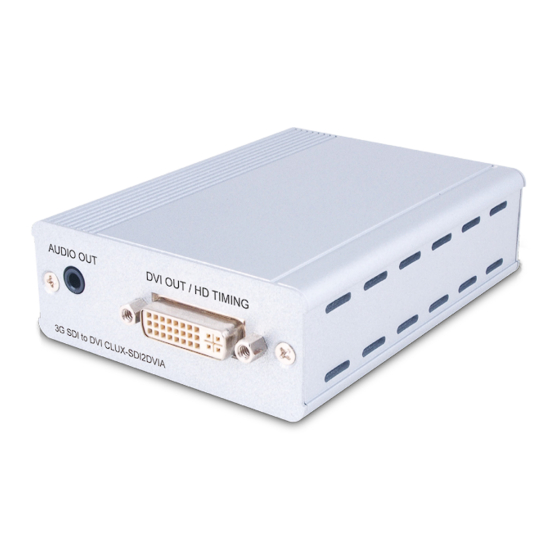

6.2 Rear Panel AUDIO OUT DVI OUT / HD TIMING 3G SDI to DVI CLUX-SDI2DVIA AUDIO OUT (3.5 mm jack): Connects to a TV or amplifier with audio input (stereo only). Note: Multichannel sound will be down-mixed to stereo only for output from the unit's audio output. -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM HD-SDI Source e.g. SDI Camera SDI Cable DC 5V SDI IN POWER LOCK 3G-SDI to DVI Converter AUDIO OUT DVI OUT / HD TIMING 3G SDI to DVI CLUX-SDI2DVIA DVI Cable 3.5 mm Cable Ampilfier TV or Monitor... -
Page 10: Specifications
8. SPECIFICATIONS SDI Transmission Rates 2.970 Gbps, 2.970/1.001 Gbps, 1.485 Gbps, 1.485/1.001 Gbps, & 270 Mbps Video Bandwidth 225 MHz/6.75 Gbps Input 1× BNC (SD/HD/3G-SDI) Output 1× DVI, 1× 3.5 mm Phone Jack SDI Timing Support SD-SDI: SMPTE 259M-C, 270 Mbit/s HD-SDI: SMPTE 292M, 1.485 &... -
Page 11: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Bandwidth 2.97Gbps ≈ 3G Serial Digital Interface... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
