Summary of Contents for CYP CLUX-SDI2HCA

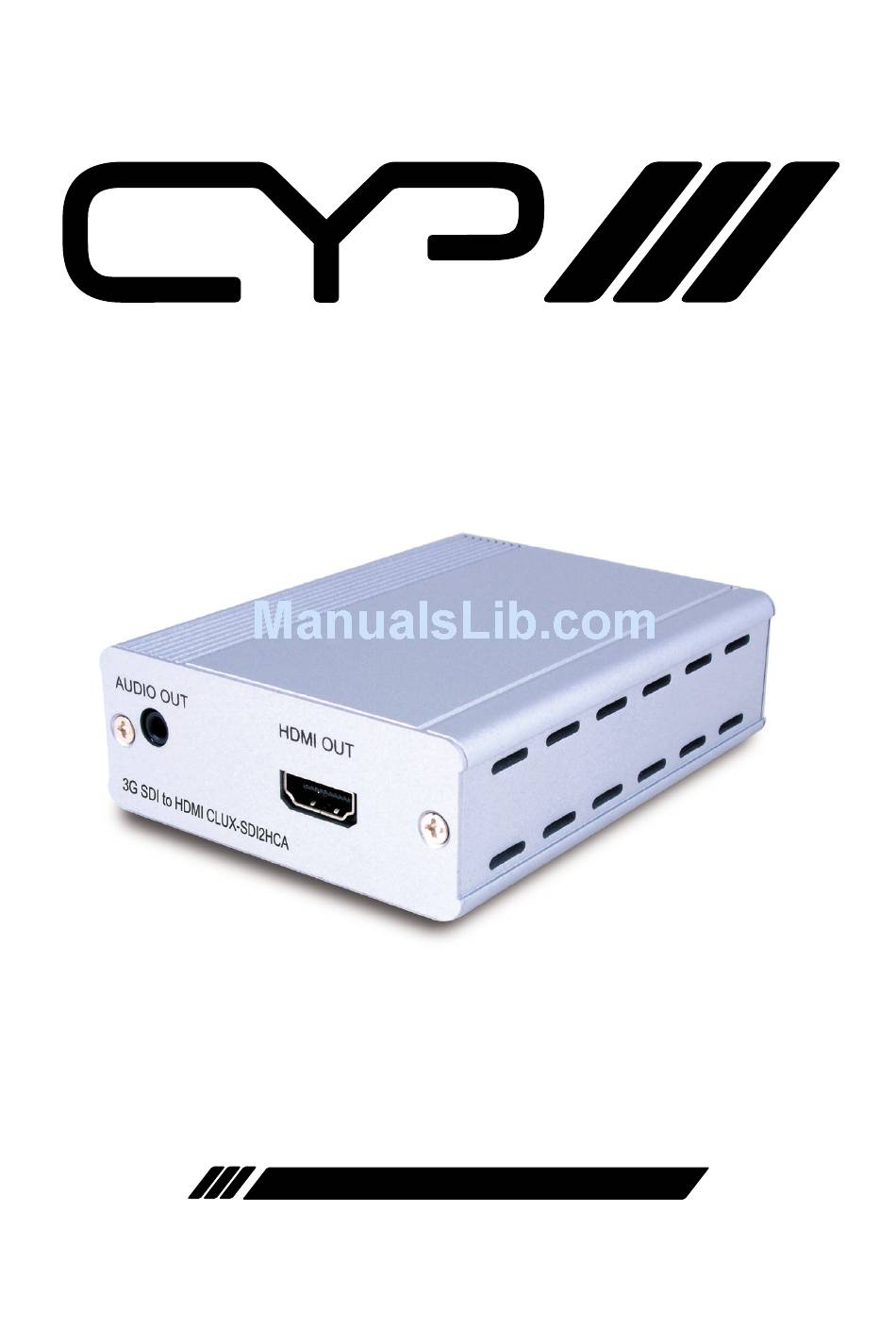

- Page 1 CLUX-SDI2HCA 3G-SDI to HDMI Converter with External Audio OPERATIONS MANUAL...
- Page 3 DISClAIMErS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAfEty prECAutIoNS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CoNtENtS 1. Introduction ...........6 2. Applications ...........6 3. package Contents ........6 4. System requirements ......6 5. features ..........7 6. operation Controls And functions..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 7. Connection and Installation ....10 8. Specifications ........11 9. -
Page 6: Introduction
1. INtroDuCtIoN The SDI to HDMI Converter allows SD, HD and 3G-SDI signals to be shown on HDMI display. This means that it is now easier for professionals to distribute and extend their SDI signals on HDMI displays. In addition, the external audio output allows the user to send the audio signal originally embedded in the SDI input to an amplifier or active speakers 2. -
Page 7: Features
5. fEAturES Supports SD-SDI, HD-SDI and 3G-SDI input signals with auto-detection Converts SDI source for connection to HDMI display SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s Supports SDI output distance up to 100m (3G-SDI), 200m (HD-SDI), or 300m (SD-SDI) Converts SDI signal to HDMI: SD-SDI (SMPTE 259M-C) ... -
Page 8: Operation Controls And Functions
6. opErAtIoN CoNtrolS AND fuNCtIoNS 6.1 front panel DC 5V SDI IN POWER LOCK DC 5v Plug the 5V DC power supply into the unit and connect the adaptor to AC wall outlet. powEr lED This blue LED will illuminate when the device is connected to a power supply. -
Page 9: Rear Panel
6.2 rear panel AUDIO OUT HDMI OUT 3G SDI to HDMI CLUX-SDI2HCA AuDIo out (3.5mm jack) Connect to an amplifier or active speakers with 3.5 mm phone jack for external audio output. HDMI out Connect to the HDMI display with a HDMI cable. -
Page 10: Connection And Installation
7. CoNNECtIoN AND INStAllAtIoN HD-SDI Camera SDI Cable DC 5V SDI IN POWER LOCK 3G SDI to HDMI Converter AUDIO OUT HDMI OUT 3G SDI to HDMI CLUX-SDI2HCA HDMI Cable Amplifier HDMI TV/MONITOR... -
Page 11: Specifications
8. SpECIfICAtIoNS SDI Transmission Rates 2.970 Gbps, 2.970/1.001 Gbps, 1.485Gbps, 1.485/1.001Gbps, and 270 Mbps Video Bandwidth 225 MHz/6.75Gbps Input Port 1×BNC (SD-SDI/HD-SDI/3G-SDI) Output Port 1×HDMI, 1×3.5 mm Phone Jack SDI Input Supports 480i, 576i, 720p@50/59.94/60 1080i@50/59.94/60 1080p@23.98/24/25/29.97/30/50/59.94/60 1080PsF@25/29.97/30 HDMI Output Supports 480i/576i, 720p@50/59.94/60 1080i@50/59.94/60 1080p@23.98/24/25/29.97/30/50/59.94/60... -
Page 12: Acronyms
9. ACroNyMS ACroNyM CoMplEtE tErM Bandwidth 2.97 Gbps ≈ 3G Serial Digital Interface... - Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com...
