Summary of Contents for CYP CLUX-M2SDI

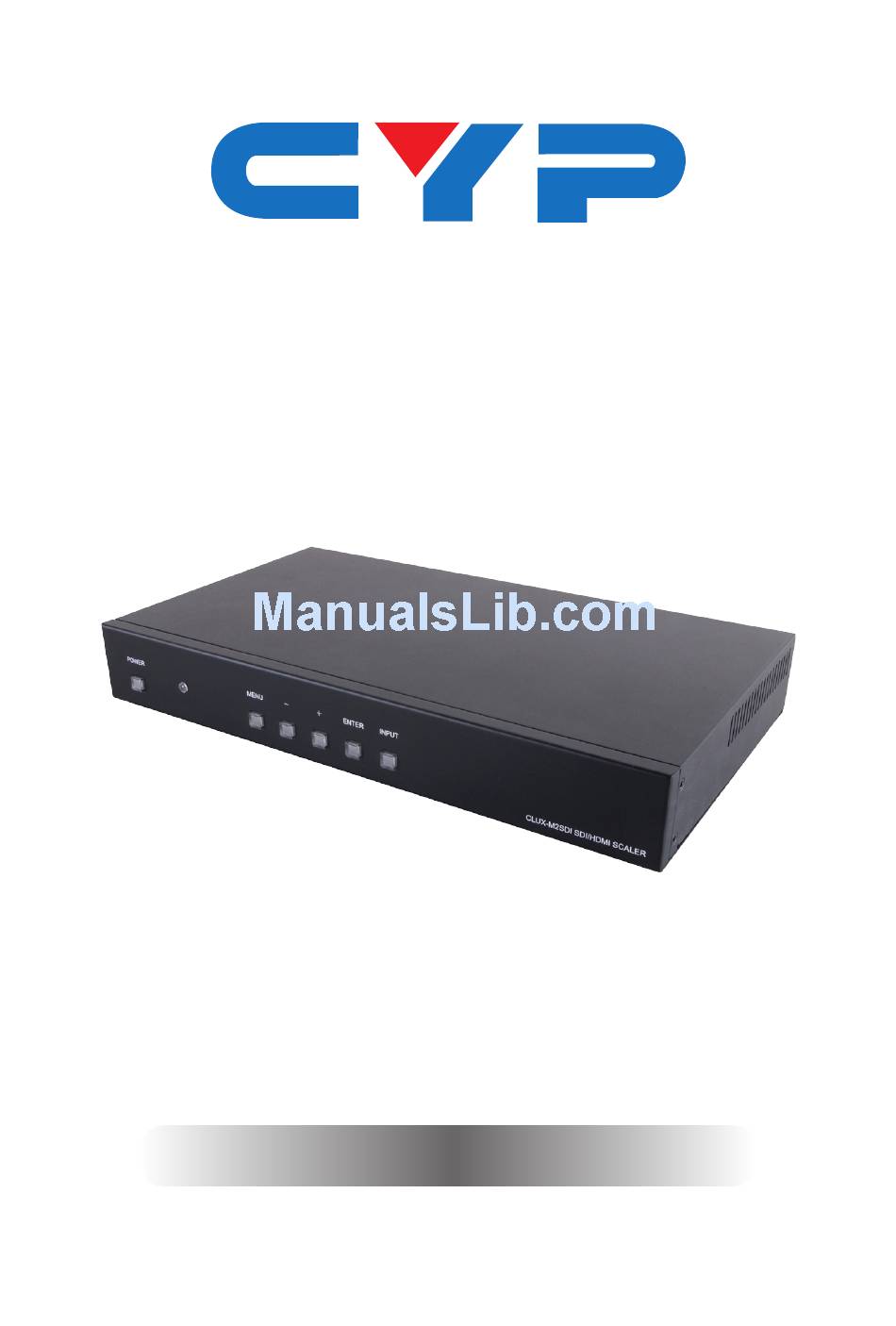

- Page 1 CLUX-M2SDI 3G-SDI/HDMI Scaler Box Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. - Page 5 CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 OSD Menu .........6 6.4.
-
Page 6: Package Contents
1. INTRODUCTION The HDMI/PC/Component/CV to SDI/HDMI Scaler allows you to upscale HDMI/PC/Component/Composite signals to high definition video of HDMI formats (720p@50/60 Hz or 1080p@50/60 Hz) and SDI formats (HD-SDI SMPTE 292M or 3G-SDI 424M/425M), then output to both ports at the same time. Besides scaling features, the device also carries an optional functionalities for it to serve as control center of video wall up to 15×15 total of 225 displays showing one single picture together. -
Page 7: Features
5. FEATURES • Supports HDMI, PC, Component and Composite Video input signals • Supports SDI and HDMI output simultaneously • Supports SDI output distance up to 100 meters (3G-SDI), or 200 meters (HD-SDI) and 300 meters (SD-SDI) • Scales any input signal to the following output signals: 1. -
Page 8: Operation Controls And Functions
POWER MENU － ＋ ENTER INPUT CLUX-M2SDI SDI/HDMI SCALER POWER Press this button to switch on the device(s). All the connected Video wall system control device(s) will be switch to ON. IR Remote Control Sensor MENU a. Press this button to enter into the OSD main menu. -
Page 9: Rear Panel
When enter the OSD menu, press INPUT button to exit the setup. Note: Points a/b defines multiple usage of the key button. 6.2 Rear Panel OUTPUT INPUT HDMI HDMI AUDIO RS232 OUT IR IN DC 5V Pr/Cr Pb/Cb VIDEO RS232 IN SDI/HDMI OUT These slots are where you connect the SDI/HDMI display. - Page 10 IR IN This slot is to connect with IR receiver included in the package for receiving the IR signal of the device’ remote controller. Power Plug the DC 5V power supply into the system and connect the adaptor to AC wall outlet.
-
Page 11: Osd Menu
6.3 OSD Menu Main Menu Layer MAIN MENU PICTURE MENU*1 STANDARD ON/OFF R OFFSET 0~255 (118) G OFFSET 0~255 (116) B OFFSET 0~255 (118) R GAIN 0~255 (098) G GAIN 0~255 (098) B GAIN 0~255 (098) CONTRAST 0~63 (50) BRIGHTNESS 0~63 (40) ENG / T.CHINESE SETUP MENU*1... - Page 12 3. The SETUP MENU's STANDARD can only be adjust under PC mode. 4. Optional TV wall functions. Picture Standard: Set it to ON will allow system to set the picture menu into the default value as indicated in the ( ). Picture R/G/B Offset: These functions are to set the single picture's R/G/B brightness.
-
Page 13: Remote Control
6.4. Remote Control POWER OFF POWER POWER* SINGLE Press this button to switch on the device(s). All the connected Video wall system control FULL device(s) will be switch to ON. POWER OFF* Press this button to switch off the device. All the connected Video RETURN MENU wall system control device(s) will... -
Page 14: Rs-232 Pin Assignments
Press the hot key to select the input sources. 720p/1080p@50/60* Press the hot key to select 720p@50 Hz, 720p@60 Hz, 1080p@50 Hz and1080p@60 Hz timings for HDMI output, the SDI output timings will be automatically converted to SMPTE 292M (1.485 Gbit/s) and SMPTE 424M/425M (2.970 Gbit/s) U/OVER Press this key to change the output image to be overscan or... -
Page 15: Rs-232 Commands
6.6 RS-232 Commands COMMAND ACTION 0×23 0×53 0×30 0×30 0×31 0×23 POWER ON 0×23 0×53 0×30 0×30 0×30 0×23 POWER OFF 0×23 0×43 0×30 0×30 0×30 0×23 *UNDER SCAN 0×23 0×43 0×30 0×30 0×31 0×23 *OVER SCAN 0×23 0×43 0×52 0×WH 0×00 0×23 *Note 0×EF 0×05 0×D7 0×C0 0×22 0×0F 0×EE CHANGE TO HDMI... -
Page 16: Connection Diagram
7. CONNECTION DIAGRAM Set-top Box Set-top Box Blu-ray OUTPUT INPUT HDMI HDMI AUDIO RS232 OUT IR IN DC 5V Pr/Cr Pb/Cb VIDEO RS232 IN SDI Monitor... - Page 17 FULL SINGLE OUTPUT INPUT OUTPUT INPUT OUTPUT INPUT OUTPUT INPUT HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI AUDIO RS232 OUT AUDIO RS232 OUT AUDIO RS232 OUT AUDIO IR IN DC 5V IR IN DC 5V IR IN DC 5V RS232 OUT IR IN DC 5V...
-
Page 18: Specifications
8. SPECIFICATIONS SDI Transmission Rates 2.970 Gbps, 2.971/1.001 Gbps, 1.485 Gbps and 1.485/1.001 Gbps Video Bandwidth 148 MHz Input Ports 1×HDMI (Type A connector), 1×PC with Audio, 1×Component with R/L, 1×Composite with R/L Output port 1×SDI (SD/HD/3G-SDI), 1×HDMI SDI Cable Distance 3G/HD/SD up to 100/200/300 meters with BELDEN 1694A cable HDMI Cable Distance... -
Page 19: Acronyms
Silkscreen Color Black Operating Temperature 0˚C~40˚C / 32˚F ~ 104˚F Storage temperature -20˚C~60˚C / -4˚F ~ 140˚F Relative Humidity 20~90% RH (no condensation) Power Consumption 20.2W 9. ACRONYMS ACRONYM COMPLETE TERM Bandwidth 2.97Gbit/s ≈3G COMP Component Composite Video HDMI High-Definition Multimedia Interface Serial Digital Interface Video Graphics Array... - Page 20 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CLUXM2SDI...
