UDI R/C U29 Plus WIING+ User Manual page 9

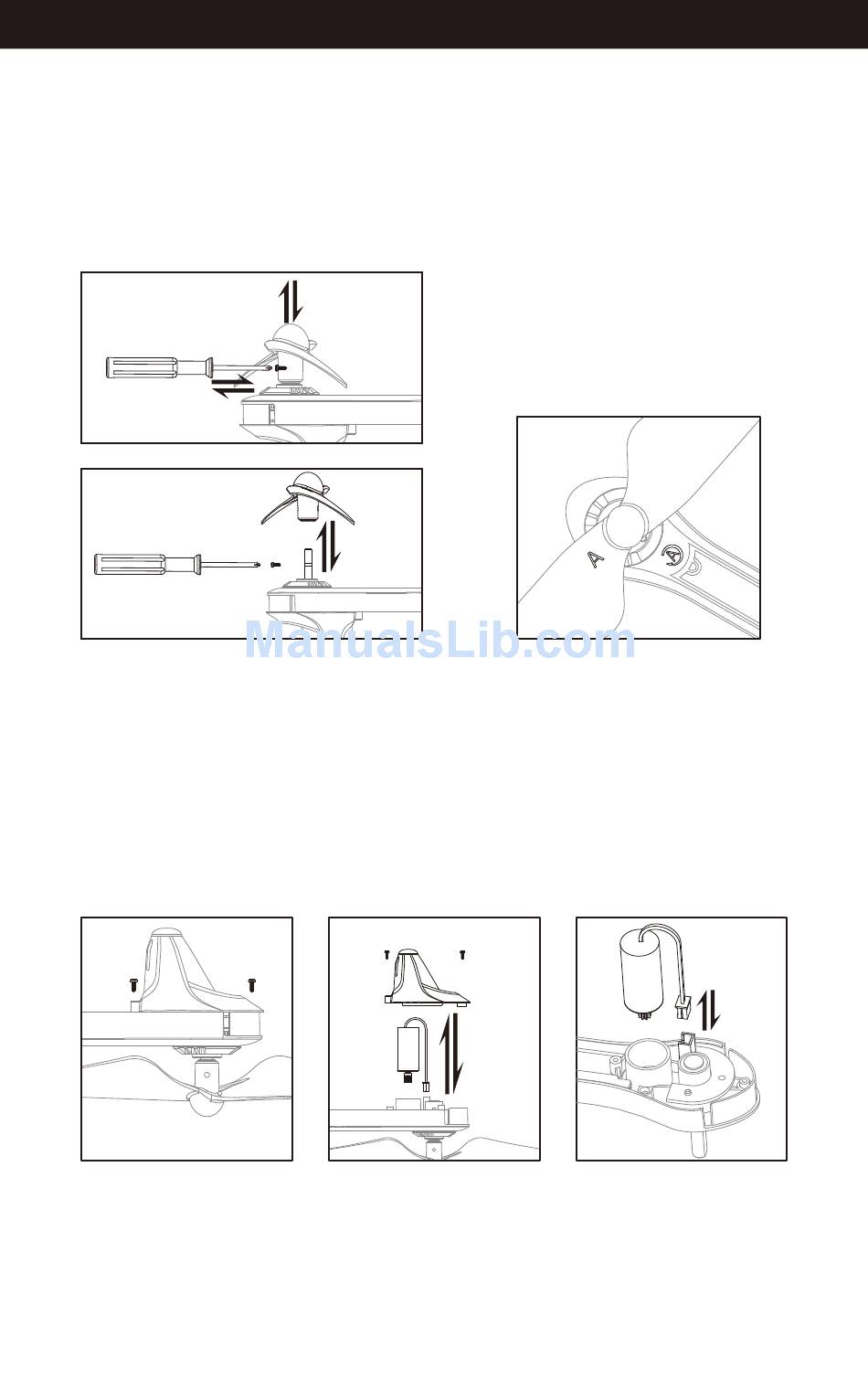

Propeller Installation Diagram
1. To remove the propeller, remove the screw from propeller first (Picture 11),
and then pull the propeller out.( Picture 12)
2. To install the propeller , make sure the propeller rotated direction is correct
first, and then mount propeller on transmission shaft of the motor and press
down ( Picture 12), and then fix the screw. ( Picture 11)
Picture 11
Picture 12
Motors Replacement
1. To remove the motor, remove the screw from the lampshade first(Picture 14)，
then take the lampshade out ( Picture 15) , unplug the motor connector from
LED board and then take the motor out.
2. To install the motor, plug the required motor connector into the LED board
socket,and put the motor into motor holder (Picture 16) . Put on the motor
cover ( Picture 15) and fix it with screw ( Picture 14).
Picture 14
WARNING: The motor's rotating direction should be the same, or it will not work.
Note: The motor is consumable. If it is damaged, visit the local seller to buy
new motor for replacement.
Note: Be sure that the A propeller is
on the right arm marked with A letter,
and the B propeller is on the right
arm marked with B letter.
Picture 15
9
