Summary of Contents for UDI R/C U67

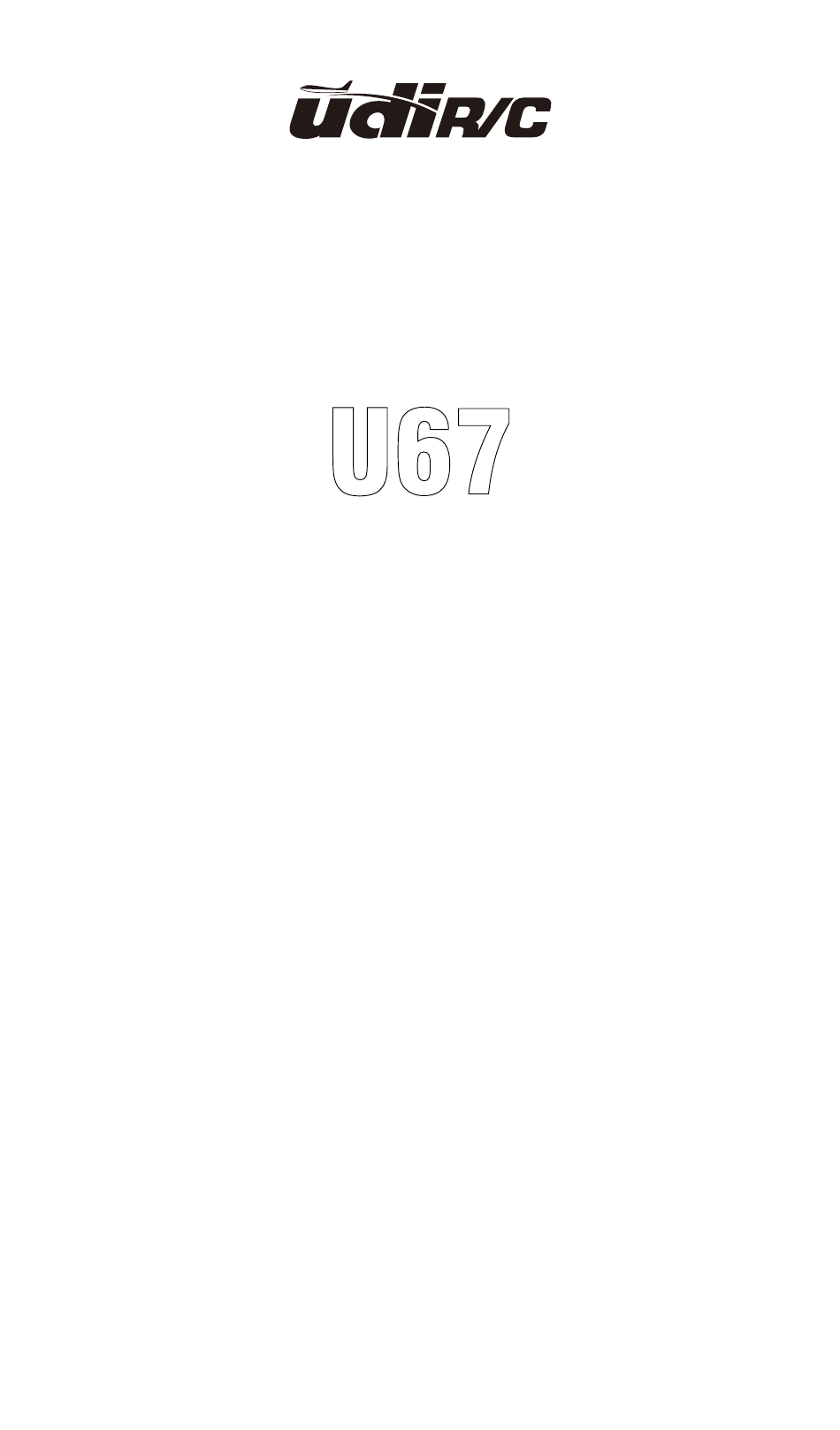

  • Page 1 USER MANUAL Suitable for indoor flight ▲This product is suitable for users over 14 years old. ▲Stay away from the rotating propeller ▲Read the<important statement and safety guidelines >carefully.
  • Page 2 Ready Before Take Off Drone preparation Front Propeller A Drone indication Propeller B Charging port Power Switch Left Right Doll Main frame Rear Propeller D Propeller C Unfolding Instruction Fully unfold the Unfold the drone arm drone arm shape...
  • Page 3 Handle handling Installation: Align the cylineder Under the handle to the hole in front of the main body and press it down to the bottom. Disassemble: Hold the handle and Pull it down. Slider drone doll installation When installed, the doll is loaded into the main body, and then the doll cylinder is aligned with the buckle on the main body, pressed vertically downward, and the doll's hand is buckled onto the main handle;...
  • Page 4: Charging Instruction

    Charging Instruction Battery power is insufficient in the original plant. It must be charged saturated before it can be used. Connect the original charging cable with the drone, and then connect other USB charging port the drone red indicator keeps bright when charging and the light turns green Charging port when fully charged.
  • Page 5: Flight Operation

    Flight Operation Transmitter connect with Drone Frequency Pairing ① Power on the drone, the drone indicator will change from fast flash to slow flash, and enter frequency pairing. Horizontal ground ② Turn on the power on the transmitter, the indicator will flash quickly. ②...
  • Page 6 Control stick operation Left stick Go up Go down Clockwise turn Right stick Forward Fly to the left Backward Fly to the right Take off After the frequency pairing is successful, press "take off/land" button, the transmitter will sound "di", and the drone will automatically rises and flies at an altitude of about 1.2 meters.
  • Page 7 Automatic show 1 Press the “Automatic show 1” button and the drone will rotate 720°. Automatic show 2 Press the “Automatic show 2”button, the drone fly forward ,turn back and return to take off point.
  • Page 8 Speed mode switch Press "H/L" it will make the sound"di"di. di" three times to enter high speed mode "H". Press down it again, it will make the sound"di" ,this indicates to the low speed mode”L. Press down again, it makes the sound of ‘di’ for twice, it comes to the middle speed mode “M”.
  • Page 9 Front Front Rear Rear Flying Trimmer Forward / Backward Trimmer During the flight, if the drone tilts forward, press down the left stick in the center button, and push the right stick backwards. Otherwise push forwards. Left and right turning trimmer Press down During the flight, if the drone head rotates to left,then press down the left stick in the...
  • Page 10: Drone Calibration

    Drone calibration (When abnormal flying) After successful frequency alignment, the right control lever of the transmitter is pushed to the lower right corner by 45°, and the status indicator of the drone turns to keep bright after quick flashing, indicating that the gyroscope has been calibrated.
  • Page 11: Parts Replacement

    Stuck Protection 1. When the propellers get stuck, then activate stuck protection function and the motors stop running. 2. Pull down the left stick to the lowest position and then go back to the center, stuck protection will be released and the drone can fly again. Parts Replacement Propeller Replacement To remove the propeller, hold the propeller vertically...
  • Page 12 Parameter Drone Weitht 32g( typical value) Propeller Diameter 38mm Maximum flight time 6 minutes(calm) Operating Temperature Range 0°C to 40°C Operating frequency 2.4GHz Battery 3.7V,220mAh Type of battery LiPo Charging Time About 40 minutes Charging temperature range 5°C to 40°C Transmitter Operating frequency 2.4GHz...
  • Page 13: Troubleshooting

    Troubleshooting Problem Problem cause Solution Low battery. Replace the controller battery. The controller The batteries are incorrectly. Install the batteries following the polarity indicators. Indicator light is off. The batteries are incorrectly Clean the dirt between the battery and the positioned.
  • Page 14: Fcc Note

    FCC Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
