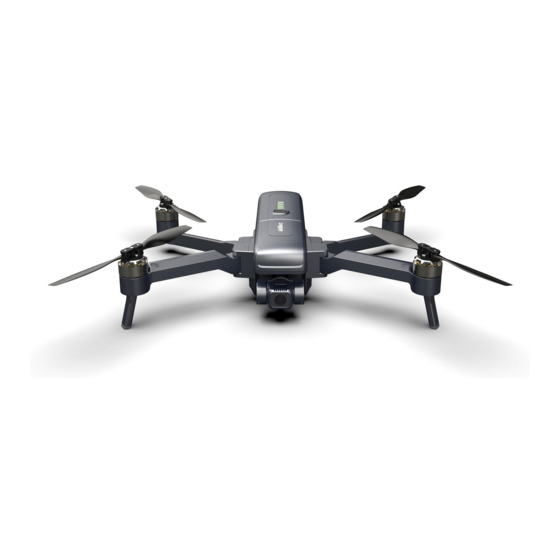

U38S
OPERATION GUIDE
This product supports GPS positioning and is recommended for outdoor flight!
This wifi camera pinpoint is 5G, please confirm whether the phone is supported.
Note
▲This product is suitable for users over 14 years old.
▲Stay away from the rotating propeller
▲Read the "important statement and safety guidelines"carefully.
Drone Battery Li-Po Battery Disposal & Recycling
Wasted Lithium-Polymer batteries must not be placed with household
trash. Please contact local environmental or waste agency or the
supplier of your model or your nearest Li-Po battery recycling center.
Our company's products are improving all the time, design and
specifications are subject to change without notice. All the information in
Important
this manual has been carefully checked to ensure accuracy, if any
Notice
printing errors, our company reserve the final interpretation right.

Advertisement

loading
Need help?

Need help?

Do you have a question about the U38S and is the answer not in the manual?

Questions and answers

Related Manuals for UDI R/C U38S

Summary of Contents for UDI R/C U38S

  • Page 1 U38S OPERATION GUIDE This product supports GPS positioning and is recommended for outdoor flight! This wifi camera pinpoint is 5G, please confirm whether the phone is supported. Note ▲This product is suitable for users over 14 years old. ▲Stay away from the rotating propeller ▲Read the “important statement and safety guidelines”carefully.
  • Page 2 Ready before take off Drone preparation Front Propeller A Propeller B Camera Front folding arm Front folding arm Switch Battery indicator Battery Rear folding arm Rear folding arm Propeller B Rear Propeller A Tripod Tripod Front Front LED (Red) Front LED (Red) TF Card slot visual system Rear LED (Green)
  • Page 3 Unfolding Instruction ② Rear folding arms unfold ① Folding State ④ Open the tripod ③ Front folding arms unfold Battery charging Battery power is low in the original factory, It must be fully charged before use. Connect the batteries of the drone to the charging line of the original plant, and then connect to other USB charging outlets.
  • Page 4 Installation of TF Card Insert the TF card into the slot on the belly of the fuselage, and pay attention to the metal contact surface orientation of the TF card. * TF card is not included Transmitter Phone Holder Video Gimbal Rotary Button Photo Left stick /...
  • Page 5 The installation methods of mobile phone holder Installation ② Put the phone clip ① on the back of the Straightening the antenna quasi-remote controller and push it to the end. Disassemble ② Pull up the clip on the mobile phone ①...

  • Page 6: Flight Operations

    Flight Operations Mobile phone connect with Drone Download and install APP: UDIGPS-PRO This software is suitable for mobile phones in the IOS 9.0 or later and Android 4.4 or later system. For detailed operation, please check the system “HELP” of APP. Transmitter connect with Drone Frequency Pairing ②...
  • Page 7 Compass calibration Rotate the drone horizontally until the transmitter sound "di..." Level correction to complete. When the front navigation light turns to long light and the rear navigation light flashes, enter vertical correction. rotate the vehicle vertically until the transmitter sound "di...", vertical correction over.
  • Page 8 Unlocking the drone Push the left and right stick inward to the 45° angle simultaneously. ① On standby drone, motor rotation, drone Unlocked. ② When the drone is not take off, the motor stops rotating and the drone is locked. The drone can only take off when the motor is unlocked.
  • Page 9 Return During the flight, press the " " button, and the transmitter will sound "di", and the drone will automatically return to the take-off point. (during returning, the transmitter will continuously sound "di". To stop homing, just press this button again.) Notice: While returning, the control lever of the transmitter can not control the drone, it must be waited for the drone to go back to the take-off point.
  • Page 10 Encircling flight In flight, press the " " button, and the transmitter will make the sound of "di". Then it goes to the function of encircling flight. The drone will fly to a default radius then it waits for the direction controlled by the user. Adjust the speed and direction of the drone by manipulating the right stick.
  • Page 11 Photo Video Press the " " button once to Press the " " button, the take a picture and the transmitter will sound "didi" transmitter will to start recording. sound "di". Repeat this action to stop recording and save the video. Notes for Filming ①...
  • Page 12 Out of Range Alarm When the drone is out of the remote control distance, the transmitter will continues to sound "didi.didi" to alarm the user to return the drone immediately. Stuck Protection When the propeller is stuck and does not rotate, the drone will start the automatic protection function to stop the motor working.

  • Page 13: Parts Replacement

    Parts Replacement Propeller Replacement Disassemble: Installation: Unscrew the screw on both Place the propeller assembly on the sides of propeller clamp and motor shaft, fix it on the motor, and pull out propeller assembly. lock screws on both sides of the propeller clamp.
  • Page 14 Parameter Drone Camera Weight: About 547g Image mode: RGB Mode Size: Folded: 173.5x93x70mm Frame Rate: 25 Diagonal: 297mm File System Support: FAT 32 (Diagonal motor shaft spacing) Image format: JPEG format Propeller radius: 86.5mm Video format: MP4 Compressed Max ascent rate: 1.5m/s format H.264 Max descent rate: 1.5m/s TF Card: Support Class 10 Micro...

  • Page 15: Troubleshooting

    Troubleshooting Problem Problem cause Solution Low battery. Charge the controller battery. The controller The batteries are incorrectly. Install the batteries following the polarity indicators. Indicator light is off. Clean the dirt between the battery and the The batteries are incorrectly positioned. battery contacts.

  • Page 16: Fcc Note

    Los niños menores de 14 años deben ser supervisados por adultos. Manufacturer company: SHANTOU CITY CHENGHAI UDIRC TOYS CO., LTD Manufacture address: Guangfeng Industrial Zone, Guangyi Street, Chenghai District, Shantou City, Guangdong Province, China Model: U38S Manufacture time: MADE IN CHINA...
