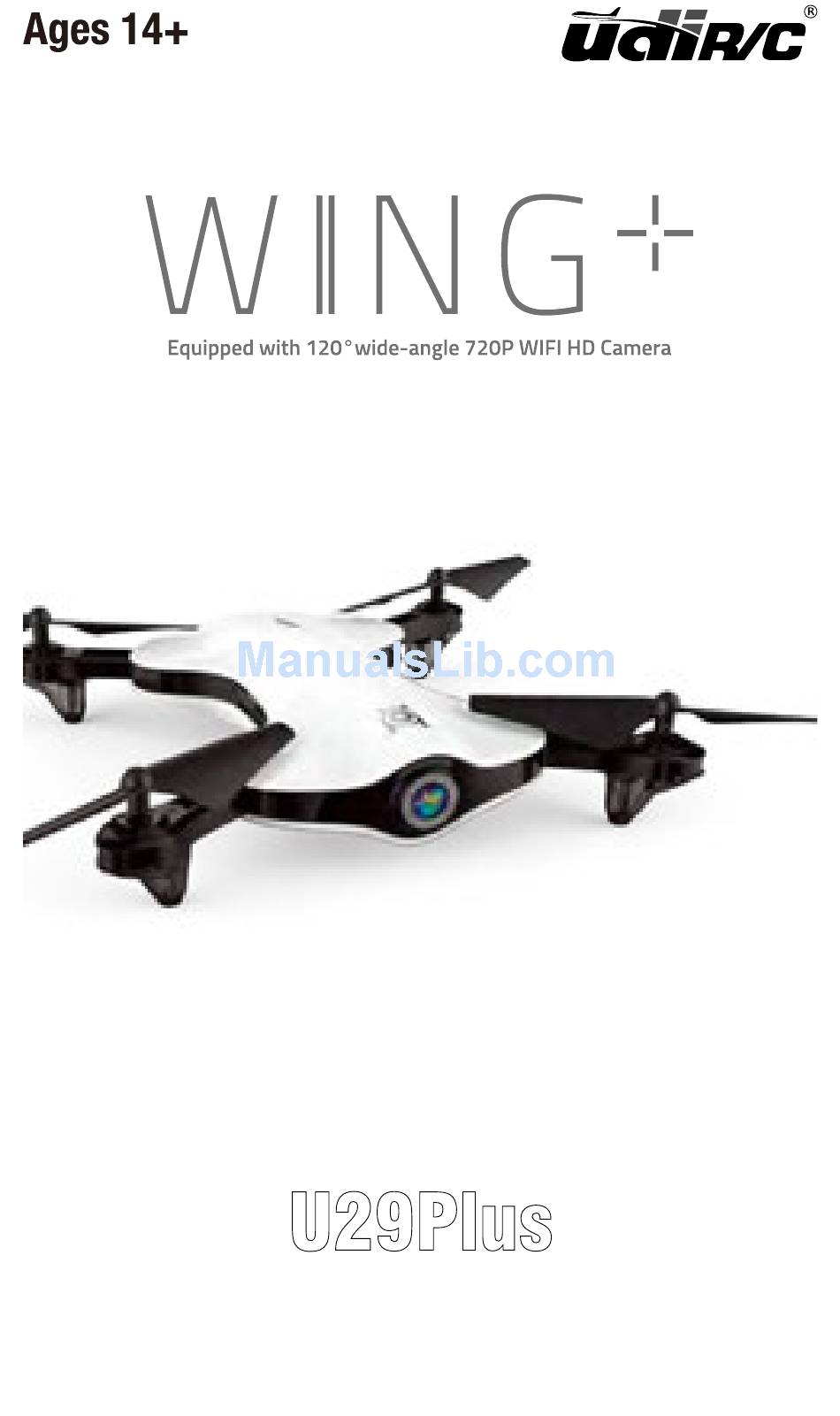

- Page 1 U29Plus User Manual...
-
Page 2: Table Of Contents
www.udirc.com Catalog Instruction for Drone and Controller Installing & Removing Component Pre-Flight Checklist Flying Procedure Function To know your APP Using the Flyingsee APP Spare Parts Troubleshooting... -
Page 3: Instruction For Drone And Controller
www.udirc.com Instruction for Drone and Controller Drone Front Propeller Guard A Propeller B Propeller Left Right Drone Cover Housing B Propeller A Propeller Rear Camera Lampshade Lampshade Drone Bottom Battery Housing Battery Buckle Optical Flow Sensor Lampshade Lampshade Switch Specifications Drone Size (Unfolded) 347x366x65mm Max Charging Time for Drone Battery... - Page 4 www.udirc.com Exploded View...
- Page 5 www.udirc.com Name Name A Propeller (Clockwise) Bracket Buckle Propeller Guard Bracket Buckle Spring Transmission Gear Drone Body Right Rear Bracket Lower Cover Optical Flow Board Motor Holder Camera Board Right Rear LED Board (Red) Camera Component Transmission Shaft Camera Cover Lampshade Camera Cushion Cushion...
- Page 6 www.udirc.com Unfolding Instruction 1. Pull out the arm bracket as per the below arrow shown (Picture 1) , it will make a click sound, then it means fully unfolded(Picture 2). On the contrary, then it’s folded. Picture 1 Picture 2 2.
-
Page 7: Battery
www.udirc.com High/Medium/Low Trimmer Mode Button Speed Mode Battery Cover Controller Button Functions High / Medium/Low Speed button: Press to switch to High /Medium/ Low Speed. Left Stick: Move the Stick to forward / backward / left / right to fly the drone up / down / turn left / turn right. Right Stick: Move the Stick to forward / backward / left / right to fly the drone forward / backward / left / right. -
Page 8: Installing & Removing Component
www.udirc.com Phone Installation Instruction 1. Pull out the holder until the phone can be hold( Picture 7), then unfold the lower clamp( Picture 8). 2. Put the phone into the holder, then release the clamp, and the phone will be fixed on the holder( Picture 9/10). - Page 9 www.udirc.com Propeller Installation Diagram 1. To remove the propeller, remove the screw from propeller first (Picture 11), and then pull the propeller out.( Picture 12) 2. To install the propeller , make sure the propeller rotated direction is correct first, and then mount propeller on transmission shaft of the motor and press down ( Picture 12), and then fix the screw.
- Page 10 www.udirc.com Prop Guard Assembly Instruction To remove the propeller guard, take out the propeller buckles on both side and remove the propeller. ( Picture 17) To install the propeller guard, attach one buckle to the arm and then push another buckle in until they locks.( Picture 18) Picture 17 Picture 18...
-
Page 11: Pre-Flight Checklist
www.udirc.com Pre-Flight Checklist 1. Ensure that the drone battery and controller batteries are fully charged. 2. Ensure that the left stick of the controller is in the middle position. 3. Strictly follow the instructions for the order for turning on and turning off the controller and drone. -
Page 12: Picture
www.udirc.com Calibrating The Drone (After Pairing) Push the right stick as picture shown. (Do not move the left stick before successful calibration) , the drone body light will flash 3 times , indicating that drone is calibrating. After successful calibration, the drone lights will be solid. Tips: Crashing the drone may cause it to become imbalanced beyond the level that can be adjusted by the trimmer button. - Page 13 www.udirc.com Flying Control Forward/Backward Trimmer When you take off, if the drone tilts forward , press the trimmer button, and push the right stick backward. Otherwise push forward. Left/Right Tilts Trimmer Trimmer When you take off, if the drone tilts to the left, press the trimmer mode button, and push the right stick to the right.
-
Page 14: Function
www.udirc.com Function One Button Take Off And Landing One Button Take Off After calibration successfully, press this button, the drone will fly up and keep flying at an altitude of approximately 1.2 meters. One Button Landing Press to land the drone automatically. (In this mode, DO NOT touch the left stick, or the function will fail) Emergency Landing If the drone is in an emergency situation , such as if...
