Summary of Contents for UDI R/C piglet U36W

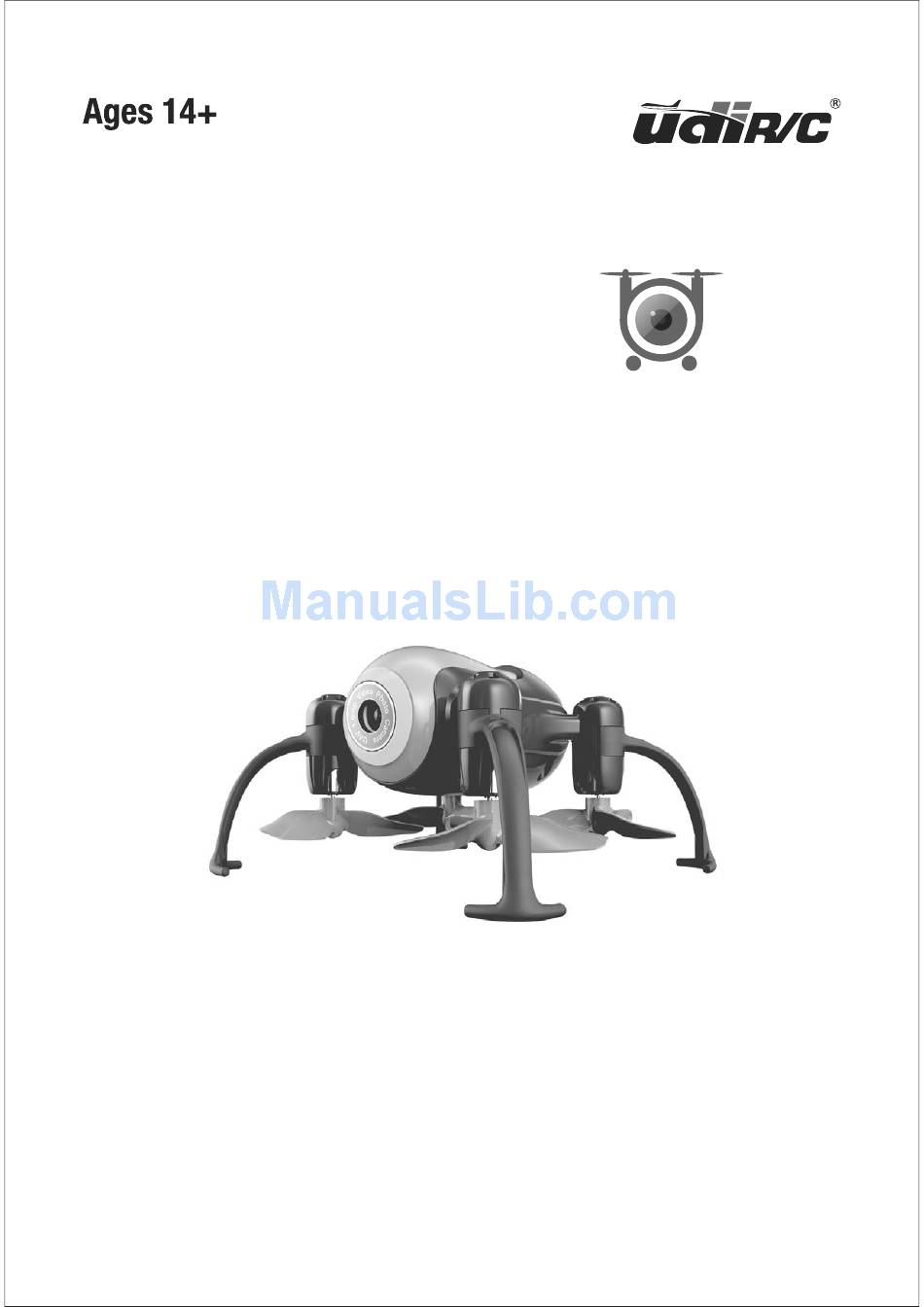

Page 1 Piglet Aerial Photography / Real-time FPV / WiFi Control Heading Hold Mode / Low Battery Alarm Out of Range Alarm / One Button Take Off/Landing High/Low Speed Mode / Custom Route Mode Altitude Hold Mode U36W User Manual...
Page 2: Table Of Contents
www.udirc.com Catalog Important Statement Safety Precautions Safe Notice for Drone Battery Charging Instruction for Drone Battery Check List Before Flight Instruction for Drone and Transmitter Pre-flight Operation Instruction Functions Introduction Spare Parts Installation Instruction To know your APP Spare Parts Troubleshooting Guide...
Page 3: Important Statement
www.udirc.com Important Statement Thank you for buying UDIRC's product. People who under 14 years old must not use the product. Please read this brochure carefully before using the product. You are regarded as accepting all content in this user manual when using this drone. This product is not an ordinary toy but a piece of complicated equipment which is integrated with professional knowledge by mechanic, electronic, air mechanics, high-frequency emission...
Page 4 www.udirc.com (1) Flying Area The flying field must be legally approved by your local government. Do not fly the drone near in the airport. Keep far away from the airport more than 5km when flying a RC drone. Flying field must spacious enough and we suggest at least 8M (length)*8M (width)*5M (height).
Page 5 www.udirc.com (5) Safe operation Please operate the RC drone in accordance with your physical status and flying skill. Fatigue, listlessness and improper operation may increase the rate of accident. (6) Keep away from rotating parts Rotating parts like propellers or motors may cause serious injury and damage.
Page 6: Safe Notice For Drone Battery
www.udirc.com Safe Notice for Drone Battery * Do not put the battery on high temperature place, such as fire or heating device to avoid damage or explode. * Do not use the battery to crash or hit hard surface. * Do not put the battery in water and keep it in dry place. * Do not open the battery.
Page 7: Check List Before Flight
www.udirc.com Phone Charger Power Bank Computer Charging Car Charger Li-Po Battery Disposal & Recycling Wasted Lithium-Polymer batteries must not be placed with household trash. Please contact local environmental or waste agency or the supplier of your model or your nearest Li-Po battery recycling center. Check List Before Flight 1.
Page 8: Instruction For Drone And Transmitter
www.udirc.com 5. Improper operation may cause drone crash, which may arouse motor defective and noise, and then effect the flying status or even stop flying. Please go to the local distributor to buy new parts for replacement so that the drone will return to its best status.
Page 9 www.udirc.com Front LED (Green) A Propeller B Propeller Drone Bottom Housing B Propeller A Propeller Rear LED (Red) Specification Drone Size 66x66x37mm Charging Time for Drone Battery 25~30 mins Drone Weight Max Flying Distance/Radius 10~15 m Propeller Diameter Ø32mm Camera Resolution 640*480 Flying Time 5~7 mins...
Page 10 www.udirc.com Exploded View Name Name Drone Cover Housing Camera Lens Propeller Guards Camera Head Cover Camera PCB Lipo Battery Clockwise Motor (Red and Blue Wire) Switch Board B Propeller (Counterclockwise) Receiver Board Counterclockwise Motor (Black and White Wire) Drone Bottom Housing A Propeller (Clockwise)
Page 11 www.udirc.com Transmitter Heading Hold UA20 UA20 UA20 Mode High / Medium / Low Speed Mode Left Stick Right Stick (Throttle / Rudder) (Forward / Backward / Left / Take Off / Right) Landing / Emergency Stop Power Switch Button Power Indicator Light Trimmer mode button ( Press Down)
Page 12: Battery Installation
www.udirc.com Brief Introduction for Button Functions Move the Stick to forward / backward / left / right to fly the drone Left Stick to up / down / turn left / turn right. Move the Stick to forward / backward / left / right to fly the drone Right Stick to forward / backward / left / right.
Page 13: Pre-Flight Operation Instruction
www.udirc.com 1. Make sure the electrodes are correct. 2. Do not mix new with old batteries. Notice: 3. Do not mix different kinds of batteries. 4. Do not charge the non rechargeable battery. Pre-flight Operation Instruction Frequency Pairing 1. Turn on the transmitter switch (Picture 1) and the power indicator light flashes rapidly.
Page 14 www.udirc.com Important Notice: Please make sure the drone is placed on the horizontal position after powering on the drone, so that the drone can work well. Checklist before Flight 1. The camera is in front of the drone. Keep the drone front away from you.
Page 15 www.udirc.com Calibration Instruction Please follow below steps to calibrate the drone if the drone becomes imbalance after crashing during the flight, and can not be adjusted by trimmer button and cause difficult operation. 1. Power off the drone, then turn off the transmitter switch. 2.
Page 16 www.udirc.com Flying Control Notice: Every time before the drone take off, move the Left Stick and Right Stick at the same time as Picture 5 shown(45 degree inward) to start the motors. Push up the Left Stick slowly to fly up the drone or press down the one button take off .
Page 17 www.udirc.com Push up the stick, then the drone flies forward Right Stick Pull down the stick, then the drone goes backward Move the stick to the left, then the drone turns to left Move the stick to the right then the drone turns to right...
Page 18 www.udirc.com Forward and backward trimmer When take off, if the drone tilts forward, press down the left stick in the center, and push the right stick backwards. Otherwise push forwards. Left and right turning trimmer When take off, if the drone head rotates to left,then press down the left stick in the center and push left stick to right.
Page 19: Functions Introduction
www.udirc.com Functions Introduction Two Take Off Methods 1. Method 1 (Take off) : After frequency pairing successful, then move the Left Stick and Right Stick at the same time as Picture 5 shown(45 degree inward) to start the motors. Push up the Left Stick to fly up the drone to certain altitude and then release the stick.
Page 20 www.udirc.com ▲Emergency Stop: When the drone in emergency situation and going to hit the walking people or obstacle etc., press the Take Off / Landing / Emergency Stop Button immediately and hold it for more than 1s. The propellers will stop immediately. Tip: Do not use the emergency stop function unless in emergency situation.
Page 21 www.udirc.com High / Medium/Low Speed Mode Switch Low Speed Mode(Mode 1) 1. Low Speed Mode is suitable for beginner. Medium speed Mode(Mode 2) 2. Medium Speed Mode is suitable for skillful pilots to play in the gentle breeze. High Speed Mode(Mode 3) 3.
Page 22 www.udirc.com Heading Hold Mode is designed for beginners and users who fly the drone in daylight or at a far distance. When the drone in heading hold mode, push the Right Stick to forward / backward / left / right, and the drone will fly to forward / backward / left / right accordingly.
Page 23 www.udirc.com Low Battery Alarm When the transmitter in low battery, the transmitter will beep Di-di-di... to remind the user to land the drone to replace the batteries as soon as possible. Or the drone may be out of control. When the drone in low battery, the transmitter will beep Di.di.di...
Page 24: Spare Parts Installation Instruction
www.udirc.com Spare Parts Installation Instruction Propeller Installation and disassembly Diagram When disassemble, pull up the propeller in the vertical direction (Picture 11) and remove as Picture 12. Notice: Because the propeller is blowing up structure, it should keep a bit gap between the motor housing and the propeller( Picture 13).
Page 25: To Know Your App
www.udirc.com Propellers guards installation and disassembly diagram When disassemble, remove one side of the guard from the buckle, and then pull out ( Picture 14). When install, aim the groove of the motor housing buckle and then press down (Picture 15). Picture 14 Picture 15 To know your APP...
Page 26 www.udirc.com 3. Scan the QR code on the right or the QR code in the box to download Flyingsee. Frequency Pairing between Mobile Phone and Drone WiFi: 1. Power on the drone. Put the drone on the flat surface in horizontal position.
Page 27 www.udirc.com HOME Explore UDIRC Drone EMERGENCY Learn the operation of drone Flyingsee Remote control interface 100% Help Media Real time Transmission Interface Click on the icon Home Page 4. Click on to enter Virtual Control Interface. At this time the drone LED lights change from flash to solid bright, which indicates successful frequency pairing and the drone is ready to be controlled via APP.
Page 28 www.udirc.com Introduction for APP Icons Home Page Icons Help Explore UDIRC Drone Media Learn the operation of Drone Remote control interface Remote Control Interface Home Page Icon Click on the icon and back to home page. Virtual Reality Mode Click on the icon to enter virtual reality mode to experience first person view (only available when using with a VR headset).
Page 29 www.udirc.com Flight Route Setting Mode Click on this icon and it turns red. Draw a flight route in the right area. The drone will fly according to the flight route. Click on the icon again to exit from Flight Route Setting Mode. The icon turns white.
Page 30 www.udirc.com Remote Control Virtual Control Stick The virtual control stick is hidden by default. Click on the icon to turn on the virtual control stick. Gravity Induction Mode Click on this icon to enter gravity induction control mode. (only available for flying left / right and forward / backward).
Page 31 www.udirc.com Video Click on this icon to record video. The recording time will show at the bottom of the screen. Click on this icon again to finish recording. Photo Click on this icon to take photo. Heading Hold Mode Click on this icon and it turns red, which indicates that the drone enter Heading Hold Mode.
Page 32 www.udirc.com One Button Landing Click on this icon and the icon turns red, the drone will fly down slowly and land on the ground. All propellers also will stop. The video and the photos are stored in the local phone gallery, you can display it in the phone directly, or you also can display it in the APP via quick icon to enter Media interface.
Page 33: Take Off
www.udirc.com APP Flying Control Take off EMERGENCY Click on this icon and it turns red shortly. The drone will fly up automatically and stay flying at an altitude of 1.2 meters. 00:00 To fly up or down: To fly right or left: Move the Left Ball up to fly the Move the Right Ball to the left to drone up and move the Left Ball...
Page 34 www.udirc.com If the drone tilts forward or backward Click the “-” of the Forward / Backward Trimmer to adjust the drone till balance if the drone tilts forward. Click the “+” to adjust the drone till balance if the drone tilts backward. If the drone rotates to left or right Click the “+”...
Page 35: Spare Parts
www.udirc.com Spare Parts For convenience, the spare parts are listed for you to choose, which can be purchased from the local seller. U36W-01 U36W-02 U36W-03 Drone Cover Housing Drone Bottom Housing A Propeller U36W-04 U36W-05 U36W-06 B Propeller Propeller Guards Camera Head Housing U36W-07 U36W-08...
Page 36 www.udirc.com U36W-10 U36W-11 U36W-12 Camera Board Receiving Board USB Cable U36W-13 Transmitter Important Notice Our company's products are improving all the time, design and specifications are subject to change without notice. All the information in this manual has been carefully checked to ensure accuracy, if any printing errors, our company reserve the final interpretation right.
Page 37 www.udirc.com...
Page 38 www.udirc.com...
Page 39 www.udirc.com FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.These limits are designed to provide residential protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not Installed and used in accordance with the instructions, may cause harmful interference to radio...
Page 40 www.udirc.com FCC WARNING: The equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. Modifications not authorized by the manufacturer may void user’s authority to operate this device.
