Summary of Contents for UDI R/C U31W Navigator

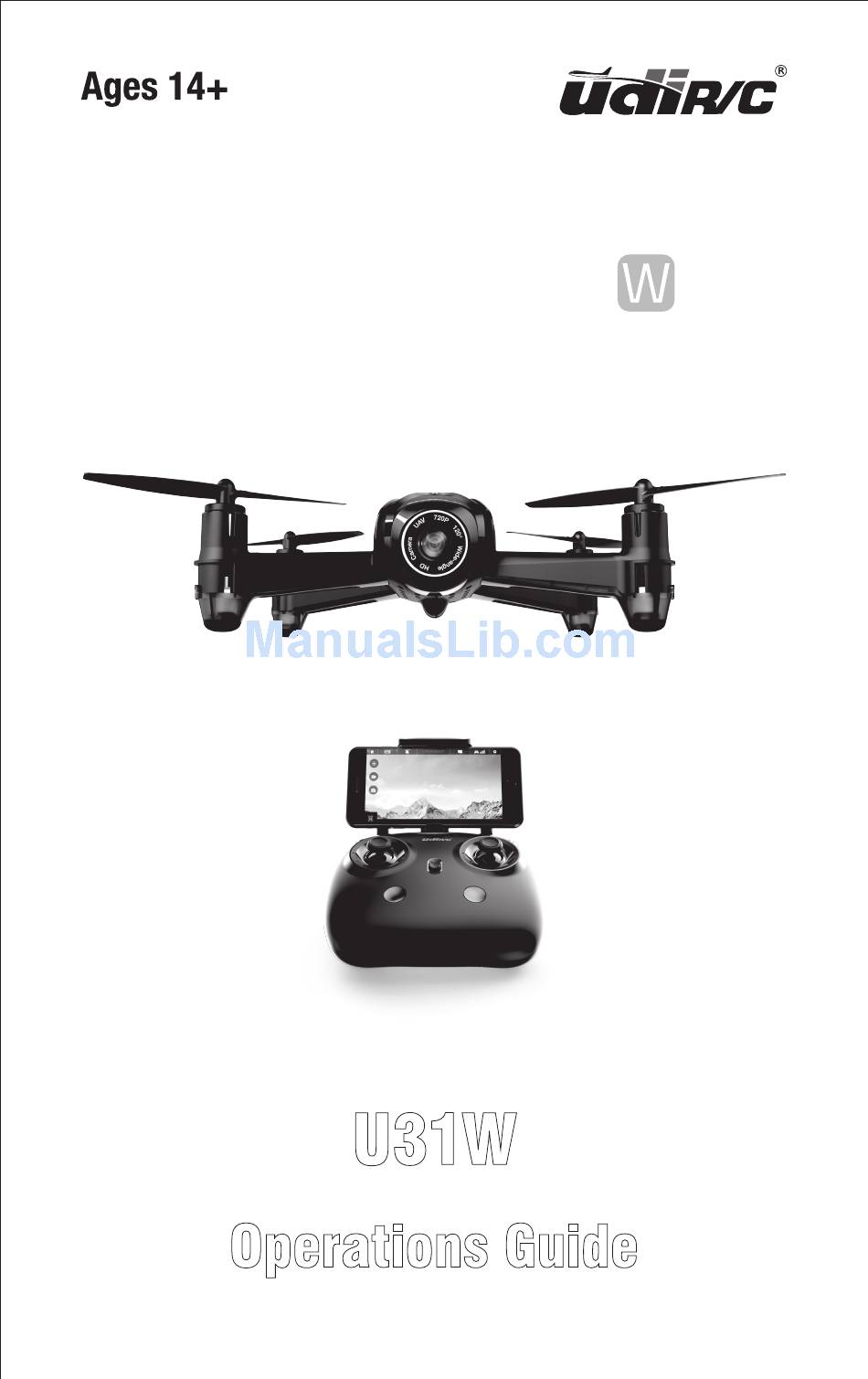

Page 1 NAVIGATOR Equipped with 120°wide-angle 720P HD WIFI Camera U31W Operations Guide...
Page 2 Catalog Important Statement Safety Precautions Safe Notice for Drone Battery Charging Instruction for Drone Battery Check List Before Flight Instruction for Drone and Transmitter Pre-flight Operation Instruction Functions Introduction To know your APP Spare Parts Installation Instruction Spare Parts Troubleshooting Guide...
Page 3: Important Statement
Important Statement Thank you for buying UDIRC's product. Children under the age of 14 years old must not use this product. Please read this brochure carefully before using the product.The contents of the manual is deemed to be accepted once the user has flown the drone. This product is not an ordinary toy but a piece of complicated equipment which is integrated with professional knowledge of mechanic, electronic, air mechanics, high-frequency emission etc.
Page 4: Safe Notice For Drone Battery
(4) Keep away from humid environment The drone consists of precise electronic components. Humidity or water vapor may damage the electronic components and cause accident. (5) Safe operation Please operate the RC drone in accordance with your physical status and flying skills.
Page 5: Charging Instruction For Drone Battery
Charging Instruction for Drone Battery 1. Connect the drone battery with USB cable firstly and then choose one of the methods as shown in the pictures below to connect with USB plug. 2. The red USB indicator light keeps bright when charging and the light becomes green when fully charged.
Page 6: Instruction For Drone And Transmitter
Instruction for Drone and Transmitter Drone Front Camera Propeller A Propeller B Drone cover Power Switch housing Left Right Left guard Right guard Propeller B Propeller A Battery holder Rear LED strip LED strip （Green）（Green） Cushion Cushion LED strip LED strip （Red）...
Page 7 Expanded View Name Name Drone cover housing Right front LED hood Propeller A (Clockwise) Cushion Right guard Receiver board Clockwise Motor (Red connector) Battery upper holder Propeller B(Counterclockwise) Drone battery Battery lower holder Counterclockwise Motor ( White connector) Camera board Drone bottom housing Left guard Camera head cover...
Page 8 Transmitter Phone holder Power Switch Left Stick Right Stick (Throttle / Rudder) (Forward / Backward ) One button Take Off / Headless Mode Landing / Emergency Stop Button High / Medium/Low Trimmer mode button Speed button Battery cover Brief Introduction to Button Functions Move the stick forward / backward / left / right to fly the drone Left Stick up / down / turn left / turn right, respectively.
Page 9: Battery Installation
Battery installation Open the battery cover on the back side of the transmitter and put 4 alkaline batteries (AA, not included) into the cavity in accordance with the electrode instructions as shown in pictures 1 and 2 4*1.5V Alkaline Batteries Battery Cover Picture 1 Picture 2...
Page 10: Pre-Flight Operation Instruction
Pre-flight Operation Instruction Frequency Pairing 1. Turn on the transmitter switch (Picture 7) and the power indicator light will start to flash rapidly. Pull the left stick all the way down to its lowest position and then release. The left stick will return to the middle position automatically. (Picture 8 / 9) The power indicator light will start to flash slowly, indicating that the transmitter is ready for frequency pairing.
Page 11 Picture 12 4. After activating the motors, push up the left stick slowly to fly the drone, and pull down the left stick slowly to its lowest position to land the drone smoothly. 5. It is recommended to repeat Step 4 for practice. 6.
Page 12 Flying Control Notice: Every time before the drone is flown, move the left and right stick at the same time as Picture 16 shows below(45 degree inward) to start the motors. Push up the Left stick slowly to fly the drone or press down the one button take off . Forward and backward trimmer When flying, if the drone tilts forward, press down the trimmer button, and push the right stick backwards.
Page 13: Functions Introduction
Functions Introduction Take off/ One button take off/Landing modes 1. Method 1 (Take off): After frequency pairing is successful, push down the left and right sticks as picture 12 illustrates to start the motor and then release them. To fly the drone to a certain altitude, push up the left stick and then release it.
Page 14 High / Medium/Low Speed Mode Switch Press down the button indicated below, and a “ di” tone will be sounded signifying that the low speed mode is activated. In the event that a “ di.di” or a “di.di.di” tone is sounded, this means that the medium or high speed mode has been activated, respectively.
Page 15 * Press down the headless mode button, the drone’s left and right LED will start flashing alternately, signifying that the drone has entered headless mode, press the button again, then the LED will become solid as the drone exits headless mode. Headless Mode Low Battery Alarm When the drone is in low battery mode, the transmitter will send out a constant beeping...
Page 16: To Know Your App
To know your APP Download and Install the APP: Flyingsee The APP is suitable for mobile phone with iOS and Android systems, please download from the mobile phone software stores: 1. For mobile phone with iOS system, please search Flyingsee in APP Store. 2.
Page 17 EMERGENCY Virtual Control Interface H:100m 00:00 100% Important Tip: Ensure that the drone is put on a flat surface in a horizontal position so that the drone can work properly or the user may experience difficulty in drone control. Introduction for APP Icons Home Page Icons Explore UDIRC Drone Help...
Page 18 Emergency Stop EMERGENCY The icon is red by default. Click this icon and the propellers will stop immediately. The drone will fall instantaneously to the ground . Tip: Do not use the emergency stop function unless it is an emergency situation. TF Card When the TF card has not been inserted into the drone camera, then this icon will will be on display.
Page 19 If the mobile phone is tilted to the forward / backward direction, the right ball will roll forward / backward, causing the drone to fly forwards / backwards. Video Click on this icon to record a video. The recording time will be shown at the bottom of the screen.
Page 20 APP Calibration Instruction If the drone becomes difficult to operate or hover, you need to re-calibrate the drone . 1. Please refer to “Frequency Pairing between Mobile Phone and Drone WiFi”. 2. Do not push the left ball before successful calibration. Move the right ball as the picture on the right shows.
Page 21 1. If you cannot detect the WiFi signal , turn on and off the WiFi function and try to connect again 2. The available WiFi control radius/distance is 40m, please control the Notice: drone within this range. 3. When alternating control from mobile phone to transmitter, the transmitter left stick must be in the center position, or the APP exited from.
Page 22: Spare Parts Installation Instruction
To take photo and record video 1. Insert the TF card into the slot in accordance with Picture 18. Ensure that the metal side of the card faces up as shown in picture 18. Picture 18 2. The aerial photo will be saved on both your mobile phone and the TF card, while the video will only be saved onto the TF card.
Page 23 2. When assembling, place and align the propellers to the hole located on the motor shaft and press down onto the propeller to fully install it( picture 22). Installed propellers should be in contact with the surface of the motor housing( picture 23).(Please make sure that the correct propellers are installed according to their rotating directions) Picture 22 Picture 23...
Page 24: Spare Parts
Spare Parts For convenience, the spare parts are listed for your perual, which can be purchased from the local seller. U31W-01 U31W-02 U31W-03 U31W-04 Drone cover housing Drone bottom housing A propeller B propeller U31W-05 U31W-06 U31W-07 U31W-08 Left guards Right guards Battery upper holder Battery lower holder...
Page 25 U31W-21 U31W-22 U31W-23 U31W-24 Rear LED board(Red) Drone battery USB Cable TF card U31W-25 U31W-26 U31W-27 U31W-28 Card reader Wrench Hex wrench Screw driver U31W-29 Transmitter Important Statement Due to the continuous improvement of products, the design or technical parameters will be modified without prior notice.
Page 26: Troubleshooting Guide
Troubleshooting Guide Problem Problem Cause Solution 1. Low battery. 1. Replace the transmitter battery. 2. The battery positive pole and negative 2. Install the battery in accordance with the transmitter pole are in reverse order. user manual. indicator light is off 3.
Page 27 FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.These limits are designed to provide residential protection against harmful interference in a residential installation.
