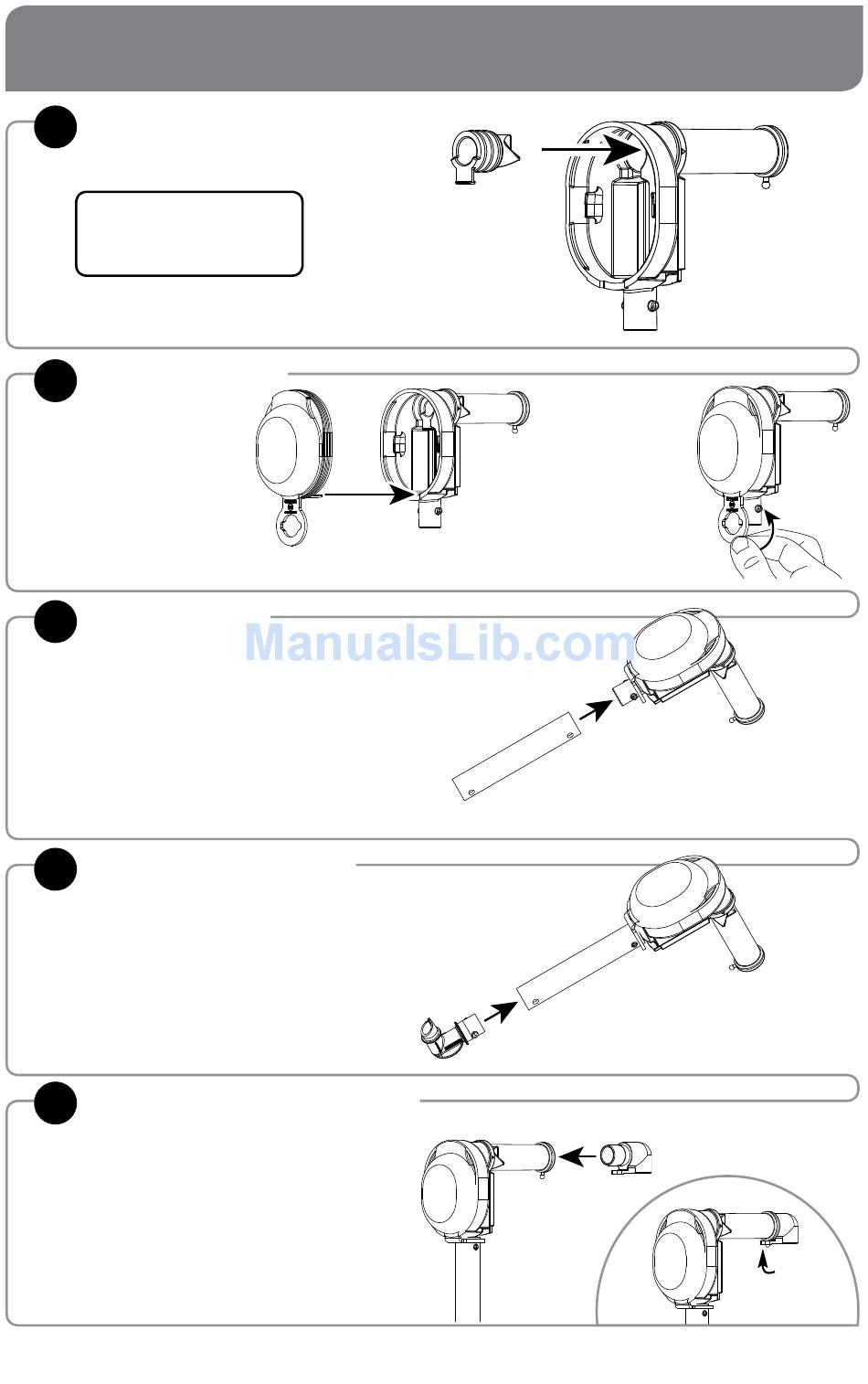

PUMP ASSEMBLY

1
INSERT PINCH VALVE
into pump housing.
TIP: Squeeze the pinch valve
open before installation to
ensure it isn't stuck shut.
2
INSTALL DOME
Press dome into
housing fully.
Ensure valve flap
covers bottom
opening.
INSTALL TUBE
3
Lubricate with a small amount of clean water.
Rotate and position until both pegs on
housing fit into holes on tube.
4
INSERT CONNECTOR
Lubricate with a small amount of clean water.
Rotate and position until both pegs on
connector fit into holes on tube.
Connector must point away from end of
discharge tube.
5
INSERT DISCHARGE FITTING
into pump housing discharge tube.
Place loop of fitting around peg on end of
discharge tube to secure.
WASH ALL PARTS
PROPERLY BEFORE USE.
Wrap loop
around lower
opening to
secure dome.
See page 7.
Page 3
