Chapter 5: Configuration

Trap Destination Tab

5.18.2.3 Modifying A Community Setting

To modify an existing community:
• Highlight the community you want to alter.
• Tap on Change.

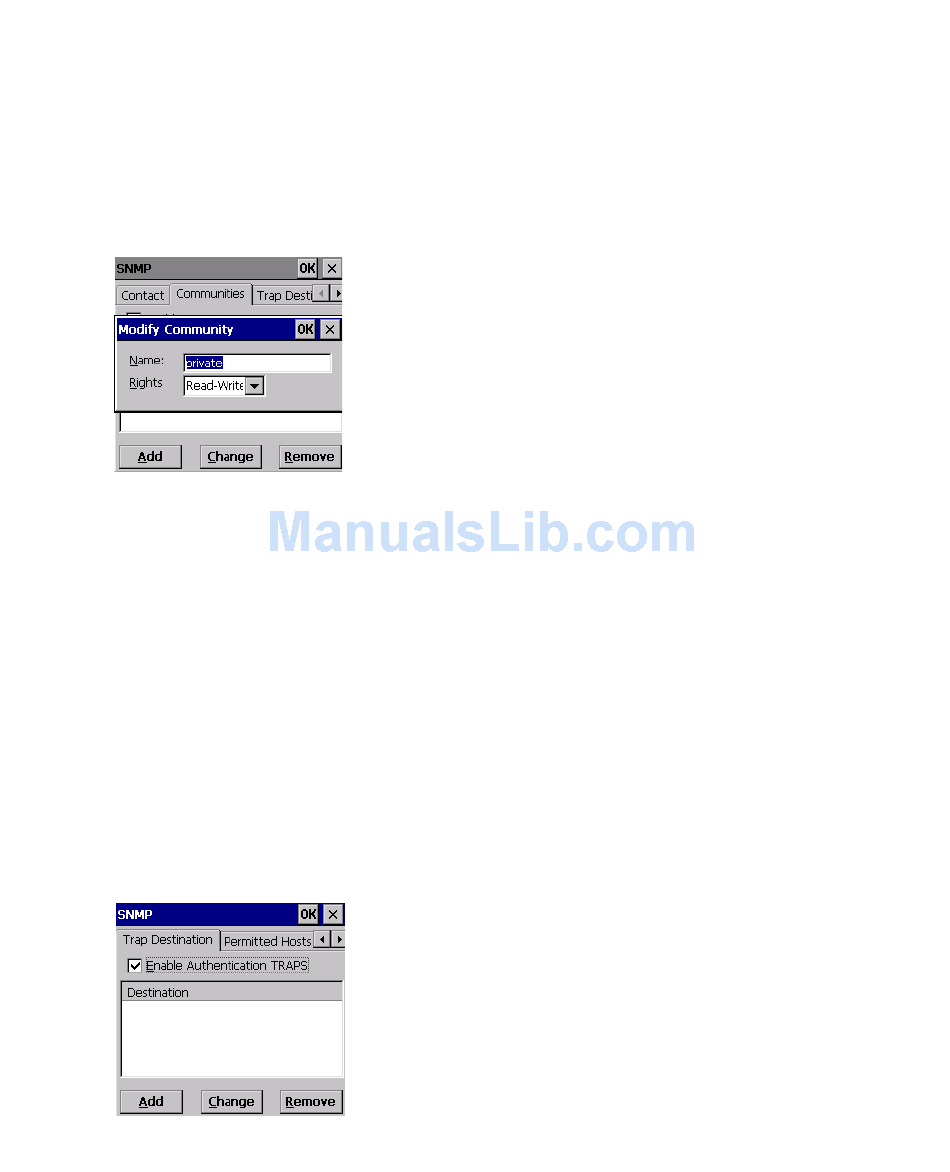

Figure 5.75 Modify Community Dialog
A Modify Community dialog box is displayed, listing the community you highlighted.
• Edit the Name and/or Rights, and press [ENTER] to save your changes.

5.18.2.4 Removing An Existing Community

• Highlight the community you want to remove in the Communities tab and then tap on
the Remove button.
A Delete Confirmation screen is displayed.
• To remove a community, tap on Yes, or
• If you decide not to remove the community, tap on No.
5.18.3

Trap Destination Tab

A trap is an unsolicited report sent to SNMP Managers by the SNMP Agent running on the
managed node. This option allows you to define where the report will be sent.
Figure 5.76 Trap Destination Options
118 Psion Teklogix 8515 Vehicle-Mount Computer User Manual
