Page 1 7530 G2 Hand-Held Computer User Manual June 21, 2006 Part No. 8000081.A ISO 9001 Certified Quality Management System...
Page 3 © Copyright 2006 by Psion Teklogix Inc., Mississauga, Ontario This document and the information it contains is the property of Psion Teklogix Inc., is issued in strict confidence, and is not to be reproduced or copied, in whole or in part, except for the sole purpose of promoting the sale of Teklogix manufactured goods and services.
Page 4: Waste Electrical And Electronic Equipment (Weee) Directive
Return-To-Factory Warranty Psion Teklogix Inc. provides a return to factory warranty on this product for a period of twelve (12) months in accordance with the Statement of Limited Warranty and Limitation of Liability provided at www.psionteklogix.com/warranty. (If you are not already a member of Teknet and you attempt to view this warranty, you will be asked to register.
Page 5 RoHS-compliant as per the EU directive. Other than as noted below, a Psion Teklogix product that does not have an accompanying RoHS logo signifies that it was placed on the EU market prior to July 1, 2006, and is thereby exempt from the directive.
Page 7: Table Of Contents
......I ......VII Psion Teklogix 7530 G2 Hand-Held Computer User Manual ONTENTS...
Page 8 3.11 General Maintenance ......56 3.11.1 Caring For The Touchscreen ....56 Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 9 Bluetooth Setup ......114 5.7.1 The Devices Tab ......115 Psion Teklogix 7530 G2 Hand-Held Computer User Manual Contents...
Page 10 Batteries ....... . . 215 Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 11 6.11.6 Powered Cradle Installation ....231 6.11.7 The Port Replicator ..... . . 233 Psion Teklogix 7530 G2 Hand-Held Computer User Manual Contents...
Page 12 C.1.1 Launching The Application ....C-2 C.1.2 Installation Complete Dialog Box ....C-3 Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 13: Program License Agreements
ROGRAM Microsoft's End User License Agreement You have acquired a device (“DEVICE”) that includes software licensed by Psion Teklogix Inc. from Microsoft Licensing Inc. or its affiliates (‘MS”). Those installed software products of MS origin, as well as associated media, printed materials, and “online” or electronic doc- umentation (“SOFTWARE”) are protected by international intellectual property laws and...
Page 14: Important - Read Carefully
Agreement. If you do not agree with this Agreement, we do not grant you a license to the Software, and you may not install or use the Software or any accompanying documentation. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 15: Grant Of License
The Software is the property of Psion Teklogix Inc. or its licensors and is protected by copy- right laws and international copyright treaties, as well as other intellectual property laws and treaties. The Software is licensed, not sold. Psion Teklogix Inc. provides the Software and licenses its use worldwide.
Page 16: Limitation Of Liability
NOT WARRANT OR MAKE ANY REPRESENTATIONS REGARDING THE USE OR THE RESULTS OF THE USE OF THE SOFTWARE IN TERMS OF ITS CORRECT- NESS, ACCURACY, RELIABILITY, USE WITH FUTURE PSION TEKLOGIX DEVICES INTRODUCED, OR OTHERWISE. YOU EXPRESSLY ACKNOWLEDGE AND AGREE THAT USE OF THE SOFTWARE IS AT YOUR SOLE RISK AND YOU ARE RESPONSIBLE FOR INSTALLATION OF THE SOFTWARE ON YOUR COM- PUTER.
Page 17 In such event, you must return or destroy all copies and com- ponent parts of the Software and documentation, as well as any other Psion Teklogix propri- etary information in your possession, within fourteen (14) days of the date of termination.
Page 19 Year of Manufacture: Standard(s) to which Conformity is Declared: The 7530 G2 Hand Held Micro-computer with Portable Docking Module, supplied by Psion Teklogix, has been tested and found to comply with UNINTENTIONAL RADIATORS, CLASS B COMPUTING DEVICES FOR HOME & OFFICE USE.
Page 20: Approval And Safety Summary
Dette utstyret er i overensstemmelse med hovedkravene i R&TTE-direktivet (1999/5/EC) fra EU. (Erklæring finnes på: www.psionteklogix.com). Utrustningen uppfyller kraven för EU-direktivet 1999/5/EC om ansluten teleutrustning och ömsesidigt erkännande av utrustningens överensstämmelse (R&TTE). (Förklaringen finns att läsa på: www.psionteklogix.com). VIII Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 21 1999/5/EC) vaatimuksia. (Julkilausuma nähtävillä osoitteessa: www.psionteklogix.com). Psion Teklogix tímto prohlašuje, že 7530 G2 je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1995/5/ES (NV č. 426/2000 Sb.) a Prohlášení o shodě je k dispozici na www.psionteklogix.com. Toto zarízení lze provozovat v České...
Page 22: Important Note
Note: To maintain compliance with the FCC RF exposure guidelines, if you wear the 7530 G2 on your body, use the Psion Teklogix approved carrying case. Use of non-approved accessories may violate FCC RF exposure guidelines.
Page 23 The use of optical instruments (magnification devices) with this product will increase eye hazard. PERATE XPLOSIVE Operating Psion Teklogix equipment where explosive gas is present may result in an explosion. Approvals And Safety Summary TMOSPHERE Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 24 Warning: BATTERIES ARE CONSIDERED HAZARDOUS WASTE and must be returned to Psion Teklogix for proper disposal. Forward all used batteries to one of the following offices: Psion Teklogix Inc. 2100 Meadowvale Blvd.
Page 25 • Do not use in areas where static electricity is greater than what the manufacturer guarantees. • Keep batteries out of reach of children. Approvals And Safety Summary Psion Teklogix 7530 G2 Hand-Held Computer User Manual XIII...
Page 26 • The extension cord is properly wired and in good electrical condition and that the wire size is larger than 16 AWG. • Do not expose the charger or AC/DC adaptor to rain or snow. Psion Teklogix 7530 G2 Hand-Held Computer User Manual AC/DC A DAPTOR AFETY...
Page 27 Do not use the charger if any of the batteries or the charger get more than lukewarm. Do not use the AC/DC adaptor if it gets more than lukewarm. The equipment should be inspected by qualified personnel. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Approvals And Safety Summary...
Page 29 1.4.1 The 7530 G2 Hand-Held Computer ....8 1.4.2 Regulatory Labels ......9 Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 31: Chapter 1: Introduction
1.1 About This Manual This manual describes how to configure, operate and maintain the Psion Teklogix 7530 G2 hand-held computer. Chapter 1: Introduction provides a basic overview of the 7530 G2 hand-held. Chapter 2: Basic Checkout describes the steps required to get the 7530 G2 ready for operation.
Page 32: Chapter 1: Introduction Text Conventions
• Standard protocol APIs - Windows sockets (WinCE) • Wireless communications: • IEEE 802.11g 54Mbps 2.4 GHz Compact Flash radio • Narrow Band 403-512 MHz PC Card radio • On-board Bluetooth radio 2.4 GHz (10m range) Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 33 Hard-capped keys • Touchscreen options: Passive stylus or finger operation Signature capture Integral stylus holder Ultra-rugged 5-wire technology • Sound: Voice Features - speaker and mic Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 1: Introduction 7530 G2 Features...
Page 34 • One Type III Extended PC Card slot • External ports: • Tether port with: RS232 serial decoded/undecoded scanner, printer USB host • Docking Station Port with: RS232 serial USB device support USB host support Power in/out Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 35: Chapter 1: Introduction About The 7530 G2 Hand-Held Computer
It supports wide area mobile applications and is built using industry standards-based software and hardware components, making it easy to integrate existing or future site infrastructures. About The 7530 G2 Hand-Held Computer Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 1: Introduction...

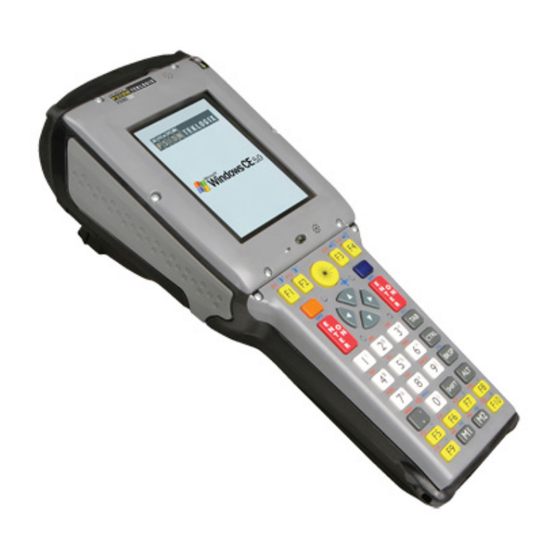

Page 36: Chapter 1: Introduction The 7530 G2 Hand-Held Computer
Chapter 1: Introduction The 7530 G2 Hand-Held Computer 1.4.1 The 7530 G2 Hand-Held Computer Figure 1.1 7530 G2 With 63-Key Keyboard Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 37: Regulatory Labels
CLASS II LASER PRODUCT (CDRH) 610-680nm LASER (LED)DIODE Max.Output:1.4mW (SCAN ) <1mW(AIM) IEC 60825-1:1993+A1:1997+A2:2001 1080259E to illuminate barcodes LED RADIATION CLASS 1 LED PRODUCT (IEC) Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 1: Introduction Regulatory Labels Docking Port...
Page 39 2.5 Using Microsoft ActiveSync ......26 2.6 Resetting The Hand-Held ......27 Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 41: Chapter 2: Basic Checkout
Although these hand-helds are equipped with an internal Compact Flash and SD I/O slot, these slots are not intended for user modification. If a device needs to be changed or added in these slots, contact qualified Psion Teklogix personnel. Refer to Appendix A: Support Services And Worldwide Offices for service information.
Page 42: Installing The Battery
• When all four LEDs flash yellow, release the [ENTER/ON] button. A splash screen of the Psion Teklogix logo and the Windows CE logo appears. When Windows CE has successfully loaded, the startup desktop is displayed. Note: The screen may go blank for a few seconds after the splash screen loading bar reaches the end.
Page 43: Attaching Carrying Accessories
2.1.5 Attaching Carrying Accessories Psion Teklogix recommends that a carrying accessory – a handstrap, pistol grip or shoulder strap – be installed on the 7530 G2 before use. If your hand-held is not fitted with a handstrap or pistol grip, you can install either using the carrying accessory kit supplied.
Page 44: Calibrating The Touchscreen
Using a Phillips screwdriver, securely fasten the pistol grip to the back of the 7530 G2. 2.2 Calibrating The Touchscreen Your 7530 G2 touchscreen will need to be calibrated. Refer to “Calibrating The Touchscreen” on page 41 for details. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 45: Chapter 2: Basic Checkout Configuring An Ieee 802.11 Radio In The Unit
Menu. Use the [DOWN] arrow key to highlight Settings. Press the [RIGHT] arrow key to display the sub-menu. Highlight Network, and press [ENTER]. Figure 2.1 Network And Dial-Up Connections Configuring An IEEE 802.11 Radio In The Unit Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 2: Basic Checkout...
Page 46 This tab lists your radio statistics. Choosing the Zero button resets the statistics of the last four items – Packets IN, Packets OUT, IN errors and OUT errors. • Display the next tab in this window – Wireless Information. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Figure 2.3 Wireless Statistics...
Page 47 To add a new configuration, tap on the Add New button. A blank Wire- less Properties dialog box is displayed. Configuring An IEEE 802.11 Radio In The Unit Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 2: Basic Checkout...
Page 48 WEP (Wired-Equivalent Privacy) encryption prevents others from acciden- tally accessing your network. If you are not using encryption, you can choose Disabled from the dropdown encryption menu. Otherwise, leave this field as is. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Figure 2.5 Wireless Properties Dialog Box...
Page 49: Chapter 2: Basic Checkout
This text box is used to specify a 5 or 13 ASCII character sequence or an equivalent 10 or 26 Hexadecimal digit sequence that matches the active WEP key on the access point. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 50: Key Index
Certificate. By selecting the Properties button, you will be able to select a Certificate. “Certificate Assignment” on page 113 provides a website that outlines how to create certificates for your network. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 51: Assigning An Ip Address
7530 G2 is dropped from the network. To define a static IP address: • Tap on the Configure button. Figure 2.7 IP Information Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 2: Basic Checkout Assigning An IP Address...
Page 52: Chapter 2: Basic Checkout Name Servers Tab
The DNS and WINS fields in the Name Servers tab allow you to specify additional WINS and DNS resolvers. The format for these fields is ###.###.###.###. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Figure 2.8 Defining An IP Address...
Page 53: Advanced Features
To delete a network from this list: • In the networks list, highlight the network that you want to remove. • Tap on the Delete button. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 2: Basic Checkout Advanced Features...
Page 54: Checking The Scanner
Back up 7530 G2 files to the PC, then restore them from the PC to the hand- held again, if needed, and so on. To install ActiveSync, follow the step-by-step instructions provided with the program’s setup wizard. Refer to the following website for details: http://www.microsoft.com/windowsmobile/resources/downloads/pocketpc/activesync35.mspx Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 55: Resetting The Hand-Held
Once the OS loads, any executables and cab files in the startup folders are run. The cab files are deleted by the cab file installer unless they are marked read-only. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 2: Basic Checkout...
Page 57 3.6.3 Troubleshooting......50 7530 G2 Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 58 3.11.1 Caring For The Touchscreen ..... 56 3.11.2 Cleaning The 7530 G2 ......56 Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 59: Chapter 3: Getting To Know Your 7530 G2
Chapter 3: Getting To Know Your 7530 G2 Features Of The 7530 G2 3.1 Features Of The 7530 G2 Stylus (Pointing Tool) Sound Port 7530 G2 Screen Ambient Light Sensor Microphone Beeper Port Figure 3.1 Front Of 7530 G2 Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 60: The Battery
213. For battery safety, refer to “Lithium-Ion Battery Safety Precautions” on page XII. All batteries must be charged before use. The battery can be charged with a variety of chargers. These include: Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 61: The Keyboard
The [BLUE] and [ORANGE] modifier keys provide access to additional keys and system functions. These functions are colour coded in orange and blue print above the keyboard keys. Chapter 3: Getting To Know Your 7530 G2 Psion Teklogix 7530 G2 Hand-Held Computer User Manual The Keyboard...
Page 62: Modifier Keys
Once a modifier key is unlocked, the uppercase representation in the taskbar is cleared. 3.3.2 The Keys The [SHIFT] Key The [SHIFT] key is used to display uppercase alpha characters and provide access to the symbols above the numeric keys. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 63 Pressing the [SCAN] key – the yellow key with the star-burst scan symbol on it – activates the scanner beam while pressed. For units that do not have internal scanners, this key can be remapped for another use. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 64: Function And Macro Keys
Press the [ORANGE] key followed by the appropriate function key. For example: To access function key [F11], press the [ORANGE] key followed by [F1]. To access function key [F12], press [ORANGE] followed by [F2], and so on. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 65: Macro Keys
Macro keys [M5] to [M6] are colour coded in blue print above macro keys [M1] and [M2]. • To access [M5], press the [BLUE] key followed by [M1]. • To access [M6], press [BLUE] [M2]. Chapter 3: Getting To Know Your 7530 G2 Psion Teklogix 7530 G2 Hand-Held Computer User Manual Macro Keys...
Page 66: Chapter 3: Getting To Know Your 7530 G2 Alphanumeric Keyboard - 63-Key
Choosing A Single Alpha Character Note: As you press alpha keys, each is displayed in the left-hand corner of the taskbar to make it easier to determine which letter is currently active. Alpha key representation. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 67 Press the ‘Accept’ key [⇒] (zero key) to indicate that the letter ‘a’ should be accepted and that another letter from the same key will be chosen. Chapter 3: Getting To Know Your 7530 G2 Numeric Keyboard – 37-Key Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 68: The Keypad Backlight
The intensity of the keypad backlight and the conditions under which this backlight is activated can be tailored in the Keyboard Properties dialog box in the Control Panel. Note: Refer to “Keyboard Backlight” on page 92 for details about this option. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 69: The Display
Stylus Properties dialog box in the Control Panel to recalibrate the screen. Chapter 3: Getting To Know Your 7530 G2 darkens the display, and Psion Teklogix 7530 G2 Hand-Held Computer User Manual The Display...
Page 70: Chapter 3: Getting To Know Your 7530 G2 Calibrating The Touchscreen
In the Control Panel, tap on the Stylus icon to display the Stylus Properties window. • Select the Calibration tab, and then choose the Recalibrate button. • Follow the directions on the calibration screen to calibrate the screen. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Figure 3.2 Stylus Icon...
Page 71: 7530 G2 Indicators
Chapter 3: Getting To Know Your 7530 G2 Figure 3.3 Keyboard LEDs Charge LED Behaviour LED off. LED displays solid green colour. LED flashes slow green. Psion Teklogix 7530 G2 Hand-Held Computer User Manual 7530 G2 Indicators User Application LED Charge LED...
Page 72: Getting To Know Your 7530 G2 Radio Traffic Led
This indicator is available for user-loaded custom Windows CE applications. Your supervisor can describe how this LED behaves with your application. Neither Windows CE nor Open Tekterm V2.0 use this LED. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Charge LED Behaviour LED displays solid yellow colour.
Page 73: Onscreen Indicators
Figure 3.4 Taskbar by tapping on the Windows Start Menu in the taskbar. A locked modifier key BLUE KEY . It will remain active only until the next blue key Psion Teklogix 7530 G2 Hand-Held Computer User Manual Onscreen Indicators...
Page 74: Chapter 3: Getting To Know Your 7530 G2 Onscreen Indicators
Increasing radio signal quality is represented by longer, filled bars within this icon. Good Reception Narrow Band Radio Signal Quality Increasing radio signal quality is represented by vertical bars within this icon. Good Reception Psion Teklogix 7530 G2 Hand-Held Computer User Manual Empty Weak Reception Weak Reception AC Connection...
Page 75: Audio Indicators
The increase volume key is labelled with a plus symbol and the decrease volume function key is labelled with a minus symbol Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 76: Internal Scanners
Extended Range: reads regular 1D bar codes (5 - 55mil) at short to medium distances (1m), as well as large 1D bar codes (e.g. 55 mil) at long distances. Psion Teklogix 7530 G2 Hand-Held Computer User Manual function key until the volume meets...
Page 77: Scanning Techniques
Hold the scanner farther away for larger bar codes. • Hold the scanner closer for bar codes with bars that are close together. Chapter 3: Getting To Know Your 7530 G2 Psion Teklogix 7530 G2 Hand-Held Computer User Manual Scanning Techniques...
Page 78: Scan Led Indicators
If an aiming dot is available on the installed scanner, the dot will be enabled for a configurable time period (including off), after which normal scanning begins. Refer to “Dot Time (msec)” on page 146 for details. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 79: Operating Internal Pdf Laser Scanners
Glare can be an issue on reflective media such as plastic coated bar codes, just as glare is an issue for pho- Chapter 3: Getting To Know Your 7530 G2 Operating Internal PDF Laser Scanners Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 80: Connecting & Disconnecting Tethered Peripherals
• Insert the barrel of the plug into the tether port and rotate slowly until it clicks into place. The red dot on the port and on the connector should be aligned. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 81: Monitoring The Battery And Maximizing Run Time
• Depending on the ambient light at your site, consider turning off the keypad backlight. Chapter 3: Getting To Know Your 7530 G2 Monitoring The Battery And Maximizing Run Time Psion Teklogix 7530 G2 Hand-Held Computer User Manual Tether Shell...
Page 82: Storing Batteries
Always charge batteries to 40 to 60% before storing them. Batteries can be damaged by an over-discharge phenomenon that occurs when an empty battery is stored for a long period of time such that the cell voltage drops below a lower limit. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 83: Chapter 3: Getting To Know Your 7530 G2 Monitoring The Network Connection
The hand-held also detects the presence of the Ethernet network. Review the documentation provided with the user application installed in your 7530 G2 before preforming data uploads. Chapter 3: Getting To Know Your 7530 G2 Monitoring The Network Connection Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 84: General Maintenance
7530 G2 has a plastic case that is susceptible to harsh chemicals. The plastic is partially soluble in oils, mineral spirits and gasoline. The plastic slowly decomposes in strong alkaline solutions. • To clean ink marks from the keypad and touchscreen, use isopropyl alcohol. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 85 4.5 Using A Dialog Box ......73 INDOWS Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 87: Chapter 4: Working With Windows Ce
Switch between active applications Open task manager Move the cursor Chapter 4: Working With Windows CE Navigating In Windows CE And Applications Key or Key Combination [ALT] [TAB] [ALT] [ESC] Arrow keys Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 88: Working With Files, Folders And Programs
– to open or launch your selection. On a keyboard: • Use the arrow keys to highlight the icon you want to open or launch. • Press [ENTER]. Psion Teklogix 7530 G2 Hand-Held Computer User Manual [ENTER] [ENTER] [ESC] [TAB] To move cursor up [SHIFT] [TAB] To display the contents of the next ‘tab’...
Page 89: The Startup Desktop
Press [BLUE] 0 (zero) to display the Start Menu, and select Desktop. Now the desktop will be “in focus” and the arrow keys will high- light the icons. Chapter 4: Working With Windows CE Psion Teklogix 7530 G2 Hand-Held Computer User Manual The Startup Desktop...
Page 90: Chapter 4: Working With Windows Ce The Desktop Icons
The 7530 G2 is equipped with a taskbar at the bottom of the screen. It displays icons through which you can view the status of various elements of your unit such as Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 91: Using The Taskbar
If you’re using the keyboard: • Press [BLUE] [0] to display the Start Menu. • Highlight the Settings option, highlight Taskbar in the sub-menu, and press [ENTER]. Chapter 4: Working With Windows CE Psion Teklogix 7530 G2 Hand-Held Computer User Manual Using The Taskbar...
Page 92: Chapter 4: Working With Windows Ce Customizing The Taskbar
Tap on the Clear button to empty the Documents folder. • To display Control Panel applets in menu form rather than in a window, tap in the checkbox next to Expand Control Panel. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Figure 4.1 Taskbar And Start Menu Settings...
Page 93: The Start Menu
Tap on the item in the menu with which you want to work. If you’re using a keyboard: • Use the arrow keys to highlight a menu item, and press [ENTER], or Chapter 4: Working With Windows CE Psion Teklogix 7530 G2 Hand-Held Computer User Manual The Start Menu...
Page 94: Chapter 4: Working With Windows Ce The Desktop
In the Password field, type the Supervisor level password. • Tap on OK – you can now access all menu items in the Start Menu along with the icons in the taskbar. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Figure 4.2 Security Levels...
Page 95: Working With Windows Ce Changing A Password
By default, a security icon is not displayed for user-level security. Note: It is recommended that you enable ‘Allow Teklogix Security Level’ so that authorized Psion Teklogix service personnel can access your unit should it require maintenance. Chapter 4: Working With Windows CE...
Page 96: Chapter 4: Working With Windows Ce Programs
Command Prompt is used to access the DOS command prompt. At the prompt, you can type DOS commands such as dir to display all the directories in the drive. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Figure 4.3 Program Sub-Menu...
Page 97: Shortcuts
The taskbar displays indicators such as a radio signal icon and the security level. These indicators are attached to dialog boxes that provide additional information. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 98 The Task Manager The Task Manager allows you to switch to another task or to end an active task. To display the task manager window: • Tap on Shortcut>Task Manager, or Press [ALT] [ESC]. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 99: Settings
Control Panel The Control Panel contains applets used to configure hardware, the operating system and the shell. If your 7530 G2 is running with the Psion Teklogix Tekterm application or another application, additional configuration applets may appear in the Control Panel.
Page 100: Chapter 4: Working With Windows Ce
Note: This menu varies slightly depending on the security level chosen. When the 7530 G2 is set to User level, the Shutdown option is replaced by Sus- pend. A sub-menu is not available. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Figure 4.6 Run Option Figure 4.7 Shutdown Sub-Menu...
Page 101: Using A Dialog Box
If your touchscreen is disabled, fol- low the directions that follow in this section. Chapter 4: Working With Windows CE Tabs Radio Button Textbox Dropdown Menu Button Figure 4.8 Dialog Boxes Psion Teklogix 7530 G2 Hand-Held Computer User Manual Using A Dialog Box...
Page 102 Saving Your Choices: Once you’ve made all your changes, press the [ENTER] key to save your changes and exit the window. Note: A dialog box item that is displayed in grey text indicates that it is not currently available. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 103 5.6.6.1 Trigger Mappings ..... .110 5.6.6.2 Add And Edit Trigger Mapping ....111 Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 104: Chapter 5: Configuration
5.11.3 Decoded (Internal) Scanners ....156 5.11.3.1 Decoded (Internal) Options ....157 Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 105 5.11.4.17 2D PDF-417 ......185 5.11.4.18 2D Micro PDF-417 ....185 Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 106 5.12.2 Communities Tab ......206 5.12.2.1 Adding A Community ....206 Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 107 5.12.4.1 Adding A Host ..... . .210 5.12.4.2 Changing A Host ..... .211 Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration...
Page 109: Remote Desktop Connection
Refer to the following website for step-by-step information about setting up this connection: http://www.microsoft.com/WindowsXP/pro/using/howto/gomobile/remotedesktop/default.asp Contact Psion Teklogix personnel if you need help accessing this site. Refer to Appendix A: “Support Services And Worldwide Offices” at the back of this manual for contact information.
Page 110: The Control Panel
Highlight Settings in Start Menu, and press the [RIGHT] arrow key to highlight Control Panel. • Press the [ENTER] key. The Control Panel folder contains icons used in the setup of your 7530 G2. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Figure 5.1 Control Panel...
Page 111: Control Panel Icons
You can store multiple patterns – for exam- ple, ‘Work’, ‘Home’, and so on using this dialog box. Display Allows you to change the appearance (window colour scheme) of the 7530 G2 desktop. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration Control Panel Icons...
Page 112 Displays a network window from which the 7530 G2 802.11 radio can be configured and an existing configuration can be executed. Refer to “Config- uring An IEEE 802.11 Radio In The Unit” on page 17 for details. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 113 Allows you to specify the local language that is to be displayed on the hand-held screen along with the format of numbers, currency, time and date for your region. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration Control Panel Icons...
Page 114 Provides access to a backup and restore utility to maintain applications and settings over cold reboots. TweakIT Settings Allows you to change Advanced System Settings (interface, network, and servers), User System Settings (display font size), and provides the Registry Editor. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 115: Basic Setup
The contrast control can also be used to reduce display flickering that can occur with colour displays in certain lighting conditions Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration Basic Setup...
Page 116: Chapter 5: Configuration Display Properties
Note: Keep in mind that this option may be restricted to supervisory use only. • In the Display Properties dialog box, tap on the Backlight tab. Note: Backlight changes take effect immediately. You do not need to reset the unit. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 117 7530 G2 is operating with external power (not battery power). If the 7530 G2 is drawing power from its battery, this option is ignored and the other parameters defined in Display Properties dialog box take affect. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration Display Properties...
Page 118: Chapter 5: Configuration Keyboard Properties
[BLUE] and [ORANGE] modifier keys. This dialog box also allows you to define macro keys and remap the keyboard. • In the Control Panel, tap on the Keyboard icon. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Figure 5.3 Choosing The Keyboard Icon...
Page 119: Key Repeat
Note: Use the field at the bottom of this dialog box to test the repeat delay and rate settings you’ve chosen. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration Keyboard Properties...
Page 120: Keyboard Backlight
ON For The value chosen from this dropdown menu determines the duration of time that the keyboard backlight stays on after the last user action (keypress or scan trigger). Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 121: Keyboard One Shot Modes
OneShot If you choose OneShot, the modifier key remains active only until the next key is pressed. — [ALT], [SHIFT], [CTRL], [ORANGE] and Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration Keyboard Properties If this ORANGE KEY.
Page 122: Keyboard Macro Keys
In the Macro menu, highlight a macro key number – for example, macro 1 to assign a macro to macro key [M1]. Tap on the Record button. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Figure 5.5 Macro Dialog Box...
Page 123 1, press [M1] to execute the macro. Deleting A Macro To delete a macro: • In the Macros tab, highlight the macro number you want to delete. • Tap on the Delete button. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration Keyboard Properties...
Page 124: Unicode Mapping
If a Unicode mapping is not listed, the Unicode mapping is mapped to the default Unicode value. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Figure 5.6 Unicode Mapping...
Page 125 Pressed’. Press [SPACE] to select the shift state you want to assign. Removing Unicode Values • In the Unicode Mapping tab, highlight the item you want to delete, and choose the Remove button. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration Keyboard Properties...
Page 126: Scancode Remapping
If the scancode is remapped to a function or a macro, the first and second columns remain blank while the third column contains the function name or macro key number (e.g., Macro 2). Psion Teklogix 7530 G2 Hand-Held Computer User Manual Figure 5.7 Scancode Remapping...
Page 127 When Macro is selected, the macro keys available on your unit are listed in the dialog box. • Choose Virtual Key, Function or Macro. • Choose a function from the Function list in the dialog box, and tap on OK. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration Keyboard Properties...
Page 128: Chapter 5: Configuration Volume And Sound Properties
Note: Additional sounds can be generated by the application installed in your 7530 G2. • In the Control Panel, tap on the Volume & Sounds icon. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Figure 5.8 Choosing The Volume Icon...
Page 129: Volume Adjustments
The 7530 G2 hand-held computer is equipped with a sound port. This dialog box allows you to determine the sound file that will be emitted from this port. Volume And Sound Properties Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration...
Page 130: Chapter 5: Configuration Power Management Properties
In the Control Panel, tap on the Power icon. 5.6.4.1 Battery Capacity • In the Power Properties dialog box, open the Battery tab to view battery details. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Figure 5.9 Choosing The Power Icon...
Page 131: Power Saving Schemes
Battery Power. Switch State To Suspend Important: Psion Teklogix recommends setting the Suspend value to 10 min- utes. Setting ‘Switch State To Suspend’ to ‘Never’ will adversely affect the battery run time. To further reduce power consumption, carefully consider the duration of time that the display backlight is ‘on’...
Page 132: Suspend Threshold
(such as an SD FLASH card), may need to pay particular attention to this parameter. Psion Teklogix does not recommend the storage of any valuable data in system RAM. The 7530 G2 normal Windows CE environment does not store any critical data in RAM (such as the registry or file system).
Page 133: Calibrate
This tab allows you to specify whether or not your unit will enter suspend state while is operating with an active PPP connection, network interface or active TCP/IP connection. Power Management Properties Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration...
Page 134: Devices
This tab allows you to enable or disable power to the individual CF, PC Card and SDIO slots in your unit. Built-In Devices Power Status A checkmark next to Enable Bluetooth activates the unit’s built-in, Bluetooth radio. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 135: Stylus Properties
Setting Double-Tap Sensitivity • In the Double-Tap tab, follow the directions to tailor the sensitivity of the stylus when you tap on the touchscreen. Figure 5.10 Stylus Icon Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration Stylus Properties...
Page 136: Touchscreen Calibration
Follow the directions in the Calibration tab to recalibrate the screen. 5.6.5.3 Disabling The Touchscreen This tab allows you to disable the touchscreen. • To disable the touchscreen, tap in the checkbox next to Disable the touch panel. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 137: Manage Triggers
• In the Control Panel, tap on the Manage Triggers icon. Figure 5.11 Choosing The Manage Trigger Icon In the Manage Triggers screen you’ll see a list of trigger mappings. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 138: Trigger Mappings
The OK button in the top right of the Manage Triggers screen saves all changes made. If the cancel button X is tapped instead, or the [ESC] key is pressed, all changes made will be discarded. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 139: Add And Edit Trigger Mapping
Readers. It is also possible to map different sources to the same owner—for exam- ple, [F2] and [F3] can both be mapped to the RFID File System. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration Manage Triggers...
Page 140 This identifies the driver or application receiving the trigger presses. Show All By default, inactive owners are not shown. By checking this checkbox, all owners, both active and inactive, are displayed. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Figure 5.13 Add Source Dialog...
Page 141: Certificate Assignment
For a detailed description about Certificate setup for both the server and client-side devices (7530 G2s), refer to the following website: www.microsoft.com/windows2000/techinfo/planning/walkthroughs/default.asp - "Security Services" Note: When importing certificates, the 7530 G2 only recognizes .cer files. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 142: Chapter 5: Configuration Bluetooth Setup
In the Control Panel, tap on the Bluetooth Devices icon to display the Bluetooth Control dialog box. The Bluetooth Control dialog box is used to display the other Bluetooth devices with which you can communicate. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Figure 5.15 Bluetooth Icon...
Page 143: The Devices Tab
Once scanning is complete, all discovered devices will be displayed in the list box, with Name, Address, Active status, and PIN information. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration The Devices Tab...
Page 144: Chapter 5: Configuration The Devices Tab
Bluetooth manager will try to find and use a free port between COM7 and COM9. When using BSP as the port name, BSP2 to BSP9 are available for use. The port is available as soon as it is activated. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 145 PIN set, an Authentication Request dialog box appears. • Enter the PIN, and tap on OK to connect the devices. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration The Devices Tab...
Page 146: Chapter 5: Configuration The Servers Tab
(one at a time), but you have the freedom to switch on-the-fly. Outgoing Port checkbox allows you to create the Outgoing port. When the port is created, the Outgoing tab lists the port name. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 147: Active Conn. Tab
Note: You can change the device-name and description of your radio by clicking on the System icon in Control Panel, which will open the System Proper- Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration Active Conn. Tab...
Page 148: Chapter 5: Configuration The Properties Tab
NQuery Retry (Name Query Retry) governs the number of times the hand-held will attempt to query the names of other Bluetooth devices if the first attempt fails. (When the 7530 G2 scans for other devices, it sometimes fails to scan names.) Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 149: Bluetooth Gprs Connection
1. To set up the internet parameters, tap on the Network And Dial-up Connections icon. Figure 5.16 Network And Dial-up Connection Icon 2. Tap on the Make New Connection icon. Figure 5.17 Creating A GPRS Connection Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 150 Configure button to display the Device Properties dialog box. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Figure 5.18 Setting Up The Connection Figure 5.19 Setting Up The Modem...
Page 151 The 7530 G2 then disconnects. Figure 5.20 Port Settings 6. Under the Call Options tab, turn off Cancel the call if not connected within, and press [ENTER] to save your changes. Figure 5.21 Call Options Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 152 The phone number you enter is network carrier dependent. Once you’ve specified all the necessary information, choose the Finish button. 8. In the Control Panel, choose the Dialing icon. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Figure 5.22 Setting The Phone Number Figure 5.23 Dialing Icon...
Page 153 11. In the network connection window, the new network configuration – in this case – GPRS Network – is displayed. Tap on the new icon. Figure 5.25 GPRS Network Connection Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration Bluetooth GPRS Connection...
Page 154: Chapter 5: Configuration Total Recall
Tap on the Hide button to move this message to the background. You can now access the internet. 5.8 Total Recall Total Recall is a Psion Teklogix utility developed to maintain applications setting over cold boots. This utility is based on a backup and restore concept. •...
Page 155: Chapter 5: Configuration Creating A Backup Profile
• AutoRestore for this and other devices – creates a profile that automati- cally restores after resuming from a cold boot, but it will not contain the touchscreen calibration coordinates or the Wireless radio settings. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration Creating A Backup Profile...
Page 156 Remove the check mark next to All Files. You’ll notice the checkbox next to Select Files changes • Tap on this icon Psion Teklogix 7530 G2 Hand-Held Computer User Manual , indicating that additional options are available. next to Select Files to view your options. Figure 5.27 Selecting Files...
Page 157 Choosing By File Type allows you to select the file types that you want backed up. Figure 5.29 Adding Files By File Type Figure 5.28 Adding Files Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration Creating A Backup Profile...
Page 158: Chapter 5: Configuration Restoring A Profile
Tap on the Backup button to start the process, and create a profile. 5.8.2 Restoring A Profile To manually restore a profile: • Tap on Restore Selected Profile from the dropdown menu, and choose the Profile Name displayed in the drop down box. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 159: Ipv6 Support
• Choose the IPv6 Support icon to display the associated dialog box. • Choose the checkbox next to Enable IPv6 Network Support to enable this internet protocol. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration IPv6 Support...
Page 160: Chapter 5: Configuration Narrow Band Radio Setup
PC Card installed in the 7530 G2. “DSP x.x / FPGA 0xNN” indicates the firmware revision of the radio’s DSP (x.x) and FPGA (0xNN) where x.x and NN represent actual revision numbers. Statistics Screen • Tap on the Statistics button to display the Protocol Statistics screen. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 161: Chapter 5: Configuration Info Tab
Number of received polls Number of transmitted retries Number of poll timeouts Number of transmitted errors rssi Received Signal Strength Indicator Table 5.1 Protocol Statistics Descriptions Description Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration Info Tab...
Page 162 Number of extra characters received for last received message (due to delay Rx X in host reporting back actual body size) RxMx Maximum "Rx X" value MChg Number of completed mode changes Psion Teklogix 7530 G2 Hand-Held Computer User Manual Description Table 5.2 Low Level Statistics Descriptions...
Page 163: Channel Tab
If this parameter is disabled (unchecked), the unit will continue communicating on the same channel that it was on before it was powered off. . The default value is Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration Channel Tab...
Page 164 “Fast” switch speed is most effective where coverage areas are largely overlapping. If the coverage areas barely overlap, have dead spots, or if the 7530 G2 frequently operates on the fringe of coverage, this parameter should be set to “Slow”. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 165 To configure channel switching order for a particular channel: • Highlight the channel you want to edit, and tap on the Edit Channel List button. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration Channel Tab...
Page 166: Chapter 5: Configuration Protocol Tab
Enable Cellular Protocol The value assigned to this parameter must be identical to the value assigned to the corresponding parameter in the Psion Teklogix Network Controller, Wireless Gateway or Base Station. A warm reset of the 7530 G2 is required before this parameter can take effect.
Page 167 The allowable range for this parameter is between 1 and 40. Sync Delay Window Delay Poll Timeout Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration Protocol Tab...
Page 168 Tap on the OK button – the dialog box is closed and the new values are saved. To discard the new values, and retain the existing values: • Tap on the X button at the top of the dialog box. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 169: Power Tab
“Power Off Time” is only used when the “Enable Power Saving” parameter is enabled. The allowable range for this parameter is 1 to 60. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 170: Radio Tab
‘test’ the value assigned to the “Data Squelch” parameter. To commit the new “Data Squelch” value to the radio’s non-volatile memory: • Tap on the OK button – the dialog box is closed and the new value is saved. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 171: Scanner Settings
If you wish to recover the factory defaults after making changes, the defaults can be applied to a selected parameter, sub-tree of parameters, or all scanner parameters. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration Scanner Settings...
Page 172: Chapter 5: Configuration Bar Codes
The dropdown menu to the right of the Scanner option allows you to choose from one of the following scanner types used with your hand-held: Non-decoded, Decoded (internal), Decoded (Intermec ISCP) and Imager. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Figure 5.31 Teklogix Scanner Icon Figure 5.32 Scanner Properties...
Page 173: Non-Decoded Scanners
• Tap on the Scanner dropdown menu, and choose Non-decoded. All the available bar code symbologies for this type of scanner can be selected in this tab. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration Non-Decoded Scanners...
Page 174: Non-Decoded Options
Higher values significantly increase the time it takes to decode a bar code but also improve the reliability of the decoded bar code. Psion Teklogix 7530 G2 Hand-Held Computer User Manual (zero) disables the target dot.
Page 175: Code 39
This identifier defines the general category or specific use of the data contained in the rest of the bar code. Note: If your unit is operating with the Psion Teklogix TESS application, this parameter should not be used in conjunction with the TESS AIAG feature.
Page 176 Note: The appended character is treated as any other keyboard character. For example, if [BKSP] is pressed, the usual action for that key is performed. If your unit is operating with the Psion Teklogix ANSI emulation application, the hand-held transmits the escape sequence associated with the function immediately after the bar code data.
Page 177: Code 128
“EAN/UCC” bar codes include group separators and start codes. Note: If you choose None, a check is not executed. Field Size/Chars Refer to the description beginning on page 148 for details. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration Non-Decoded Scanners...
Page 178: Ean 13
Note: Setting ‘Addendum’ to Optional reduces performance. Optional should only be selected if at least some of the bar codes being read have addendums. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Disabled, Optional the scanner does not recognize an...
Page 179: Ean 8
Note: The appended character is treated as any other keyboard character. For example, if [BKSP] is pressed, the usual action for that key is performed. If your hand-held is operating with the Psion Teklogix ANSI emulation application, the hand-held transmits the escape sequence associated with the function immediately after the bar code data.
Page 180: Upc A
Refer to page 151 for details. 5.11.2.7 UPC E Convert to UPC-A Setting this parameter to from the 6 digit UPC E bar code. Psion Teklogix 7530 G2 Hand-Held Computer User Manual results in a non-standard decoding that returns 12 digits...
Page 181: Codabar
Refer to the description beginning on page 148 for details. 5.11.2.9 Code 93 Enabled Set this parameter to on to enable “Code 93”. Field Size/Chars Refer to the description beginning on page 148 for details. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration Non-Decoded Scanners...
Page 182: Code 11
ITF Check If this parameter is enabled, the ITF-14/16 Mod10 check digit is calculated. Include Check If this parameter is enabled, the check digit is included with the decoded bar code data. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 183: Msi Plessey
If this parameter is enabled, the ITF-14/16 Mod10 check digit is calculated. Include Check If this parameter is enabled, the check digit is included with the decoded bar code data. Field Size/Chars Refer to the description beginning on page 148 for details. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 184: Chapter 5: Configuration Decoded (Internal) Scanners
If this parameter is enabled, the check digit is included with the decoded bar code data. Field Size/Chars Refer to the description beginning on page 148 for details. 5.11.3 Decoded (Internal) Scanners • Tap on the Scanner dropdown menu, and choose Decoded (internal). Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 185: Decoded (Internal) Options
This gives the scanner a minimum amount of time to complete its current decode before the scan is cancelled when the user quickly triggers on/off. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 186 “Linear security level 2” specifies that all types of codes must be successfully read twice before being decoded. Psion Teklogix 7530 G2 Hand-Held Computer User Manual meter bar codes. decoding of para ” specifies that the following code types must be...
Page 187: Decoded (Internal) 2D Scanning Options (Se2223 Only)
Double-tapping on this parameter displays a dialog box in which you can enter a value from Decoded (Internal) Scanners Length 4 or less 8 or less 8 or less (SE2223 only) Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration...
Page 188: Decoded (Internal) Data Options
ECIs. If this parameter is set to scanned, the scanner transmits the ECI escape followed by the uninterpreted data. Psion Teklogix 7530 G2 Hand-Held Computer User Manual SE2223 only) enables the scanner to interpret any Extended Channel...
Page 189: Code 39
Lengths for “Code 39” can be set for Any length, Length within a range, One discrete length or Two discrete lengths. The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s). Decoded (Internal) Scanners Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration...
Page 190 Code 39 symbols. Increasing the performance level reduces the amount of required bar code orientation—this is useful when scanning very long and/or truncated bar codes. Keep in mind that increased levels reduce decode security. Psion Teklogix 7530 G2 Hand-Held Computer User Manual SE2223 only) SE2223 only)
Page 191: Code 128
When you double-tap on this parameter, a dialog box is displayed in which you can enter a decode performance level of between 1 and 3. Note: Keep in mind that this parameter limits scanning to one fixed length. Field Size/Chars Refer to page 148 for details. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 192: Ean 13
System Char – both the country code (“0” for USA) and system character are transmitted with the data or None – no preamble is transmitted. The lead-in characters are considered part of the symbol. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 193: Upc E
This parameter converts UPC-E1 (zero suppressed) decoded data to UPC-A format before transmission. After conversion, data follows UPC-A format and is affected by UPC-A programming selections (e.g., Preamble, Check Digit). Prefix/Suffix See “Prefix/Suffix” beginning on page 151. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 194: Upc/Ean Shared Settings
UPC-A, EAN-8, EAN-13). When enabled (set to on), a bar code is transmitted only when both the left and right blocks are successfully decoded within one laser scan. This option should be enabled when bar codes are in proximity to each other. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 195: Codabar
When enabled, this parameter strips the start and stop characters from decoded Codabar symbol. Field Size/Chars Refer to page 148 for details. 5.11.3.13 Code 93 Enabled Set this parameter to on to enable “Code 93”. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 196: Interleaved 2 Of 5
– either USS (Uniform Symbology Specification) or OPCC (Optical Product Code Council). Transmit Check Digit If this parameter is enabled, the check digit is included with the bar code data. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 197: Msi Plessey
MSI Plessey “Check Digit Algorithm” must also be selected. See page 9-88. Transmit Check Digit If this parameter is enabled, the check digit is included with the bar code data. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 198: Discrete 2 Of 5
Field Size/Chars Refer to page 148 for details. 5.11.3.17 2D PDF-417 Enable Setting this parameter to Field Size/Chars Refer to page 148 for details. Psion Teklogix 7530 G2 Hand-Held Computer User Manual SE2223 only) enables PDF-417 two dimensional (2D) coding.
Page 199: Micro Pdf-417 (Se2223 Only)
Stacking the code reduces the bar code length, and providing the nominal height of the code is maintained, it can be omni-directionally scanned. Decoded (Internal) Scanners SE2223 only) Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration...
Page 200: Composite (Se2223 Only)
To activate these components, set the parameters to on. Enable TLC-39 This composite component integrates MicroPDF417 with the linear code. Setting this parameter to on enables this parameter. Psion Teklogix 7530 G2 Hand-Held Computer User Manual (SE1224, SE2223 and SE1524 only) (SE1224, SE2223 and SE1524 only) SE2223 only)
Page 201: Decoded (Intermec Iscp)
This gives the scanner a minimum amount of time to complete its current decode before the scan is cancelled when the user quickly triggers on/off. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 202: Code 39
Code 39 can start and end with either a * or a $ character (see also next parameter Accepted Start Char). Psion Teklogix 7530 G2 Hand-Held Computer User Manual meter bar codes. decoding of para...
Page 203: Minimum Length
Setting this parameter to on enables “Code 128”. EAN 128 To successfully scan this type of bar code, EAN 128 must be enabled. “EAN” bar codes include group separators and start codes. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration Decoded (Intermec ISCP)
Page 204 Enabling this parameter causes all code pairs that can be, to be concatenated even if they do not comply with Section 4.1 of the “ISBT 128 Bar Code Symbology and Application Specification for Labeling of Whole Blood and Blood Components” (June 2000, Version 1.2.1). Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 205: Ean 13
(‘978’) are ignored and the checksum (0.9, ‘X’) is calculated on the remaining characters. Transmit Check Digit If the check digit is to be transmitted with the data, this parameter must be enabled. Prefix/Suffix See “Prefix/Suffix” beginning on page 151. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 206: Ean 8
If this parameter is enabled, a UPC A bar code is converted to EAN 13. Prefix/Suffix Refer to page 151 for details. 5.11.4.8 UPC E Enabled Set this parameter to on to enable “UPC E”. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 207: Upc/Ean Shared Settings
Addendum Add-on 2 And Addendum Add-on 5 Enabling these parameters sets the length of the addendum bar code to either 2 or 5 characters. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration Decoded (Intermec ISCP)
Page 208: Codabar
CLSI Library System When enabled, spaces are inserted after characters 1, 5, 10 in the 14-character label (used in the USA by libraries using the CLSI system). Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 209: Code 93
(i.e., human readable characters), including check digit(s). Field Size/Char Refer to page 148 for details. 5.11.4.12 Code 11 Enabled Set this parameter to on to enable “Code 11”. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 210: Interleaved 2 Of 5
Note: French CIP (French pharmaceutical) is only used with bar codes contain- ing 7 characters. Transmit Check Digit If the check digit is to be transmitted with the data, this parameter must be enabled. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 211: Matrix 2 Of 5
Uses the specified algorithm of the option you've chosen to ensure the integrity of the symbol data before transmitting. If the data does not contain that algorithm, the data is not transmitted. The available options are: MOD 10 Check, or Double MOD 10 Check. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 212: Discrete 2 Of 5
The available options are: Disabled, or MOD 10 Check. Transmit Check Digit If the check digit is to be transmitted with the data, this parameter must be enabled. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 213: Pdf-417
If Code 128 Emulation is set to OFF, the Micro PDF-417 symbols are transmitted with one of the following prefixes: if the first codeword is 903-907, 912, 914, 915 Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration Decoded (Intermec ISCP)
Page 214: Codablock
Expanded” code can be omni-directionally scanned Field Size/Chars Refer to page 148 for details. 5.11.4.20 Telepen Enabled Set this parameter to ON to enable “Telepen”. Format Set the bar code character type to either ASCII or Numeric. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 215: Imager
Setting this parameter to on keeps image capture active and continuously decoding as long as the scanner button is pressed and held down. Center Bar Code Only Note: This parameter must be disabled when reading Composite bar codes. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 216 When you double-tap on this parameter, a dialog box is displayed in which you can enter a value of between 0 and 3000. A value of 0 disables the target dot. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 217: Imager Advanced Options
Setting this parameter to on allows the imager to make automatic gain, integration and illumination adjustments based on ambient light before capturing the bar code. If the adjustment is insufficient, further adjustments are made automatically before another image is captured. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration Imager...
Page 218 Note: When decoding multiple bar codes in one image, the value assigned to ‘Decoder Timeout’ should be increased to 200ms/extra bar code after the first. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 219: Code 39
Field Size/Chars Refer to page 148 for details. 5.11.5.4 Code 128 Enabled Set this parameter to on to enable “Code 128. Field Size/Chars Refer to page 148 for details. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration Imager...
Page 220: Upc/Ean
Field Size/Char Refer to page 148 for details. 5.11.5.8 Interleaved 2 of 5 Enabled Set this parameter to on to enable “Interleaved 2 of 5”. Field Size/Chars Refer to page 148 for details. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 221: Rss Code (Reduced Space Symbology)
Set this parameter to on to enable “Postal: Korean”. Field Size/Chars Refer to page 148 for details. 5.11.5.13 Postal: PlaNET Enabled Set this parameter to on to enable “Postal: PlaNET”. Field Size/Chars Refer to page 148 for details. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 222: Postal: Postnet
Set this parameter to on to enable “2D Maxicode”. Field Size/Chars Refer to page 148 for details. 5.11.5.18 2D PDF-417 Enabled Set this parameter to on to enable “2D PDF-417”. Field Size/Chars Refer to page 148 for details. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 223: Micro Pdf-417
To successfully read this type of bar code, the two types of symbologies included in the composite must be enabled. In addition, “Center Bar Code Only” must be disabled. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration Imager...
Page 224: Chapter 5: Configuration Options Tab
A dialog box appears, asking that you press the key you want to insert. The ASCII/Unicode key value of the keypress is displayed. Pressing the [ESC] key in this dialog box resets the data to zero. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 225 \Flash Disk\ScanLog.txt. Keep in mind that if ‘Scan Log File’ is enabled, there is a slight performance impact when performing multiple scans since the log file is written to persistent storage. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 226: Chapter 5: Configuration Translations
“Output” string. This string entry parameter can be null, or it may contain any combination of standard and special characters (e.g., function keys, [ENTER], etc.). Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 227: Ports
(such as baud rate), and in this case the 7530 G2 will dictate the settings. Baud rates often have a direct impact on performance – they should be set as high as possible while still ensuring reliable communication. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 228: Chapter 5: Configuration Ports
This parameter determines the number of bits data bits included in each asynchronous data byte. Most devices use 8 bit data bytes. Double-tapping on this option displays a pop-up window in which you can choose either 7 or 8 data bits. Psion Teklogix 7530 G2 Hand-Held Computer User Manual (COM1)
Page 229: Console Port (Com3)
This parameter must be set to on in order for the 7530 G2 to recognize the device connected to the console port. Baud Refer to page 200 for details. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration Ports...
Page 230: Port Replicator Tether (Com6)
Refer to page 200 for details. Data Bits Refer to page 200 for details about this parameter. Parity For details, refer to page 201. Stop Bits Refer to page 201 for details about “Stop Bits”. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 231: Port Replicator Port A (Com5)
Refer to page 200 for details. Data Bits Refer to page 200 for details about this parameter. Parity For details, refer to page 201. Stop Bits Refer to page 201 for details about “Stop Bits”. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 232: Snmp (Simple Network Management Protocol) Setup
SNMP Network Management Station can access. Each product has a defined set of MIBs that determine how SNMP operates, the type of access allowed and so on. All Psion Teklogix products support the TEKLOGIX-GENERIC-MIB – a MIB that defines some common features across Psion Teklogix products. All devices also support MIB-II, a management information base that defines the common features of TCP/IP networks.
Page 233: Contact Tab
MIB-II’s sysContact object. 5.12.1.2 Location This parameter is used to identify the physical location of this node (e.g., Warehouse A: Pillar 32B). The content of this parameter is accessible through MIB-II’s sysLocation object. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 234: Chapter 5: Configuration Communities Tab
Traps. After enabling this option and rebooting the device, the SNMP Agent will automatically start up. To disable this feature, remove the check mark from the check box. 5.12.2.1 Adding A Community • Tap on the Add button to add a new ‘community’. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 235: Modifying A Community Setting
A Delete Confirmation screen is displayed. • To remove a community, tap on the Yes button, or If you decide not to remove the community, tap on No. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration Communities Tab...
Page 236: Chapter 5: Configuration Trap Destination Tab
(e.g., an SNMP message received with a bad community name). 5.12.3.2 Adding A Destination To add a new destination: • Tap on the Add button. • Type a destination in the text box provided, and press [ENTER]. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 237: Changing A Destination
A Delete Confirmation screen is displayed. • To remove a destination, tap on the Yes button, or If you decide not to remove the destination, tap on No. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration Trap Destination Tab...
Page 238: Chapter 5: Configuration Permitted Hosts Tab
SNMP queries from any host. 5.12.4.1 Adding A Host To add a new host: • Tap on the Add button. • Type a new host IP address in the text box provided, and press [ENTER]. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 239: Changing A Host
Change button. A dialog box like the one displayed when you add a host is displayed. • Make the necessary changes, and press [ENTER]. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 5: Configuration Permitted Hosts Tab...
Page 241 6.8.3 Using The Quad Dock ......224 & A EVICES CCESSORIES Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 242 6.11.7 The Port Replicator ......233 6.12 Tether Adaptor Cables ......234 Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 243: Chapter 6: Peripheral Devices & Accessories
6.1 External Bar Code Readers 6.1.1 PowerScan™ Standard, LR and XLR Bar Code Scanners The 7530 G2 supports Psion Teklogix’ PowerScan™ industrial bar code scanner with standard, long range and extra long range options. To connect this scanner to the 7530 G2, attach the device to the tether port at the upper-right side of the 7530 G2.
Page 244: Battery Charging
The gang charger is designed to charge up to six 7530 G2 Lithium-Ion batteries at one time. Your charger is shipped with the appropriate IEC mains power cord. If the supplied power cord is incorrect for your country, contact Psion Teklogix for assistance (see Appendix A: Support Services And Worldwide Offices).
Page 245: Operator Controls
Battery rejected (at insertion) or unable to complete charge on battery Charging circuit problem. Refer to “Troubleshooting” on page 218. Psion Teklogix 7530 G2 Hand-Held Computer User Manual Operator Controls...
Page 246: Chapter 6: Peripheral Devices & Accessories Troubleshooting
If all indicators are flashing red, there is a power supply problem and the charger requires service. Psion Teklogix 7530 G2 Hand-Held Computer User Manual the LED flashes yellow until the 5° C to 39° C (41° F to 102° F),...
Page 247: Combo Charger
5° C to 39° C (41° F to 102° F). It is recommended that this charger be operated at room temperature – between 18° C and 25° C (64° F to 77° F) for maximum performance. Chapter 6: Peripheral Devices & Accessories Power LED Does Not Light Up Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 248: Chapter 6: Peripheral Devices & Accessories Operator Controls
The 75% charge indicator is handy if you need a quick recharge – a quick charge often takes less than one hour. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 249: Charge Indicators
6.6.6 Troubleshooting The gang charger troubleshooting section also applies to the combo charger. Refer to “Troubleshooting” on page 218, for helpful tips. Chapter 6: Peripheral Devices & Accessories Charge Status Psion Teklogix 7530 G2 Hand-Held Computer User Manual Charge Indicators...
Page 250: Chapter 6: Peripheral Devices & Accessories Combo Dock
See “Network Addressing” on page 224 for details about network addressing issues with the combo dock. 6.7.4 Troubleshooting Troubleshooting issues for the combo dock are identical to those of the quad dock. Refer to “Troubleshooting” on page 224 for helpful tips. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 251: Quad Dock
The quad dock has no user controls. It is equipped with a power indicator LED and RJ45 link and traffic indicator LEDs. When a valid network link is established, a green LED is illuminated next to the RJ45 connector. Chapter 6: Peripheral Devices & Accessories Psion Teklogix 7530 G2 Hand-Held Computer User Manual Quad Dock...
Page 252: Chapter 6: Peripheral Devices & Accessories Using The Quad Dock
6.8.6 Troubleshooting The indicators, applications and drivers required to use and monitor the docking station are installed on the 7530 G2 – no indicators or applications are present on the docking station itself. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 253: Portable Docking Module (Pdm)
226 provides a visual representation of how to secure the PDM. Note: The latching mechanism on the PDM is designed for quick installation and release. It is not meant for heavy duty use. Chapter 6: Peripheral Devices & Accessories Network Link Unsuccessful Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 254: Chapter 6: Peripheral Devices & Accessories Portable Docking Module (Pdm)
Chapter 6: Peripheral Devices & Accessories Portable Docking Module (PDM) Psion Teklogix recommends using a powered cradle or combo charger in harsh environments. Figure 6.1 Attaching The PDM To The Base Of The 7530 G2 Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 255 The PDM contains reverse polarity and over voltage protection. If the DC power jack is wired backwards or exceeds 20VDC, the PDM shuts down to protect the 7530 G2, the PDM and the power supply from damage. Psion Teklogix does not recommend substituting the DC power supply provided with your PDM.
Page 256: Chapter 6: Peripheral Devices & Accessories Bluetooth Peripherals
The range of the Bluetooth radio in the 7530 G2 is limited to approximately 10 meters (32 feet). The Bluetooth antenna is located behind the scanner ‘bulge’ on the back of the hand-held. Psion Teklogix provides built-in support for the Bluetooth peripherals listed below. Psion Teklogix provides built-in support for: •...
Page 257: Picker Cradle Mounting Recommendations
The7530 G2 base picker cradle can be outfitted with two options – a power module and a port replicator. Psion Teklogix also supplies a range of standard mounts for the hand-held picker cradles, and the 7530 G2 picker cradle is compatible with all of them.
Page 258: Chapter 6: Peripheral Devices & Accessories Wiring Guidelines
80,000 cycles, they will wear over time and will no longer lock the 7530 G2 securely in the cradle. For replacement parts and instructions contact Psion Teklogix (see Appendix A: Support Services And Worldwide Offices). Partial disassembly is required.
Page 259: Chapter 6: Peripheral Devices & Accessories Powered Cradle Installation In High Voltage Vehicles
This option accepts DC power sources over the range 12V to 80V. The 7530 G2 picker cradle can be ordered with the powered cradle option installed, or it can be retrofitted later at an authorized Psion Teklogix service depot. Service offices are listed in Appendix A: Support Services And Worldwide Offices.
Page 260: Peripheral Devices & Accessories Wiring Vehicle Power To The Cradle
The power cradle draws no more than 8A (less if the accessory supply is greater than 12V). Any additional wiring, connectors or disconnects used should be rated for at least 10A. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 261: The Port Replicator
Your serial device likely includes a suitable cable connector for this port. Note: The 7530 G2 picker cradle can be ordered with the port replicator option installed, or it can be retrofitted later by an authorized Psion Teklogix service depot. Service offices are listed in Appendix A: Support Services And Worldwide Offices.
Page 262: Tether Adaptor Cables
• 1002166 Cable Adaptor LTW - JB5 Scan USB. Contact Psion Teklogix support services (see Appendix A: “Support Services And Worldwide Offices”) for assistance in the creation of these cable assemblies if you wish to take advantage of this capability.
Page 263 7.7 1900 mAh Lithium-Ion Battery Pack ....247 7.8 2400 mAh Lithium-Ion Battery Pack ....248 Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 265: Chapter 7: Specifications
Built-in fast charger (2 hour typical recharge) • Adjustable battery allocation between system backup and runtime • System backup during battery swap (15 minutes) • 1 week real-time clock backup 7530 G2 Hand-Held Computer Specifications Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 7: Specifications...
Page 266 Safety: UL 1950, CSA C22.2 No950, LVD EN60950 EMC: FCC Part 15 Class B, EMC Directive Class B Laser: IEC 60825-1 2001 Class 2 (EN60825-1), *Note this product will carry the CE Mark Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 267: Radio Specifications
Antenna Port Transmit Power Frequency Range Channels RX Sensitivity Data Rates RA1001A - Narrow Band Radio Psion Teklogix Proprietary Narrowband Modulation (2/4 level FSK) Type III PC Card Form Factor Transmit Power Frequency Range Rx Sensitivity Data Rates Bluetooth Radio...
Page 268: Chapter 7: Specifications Internal Scanner Port
SE 1524 Extended Range (page 244). • EV15 (page 245). • SX5303 2D Imager Scanner (page 247). Psion Teklogix 7530 G2 Hand-Held Computer User Manual EV15 SX5303 SE 1200HP 1D non-decoded, standard range SE 1200LR 1D non-decoded, long range SE 1200ALR 1D non-decoded, advanced...
Page 269: Se 1200 High Performance & Long Range Specs
Linear and Smart Raster Minimum 40% absolute dark/light reflectance measured at 650 nm. 35% absolute dark/light reflec- tance differential (PDF). 25% absolute dark/light reflec- tance differential (1-D). Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 7: Specifications SE 1200LR SE 2223 PDF...
Page 270: Chapter 7: Specifications
7.6.2.1 Decode Zones – SE 1200HP, LR AND ALR Bar Code 7.5 mil 3.0" 8.5" Psion Teklogix 7530 G2 Hand-Held Computer User Manual SE 1200ALR UPC/EAN, Code 128, UCC/EAN 128, RSS, Code 39, Code 93, I 2 of 5, Discrete 2 of 5, Codabar, MSI.
Page 271: Se 1224Hp Scanner Specifications
Sunlight: 8000 ft. candles (86112 Lux). Raster Laser Scanner Read Distance SE2223 2.5" 6.5" 10 mil 2.5" 9.5" 15 mil 2.5" 15.5" SE 1224HP Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 7: Specifications Decode Zones – SE 2223PDF...
Page 272: Se 1524Er - Extended Range Scanner Specifications
Scan Patterns Minimum Print Contrast Minimum 25% absolute dark/light reflectance measured at 650 nm. Symbologies Programmable Parameters Ambient Light: Psion Teklogix 7530 G2 Hand-Held Computer User Manual SE 1524ER Visible Laser Diode 650 nm. 35 (±5) scans/sec (bi-directional). 13.5° ±0.7° Linear UPC/EAN, Code 128, UCC.EAN128, RSS, Code 39, Code 93,I...
Page 273: Ev15 Imager Specifications
EV15 Imager Specifications Parameter Light Source Scan Angle Minimum Print Contrast Min x. Dimension Decode Zones – SE 1524ER EV15 617nm Highly Visible LED 40º Minimum 25% 0.1 mm (4 mils) Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 7: Specifications...
Page 274: Specifications Decode Zone- Ev15
Ambient Light Shock Vibration 7.6.5.1 Decode Zone– EV15 Psion Teklogix 7530 G2 Hand-Held Computer User Manual EV15 Up to 90cm (35 in) UPC (E&A), EAN, RSS, Code 39, Code 128, UCC/EAN 128, ISBN, ISBT, Interleaved, Matrix, Industrial and Standard 2 of 5, Codabar,...
Page 275: Sx5303 Imager Specifications
2.25 in. 7.0 in. 10 mil 2.25 in. 6.5 in. Lithium-Ion (Li-Ion) 1900mAh nominal at 300mA discharge 20°C to 8.25V 1400mAh nominal at 300mA discharge at -20°C to 8.25V Psion Teklogix 7530 G2 Hand-Held Computer User Manual Chapter 7: Specifications...
Page 276: Chapter 7: Specifications 2400 Mah Lithium-Ion Battery Pack
Cell Configuration Cell Type Max. Charge Voltage Fast Charge Time Psion Teklogix 7530 G2 Hand-Held Computer User Manual 5°C to 39°C (41°F to 102°F) -30°C to 60°C (-22°F to 140°C) -30°C to 60°C (-22°F to 140°C) Storage at elevated temperatures not recommended...
Page 277: Appendix A: Support Services And Worldwide Offices
Technical Support for Mobile Computing Products is provided via email through the Psion Teklogix customer and partner extranets. To reach the website, go to www.psionteklogix.com, and click on the appropriate Teknet link on the home page. Then click on the “Login” button or the “Register” button, depending on whether you have previously registered for Teknet.
Page 278: Worldwide Offices
Cedex 3; France Tel: +33 4 42 90 88 09 Fax: +33 4 42 90 88 88 E-mail: tekeuro@psion.com Psion Teklogix 7530 G2 Hand-Held Computer User Manual ENTRE Option 2 - or - Ext. 1999 Option 2 U.S. S ERVICE see also www.psionteklogix.com...
Page 279: Appendix B: Port Pinouts
6. USB Host Plus. For connecting USB devices. 7. DC Power In. Same as pin 4. PPENDIX 1010032 2 4 6 8 10 12 1 3 5 7 9 11 Psion Teklogix 7530 G2 Hand-Held Computer User Manual “Instruction Tether...
Page 280: Appendix B: Port Pinouts Battery Contacts
12. Ground B.3 Battery Contacts These contacts represent right to left numbering with the docking port pointing toward you, and the battery contacts facing upward. Pin # Psion Teklogix 7530 G2 Hand-Held Computer User Manual Battery Contacts Signal Description Positive Battery...
Page 281: Jb5 To Usb Type B Cable - Pn Ca1020
JB5 To USB Type B Cable - PN CA1020 B.4 JB5 To USB Type B Cable - PN CA1020 (Mates with USB devices that incorporate Type B receptacles) B.5 JB5 To RS-232 Serial Cable - PN CA1010 Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 283: Appendix C: Usb Setup Application
The USB Setup application is used to update a Windows PC so that it can connect to a Psion Teklogix 7530 G2 using the USB port on the Portable Docking Module (PDM) connector. To download the USB Setup application, go to: www.psionteklogix.com/downloads...
Page 284: Appendix C: Usb Setup Application Launching The Application
– 3.5 or later. If the version installed on your PC is not supported, you’ll need to exit the USB Setup application, and install a later version of ActiveSync. ActiveSync can be downloaded from Microsoft at: http://www.microsoft.com/downloads. Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 285: Installation Complete Dialog Box
USB Setup process was successful, the “Found new hardware” wizard may start. If this occurs, choose the recommended defaults. ActiveSync will detect your 7530 G2. Appendix C: USB Setup Application Installation Complete Dialog Box Psion Teklogix 7530 G2 Hand-Held Computer User Manual...
Page 287 MSI Plessey 155, 169, 183 UPC A 152, 164, 178 UPC E 152, 165, 178 trailing characters 151 bar code reader external (specs) 240 external scanner, operation of 215 Barcodes Must Decode 188 batteries Psion Teklogix 7530 G2 Hand-Held Computer User Manual INDEX...
Page 288 234 calibrating (touchscreen) 41, 108 Captures Per HW Trigger 189 card slot power 106 Psion Teklogix 7530 G2 Hand-Held Computer User Manual Cellular Radio Address 139 Center Bar Code Only (Imager) 187 CH, Bluetooth Controls 117 changing password (Start Menu security)
Page 289 EAN 13, Convert To 169 EAN 8 151, 164, 178 EAN-8 Zero Extend 164 EAP (Extensible Authentication Protocol) ECI Decoder 160 Enable Bookland (UPC-EAN) 166 Enable Bookland EAN 150 Enable CC-AB 172 Psion Teklogix 7530 G2 Hand-Held Computer User Manual Index...
Page 290 SX5303 2D imager specs 247 imager (2D), operating 51 Imager parameters 187 Include Check 150, 151, 153, 155, 156 Psion Teklogix 7530 G2 Hand-Held Computer User Manual Include Check (Discrete 2 of 5 symbology) 155 Include Check (Interleaved 2 of 5...
Page 291 Info tab 132 Low Level screen 134 Power tab 141 Protocol tab 138 Radio tab 142 statistics screen 132 narrow band radio signal quality 46 network Ad Hoc 20 connection, monitoring 55 Psion Teklogix 7530 G2 Hand-Held Computer User Manual Index...
Page 292 102 calibrate power 105 devices (card slot power) 106 scheme, power saving 103 Psion Teklogix 7530 G2 Hand-Held Computer User Manual threshold, power shutdown 104 Power Off Time 141 Power Scheme 103 Power Tab (Narrow Band radio) 141...
Page 293 Simple Network Management (SNMP) See SNMP 204 SIP (Soft Input Panel 84 size of fields 148 Size/Chars (bar code scanning) 148 Sled See picker cradle. 228 slot power status, built-in device, enabling Psion Teklogix 7530 G2 Hand-Held Computer User Manual Index...
Page 294 IATA 2 of 5 156 symbologies, bar code 144 Sync Delay (Polling) 139 system tray 69 VIII Psion Teklogix 7530 G2 Hand-Held Computer User Manual TAB Key 35 taskbar onscreen indicators battery gauge 46 docking devices 47 modifier keys 45...
Page 295 2D UPC Half Block Stitching 167 36-key keyboard alpha keys, accessing 38 uppercase letters, creating 39 63-key keyboard 38 7530 approvals 238 specifications 237 802.1X authentication, enabling 22 802.11 radio, configuring 17 Psion Teklogix 7530 G2 Hand-Held Computer User Manual Index...

Psion Teklogix Hand-Held Computer 7530 G2 User Manual

Chapter 1: Introduction

Appendix A: Support Services and Worldwide Offices for Service Information

Chapter 2: Basic Checkout

Chapter 3: Getting to Know Your 7530 G2

Chapter 4: Working with Windows CE

Chapter 5: Configuration

Quick Links

Troubleshooting

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Psion Teklogix Hand-Held Computer 7530 G2

Summary of Contents for Psion Teklogix Hand-Held Computer 7530 G2
