8580/8590
Vehicle-Mount Computer
User Manual
January 24, 2007
Part No. 8100119.A
ISO 9001 Certified
Quality Management System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vehicle-Mount Computer 8590 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Psion Teklogix Vehicle-Mount Computer 8590

Summary of Contents for Psion Teklogix Vehicle-Mount Computer 8590

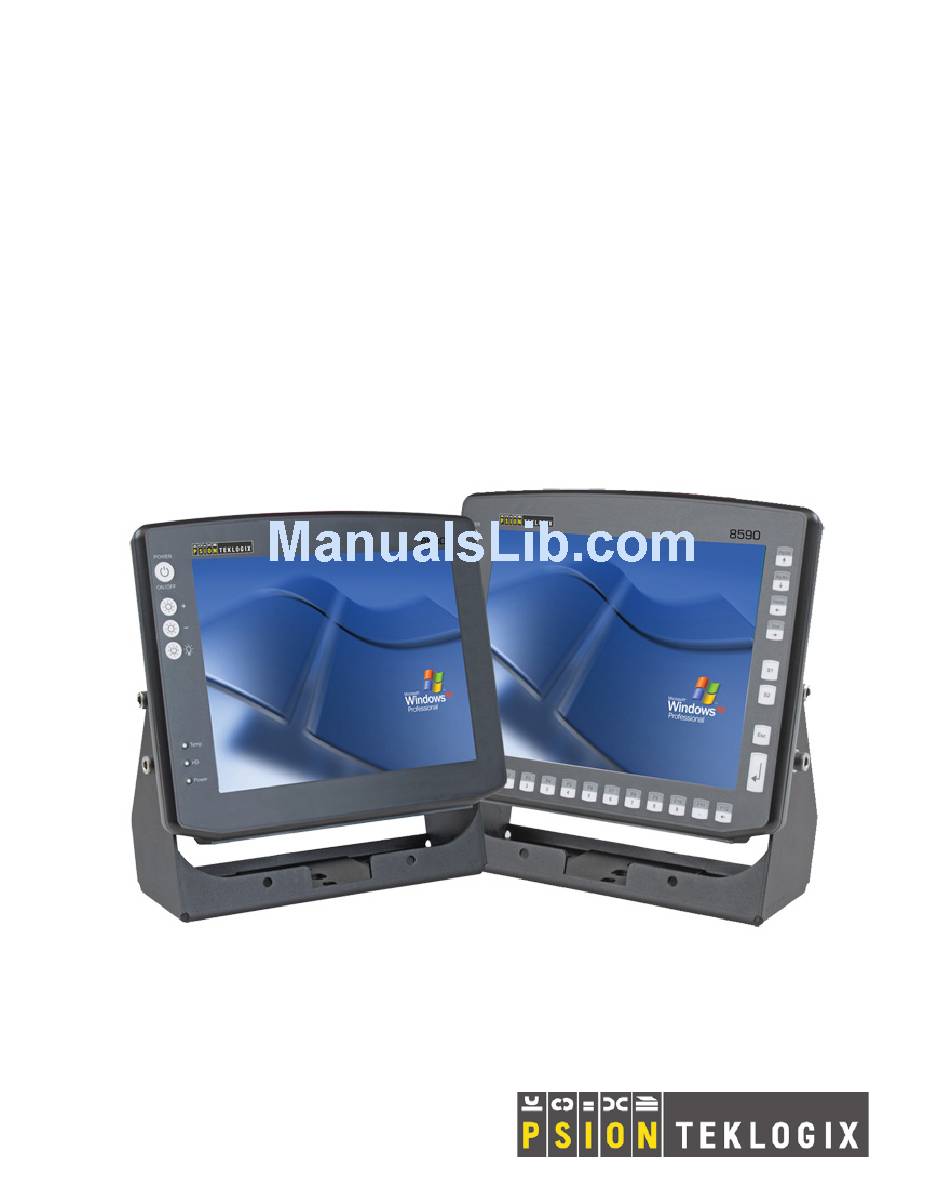

  • Page 1 8580/8590 Vehicle-Mount Computer User Manual January 24, 2007 Part No. 8100119.A ISO 9001 Certified Quality Management System...
  • Page 3 © Copyright 2007 by Psion Teklogix Inc., Mississauga, Ontario This document and the information it contains is the property of Psion Teklogix Inc., is issued in strict confidence, and is not to be reproduced or copied, in whole or in part, except for the sole purpose of promoting the sale of Teklogix manufactured goods and services.

  • Page 4: Support Services

    Return-To-Factory Warranty Psion Teklogix provides a return to factory warranty on this product for a period of twelve (12) months in accordance with the Statement of Limited Warranty and Limi- tation of Liability provided at www.psionteklogix.com/warranty. (If you are not already a member of Teknet and you attempt to view this warranty, you will be asked to register.
  • Page 5 RoHS-compliant as per the EU directive. Other than as noted below, a Psion Teklogix product that does not have an accompanying RoHS logo signifies that it was placed on the EU market prior to July 1, 2006, and is thereby exempt from the directive.

  • Page 7: Table Of Contents

    Program License Agreements Approvals And Safety Summary Chapter 1: Introduction About This Manual ......3 1.1.1 Text Conventions .
  • Page 8 Contents 2.6.14 8580/8590 VESA Drill Holes ....21 Unpacking The 8580/8590......21 Packaging .
  • Page 9 6.1.3 Special Features Of The Operating System ... . 62 Psion Teklogix Config Tool ......63 6.2.1 Overview Of The Config Functions .
  • Page 10 Contents 6.3.7 Keyboard_Maximize Section ....100 Chapter 7: Serial Ports Serial Ports ....... . 105 7.1.1 Resources.
  • Page 11 Chapter 10: Common Mistakes & Helpful Tips 10.1 Common Mistakes In Usage ..... . 131 10.1.1 Powering Up/Down ..... . . 131 10.1.2 Cable Cover .
  • Page 12 Contents D.4.3 Determining Insulating Effects ....D-7 D.5 Determining Natural Frequencies ....D-9 Appendix E: BIOS E.1 BIOS Setup Description .

  • Page 13: Program License Agreements

    ROGRAM Microsoft's End User License Agreement You have acquired a device (“DEVICE”) that includes software licensed by Psion Teklogix Inc. from Microsoft Licensing Inc. or its affiliates (“MS”). Those installed software products of MS ori- gin, as well as associated media, printed materials, and “online” or electronic documentation (“SOFTWARE”) are protected by international intellectual property laws and treaties.
  • Page 14 License Agreement REGARDING THE DEVICE OR THE SOFTWARE, THOSE WARRAN- TIES DO NOT ORIGINATE FROM, AND ARE NOT BINDING ON, • Note on Java Support. The SOFTWARE may contain support for pro- grams written in Java. Java technology is not fault tolerant and is not designed, manufactured, or intended for use or resale as online control equipment in hazardous environments requiring fail-safe performance, such as in the operation of nuclear facilities, aircraft navigation or communica-...

  • Page 15: Grant Of License

    Agreement, we do not grant you a license to the Software, and you may not install or use the Software or any accompanying documentation. The Software is the property of Psion Teklogix Inc. or its licensors and is protected by copyright laws and international copyright treaties, as well as other intellectual property laws and treaties. The Soft- ware is licensed, not sold.

  • Page 16: Disclaimer Of Warranty

    License Agreement c. License Registration. You will be required to provide a license ID, unique to each device, for registering your Software license. As part of your software license registration, we will provide you a corresponding license key for each device.

  • Page 17: Limitation Of Liability

    All title and copyrights in and to the Software, and any copies thereof, are owned by Psion Teklogix Inc. or its suppliers. The Software also contains copyrighted material licensed from our suppliers or obtained from open source and all rights to such copyrighted material rests with such suppliers.
  • Page 18 You acknowledge that you have read this Agreement, understand it, and that it is the complete agreement between you and Psion Teklogix with respect to the subject matter hereof and supersedes all prior agreements, oral or written.

  • Page 19: Approvals And Safety Summary

    PPROVALS AFETY UMMARY CE Markings When used in a residential, commercial or light industrial environment the product and its approved UK and European peripherals fulfil all requirements for CE marking. R&TTE Directive 1999/5/EC This equipment complies with the essential requirements of EU Directive 1999/5/EC (Declaration available: www.psionteklogix.com).
  • Page 20 Tämä laite vastaa EU:n radio- ja telepäätelaitedirektiivin (EU R&TTE Directive 1999/5/EC) vaatimuksia. (Julkilausuma nähtävillä osoitteessa: www.psionteklogix.com). PSION TEKLOGIX tímto prohlašuje, že 8580/8590 je ve shodě se základními požadavky a dalšími příslušnými ustanovenímisměrnice 1995/5/ES (NV č. 426/2000 Sb.) a Prohlášení o shodě je k dispozici na www.PsionTeklogix.com.
  • Page 21 Dan l-apparat huwa konformi mal-kriterji tad-direttiva ta' l- EU 1999/5/EC. (Din id-dikjarazzjoni tista ssiba fuq is sit www.psionteklogix/abc) Oprema je skladna z bistvenimi zahtevami EU direktive 1999/5/EC (Deklaracija je na voljo: www.psionteklogix.com/xyz ) Az eszköz megfelel az EU 1999/5/EC fő direktíváinak (a nyilatkozat megtalálható: www.psionteklogix.com/xyz ) To urządzenie spełnia wymagania zasadnicze dyrektywy Unii Europejskiej 1999/5/EC (Deklarację...

  • Page 22: Important Note

    Approvals And Safety Summary This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 23: Important Safety Notices

    utilisé à l'intérieur, tout en tant éloigné de toute fenêtre afin de garantir le maximum de protection. Si cet équipement (ou son antenne émettrice) est installé à l'extérieur, il est alors soumis à licence. Important Safety Notices The 8580/8590 vehicle-mounts were designed and built according to modern technology and accepted safety regulations.

  • Page 24: Power Supply/External Peripheral Devices

    Approvals And Safety Summary The power supply cables must be laid in accordance with the applicable local installation regulations. Radio Performance Do not exceed the maximum permissible transmitting power which is specified by each separate country. 8580/8590 users must verify this themselves. Risk Of Injury The unit could fall during transit or installation and cause injury.
  • Page 25 Danger Of Electrocution When Cleaning/Servicing The Device In order to avoid electrocution always disconnect the vehicle-mount from the power supply before cleaning or servicing the device. Charging The Car Battery While charging the car battery, the 8580/8590 has to be either disconnected from the battery or it has to be determined that the maximum allowed input voltage of the vehicle-mount is not exceeded.
  • Page 26 Approvals And Safety Summary Repairs Only Through Psion Teklogix Never carry out repairs on the device yourself. Always contact Psion Teklogix technical support and send in your unit for repair if necessary. On the back of the unit, you will find the device's type plate which has important information about the device which you must quote for technical service.

  • Page 27: Chapter 1: Introduction

    NTRODUCTION 1.1 About This Manual ......3 1.1.1 Text Conventions ......4 1.1.2 For Qualified Personnel .

  • Page 29: About This Manual

    Adhering to the manual helps by avoiding dangers, reducing repair costs and breakdown times and increasing the reliability and lifespan of the 8580/8590s. Psion Teklogix Inc. will not assume responsibility for any damage caused by improper use of the 8580/8590 vehicle-mounts and/or in disregard of the instructions in this manual.

  • Page 30: Text Conventions

    Chapter 1: Introduction Text Conventions Chapter 10: Common Mistakes & Helpful Tips provides some helpful troubleshooting tips. Appendix A: Support Services And Worldwide Offices provides the helpdesk phone number at the Mississauga, Ontario, Canada office and details the support services available. This appendix also lists the world- wide office addresses and phone numbers.
  • Page 31 ASIC HECKOUT 2.1 8580/8590 Description ......7 2.2 Intended Use ....... . . 7 2.3 The Models: 8580 And 8590 .

  • Page 32: Chapter 2: Basic Checkout

    Chapter 2: Basic Checkout 2.9.3.3 8580/8590 Adaptor Cables ....25 2.10 Connecting External Devices ..... . . 26 2.10.1 Powering Down The 8580/8590 .

  • Page 33: Chapter 2: Basic Checkout 8580/8590 Description

    Warning: IT IS CRITICAL that this information be reviewed and that any guidelines applicable to your vehicle-mount be strictly followed. 2.1 8580/8590 Description Thank you for choosing the 8580/8590 vehicle-mount computer. The 8580/8590 is a multi-function PC designed for stationary and mobile use. Thanks to its rugged design (aluminum housing), the device provides effective protection against mechanical, electrical and chemical influences and extreme ambient temperatures.

  • Page 34: The Models: 8580 And 8590

    Chapter 2: Basic Checkout The Models: 8580 And 8590 Should these units be used in unauthorized ways, the user/operator is solely responsible for any resulting damage. This condition also applies to any changes you make to the device. It is critical that you comply with the safety regulations described in this manual in order to safely operate the 8580/890.
  • Page 35 Clock rate of the CPU. S/N... 11 or 12 digit serial number composed of: -Psion Teklogix specific device code (29 stands for the 8580/8590 model range) - Indication of the week of manufacture - Indication of the year of manufacture.

  • Page 36: Chapter 2: Basic Checkout Technical Specifications

    Chapter 2: Basic Checkout Technical Specifications 2.6 Technical Specifications 2.6.1 Mechanical Housing Display Panel Bottom 2.6.2 Motherboard Chipset Bus Interface Cache BIOS Slots for standard plug-in 8580/8590 Vehicle-Mount Computer User Manual Rugged aluminum-cast housing with integrated heat sink Protection class IP65 ESD safe Weight of the 8580/8590 with a 10.4"...
  • Page 37 Compact Flash type I/II Important notes for Compact Flash Cards: Only use Compact Flash Cards approved and released by Psion Teklogix to ensure the device functionality. Otherwise data loss could increase. The Compact Flash Cards used in the 8580/8590 must be industrial and non removable models.

  • Page 38: Chapter 2: Basic Checkout Lcd/Crt Interface

    Chapter 2: Basic Checkout LCD/CRT Interface Keyboard/mouse connection USB-connection Software compatibility 2.6.3 LCD/CRT Interface VGA controller 2.6.4 Touchscreen (optional) Analog touch controller Analog touchscreens 8580/8590 Vehicle-Mount Computer User Manual internal for the integrated environment controller 4th serial port: 115,200 Baud max (16550A compatible, 16 bytes FIFO), internal for integrated touch controller Keyboard/mouse: 6-pin mini DIN connector,...

  • Page 39: Network Interface

    Analog touch connection 2.6.5 Network Interface Network controller Network connection 2.6.6 ADC/MDC Interface (optional) Properties ADC/MDC connection 2.6.7 PCI Express® MiniCard Interface For WLAN (optional) PCI Express MiniCard slot 1 USB 2.0 High Speed 2.6.8 Power Supply The device model is displayed on the device type plate. DC power pack on request Internal plug-in connector...

  • Page 40: Chapter 2: Basic Checkout Power Supply

    Chapter 2: Basic Checkout Power Supply 24/28VDC 60W internal type: DC-2 DC power pack 24/48VDC 100W internal type: DC-3 DC power pack 12VDC 100W internal type: DC-1 8580/8590 Vehicle-Mount Computer User Manual Voltage range: 18 to 60VDC Covers power outages up to 5ms Electrically-isolated Maximum output 60W Optional automatic shutdown software, supports...

  • Page 41: Maximum Power Available For Peripheral Devices

    Power consumption 1,2,3) The SELV circuit is a secondary circuit that is designed and protected so that its volt- ages will not exceed a safe value both when operating correctly or if a single error occurs. 2.6.9 Maximum Power Available For Peripheral Devices Power Supply Motherboard DC-1 800MHz...

  • Page 42: Chapter 2: Basic Checkout Ambient Conditions

    Chapter 2: Basic Checkout Ambient Conditions Power Supply Fuse Type DC-3, 5x20mm T 12.5A DC-4 L/250V 5x20mm T 1.25A AC-1 H/250V 2.6.11 Ambient Conditions Operating Temperature Display 10.4" SVGA 12.1" XGA Storage temperature 10.4" SVGA 12.1" XGA Note: The storage temperature lower limit may exceed the permissible operat- ing temperature range.

  • Page 43: Test Marks

    Relative humidity Mechanical vibration & shock resistance 2.6.12 Test Marks 10% to 90% at 40° C, non-condensing In accordance with EN 60068-2-3 Class 5M3 according to EN 60721-3-5: 1998 (land vehicles), 5 hrs with 3.6 g effective noise and 36 vibrations with 30 g peaks or US highway truck according to MIL-STD 810F: 2000 (Department of Defense), 3 hrs with 1 g effective noise and 600 vibrations with 20 g peaks in operation, with Flash...

  • Page 44: Chapter 2: Basic Checkout 8580/8590 Dimensions

    Chapter 2: Basic Checkout 8580/8590 Dimensions 2.6.13 8580/8590 Dimensions Note: All dimensions are represented in millimeters. 2.6.13.1 8580 Front And Back Dimensions 2.6.13.2 8580 Side Dimensions 8580/8590 Vehicle-Mount Computer User Manual...

  • Page 45: 8590 Front And Back Dimensions

    Chapter 2: Basic Checkout 8590 Front And Back Dimensions 2.6.13.3 8590 Front And Back Dimensions 8580/8590 Vehicle-Mount Computer User Manual...

  • Page 46: Chapter 2: Basic Checkout 8590 Side Dimensions

    Chapter 2: Basic Checkout 8590 Side Dimensions 2.6.13.4 8590 Side Dimensions 8580/8590 Vehicle-Mount Computer User Manual...

  • Page 47: 8580/8590 Vesa Drill Holes

    2.6.14 8580/8590 VESA Drill Holes The VESA drill holes on the 8580/8590 are visible on this diagram. Dimensions without add-ons (in mm): 2.7 Unpacking The 8580/8590 The delivery includes at least the following: • 8580/8590 with strain relief rail • Ordered assembly set Chapter 2: Basic Checkout 8580/8590 VESA Drill Holes...

  • Page 48: Chapter 2: Basic Checkout Packaging

    Chapter 2: Basic Checkout Packaging • Cable cover (standard = IP65 with strain relief rail) • One DC or AC connecting cable • One IPC/MPC driver CD per delivery • One printed manual per delivery Please verify the delivery contents immediately on receipt! 2.8 Packaging The packaging material has been selected to optimally protect your device while simultaneously offering the best possible ecological compatibility.

  • Page 49: External Connectors

    Chapter 2: Basic Checkout External Connectors 2.9.3 External Connectors Figure 2.3 AC Version Figure 2.4 24/48VDC 60W Version Figure 2.5 24/48VDC 100W Version 8580/8590 Vehicle-Mount Computer User Manual...

  • Page 50: Basic Checkout Ac Voltage Connector

    Chapter 2: Basic Checkout AC Voltage Connector 2.9.3.1 AC Voltage Connector Version: Standard power plug (IEC 320 compliant), 3-pin. Figure 2.7 AC Power Supply Connector – Exterior View 2.9.3.2 DC Voltage Supply Version: Phoenix Combicon, 3-pin. Figure 2.8 DC Power Supply Connector – Exterior View Explanation: ‘Ignition on’...

  • Page 51: 8580/8590 Adaptor Cables

    All cables can be used with every voltage. Psion Teklogix offers either ‘ignition’ or ‘screen blanking’ (display-off). Keep in mind that you must choose either the ignition or screen blanking option;...

  • Page 52: Chapter 2: Basic Checkout Connecting External Devices

    Chapter 2: Basic Checkout Connecting External Devices 2.10 Connecting External Devices Warning: The 8580/8590 must be disconnected from the power supply: - before external devices (e.g., scanner, keyboard) can be connected or disconnected, and - before the 8580/8590 can be connected to a network. All connections and interfaces on the 8580/8590 are located on the underside of the unit.

  • Page 53: Powering Up The 8580/8590

    2.10.1.1 Powering Up The 8580/8590 Only power up the 8580/8590 when all devices have been connected and the vehicle-mount has been closed correctly (remember the cable cover!). Otherwise, you may damage the 8580/8590! 2.11 WLAN Settings 2.11.1 Radio Performance Warning: Do not exceed the maximum permissible transmitting power which is specified by each separate country.

  • Page 54: Removing The Protective Film From The Display

    Chapter 2: Basic Checkout Removing The Protective Film From The Display To set the transmitting power of the wireless card, please read the documentation on the wireless card. 2.12 Removing The Protective Film From The Display The display of the 8580/8590 is protected during transport by a transparent film. This film should remain on the display during assembly to avoid damage to the display surface.
  • Page 55 Chapter 2: Basic Checkout Protecting The TFT Display From Memory Effect Important: The following is important for the lifespan of the backlighting: Choose a turn off time that is definitely not too short (not less than 30 min) since frequent turning on of the backlighting will noticeably reduce its lifespan.
  • Page 57 CCESSORIES 3.1 Keyboards ........33 3.1.1 The SMALL Keyboard ......33 3.1.2 The 24-Key Keypad .

  • Page 59: Chapter 3: Accessories

    3.1.1 The SMALL Keyboard A mountable, SMALL keyboard (English, German and French) is available for the 8580/8590, protection class IP 65. The following SMALL keyboards are available through Psion Teklogix: • Desktop SMALL keyboard (English, German and French versions) •...

  • Page 60: The 24-Key Keypad

    Chapter 3: Accessories The 24-Key Keypad 3.1.2 The 24-Key Keypad Psion Teklogix also provides a 24-key keypad which can be mounted onto the device, with a protection class IP 65. 24-Key Keypad 3.2 Mouse Any PS/2-compatible mouse with a standard Mini-DIN plug, USB connector or RS- 232 port can be connected to the 8580/8590.

  • Page 61: External Cd-Rom Drive

    Keep in mind also that not every device classified as a USB CD- ROM is a proper USB CD-ROM drive. Only use devices approved by Psion Teklogix to ensure the device is fully compatible. 3.3.1 Operation The CD-ROM drive port is provided via USB. The drive, which is supplied in a separate housing, is connected to one of the sockets on the back of the 8580/8590.

  • Page 62: Chapter 3: Accessories Scanner

    You can connect scanners to either the USB, PS/2 or serial port. If connected to COM1, the scanner can be powered through the port (optional). Be sure to only use scanners that have been approved by Psion Teklogix. 8580/8590 Vehicle-Mount Computer User Manual...
  • Page 63 8580/8590 I 4.1 Complying With Protection Standard IP65 ....39 4.1.1 Parts List For Cable Cover Kit ....39 4.1.2 The Cable Cover, Grounding Bar &...

  • Page 65: Chapter 4: 8580/8590 Installation

    Warning: In order to comply with the IP65 protection standards, you must install the 8580/8590 cover guard, secure the cables and seal the unit BEFORE mounting the unit using a mounting bracket. 4.1 Complying With Protection Standard IP65 The 8580/8590 is sealed against dust and protected against water jets (IP65), provided that the following conditions are fulfilled: •...

  • Page 66: Chapter 4: 8580/8590 Installation The Cable Cover, Grounding Bar & Cables-Assembling

    Chapter 4: 8580/8590 Installation The Cable Cover, Grounding Bar & Cables–Assembling You will need the following tools: • Size 3 screwdriver (for slotted screws) • Size 1 screwdriver (Phillips) • Knife 4.1.2 The Cable Cover, Grounding Bar & Cables–Assembling 1. Mount the grounding bar to the cable cover using the 3 special screws.
  • Page 67 2. Prepare the sealing rings: • First, check how many cables are to be connected to the 8580/8590. • Choose the sealing rings according to the cable diameter (3-6.5mm or 5.5-9mm). • Then, prepare the corresponding number of sealing rings. Do this by making an incision with a knife at the mark (only to the midpoint of the sealing rings).
  • Page 68 Chapter 4: 8580/8590 Installation The Cable Cover, Grounding Bar & Cables–Assembling 5. Fix grounding plates and insert sealing plugs: • Lightly fix the cables in the cable cover using the earthing plates. • Test the fit of the cable cover relative to the equipment. •...

  • Page 69: Mounting Options For The 8580/8590

    Depending on the vibration resistance and pivoting demands, mounting brackets, clamp foots or RAM mount elements can also be used to attach the device. Please contact your Psion Teklogix sales office (refer to Appendix A) to find out more about the whole range of installation options available.

  • Page 70: Chapter 4: 8580/8590 Installation Permitted Mounting Positions

    Chapter 4: 8580/8590 Installation Permitted Mounting Positions 4.2.2 Permitted Mounting Positions The permitted mounting positions of the 8580/8590 are defined as follows: From a minimum of -90° Important: The unit can only be mounted in a range of 180° as illustrated. 4.2.3 Mechanical Dynamic Loading Since the 8580/8590 is a weighted structure, the unit will be subject to mechanical dynamic effects.

  • Page 71: Installing Connecting Cables

    Power is connected to the underside of the unit using a Phoenix Contact plug. There is no power switch. Important: In DC applications the 8580/8590 must only be connected to a SELV (Safety Extra Low Voltage) circuit. Ensure that there is a suitable disconnecting device such as a power switch or circuit breaker in the power supply circuit.

  • Page 72: Chapter 4: 8580/8590 Installation Vehicle Applications (Such As Forklifts)

    Chapter 4: 8580/8590 Installation Vehicle Applications (Such As Forklifts) Warning: Carefully read the following warnings! • Never connect a 12 VDC device to a 24/48 VDC vehicle! The device model is identified on the device type plate, a warning sticker is affixed to the unit and on the external connector strip. •...

  • Page 73: Wiring Vehicle Power To The 8580/8590

    4.4.1 Wiring Vehicle Power To The 8580/8590 Warning: Applying a voltage above the input voltage rating or reversing polarity may result in permanent damage to the 8580/8590 and will void the product warranty. A 1.8 meter (6 ft.) extension power cable (PN 13985–301) is supplied with your. This cable should be wired to a filtered, fused (maximum 10A) accessory supply on the vehicle.

  • Page 74: Chapter 4: 8580/8590 Installation Cable Cover (Splash Guard)

    4.5.1 Protection Class IP65 Important: In order to comply with protection class IP65, please use the optionally available IP65 assembly kit from Psion Teklogix. Care- fully follow the installation instructions under the heading “The Cable Cover, Grounding Bar & Cables–Assembling” beginning on page 40.
  • Page 75 PERATION 5.1 Operation ........51 5.2 4-Key Front Panel......51 5.3 10-Key Front Panel .

  • Page 77: Chapter 5: Operation Of The 8580/8590

    5.1 Operation The 8580/8590 is available with three different front panels: • 25-key front panel • 10-key front panel • 4-key front panel Note: All front panel buttons are described in “25-Key Front Panel” beginning on page 53. 5.2 4-Key Front Panel The 8580/8590 with a 4-key front panel has the following controls: •...

  • Page 78: Chapter 5: Operation Of The 8580/8590 10-Key Front Panel

    Chapter 5: Operation Of The 8580/8590 10-Key Front Panel 5.3 10-Key Front Panel The 8580/8590 with a 10-key front panel has the following controls: • POWER ON/OFF toggle button to switch the unit on and off • Manual brightness control indicated with the ‘+’ and ‘-’ symbols •...

  • Page 79: 25-Key Front Panel

    5.4 25-Key Front Panel The layout of the keys is the same for 10.4" and 12.1" displays. Note: For all units equipped with brightness control, even after manually turn- ing off the backlighting, the 8580/8590 will continue to respond to inter- action via the keyboard, mouse or touchscreen.

  • Page 80: Chapter 5: Operation Of The 8580/8590 Power Key

    Chapter 5: Operation Of The 8580/8590 Power Key 5.4.1 Power Key Turning the 8580/8590 on and off: This button has been preconfigured by Psion Teklogix by default: 8580/8590 with DC power supply and automatic shut- down software. 8580/8590 with DC power...

  • Page 81: Function And Number Keys

    5.4.4 Function And Number Keys Yellow LED: indicates the status of the [SHIFT] key. [0]/[F1]: digit [0] or function key [F1] if the [SHIFT] key is pressed [9]/[F10]: digit [9] or function key [F10] if the [SHIFT] key is pressed. [.]/[F11]: decimal point or function key [F11] if the [SHIFT] key is pressed.

  • Page 82: Chapter 5: Operation Of The 8580/8590 [Escape] Key, [Enter] Key And Scroll Keys

    Chapter 5: Operation Of The 8580/8590 [ESCAPE] Key, [ENTER] Key And Scroll Keys 5.4.6 [ESCAPE] Key, [ENTER] Key And Scroll Keys [ESC] key [ENTER] key, also called the [RETURN] key /[PgUp] – “Cursor Up” or “Page Up” when pressing the [SHIFT] key /PgDn –...
  • Page 83 Status of Internal LEDs FLASHING Chapter 5: Operation Of The 8580/8590 8580/8590 Status Temp. < -25°C or Temp. > 70°C. Temperature sensor malfunctioning; automatic shutdown software configuration. 8580/8590 Vehicle-Mount Computer User Manual Operating States...
  • Page 85 6.1.3.1 Windows XP Embedded ....63 6.2 Psion Teklogix Config Tool ......63 6.2.1 Overview Of The Config Functions .

  • Page 86: Chapter 6: Operating System & Software Applications

    Chapter 6: Operating System & Software Applications 6.3.3.2 Pre-Installed On The 8580/8590 ....84 6.3.3.3 Subsequent Software Keyboard Installation ..84 6.3.3.4 Standard Delivery Items .

  • Page 87: Operating System

    6.1 Operating System Units can be shipped with or without the operating system installed on your 8580/8590. This section outlines how to work with each of these scenarios. 6.1.1 OS Pre-installed On Hard Drive/Compact Flash When a 8580/8590 with a pre-installed operating system is started, this operating system is loaded following the BIOS boot messages.

  • Page 88: Special Features Of The Operating System

    Operating System Images Note: The installation CD must include Service Pack 1 or higher if Windows XP is to be installed via a USB-connected CD-ROM. Service Pack 2 is included with all current installation CDs from Psion Teklogix. 6.1.2.2 Operating System Images...

  • Page 89: Windows Xp Embedded

    If the 8580/8590 is running Windows XP Embedded, not all USB devices will be supported. 6.2 Psion Teklogix Config Tool Psion Teklogix Config is used for the configuration of 8580/8590 vehicle-mounts. Important: The COM3 port of the 8580/8590 must remain free when starting Psion Teklogix Config and throughout the entire running time of this software.

  • Page 90: Chapter 6: Operating System & Software Applications Installation

    Microsoft Windows XP • Microsoft Windows XP Embedded 6.2.2.2 Preinstalled Software In most cases, Psion Teklogix Config is pre-installed on each 8580/8590. 6.2.2.3 Subsequent Installation An installation program is available for subsequent installation. • Start the PTXConfig.exe in the Tools/software directory on the 8580/8590 hard disk/PTX Restore DVD.

  • Page 91: Operating System & Software Applications Automatic Installation Of The Software Keyboard

    6.2.2.4 Automatic Installation Of The Software Keyboard The Psion Teklogix software keyboard is automatically installed as part of the Psion Teklogix Config installation. For further information about the software keyboard, please refer to “The Software Keyboard”...

  • Page 92: Operating System & Software Applications Password Check

    Change the default password in the Settings menu to suit your needs. 6.2.2.8 Loading Language Files Text files for Psion Teklogix Config are loaded when the program is started. If a text file is not available in the desired language, the system default text is used for the dialogs.

  • Page 93: Psion Teklogix Config Menus

    Chapter 6: Operating System & Software Applications Psion Teklogix Config Menus 6.2.3 Psion Teklogix Config Menus 6.2.3.1 Hardware Monitor In the Hardware Monitor menu, system information is displayed: the Psion Teklogix serial number, model, installed processor, firmware version and BIOS version.

  • Page 94: Chapter 6: Operating System & Software Applications Environment

    Chapter 6: Operating System & Software Applications Environment 6.2.3.2 Environment The environment controller in the 8580/8590 features monitoring and statistics functions. The Environment menu provides information on the measured values. Environment Total running time of device Backlight running time Power key switch-on count Ignition switch-on count Power key switch-off count Automatic switch-off count...

  • Page 95: Automatic Switch Off

    Environment Hard switch-off count Last switch-off reason Excess temp. switch-off count Insufficient temp. switch-offs Errors temperature sensor 6.2.3.3 Automatic Switch Off In the Automatic Switch off menu, the behaviour of computer switch-on and switch-off is defined. The top-left portion of the menu indicates whether the option Automatic Switch off is available and activated.

  • Page 96: Chapter 6: Operating System & Software Applications Automatic Switch Off

    If the ignition of the connected vehicle is off, all input to the computer may be blocked. Selecting this options creates a symbol for Psion Teklogix Config in the taskbar. The symbol indicates the power status as follows: Green: Power status is OK;...
  • Page 97 Show counter if igni- A small dialog is displayed in the foreground where a counter tion is off counts down the after-run time until shutdown. Depending on the option Block input, a Shutdown button is also shown that allows the user to immediately start the shutdown. Hide desktop com- The displayed counter dialog is opened in Fullscreen mode, pletely...

  • Page 98: Special Switch-On/Off Features

    Chapter 6: Operating System & Software Applications Special Switch-On/Off Features with ignition and power key (only for DC devices with auto- matic switch-off) with power key only by system shut- down Shutdown to hiberna- tion mode 6.2.3.4 Special Switch-On/Off Features This message is displayed upon activating a switch-on option with ignition: This information appears for safety reasons each time a switch-on with ignition option is activated.

  • Page 99: Front Panel Keyboard

    Chapter 6: Operating System & Software Applications Front Panel Keyboard All switch-on options are available; however, when switching off, the options with ignition cannot be selected. With Automatic Switch-Off When the automatic switch-off option is available, the following symbol will be displayed in the dialog: When the switch-on option with ignition or always on is chosen, switching off using the power key is not possible.

  • Page 100: Common System Settings

    Chapter 6: Operating System & Software Applications Common System Settings Procedure: 1. Select the key to be changed. It appears in the Current assignment field. 2. Tap the Change key button. The Define key input dialog appears. 3. Tap the desired key assignment. This selected key assignment appears in the New assignment field.

  • Page 101: Network Settings

    Automatic Windows Logon Logon automatically as Domain name / User name / Password Logon With Software Keyboard Show software keyboard at logon Keyboard definition for the logon Common Activate this option only if the write protection (EWF) is active Hide taskbar Lock Windows task manager Lock system keys...

  • Page 102: Network Adaptor

    Chapter 6: Operating System & Software Applications Network Settings Find information about settings for the network adapter currently selected in the Current settings window. The System Settings button opens the Windows dialog for networks. Computer Name The 8580/8590 computer name can be changed. Network Adaptor Selection list Obtain address automati-...

  • Page 103: Operating System & Software Applications Enhanced Write Filter

    Network Settings | Automatic Computer Renaming The settings in the Automatic Computer Renaming menu under Network Settings are used for the automatic assignment of computer names. Allocation of different computer names is supported by entering the MAC address. 6.2.3.8 Enhanced Write Filter Note: The Enhanced Write Filter menu is only relevant for the Microsoft Win- dows XP Embedded operating system! If EWF is not installed, no changes can be performed.
  • Page 104 Chapter 6: Operating System & Software Applications Enhanced Write Filter EWF settings are not saved or loaded to import/export configurations (see “Settings” on page 79). The computer's EWF drives are displayed in the EWF Drives field (there is usually only one). The settings below apply to the EWF drive selected here. 8580/8590 Vehicle-Mount Computer User Manual...

  • Page 105: Settings

    Tap the Exec. Restart button to restart the computer and activate the settings. 6.2.3.9 Settings In this menu, Psion Teklogix Config is configured with respect to password, language etc. Chapter 6: Operating System & Software Applications 8580/8590 Vehicle-Mount Computer User Manual...
  • Page 106 It is possible to read all data, but no changes may be made to the settings. A password is not required to start Psion Teklogix Config. Reading of data is limited: The Environment, Automatic Switchoff and Front Panel menus are not available.
  • Page 107 A file named Keyboard.cfg must exist in the software keyboard installation directory; otherwise an error message appears. If the keyboard is started by Psion Teklogix Config, it is also terminated when Psion Teklogix Config is closed. The software keyboard version 1.5 or higher is mandatory for this.

  • Page 108: Chapter 6: Operating System & Software Applications The Software Keyboard

    Psion TeklogixCfgExportVer=1 Psion TeklogixCfgExportSNR=205004056587 6.3 The Software Keyboard The Psion Teklogix Software Keyboard is an onscreen keyboard. It brings the complete standard keyboard with function keys and numeric pad directly to your PC screen – with easy, touch operation. The operator can work with an alphanumeric keypad without connecting a physical keyboard.

  • Page 109: Logon With The Software Keyboard

    If the file Keyboard.cfg cannot be located by the system in the Software Keyboard installation directory, an error message appears. If the keyboard is started by Psion Teklogix Config, it is also terminated when Psion Teklogix Config is closed. 6.3.2 Logon With The Software Keyboard The Software Keyboard (version 1.5 and higher) can be used to log on to the...

  • Page 110: Installation

    Chapter 6: Operating System & Software Applications Installation 6.3.3 Installation This section outlines the requirements and the steps you’ll need to follow to install the Psion Teklogix Software Keyboard. The Software Keyboard runs on both 8580 and 8590 vehicle-mounts. 6.3.3.1 System Requirements The following operating systems are supported: •...

  • Page 111: Launching The Program

    • French • German Should you require a different language, please contact your Psion Teklogix sales agent. To activate a CFG file other than the default version: 1. Rename the file Keyboard.cfg in directory c:\Psion Teklogix, for exam- ple, to Keyboard_english.cfg.

  • Page 112: Call Parameters

    Chapter 6: Operating System & Software Applications Call Parameters 6.3.4.1 Call Parameters The call parameters listed in the table below can be set; keep in mind that settings are case insensitive: CFG=Filename SWITCHVIEW EXIT Call Example PTXKeyboard.exe SHOWCTRL CFG=C:\MyKeyboard.txt 6.3.4.2 Creating A Registry Key If a registry key is created for the software keyboard, the program will launch automatically when your computer is started.

  • Page 113: Operating System & Software Applications Desktop Shortcut

    6. Apply the settings. Set path name In the Psion Teklogix Keyboard Properties dialog box, the path and name of the configuration file can also be set for the Target parameter. In this case, the default name Keyboard.cfg in the default directory c:\Psion Teklogix need no longer be used.

  • Page 114: Autostart Folder

    Chapter 6: Operating System & Software Applications Autostart Folder Define Keyboard Shortcut In the Psion Teklogix Keyboard Properties dialog box, you can specify a key combination for the Keyboard shortcut parameter. The software keyboard can be started and ended again with this keyboard shortcut.

  • Page 115: Operating System & Software Applications Software Keyboard And Taskbar

    6.3.4.7 Software Keyboard And Taskbar The software keyboard can be automatically adjusted to the size and position of the taskbar in order not to conceal it. This depends however on the taskbar options set. To set the taskbar options: 1. Right-click the taskbar. 2.

  • Page 116: Chapter 6: Operating System & Software Applications Operation

    Chapter 6: Operating System & Software Applications Operation With the option Keep the taskbar on top of other windows = ON, the shown taskbar covers the software keyboard. With the next keypress on the area of the software keyboard that is still visible, the software keyboard returns to the foreground again.

  • Page 117: Configuring The Software Keyboard

    6.3.5.2 Keys With Special Functions Alongside the standard keys, such as letters, numbers and function keys, the following keys are available: Hide software keyboard and minimize to icon size (function VK_KB_HIDE, bitmap BMP_Minimize) Move position of the software keyboard up/down on the screen (function VK_KB_UPDOWN, bitmap BMP_MoveUpDown) Switch between the keyboards available (function VK_KB_SWITCHNEXT, bitmap BMP_SwitchNext)

  • Page 118: Rules For Editing The Keyboard.cfg File

    Chapter 6: Operating System & Software Applications Rules For Editing The Keyboard.cfg File 6.3.6.2 Rules For Editing The Keyboard.cfg File To edit the CFG file, editors such as Windows Notepad can be used. • Redundant spaces should be avoided as they can lead to errors. •...

  • Page 119: Chapter 6: Operating System & Software Applications General Options

    Pattern=B • Two key layouts are pre-defined: • Pattern=W (white) and Pattern=B (blue) Pattern=W: Figure 6.4 Key Layout With Pattern=W Pattern=B: Figure 6.5 Key Layout With Pattern=B Position=24 • Defines the position of the software keyboard. The following position spec- ifications are possible as numeric values: 24 Bottom edge, centre 17 Top edge, centre...

  • Page 120: Chapter 6: Operating System & Software Applications Defining The Keys

    Chapter 6: Operating System & Software Applications Defining The Keys The value 32 (=Fixed Position) can be added to these values (specify total). In this case, the position of the keyboard is not changed when a switch is made to the next keyboard (see VK_KB_SWITCHNEXT). Otherwise, the newly activated keyboard by default is displayed with the same position code as the previous one.
  • Page 121 Labelling The first three fields (up to the first | character) are for the labelling of the keys: 1. Normal field, labelling without [SHIFT] and without [ALT Gr] 2. Shift field, labelling with the [SHIFT] key pressed 3. AltGr field, labelling with the [ALT Gr] key pressed The following combinations are permissible, for example: In all three modes, the upper-case A is always displayed a/A/| Normal = a, with [SHIFT] = A, with [ALT Gr] = no display...
  • Page 122 Chapter 6: Operating System & Software Applications Defining The Keys Bitmap Definitions For Label Symbols (Examples) BMP_RETURN BMP_TAB BMP_CAPS BMP_SHIFT BMP_BACK BMP_APPKEY BMP_INSERT BMP_END 8580/8590 Vehicle-Mount Computer User Manual RETURN symbol TAB symbols CAPS LOCK, continuous Shift symbol SHIFT symbol BACKSPACE symbol APPLICATION key Small “INSERT”...
  • Page 123 BMP_DELETE BMP_NEXT BMP_PRIOR BMP_HOME BMP_MoveUpDown BMP_SwitchNext BMP_Keyboard BMP_Minimize Virtual-Key Codes Apart from certain special codes, the Windows virtual-key code (alternatively the scan code with #, see below) is specified as the text name here. Chapter 6: Operating System & Software Applications Small “DELETE”...
  • Page 124 Chapter 6: Operating System & Software Applications Defining The Keys At present, only one basic key code can be set for each key; in combination with [SHIFT]+[ALT Gr], this then automatically gives the other assignments. Therefore, for the key code E, the euro symbol € is automatically produced with the [ALT Gr] key pressed.
  • Page 125 VK_KB_HIDE If a key with this key code is pressed, then the associated keyboard win- dow is removed from the screen. In addition, the Maximize keyboard (Keyboard_Maximize) is activated if available. Key Codes For Special Characters Virtual-Key Codes VK_NUMRET VK_CIRCUMFLEX VK_SHARP_S VK_ACCENT VK_PLUS...

  • Page 126: Keyboard_Maximize Section

    Chapter 6: Operating System & Software Applications Keyboard_Maximize Section A minus sign in front of the value is a reference to the standard key size: • An X-Len of -2 produces a key that is twice as wide. A Y-Pos of -5 posi- tions the key in the fifth key row.
  • Page 127 Chapter 6: Operating System & Software Applications MaxiMode And ExcludeChain Options 1 = AutoHide (default). If any software keyboard is visible on the screen, then Keyboard_Maximize is automatically made invisible. If there is no longer any (normal) software keyboard visible on the screen, then Keyboard_Maximize reappears automatically.

  • Page 129: Serial Ports

    ERIAL ORTS 7.1 Serial Ports ....... . .105 7.1.1 Resources .......105 7.1.2 COM1 Options .

  • Page 131: Chapter 7: Serial Ports 7.1 Serial Ports

    7.1 Serial Ports By default the 8580/8590 is equipped with 4 serial ports. COM1 and COM2 are accessible from the outside. COM3 and COM4 are used internally for communication with the environment controller and the touch controller. 7.1.1 Resources Resources for the serial ports are pre-defined in the system architecture and automatically managed by the BIOS.

  • Page 132: Tips & Tricks

    Chapter 7: Serial Ports Tips & Tricks 1. Open the Start menu and navigate to Settings>Control Panel>Acces- sibility. 2. Choose the General tab. 3. Choose Support accessibility options. 4. Click Settings. 5. Configure the desired COM port and BAUD rate. 6.
  • Page 133 NTERNAL EVICES 8.1 Chipset ........109 8.1.1 Installing Chipset Drivers Under Windows XP ...109 8.2 VGA Adaptor .

  • Page 135: Chapter 8: Internal Devices

    8.1 Chipset The 8580/8590 computer is equipped with a chipset which controls the communication between all function modules. The chipset converts the signals it receives from the CPU into memory access, hard drive access and other similar actions. Likewise, it transmits requests from peripheral devices to the CPU. Input devices such as the mouse or keyboard also communicate with the system via this chipset.

  • Page 136: Chapter 8: Internal Devices Vga Adaptor

    Chapter 8: Internal Devices VGA Adaptor 1. Open the corresponding folder and run Setup.exe. 2. Tap on Next. 3. In the following window, tap on Yes. 4. Tap on Next again. 5. Restart your computer. 8.2 VGA Adaptor The 8580/8590 is equipped with a VGA-compatible adaptor. This adaptor controls the integrated display.

  • Page 137: Network Adaptor (10/100)

    1. Open the corresponding folder and run Setup.exe. 2. Tap on Next. 3. In the following window, tap on Yes. 4. Restart your computer. 8.3 Network Adaptor (10/100) The 8580/8590 is equipped with a 10/100 Mbit network adaptor. This adaptor is available on the back of the device and features an RJ45 port.

  • Page 138: Chapter 8: Internal Devices Network Driver Installation Under Windows Xp

    Chapter 8: Internal Devices Network Driver Installation Under Windows XP Resources The network adaptor is a true Plug and Play component. All resource allocation and management is therefore performed by the BIOS. 8.3.1 Network Driver Installation Under Windows XP The network drivers to be used can be found by default on the Compact Flash or hard drive under Util/Lan/<verNR>.

  • Page 139: Chapter 8: Internal Devices Onboard Sound Adaptor

    3. In the following window, tap on Next. 4. Tap on Install Drivers. 5. After the installation, tap on Exit. 6. Restart your computer. 8.4 Onboard Sound Adaptor The 8580/8590 is equipped with an onboard sound adaptor. Normally this adaptor is not directed to the outside.

  • Page 140: Chapter 8: Internal Devices Installing Onboard Sound Adaptor Drivers-Windows Xp

    Chapter 8: Internal Devices Installing Onboard Sound Adaptor Drivers–Windows XP 1. Open the corresponding folder and run Setup.exe. 2. Tap on Next. 3. In the following window, tap Continue Anyway. 4. Restart your computer. 8580/8590 Vehicle-Mount Computer User Manual...

  • Page 141: Touchscreen

    8.5 Touchscreen An optional resistive touchscreen is available for the 8580/8590. The touchscreen can be operated with or without a keyboard and is compatible with a mouse. Important: If the touch controller is configured as PS/2 touch (via jumpers) a mouse cannot be connected to the external PS/2 mouse.

  • Page 142: Internal Devices Calibration

    Chapter 8: Internal Devices Calibration 3. In the Software License Agreement window, choose I accept all of the terms of the above License Agreement, and then tap Next. 4. In the Select Controller dialog, choose serial (RS/232) and tap Next. 5.

  • Page 143: Touch (Ps2) For Windows Xp & Xp Embedded

    8.5.2 Touch (PS2) For Windows XP & XP Embedded 8.5.2.1 Installation The touch drivers to be used can, by default, be found on the Compact Flash or hard drive under Util/atouch/<verNR>. In addition, you will find our drivers on the included driver CD.

  • Page 144: Resistance Of The Touchscreen

    As the majority of chemicals react more intensely at higher temperatures, the screen has been designed for normal room temperatures as well as extreme operating temperatures. Important: The data listed here applies exclusively to Psion Teklogix's resis- tive touchscreens. Household Chemicals Reaction time:24 hours...

  • Page 145: Automatic Switch-Off And Heating

    Mineral oil 40% sodium hydroxide 111 trichlorethane Turpentine Vm & P Naphtha Pencil Hardness Test ASTM D 3363.74 The resistive 8580/8590 touchscreens have a hardness > 4H. Test scale (from softest to hardest): 6B, 5B, 4B, 3B, 2B, B, HB, F, H, 2H, 3H, 4H, 5H, 6H, 7H, 8H, 9H Adhesion Test scale: 0B=100% delamination, 5B=no delamination...

  • Page 146: Chapter 8: Internal Devices Automatic Shutdown Process

    Chapter 8: Internal Devices Automatic Shutdown Process Heating is required if you want to operate the 8580/8590 at ambient temperatures below 0 C. In the following two sections, the main functions of the automatic heating and shutdown modules are described. For detailed information on the automatic shutdown and heating modules - complete with pre-defined thresholds - refer to the program flowchart diagrams (part 1 and 2) below.

  • Page 147: Program Flowchart

    Chapter 8: Internal Devices Program Flowchart 8.6.1.1 Program Flowchart Figure 8.1 Automatic Shutdown Program Flowchart – Part 1 8580/8590 Vehicle-Mount Computer User Manual...

  • Page 148: Chapter 8: Internal Devices Program Flowchart

    Chapter 8: Internal Devices Program Flowchart Figure 8.2 Automatic Shutdown Program Flowchart – Part 2 8580/8590 Vehicle-Mount Computer User Manual...

  • Page 149: Chapter 8: Internal Devices Drivers

    Chapter 8: Internal Devices Drivers 8.6.2 Drivers DLoGPwrw.sys driver V1.0 for Windows XP Standard setting: I/O port 0x379, length 2 Bytes The 8580/8590 and the automatic shutdown module communicate via the motherboard control port, which consists of the two I/O ports described above. 8.6.3 General Notes About Automatic Shutdown Software The Config program must be installed for the automatic shutdown module to function correctly.

  • Page 151: Chapter 9: Maintenance

    AINTENANCE 9.1 Maintenance....... . .127 9.1.1 Cleaning The Housing ......127 9.1.2 Cleaning The Touchscreen .

  • Page 153: Cleaning The Housing

    9.1 Maintenance Follow the guidelines below when cleaning your 8580/8590. 9.1.1 Cleaning The Housing • Use a damp cloth to clean the housing of the 8580/8590. • Do not use compressed air, a high-pressure cleaner or vacuum cleaner, as this can damage the surface. •...
  • Page 155 & H OMMON ISTAKES ELPFUL 10.1 Common Mistakes In Usage......131 10.1.1 Powering Up/Down ......131 10.1.2 Cable Cover .

  • Page 157: Chapter 10: Common Mistakes & Helpful Tips

    • All fastening brackets and mounting parts supplied by Psion Teklogix are only intended for use in the mounting of terminals and peripheral devices and may not be used for other purposes.

  • Page 158: Chapter 10: Common Mistakes & Helpful Tips Mobile Application On Vehicles

    Which type of display is used The temperature ranges mainly depend on these two components. 10.1.7 Disposal The Psion Teklogix general terms and conditions set out the obligations for disposal in accordance with official electronics regulations. 8580/8590 Vehicle-Mount Computer User Manual...

  • Page 159: Appendix A: Support Services And Worldwide Offices

    Technical Support for Mobile Computing Products is provided via email through the Psion Teklogix customer and partner extranets. To reach the website, go to www.psionteklogix.com, and click on the appropriate Teknet link on the home page. Then click on the “Login” button or the “Register” button, depending on whether you have previously registered for Teknet.

  • Page 160: Appendix A: Support Services And Worldwide Offices Worldwide Offices

    Appendix A: Support Services And Worldwide Offices Worldwide Offices A.3 Worldwide Offices OMPANY EADQUARTERS Psion Teklogix Inc. 2100 Meadowvale Boulevard Mississauga Ontario Canada L5N 7J9 Tel: +1 905 813 9900 Fax: +1 905 812 6300 Email: salescdn@psion.com ANADIAN ERVICE Psion Teklogix Inc.
  • Page 161 NTERNATIONAL UBSIDIARIES see also www.psionteklogix.com Psion Teklogix S.A. La Duranne 135 Rue Rene Descartes BP 421000 13591 Aix-En-Provence Cedex 3; France Tel: +33 4 42 90 88 09 Fax: +33 4 42 90 88 88 E-mail: tekeuro@psion.com Appendix A: Support Services And Worldwide Offices...

  • Page 163: Appendix B: System Resources

    YSTEM ESOURCES B.1 Part 1 The resources listed are reference values only. They may vary depending on the system configuration. These reference values are especially useful as a guide and for troubleshooting. Component Interrupt IRQ 05 VGA controller per PCI routing IRQ 05 PCIe MiniCard slot...

  • Page 164: Part 2

    Appendix B: System Resources Part 1 Component LPT1 (only avail- able internally) Floppy disk drive (only available inter- nally) SCI IRQ ACPI bus COM4 (Analog Touch) COM3 COM2 COM1 SMBus controller Interrupt controller Keyboard System timer 8580/8590 Vehicle-Mount Computer User Manual Setup Interrupt Memory Range (Hex) I/O Range (Hex)

  • Page 165: B.2 Part

    B.2 Part 2 List of abbreviations: TOM = Top of memory = max. DRAM installed. Component Interrupt Channel Graphic controller DMA controller (16 bit) I/O read for ISA PCI bus Motherboard resources Memory refresh 0 (8 bit) System speaker Appendix B: System Resources Setup Memory Range (Hex) Default...

  • Page 167: Appendix C: Pinouts

    INOUTS The following chapter lists the pin numbers and the appropriate signals. The abbreviations used are: n.c. = not connected C.1 External Connectors C.1.1 Keyboard And Mouse Version: Mini-DIN (PS2), 6-pin, motherboard reference P12. Keyboard only or keyboard and mouse connected via a Y cable. C.1.2 USB Version: 8-pin, motherboard reference P13.

  • Page 168: Appendix C: Pinouts Serial Port Com1

    Appendix C: Pinouts Serial Port COM1 C.1.3 Serial Port COM1 Version: D-SUB-D, 9-pin, MALE, motherboard reference P15. C.1.4 Serial Port COM2 Version: D-SUB-D, 9-pin, MALE, via adaptor cable to motherboard reference P16 RS232 Version (standard) 8580/8590 Vehicle-Mount Computer User Manual Signal USB1 - USB1 +...

  • Page 169: Network Connector

    C.1.5 Network Connector Version: RJ-45, 8-pin, motherboard reference P14. Signal CTTD CTRD n.c. TERM Signal Name Data Set Ready Request to Send Clear to Send Ring Indicate Name Transmit + Transmit - Receive + Transmit Centre Termination Receive Centre Termination Receive - Termination 8580/8590 Vehicle-Mount Computer User Manual...

  • Page 171: Appendix D: Mechanical Dynamic Loading

    ECHANICAL YNAMIC D.1 Introduction The mechanical environmental conditions of the 8580/8590 can vary greatly in terms of vibrations, collisions and shocks. The matter is made more difficult by the fact that the random values for acceleration and their frequencies for a given location are often unknown.

  • Page 172: Appendix D: Mechanical Dynamic Loading Units Without Vibration Insulation (Tuned To High Frequency)

    Appendix D: Mechanical Dynamic Loading Units Without Vibration Insulation (tuned to high frequency) (5)M1 Stationary Use Operational environments with low energy vibrations and medium energy shocks as well as very careful handling/transport compliant with: • Operation class 5M1 according to DIN EN 60721-3-5. •...

  • Page 173: Passive Vibration Insulation (Tuned To Low Frequency

    D.3 Passive Vibration Insulation (tuned to low frequency) Selection criteria: Mobile use Note: The system can be tuned to a low frequency by installing a flexible bearing. For example, you can attach the mounting bracket to elastomer springs or rubber buffers.
  • Page 174 Appendix D: Mechanical Dynamic Loading Dimensioning Example 8580 Mounting example for table-top attachment with elastomer springs: • 8580 with mobile mounting bracket, adjustable to 15 degrees • 3 elastomer springs • Diameter 30 to 40 mm, 20 to 30 mm high •...

  • Page 175: Approximate Solution For Elastomer Spring Selection

    D.4.1 Approximate Solution For Elastomer Spring Selection Since ω² = c / m, we obtain the following relationship: π ≅ 1000 Where: = oscillatory mass = natural frequency = spring constant in N/mm This model applies to the oscillatory mass at the device's center of gravity. This lies around 120 mm above the mounting surface of the group of springs and also displaced from it.

  • Page 176: Further Possible Steps For Optimization

    Appendix D: Mechanical Dynamic Loading Further Possible Steps For Optimization The next step is to look through the manufacturer's datasheets (such as those from gmt-gmbh.de or simrit.de) to find the right types of elastomer springs and rubber buffers. Here we have decided to use springs with an M8 thread and cylindrical body made of natural rubber (NR).

  • Page 177: Determining Insulating Effects

    In our selected example, softer elastomer springs with the same construc- tion could be used. In that case, it would still be possible that a Shore hard- ness of A55 activates approx. 13 Hz. • However, if the resonance deflections are too high (10 mm and more), the natural frequency should be increased.
  • Page 178 Appendix D: Mechanical Dynamic Loading Determining Insulating Effects Excitation Frequency Natural Frequency 10Hz 20Hz Approx. 28Hz 40Hz 60Hz 80Hz Based on this table, we can clearly expect very good insulation for excitation frequencies that are twice as high as the system's natural frequency. Consequently, the amplitude of the reaction accelerations of the 8580/8590 still only reaches 66% of the amplitude of the excitation accelerations, which actually have an effect twice that of the natural frequency.

  • Page 179: Determining Natural Frequencies

    Depending on the equipment (e.g. 24-key keyboard) and mount- ing types (e.g. with elastomer springs), the operation class can be reduced to 5M2 or 5M1. If you have any questions regarding the permissible operation class, please contact the Psion Teklogix technical service department. D.5 Determining Natural Frequencies There are several ways of determining a system's natural frequencies: •...

  • Page 181: Appendix E: Bios

    BIOS E.1 BIOS Setup Description The following section describes the BIOS setup program. The BIOS setup program can be used to view and change the BIOS settings for the module. Only experienced users should change the default BIOS settings. E.2 Entering The BIOS Setup Program The BIOS setup program can be accessed by pressing the [DEL] key during POST.

  • Page 182: Main Setup Screen

    Appendix E: BIOS Main Setup Screen ENTER E.4 Main Setup Screen When you first enter the BIOS setup, you will enter the main setup screen. You can always return to the main setup screen by selecting the main tab. The main screen reports BIOS, processor, memory and board information and is for configuring the system date and time.
  • Page 183 Feature Options System Time Hour:Minute:Second Day of week, System Date month/day/year BIOS ID No option OEM Version No option Processor No option System Memory No option Product Revision No option Serial Number No option BC Firmware Rev. No option Boot Counter No option Running Time No option...

  • Page 184: Advanced Setup

    Appendix E: BIOS Advanced Setup E.5 Advanced Setup • Select the Advanced tab from the setup menu to enter the advanced BIOS setup screen. E.5.1 ACPI Configuration Sub-Menu Feature ACPI Aware O/S ACPI 2.0 Features ACPI APIC support 8580/8590 Vehicle-Mount Computer User Manual Options Set this value to allow the system to utilize the Intel ACPI (Advanced Configuration and...

  • Page 185: Pci Configuration Sub-Menu

    E.5.2 PCI Configuration Sub-Menu Feature Options Plug & Play O/S PCI Latency 32, 64, 96... 248 Timer Allocate IRQ to PCI VGA PCI IRQ Resource Sub-Menu Exclusion PCI Interrupt Sub-Menu Routing PCI IRQ Resource Exclusion Sub-Menu Feature Options Available IRQxx Reserved PCI Interrupt Routing Sub-Menu Feature...

  • Page 186: Graphic Configuration Sub-Menu

    Appendix E: BIOS Graphic Configuration Sub-Menu E.5.3 Graphic Configuration Sub-Menu Feature Primary Video Internal VGA Device PCI/Int. VGA Disabled Internal VGA Enabled, 1MB Mode Select Enabled, 8MB Fixed mode DVMT Mode DVMT mode Select Combo mode 8580/8590 Vehicle-Mount Computer User Manual Options Select primary video adaptor to be used during boot up.
  • Page 187 Feature Options DVMT/FIXED 64MB Memory 128MB Auto CRT only Boot Display SDVO only Device CRT + SDVO LFP only CRT + LFP Auto VGA 1x18 (002h) VGA 1x18 (013h) SVGA 1x18 (004h) XGA 1x18 (006h) XGA 2x18 (007h) XGA 1x24 (008h) XGA 2x24 (012h) Local Flat Panel SXGA 2x24...

  • Page 188: E.5.4 Cpu Configuration

    Appendix E: BIOS CPU Configuration E.5.4 CPU Configuration Feature Processor Info Block On Demand Clock Modulation E.5.5 Chipset Configuration Sub-Menu Feature Memory Hole IOAPIC APIC ACPI SCI C4 On C3 Active State Power Manage- ment PCI Express Port 1 8580/8590 Vehicle-Mount Computer User Manual Options Displays the processor manufacturer, brand, fre- No option...

  • Page 189: I/O Interface Configuration Sub-Menu

    E.5.6 I/O Interface Configuration Sub-Menu Feature Options Azalia Onboard Audio AC97 Controller Disabled Onboard Ethernet Enabled Controller Disabled Disabled 3F8/IRQ4 Serial Port 1/2 2F8/IRQ3 Configuration 3E8/IRQ4 2E8/IRQ3 Disabled Parallel Port Address Disabled 3F8/IRQ11, 2F8/IRQ10, 3E8/IRQ11, Serial Port 3/4 2E8/IRQ10, Configuration 3F8/IRQ10, 2F8/IRQ11, 3E8/IRQ10,...

  • Page 190: Ide Configuration Sub-Menu

    Appendix E: BIOS IDE Configuration Sub-Menu E.5.7 IDE Configuration Sub-Menu Feature ATA/IDE Config- uration Primary IDE Master Primary IDE Slave Sub-Menu Hard Disk Write Protect IDE Detect Time Out (s) Primary/Secondary IDE Master Sub-Menu Feature Device Vendor Size LBA Mode E-10 8580/8590 Vehicle-Mount Computer User Manual Options Configure the integrated parallel and serial ATA...
  • Page 191 Feature Options Number of Block Mode sectors PIO Mode 0, 1, 2, 3, 4 Async DMA No option Ultra DMA No option S.M.A.R.T. No option No Installed Auto Type CD/DVD ARMD Disabled LBA/Large Mode Auto IDE Configuration Sub-Menu Description Block mode boosts IDE performance by increasing the amount of data transferred.

  • Page 192: Usb Configuration Sub-Menu

    Appendix E: BIOS USB Configuration Sub-Menu Feature Block (Multi- Sector Transfer) PIO Mode DMA Mode S.M.A.R.T. 32 Bit Data Trans- E.5.8 USB Configuration Sub-Menu Feature USB Functions USB 2.0 Control- E-12 8580/8590 Vehicle-Mount Computer User Manual Options Set to AUTO to let the BIOS auto detect device support for multisector transfer.
  • Page 193 Feature Options Disabled Legacy USB Enabled Support Auto USB Keyboard Disabled Legacy Support Enabled USB Mouse Disabled Legacy Support Enabled USB Storage Disabled Device Support Enabled Port 64/60 Emula- Disabled tion Enabled USB 2.0 Control- Full speed ler Mode Hi-speed BIOS EHCI Disabled Hand-Off...

  • Page 194: Keyboard/Mouse Configuration Sub-Menu

    Appendix E: BIOS Keyboard/Mouse Configuration Sub-Menu Feature USB Stick Default Emulation USB Mass Storage Reset Delay E.5.9 Keyboard/Mouse Configuration Sub-Menu Feature Bootup Num- Lock Typematic Rate PS/2 Mouse Support E-14 8580/8590 Vehicle-Mount Computer User Manual Options Select default USB Stick emulation type. Auto selects floppy or hard disk emulation based on Auto the storage size of the USB Stick, but the emula-...

  • Page 195: Remote Access Configuration Sub-Menu

    E.5.10 Remote Access Configuration Sub-Menu Feature Options Disabled Remote Access Enabled Serial Port COM1 Number COM2 115200 8,n,1 Serial Port Mode 57600 8,n,1 19200 8,n,1 None Flow Control Hardware Software Disabled Redirection After Boot Loader BIOS POST Always ANSI Terminal Type VT100 VT-UTF8 Remote Access Configuration Sub-Menu...

  • Page 196: Hardware Monitoring Sub-Menu

    Appendix E: BIOS Hardware Monitoring Sub-Menu Feature VT-UTF8 Combi- nation Key Support Sredir Memory Display Delay E.5.11 Hardware Monitoring Sub-Menu Feature H/W Health Func- tion Board Tempera- ture CPU Temperature Fan 1 Speed VcoreA VcoreB +3.3Vin +5Vin VBAT E-16 8580/8590 Vehicle-Mount Computer User Manual Options Disabled This option enables VT-UFT8 combination key...

  • Page 197: Watchdog Configuration Sub-Menu

    E.5.12 Watchdog Configuration Sub-Menu Feature Options Disabled 30sec 1min POST Watchdog 2min 5min 10min 30min Disabled Runtime Watch- One time trigger Single event Repeated event See “POST Delay watchdog” ACPI event Event 1 Reset Power button Disabled Event 2 ACPI event Reset Power button Disabled...

  • Page 198: Boot Setup

    Appendix E: BIOS Boot Setup Feature Timeout 1 Timeout 2 Timeout 3 E.6 Boot Setup Select the Boot tab from the setup menu to enter the boot setup screen. In the upper portion of the screen, the boot setup allows you to prioritize the available boot devices.

  • Page 199: Boot Device Priority

    E.6.1 Boot Device Priority Feature Options Boot Priority Device Based Selection Type Based Disabled Primary master Primary slave Secondary 1st, 2nd, 3rd,... master Boot Device Secondary slave Legacy floppy (Up to 12 boot USB hard disk devices can be pri- USB CDROM oritized if device USB removable...

  • Page 200: Boot Settings Configuration

    Appendix E: BIOS Boot Settings Configuration E.6.2 Boot Settings Configuration Feature Quick Boot Quiet Boot Automatic Boot List Retry Add-on ROM Display Mode Halt On Error Hit ‘DEL’ Message Display Interrupt 19 Capture PXE Boot to LAN E-20 8580/8590 Vehicle-Mount Computer User Manual Options Disabled If Enabled, some POST tasks will be skipped to...

  • Page 201: Security Setup

    Appendix E: BIOS Security Setup E.7 Security Setup Select the Security tab from the setup menu to enter the security setup screen. 8580/8590 Vehicle-Mount Computer User Manual E-21...

  • Page 202: E.7.1 Security Settings

    Appendix E: BIOS Security Settings E.7.1 Security Settings Feature Supervisor Pass- word User Password Change Supervi- sor Password Change User Pass- word Boot Sector Virus Protection E.7.2 Hard Disk Security This feature enables the users to set, reset or disable passwords for each hard drive in setup without rebooting.

  • Page 203: Exit Menu

    Hard Disk Security User Password Feature Options Primary/Mas- ter/Slave HDD Enter password User Password E.8 Exit Menu Select the Exit tab from the setup menu to enter the exit setup screen. Feature Save Changes and Exit Discard Changes and Exit Description Set or clear the user password for the hard disk.

  • Page 204: Additional Bios Features

    Appendix E: BIOS Additional BIOS Features Feature Discard Changes Load CMOS Defaults E.9 Additional BIOS Features E.9.1 Updating The BIOS The hardware of the 8580/8590 lets you update the system BIOS without opening the unit. You should only update the BIOS if the BIOS in your 8580/8590 is severely corrupted.

  • Page 205: Bios Recovery

    4. Select Bios Update. 5. Click Select BIOS ROM file and choose the current binary file. 6. Select Update Bios. 7. The update is carried out without further confirmation. 8. Then restart the 8580/8590. After completing the update, the settings described below need to be configured in the BIOS Setup Utility menu.

  • Page 206: Bios Security Features

    Appendix E: BIOS BIOS Security Features In order to make a BIOS recovery from a USB device (floppy, USB Stick) the BIOS file must be copied into the root directory of the storage device and renamed to AMIBOOT.ROM. Then boot from the device. The BIOS issues a series of 4 beeps that indicate that the system BIOS ROM file has successfully been updated.
  • Page 207 Appendix E: BIOS Hard Disk Security Features The BIOS provides the ability to ‘lock’ and ‘unlock’ drives using the security password. A ‘locked’ drive will be detected by the system, but no data can be accessed. Accessing data on a ‘locked’ drive requires the proper password to ‘unlock’...
  • Page 209 ACPI Configuration E-4 adaptor cables (ignition & screen blanking) 25 antennas 27 APM switch-off count (Environment Config menu) 68 automatic computer renaming 77 automatic shutdown 119, 120, 121, 123 automatic switch-off settings 70 switch-on 71 switch-on/-off features 72 automatic switch-off (Environment Config menu) 68, 69 automatic windows logon (Config menu) autostart folder (software keyboard) 88...
  • Page 210 Index ignition switch-on count 68 insufficient temp switch-off 69 last switch-off 69 power key switch-on/off count 68 run time 68 Environment config menu 68 error temp sensor 69 ESCAPE key 56 external connector pins COM1 serial port C-2 COM2 serial port C-2 keyboard &...
  • Page 211 Windows XP embedded 63 OS 61 password protection 80 pin configuration 22 pin numbers & signals C-1 pinouts C-1 power key 54 power key switch-on/off count (Environ- ment Config menu) 68 power supply 13, 44, 131 power supply fuses 15 printers, serial port 105 registry key, creating (software keyboard) safety instructions...
  • Page 212 Index insulation D-2, D-3 vibrations, resolving D-1 Windows XP, embedded 63 Win XP & XP Embedded driver (for PS2), installing 117 Win XP & XP embedded driver, installing & calibrating 115 wireless LAN settings 27 WLAN settings 27 worldwide offices A-1 10-key front panel 51 25-key front panel 51 4-key front panel 51...

This manual is also suitable for:

8580

Table of Contents
