GE JP3030TJ Dimensions And Installation Information

JP3030DJ/TJ
GE 30" Built-In Knob-Control Electric Cooktop

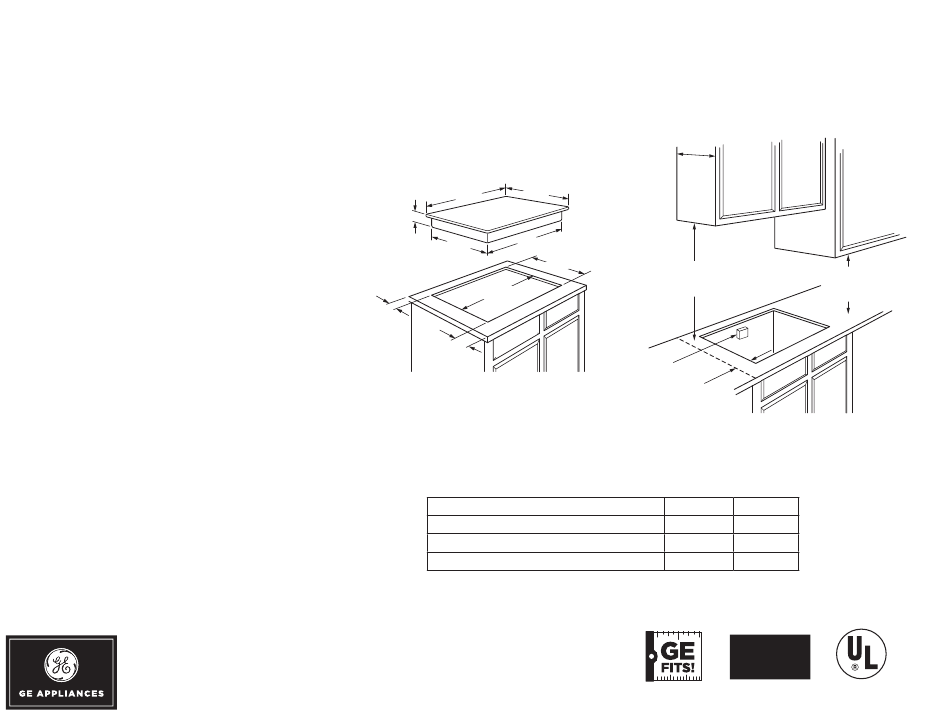

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
IMPORTANT: Requires a 5" free area between
the bottom of the cooktop to any combustible
material, i.e., shelving. Free area not required
when installing wall oven underneath cooktop.
Refer to installation instructions. Requires a 15"
minimum from cooktop to adjacent overhead
cabinets. Units are furnished with a 48" flexible
armored cable.
NOTE: 30" Ribbon cooktops are approved for use
over select GE 27" and GE 30" Single Wall Ovens
and Warming Drawers. Refer to cooktop and wall
oven/warming drawer installation instructions
packed with product for current dimensional data.
If installed with a GE Telescopic Downdraft System,
consult both the cooktop and downdraft installation
instructions packed with product before installing.
Cooktop gas/electric supply may need to be re-routed
to install downdraft. The countertop cutout requires
23-1/2" minimum flat countertop surface and 25"
minimum total countertop depth. In addition, other
clearances to front edge of the countertop must be
considered. Before installing, consult installation
instructions packed with product for current
dimensional data.
CUTOUT FILLER TRIM KIT: A filler trim kit
is available for use if your countertop cutout is
larger than the dimension shown, up to 29-13/16" x
20-7/16". Order JXTR32B for black or JXTR32W for
white, to reduce the cutout opening for installation
of this cooktop. These kits may be ordered from your
GE Appliances Dealer.
For answers to your Monogram, GE Café
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center
APPROXIMATE COOKING DIMENSIONS
29-3/4"
3-1/4" at front of unit and
4" at conduit
location
19-1/4"
1-3/4" MIN.
to rear wall
2-1/2" MIN.
Required
To insure accuracy, it is best to make a
template when cutting the opening in the counter
VOLTAGE (60HZ AC)
CONNECTED LOAD (MAX.)
CURRENT DRAW (MAX.)
RECOMMENDED CIRCUIT BREAKER
NOTE: Check local codes for required breaker size.
†
™ Series, GE Profile ™ Series or
® Service, 800.626.2000.
JP3530DJ_TJ, JP3030DJ_TJ
13" MAX. depth of unprotected
overhead cabinets (when no
hood or microwave is installed)
20-7/8"
Cooktop
28"
19-5/8" to
19-3/4"
30" MIN. from countertop to
unprotected cabinet (when
no hood or microwave is
28-1/2" to
installed)
28-5/8"
Electrical junction box 16" MIN.
below countertop
2" MIN. clearance
to side wall from cut-out
on left sides of unit and
1-1/2" clearance on
†
15" MIN. height from countertop
to nearest cabinet (including
light rails) on both sides of
cooktop
right side of unit
240V 208V
7.4kW 5.6kW
30.8 Amps 26.7 Amps
40 Amps 30 Amps
ADA
COMPLIANT
Specification Revised 6/16
