Promise Technology UltraTrak100 TX4 User Manual

Promise Technology UltraTrak100 TX4 User Manual

Promise technology ultratrak100 tx4 and ultratrak100 tx8 user manual
Hide thumbs Also See for UltraTrak100 TX4:
Table of Contents

Advertisement

Quick Links

Download this manual

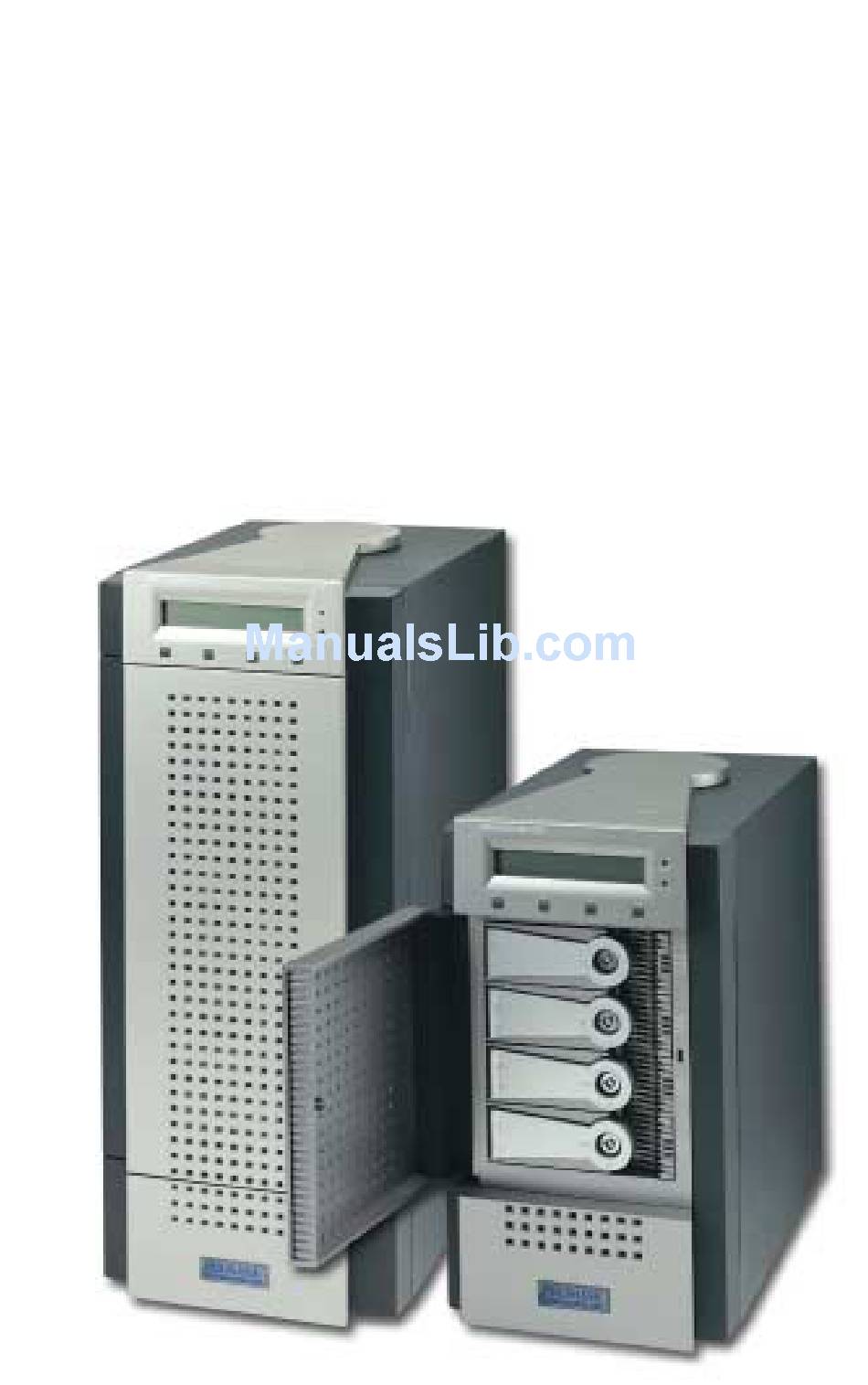

U
T
100 TX4
LTRA
RAK
AND
U
T
100 TX8
LTRA
RAK
U
M
SER
ANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UltraTrak100 TX4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Promise Technology UltraTrak100 TX4

Summary of Contents for Promise Technology UltraTrak100 TX4

  • Page 1 100 TX4 LTRA 100 TX8 LTRA ANUAL...
  • Page 2 You should back up all data before installing any drive controller or storage peripheral. Promise Technology is not responsible for any loss of data resulting from the use, disuse or misuse of this or any other Promise Technology product. OTICE...

  • Page 3: Radio Frequency Interference Statement

    Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult Promise Technology, Inc. or an experienced radio/TV technician for help. This device complies with Part 5 of the FCC Rules. Operation is subject to the...

  • Page 4: Table Of Contents

    ABLE OF ONTENTS Introduction ... 1 Architectural Description... 1 Features and Benefits ... 2 Getting Started ... 3 Unpack UltraTrak100... 3 Install Hard Drives ... 3 Connecting the SCSI Cables... 5 SCSI Cable Connection and Termination ... 5 Daisy Chaining Multiple Arrays... 6 Daisy Chaining with Other SCSI Devices ...
  • Page 5 Appendix A - Technology Background ... 41 Introduction to RAID ... 41 RAID 0 – Striping... 41 RAID 1 – Mirroring... 42 RAID 0+1 – Striping/Mirror ... 43 RAID 3 – Block Striping with Parity Drive ... 44 RAID 5 – Block and Parity Striping ... 45 JBOD (Spanning) ...

  • Page 7: Introduction

    The self-contained hardware-based array provides maximum performance in a compact external chassis. The UltraTrak100 TX4 is an external disk array with an expandable capacity of up to four individual disk drives. The UltraTrak100 TX8 is an external disk array with an expandable capacity of up to eight individual disk drives.

  • Page 8: Features And Benefits

    UltraTrak100 TX4 and UltraTrak100 TX8 User Manual EATURES AND ENEFITS Feature Maximum fault tolerance Supports RAID levels 0, 1, 3, 5, 0+1, and JBOD Emulates standard SCSI-3 drive to host Supports asynchronous and synchronous transfer mode Tagged command queuing up to...

  • Page 9: Getting Started

    ETTING TARTED To prevent serious damage to the UltraTrak100 be sure that the voltage- select switch on the back of the power supply is set to your local voltage (see Figure 2 on page 5). Getting started with the UltraTrak100 consist of the following steps: Unpack UltraTrak100 storage subsystem (page 3).
  • Page 10 UltraTrak100 TX4 and UltraTrak100 TX8 User Manual Before installing a new hard drive, be sure the jumpers on the new hard drives are set for single or master operation. Consult the drive manual for the proper settings. Install new hard drives into the UltraTrak100 by doing the following: Open the Front Panel Door on the UltraTrak100.

  • Page 11: Connecting The Scsi Cables

    SCSI Connector Output/Terminator Power Switch Voltage Select Switch Figure 2. Back of UltraTrak100 TX4 (see Figure 8 for TX8) To prevent possible damage to the array or system, ensure that system power is OFF before connecting the cables. SCSI C...

  • Page 12: Daisy Chaining Multiple Arrays

    UltraTrak100 TX4 and UltraTrak100 TX8 User Manual (the one which is attached to the SCSI adapter) to the top connector, and place an LVD SCSI active terminator on the other connector. An LVD SCSI active terminator is included with UltraTrak100 disk array unit.

  • Page 13: Connect Power Cable And Switch Power On

    ONNECT OWER The UltraTrak100 TX4 disk array includes a single power supply; The UltraTrak100 TX8 includes two replaceable power supply modules. Both systems will operate on either 115 volts AC or 230 volts AC. Ensure that the switch on the back of each power supply is set to your local voltage.

  • Page 14: Configure The Ultratrak100

    UltraTrak100 TX4 and UltraTrak100 TX8 User Manual ONFIGURE THE LTRA The configuration procedures for both the UltraTrak100 TX4 and UltraTrak100 TX8 are exactly the same. The following procedures provide the basic steps needed to create an array and get your UltraTrak100 running quickly. Before beginning, you need to decide if you will create an array using the automatic setup features or if you will create the array manually.

  • Page 15: Gigabyte Boundary

    If you wish to make a RAID 0+1 array using 4, 6, or 8 drives you need to choose RAID 1 (mirroring) and then follow the steps below to create the array. Press SEL to assign Stripe Block Size. 64KB is the optimum value for most applications.

  • Page 16: Choosing Stripe Block Size

    UltraTrak100 TX4 and UltraTrak100 TX8 User Manual For the Gigabyte Boundary feature to work, the Gigabyte Boundary feature must be set to ON when the original array is created. When enabled, the Gigabyte Boundary feature rounds the drive capacity of all drives to the common whole GB drive size.
  • Page 17 Recommended Applications for RAID 1 Accounting Payroll Financial Any application requiring very high availability RAID 3 Advantages High Read data transfer rate Disk failure has an insignificant impact on throughput Recommended Applications for RAID 3 Image Editing Prepress Applications Any application requiring high throughput RAID 5 Characteristics/Advantages High Read data transaction rate...

  • Page 18: Hot Spare Drive(S)

    UltraTrak100 TX4 and UltraTrak100 TX8 User Manual JBOD Characteristics/Advantages Uses 100% capacity of all hard drives Recommended Applications for JBOD File archiving General fileserver HOT SPARE DRIVE(S) A good precaution to protecting your array integrity in the event of drive failure is maintaining a hot spare drive.

  • Page 19: Maintenance

    AINTENANCE RIVE TATUS NDICATORS As shown in the figure below, each drive has three status LEDs. Figure 5. Location of Drive Status Indicators (TX4 shown) EANING OF TATUS Indicator Power Green Status Green Amber Disk Green & O RITICAL FFLINE A fault tolerant array goes "critical"...

  • Page 20: Rebuilding/Synchronizing Fault Tolerant Arrays

    UltraTrak100 TX4 and UltraTrak100 TX8 User Manual A non-fault tolerant array goes "offline" when a drive is removed or fails. Since the array is not fault tolerant, the data stored in the array is no longer accessible. If the drive was removed, then it should be replaced to restore accessibility to the array.

  • Page 21: Drive Replacement

    Reconstruction begins automatically as soon as a replacement drive becomes available to the array. However, if the replacement drive was formerly part of another array, then the previous array information must be deleted (from the replacement drive – see page 29, “Delete Array”, for more details) before reconstruction begins.

  • Page 22: Replacing A Power Supply Module (Tx8 Only)

    UltraTrak100 TX4 and UltraTrak100 TX8 User Manual Insert screws through the holes in the Drive Carrier and into the bottom of the new hard drive. Tighten each screw; be careful not to over tighten. 10. Slide the assembled Drive Carrier back into the UltraTrak100 and lock the Drive Carrier lock.
  • Page 23 Risk of electrical shock. When either power supply module is removed from the chassis, AC power is accessible at the circuitry in the power supply chassis. Only trained and qualified personnel should remove the power supplies. SCSI C onnector Input SCSI C onnector Output/Term inator Power Switch...

  • Page 24: Ultratrak100 Front Panel Interface

    UltraTrak100 TX4 and UltraTrak100 TX8 User Manual 100 F LTRA The front panel interface for the UltraTrak100 consist of following items: UltraTrak100 TX4 Type of Interface LED Indicators Array SCSI Bus Liquid Crystal Message Display Display Panel Control Buttons EXIT...

  • Page 25: The Lcd Messages

    LCD M ESSAGES The UltraTrak100 LCD message display panel has the following modes of operation: Idle mode Error mode Configuration mode Idle Mode Error Mode Provides an error message Configuration Mode View Status Configure Array Configure Cache Configure SCSI The Idle mode message, such as shown below, is displayed during normal operation of the UltraTrak100 when there are no problems or buttons being pressed: Array Functional...

  • Page 26: Configure Scsi

    UltraTrak100 TX4 and UltraTrak100 TX8 User Manual The first line of the Idle mode menu will display one of the following status messages: Array Functional Array Critical Array Offline The second line of the Idle mode menu can also provides the following error...

  • Page 27: View Status Menu

    View Status View Controller Info Memory Size Hardware Rev Firmware Rev View Cache Stats Cache Memory Size Cache Block Size Cache Read Hit Cache Write Hit View Array Information Array x Size RAID x Status View Enclosure Temperature Fan 1 Status Fan 2 Status Fan 3 Status Fan 4 Status...
  • Page 28 UltraTrak100 TX4 and UltraTrak100 TX8 User Manual ONTROLLER NFORMATION The View Controller Information mode displays UltraTrak100 firmware revision, memory size, and hardware revision: Memory Size: 16 MB Hardware Rev: PDC20265 Firmware Rev: V1.00 B00 What you can do: Press SEL: Does nothing.
  • Page 29 RRAY NFORMATION The View Array Information mode displays the array ID, array size, RAID level and array status (Functional, Critical, Offline, Rebuilding and Synchronizing). If these modes of display require more than 2 lines to display information the up and down keys will be used to scroll the display.

  • Page 30: Configure Array

    UltraTrak100 TX4 and UltraTrak100 TX8 User Manual C o nfig u re Array Auto Array S etup Create/Cancel V iew D rive Assignm ents Provides a list of installed disk drives. D efine Array RAID Level Stripe Block Size GB Boundary...

  • Page 31: Configure Array

    ONFIGURE RRAY The Configure Array menu will allow the creation and deletion of arrays. The configure array menu contains the following sub menus: Auto Array Setup View Drive Assignments Define Array Delete Array Advanced Feature What you can do: Press SEL: Selects one of the following active functions: Auto Array Setup View Drive Assignments...
  • Page 32 UltraTrak100 TX4 and UltraTrak100 TX8 User Manual You will see the following message if all of the drives are already configured: No Free Disk What you can do: Press SEL: Pressing SEL will save the array. Does nothing. Press Does nothing.
  • Page 33 EFINE RRAY The Define Array menu defines array parameters for the selected array. An array number is selected by using the up/down key to select the array number field. The SEL key is then used to select array number 1-4. The parameter to be configured, RAID Level or Stripe Block size, is then selected with up/down keys.

  • Page 34: Save Changes Menu

    UltraTrak100 TX4 and UltraTrak100 TX8 User Manual TRIPE LOCK The Stripe Block Size menu allows you to select a Stripe Block Size between 4KB and 64KB: 16KB … 64KB What you can do: Press SEL: Selects one of the active Stripe Block Size: Moves the active message line up.
  • Page 35 EMOVE RIVES The Add/Remove Drives menu assigns and removes drives from arrays. All free drives are displayed as one drive per line format. The SEL key toggles the drive between free and assigned. Assigned drives are designated by displaying Assigned and free drives are designated by displaying Free. 1 MAXTOR Free 2 IBM Assigned 3 MAXTOR Free...

  • Page 36: Wipe Out Disk

    UltraTrak100 TX4 and UltraTrak100 TX8 User Manual DVANCED EATURE Wipe out disk Synchronize Array Disable Buzzer Rebuild/Sync Pri. What you can do: Press SEL: Selects one of the following active functions: Wipe out disk Synchronize Array Disable Buzzer Moves the active message line up. (Active is marked by *.) Press Moves the active message line down.
  • Page 37 Press Press EXIT: Returns to the Advance Feature menu. Promise Technology suggests synchronizing an array once a month. Synchronization is a preventative maintenance measure used to avoid problems with data integrity. Synchronizing simply recalculates redundant data (similar to the rebuild process) and matches the data on the drive(s).

  • Page 38: Configure Cache

    UltraTrak100 TX4 and UltraTrak100 TX8 User Manual Configure Cache Write Back Write Thru ONFIGURE ACHE The Configure Cache menu will allow the setting of cache parameters. The following parameter is set in the Configure Cache menu: Write Cache What you can do:...

  • Page 39: Configure Scsi

    Configure SCSI Mode SCSI ID List SCSI IDs 0 thru 15 to be selected from. SCSI ONFIGURE The Configure SCSI menu will allow the setting of SCSI parameters. The following parameters are set in the configure SCSI menu: Mode SCSI ID What you can do: Press SEL: Selects one of the following active functions:...
  • Page 40 UltraTrak100 TX4 and UltraTrak100 TX8 User Manual When using ID mode, if you have multiple arrays within an UltraTrak100 unit, each array will use a separate SCSI ID. When using LUN mode, each UltraTrak100 unit will use a single SCSI ID, with the first array being LUN 0, the second array being LUN1, etc.

  • Page 41: Contacting Promise Support

    San Jose, CA 95112 USA support@promise.nl +31 (0)40 256 94 63 Attention: Technical Support +31 (0)40 256 94 61 8:30-5:00pm The Netherlands Time Promise Technology Europe B.V. Attn: Technical Support 1 European Business Centre, Unit 1.25 Luchthavenweg 81 5657 EA Eindhoven, The Netherlands...
  • Page 42 UltraTrak100 TX4 and UltraTrak100 TX8 User Manual Pacific Rim Sales Office E-mail Support Fax Technical Support Phone Technical Support If you wish to write us for support: China Office E-mail Support Fax Technical Support Phone Technical Support If you wish to write us for support: support@promise.com.tw...

  • Page 43: Limited Warranty

    Promise Technology does not warrant that any product is free from errors or that it will interface without problems with your computer system. It is your responsibility to back up or otherwise save important data before installing any product and continue to back up your important data regularly.
  • Page 44 Promise Technology has been advised of the possibility of such damages. Promise Technology is not an insurer. If you desire insurance against such damage, you must obtain insurance from another party.

  • Page 45: Returning Product For Repair (Usa & Canada)

    30 days, whichever is longer. Promise Technology will pay for standard return shipping charges only. You will be required to pay for any additional shipping options (such as express shipping).

  • Page 46: Your Responsibilities

    Promise Technology is not liable for any damage to equipment or data loss resulting from the use of any...

  • Page 47: Appendixa - Technology Background

    A - T PPENDIX ECHNOLOGY RAID NTRODUCTION TO RAID (Redundant Array of Independent Disks) allows multiple hard drives to be combined together to form one large logical drive or “array.” As far as the operating system is concerned, the array represents a single storage device, and treats it as such.

  • Page 48: Raid 1 - Mirroring

    UltraTrak100 TX4 and UltraTrak100 TX8 User Manual RAID 1 – M IRRORING When a disk array is mirrored, identical data is written to a pair of drives, while reads are performed in parallel. The reads are performed using elevator seek and load balancing techniques where the workload is distributed in the most efficient manner.

  • Page 49: Raid 0+1 - Striping/Mirror

    RAID 0+1 – S TRIPING Striping/mirroring combines both of the previous array types. It can increase performance by reading and writing data in parallel while protecting data with duplication. At least four drives are needed for RAID0+1 to be installed. With a four-drive disk array, drive pairs are striped together with one pair mirroring the first pair.

  • Page 50: Raid 3 - Block Striping With Parity Drive

    UltraTrak100 TX4 and UltraTrak100 TX8 User Manual RAID 3 – B LOCK RAID level 3 organizes data across the physical drives of the array, and stores parity information on to a drive dedicated to this purpose. This organization allows increased performance by accessing multiple drives simultaneously for each operation, as well as fault tolerance by providing parity data.

  • Page 51: Raid 5 - Block And Parity Striping

    RAID 5 – B LOCK AND RAID 5 is similar to RAID 3 as described above except that the parity data is rotated across the physical drives along with the block data. Having the parity data striped across all the physical drives in this manner removes the random write performance bottleneck of RAID 3.

  • Page 52: Jbod (Spanning)

    UltraTrak100 TX4 and UltraTrak100 TX8 User Manual JBOD (S PANNING In a Spanning array, the disk array capacity is equal to the sum of all drives, even if the drives are of different capacities. Spanning stores data onto a drive until it is completely filled then proceeds to store data on to the next drive in the array.

  • Page 53: Appendix B - Frequently Asked Questions

    Appendix B - Frequently Asked Questions This section lists frequently asked questions involving pre-installation, drive issues, installation, and post-installation. What kind of hard drives can I use for an UltraTrak100 array? You can use any Ultra ATA/100, Ultra ATA/33/66, or EIDE hard drive(s) to create arrays on the UltraTrak100.
  • Page 54 UltraTrak100 TX4 and UltraTrak100 TX8 User Manual Why can’t I see the drives on the UltraTrak100 under FDISK? If you have not created an array, the physical drive(s) attached to the UltraTrak100 card will not be recognized by the operating system. The...
