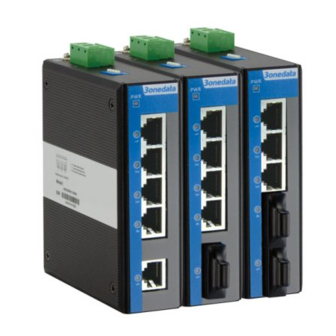

IES215 Series
Industrial Ethernet switch

User manual

Shenzhen 3onedata Technology Co., Ltd.
Tel: +86-755-26702668 Fax: +86-755-26703485
www.3onedata.com

【Summarize】

The IES215 series switch is a type of unmanaged industrial
Ethernet switch. The industrial Ethernet switch consists of 5
Fast Ethernet ports. The switch can maximum support two
interface type optional that Fast Ethernet copper ports and
optical
fiber
port.
The
switch
IEEE802.3u
and
IEEE802.3x
standard.
protection ensures reliable work in terrible environment. LED
indicator is helpful to monitor and control the status of
network connection. The switch with DC series and AC
series of two type power supply products can be optional.
It complies with FCC, CE standard. DIN-rail installation and
wide operating temperature (-40~75℃), can satisfied some
kinds of industrial environment, can provide reliable and
quickly solution for your Ethernet device.

【Packing list】

The industrial Ethernet switch is shipped with the following
items. If any of these items are missing or damaged, please
contact your customer service representative for assistance.
Industrial Ethernet switch × 1
User manual × 1
DIN-Rail mounting kit × 1
Warranty card × 1
Certificate of quality × 1

【Feature】

Support IEEE802.3/802.3u/802.3x, store and forward
Support 5 Fast Ethernet
RJ45 Support 10/100M, half/full duplex, MDI/MDI-X
Support -40~75℃ working temperature
DC series support 9~48VDC power input,
AC series support 100~240VAC power input
Industrial grade, IP40 protection, metal shell
DIN Rail installation

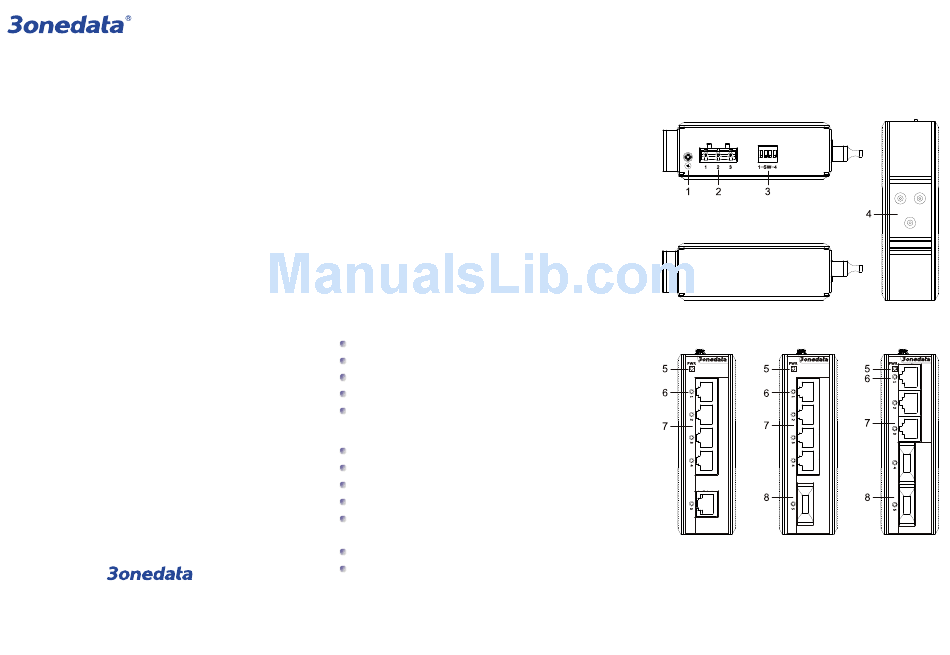

【Panel layout】

1. Ground screw
2. Power input terminal block
3. DIP switch
- 1 -
4. DIN-Rail mounting kit
5. Power indicator
6. Ethernet port link/act indicator
7. 10/100Base-T(X) (RJ45) port
8. 100Base-FX (SC/FC/ST) fiber port
supports
IEEE802.3,
Vertical / bottom view
IP40
grade
Front view
IES215

【Power supply input】

The Industrial Ethernet switches have singe power and
redundancy power two kinds of power input.
DC Series Switch:
Rear view
IES215-1F
IES215-2F

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IES215-1F-P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for 3onedata IES215-1F-P

  • Page 1: Packing List

    IES215-1F IES215-2F DIN Rail installation 【Power supply input】 【Panel layout】 Shenzhen 3onedata Technology Co., Ltd. The Industrial Ethernet switches have singe power and 1. Ground screw Tel: +86-755-26702668 Fax: +86-755-26703485 redundancy power two kinds of power input. 2. Power input terminal block www.3onedata.com...
  • Page 2: Dip Switch

    10/100Base-T(X) MDI (straight-through cable) The switch top panel provided 3 bit power supply input terminal block, support DC input. Reverse connection protection. Voltage input range is 9~48VDC (terminal block defined as, 1: V+, 2: FG, 3: V-). 10/100Base-T(X) MDI-X (Cross over cable) AC Series Switch: 【Communication connector】...
  • Page 3 Its banding should be Full load consumption: 2.4W@220VAC The DIN-Rail attachment unit will snap into place as moderate, not too tight, and should be separated from  IES215-1F-P (9~48VDC): shown below. other cables; - 3 -...
  • Page 4 Unload consumption: 2.69W@48VDC Full load consumption: 3.70W@48VDC  IES215-1F-P (100~240VAC): Unload consumption: 1.6W@220VAC Full load consumption: 2.3W@220VAC  IES215-2F-P (9~48VDC): Unload consumption: 2.64W@48VDC Full load consumption: 3.36W@48VDC  IES215-2F-P (100~240VAC): Unload consumption: 2.6W@220VAC Full load consumption: 3.7W@220VAC Working environment Working temperature: -40~75℃...
