Your Serial and Data Communications Expert

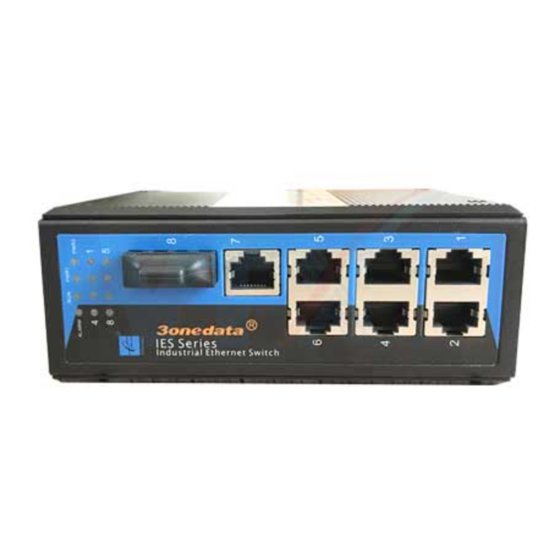

IES308
8-port Unmanaged Industrial Ethernet Switch
Hardware Installation Guide
Introduction:
IES308 series are a smart plug-and-play industrial Ethernet switch,
which can provide economical solution for your Ethernet. Its
dustproof fully sealed structure(protective case of IP30 level),
over-current, over-voltage and EMC protected redundant double
power input as well as built-in intelligent alarm design can help
system main tenancy personnel monitor the network operation,
which can work reliably in harsh and dangerous environment.
IES308 series support 8 ports10/100Base-T(X), Full/Half duplex
mode, and auto MDI/MDI-X connection.
Packing List:
The IES308 switch is shipped with following items.
1. Ethernet switch IES308 (plus terminal block)×1
2. Hardware Installation Guide ×1
3. Product Warranty Statement ×1
4. DIN-Rail setting fittings(wall mounting for optional)
Features:
1. Advanced Ethernet switch technical
2. IEEE802.3/802.3u/802.3x/802.3d,store and forward
3. 10/100M,F/H duplex, MDI/MDI-X auto negotiation
4. Broadcast storm protection
5. Relay output warning for power failure and port break alarm
6. Redundant 24VDC power input(12V～36VDC)
7. Designed for industrial applications. IP30 protection, rugged
high-strength metal case
Shenzhen 3onedata Technology Co.,Ltd
Advertisement
Table of Contents
Related Manuals for 3onedata IES308
Summary of Contents for 3onedata IES308
-
Page 1: Packing List
8-port Unmanaged Industrial Ethernet Switch Hardware Installation Guide Introduction: IES308 series are a smart plug-and-play industrial Ethernet switch, which can provide economical solution for your Ethernet. Its dustproof fully sealed structure(protective case of IP30 level), over-current, over-voltage and EMC protected redundant double... -
Page 2: Panel Layout
Your Serial and Data Communications Expert Panel Layout: IES308 series industry Ethernet switches provide 8 TP ports. Top panel Front panel 1. Grounding screw 2 .Terminal block (4 bits) for PWR1/PWR2 input, terminal block (2 bits) for relay output Bottom panel 3. -
Page 3: Communication Connector
Your Serial and Data Communications Expert Units（mm） Communication connector: IES308 series have 5 10/100BaseT(X) Ethernet ports(RJ45) 10/100BaseT(X) Ethernet port The pinout of RJ45 port display as below, connect by UTP or STP. The connect distance is no more than 100m. 100Mbps is used 100Ωof UTP 5 , 10Mbps is used 100Ωof UTP 3,4,5. -
Page 4: Led Indicator
(RX-) (TX-) (TX+) (RX+) (TX-) (RX-) LED Indicator: LED indictor light on the front panel of IES308 Series .the function of each LED is described in the table as below. System indication LED State Description PWR1 Power1 is being supplied... -
Page 5: Relay Contact
The two wires attached to the Fault contacts form an open circuit when: (1) IES308 series have lost power from one of the DC power inputs, One of the ports for which the corresponding Port alarm DIP Switch is set to ON is not properly connected. -
Page 6: Power Input
Your Serial and Data Communications Expert Power Input: IES308 series have redundant power input, provides two terminal block (3 bits) for PWR1 and PWR2 input. The redundant power can be used single and used two self-governed power to supply to the... -
Page 7: Wiring Requirements
6. Environment: -40 to 75°C Storage Temperature: -45°C to 85°C Relative humidity 10% to 95% DIN-Rail Installation In order to use in industrial environments expediently, IES308 series adopt 35mm DIN-Rail installation, the installation steps as fellows: 1. Examine the DIN-Rail attachment 2. -
Page 8: Specifications
Processing type: Store and Forward System exchange bandwidth: 4.8G Relay Max voltage: DC30V Max power input: 24VA Power Input Voltage: 24VDC (12VDC~48VDC) Overload Current Protection Support dual power backup Mechanical Dimensions: 136mm×52mm×105mm (H×W×D) Casing: IP30 protection, Metal case Shenzhen 3onedata Technology Co.,Ltd... - Page 9 EMI：FCC Part 15, CISPR (EN55022) class A EMS: EN61000-4-2(ESD), EN61000-4-3(RS), EN61000-4-4(EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 Warranty: 5 years Certifications: Shenzhen 3onedata Technology Co.,Ltd Tel: +86-755-26702688 Fax: +86-755-26703485 www.3onedata.com Shenzhen 3onedata Technology Co.,Ltd...
