IES7110-2GS Series
Managed Industrial Ethernet Switch

User manual

Shenzhen 3onedata Technology Co., Ltd
Tel: +86-755-26702668 Fax: +86-755-26703485
www.3onedata.com
【Summarize】

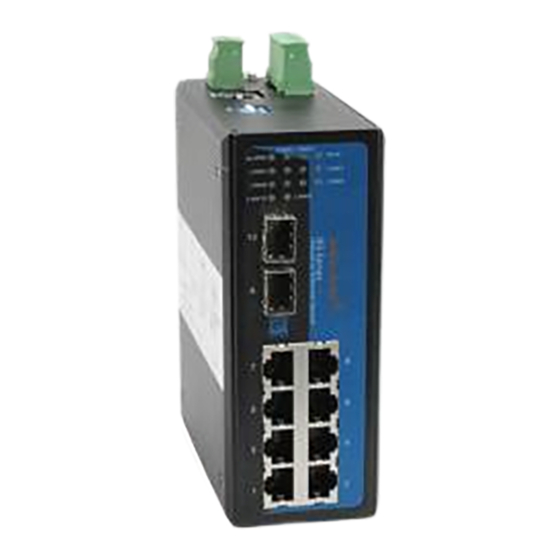

IES7110-2GS series is an industrial grade, managed and
redundancy
Ethernet
switch.
It
included
(12/48VDC), IES7110-2GS-P (110/220VAC), IES7110-2GS-2F-P
(12/48VDC) and IES7110-2GS-4F-P (12/48VDC). IES7110-2GS
series provided some kinds of advanced network managed
function, like as: SW-Ring redundancy ring network, VLAN,
Trunking, Quality of Service, Speed control, port mirroring, fault
alarm and firmware upgrade online. SW-Ring can bring your
Ethernet to intelligent redundancy. Standard Industry design can
satisfied every requirement of the industry scene. All components
used industry grade, it takes products high Reliability. It provided
wide voltage power supply input.
SW-Ring
TM
is designed as rapid redundancy network
arithmetic. It provided recover technology for fault of rapid
redundant network, the recovery time<20ms.

【Packing list】

Please check the packaging and accessories by your first
using.
Industrial Ethernet switch(IES7110 series) ⅹ 1
User manual ⅹ 1
CD ⅹ 1
Certificate of quality ⅹ 1
Warranty card ⅹ 1
Please inform us or our distributor if your equipments have
been damaged or lost any accessories, we will try our best to
satisfy you.
【Feature】
High performance network exchange technology
Support
IEEE802.3,
IEEE802.3u,
IEEE802.3z, IEEE802.1Q, IEEE802.1p, IEEE802.1D/W
www.texim-europe.com
SW-Ring ring network patent technology (Fault recovery
time<20ms）
Support RSTP, way exchange time<50ms
IES7110-2GS-P
Support WEB configuration
Support MAC address learning, aging automatic
Support port status display, data update.
Support static and dynamic IGMP
Support flow statistics
Support bi-directional port mirroring
Support rate control, Broadcast storm control
Support configuration files up and download
Support 1 channel relay alarm output
Reliable Industrial grade design
Industrial grade 4 design, -40-75℃work temperature
No fan deign
IP40 protection grade

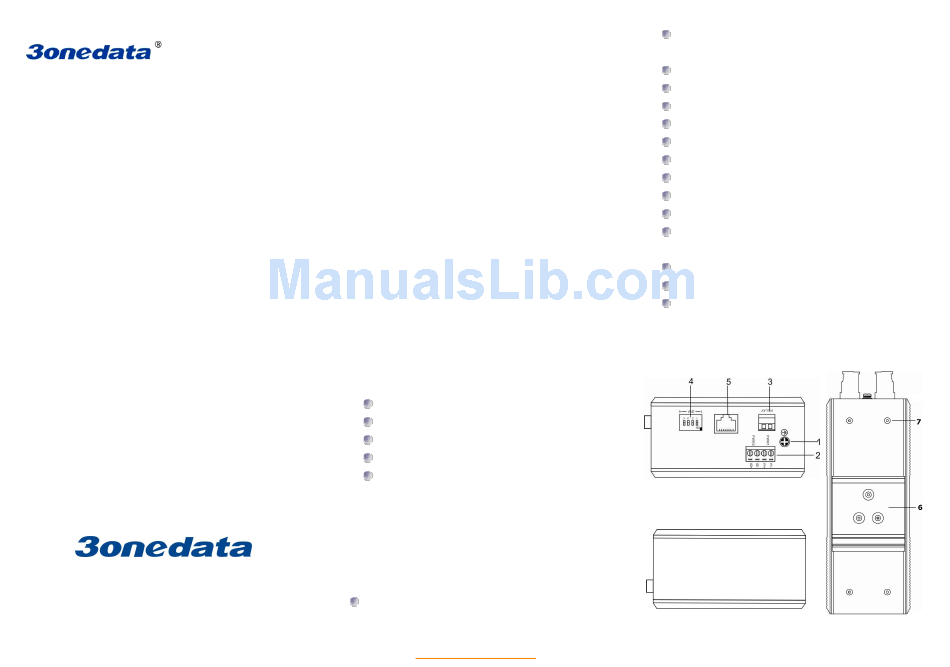

【Panel layout】
Top view
IEEE
802.3x,
Below view
Rear view
