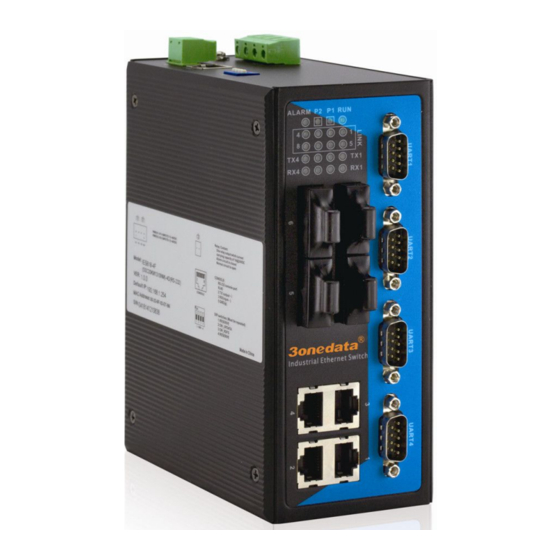

3onedata IES618-4D(RS-232)-P User Manual

IES618-4D series
Industrial Ethernet switch

User manual

Shenzhen 3onedata Technology Co., Ltd.
Tel: +86-755-26702668 Fax: +86-755-26703485
www.3onedata.com

【Summarize】

IES618-4D series is a industrial, management, redundant
industrial Ethernet switch and integrate 4 port serial device server.
It included
1. IES618-4D(RS-232)-P(12/48VDC),
Support 8 port 10/100Base T(X) and 4 port RS-232,
2. IES618-4DI(RS-485)-P(12/48VDC),
Support 8 port 10/100BaseT(X) and 4 port RS-485/422,
3. IES618-4F-4DI(RS-485)-P(12/48VDC),
Support1-4 port is 10/100BaseT(X) Ethernet, 5-8 port is
100BaseFX fiber port and 4 port RS-485/RS-422,
4. IES618-2F-4D(RS-232)-P(12/48VDC),
Support1-6 port is 10/100BaseT(X) Ethernet, 7-8 port is
100BaseFX fiber port and 4 port RS-232,
5. IES618-4F-4D(RS-232)-P(12/48VDC),
Support1-4 port is 10/100BaseT(X) Ethernet, 5-8 port is
100BaseFX fiber port and 4 port RS-232,
6. IES618-2F-4DI(RS-485)-P(12/48VDC).
Support1-6 port is 10/100BaseT(X) Ethernet, 7-8 port is
100BaseFX fiber port and 4 port RS-485/422,
it adopted SW-Ring redundant technology (Recovery time<20ms),
users can set the redundant easily to increase network reliability,
furthermore. It adopted no fan, low power consumption design,
IP40, corrugate high strength iron shell, the performance is more
steadily. It accorded with CE, FCC standard and Industrial 4 class,
DIN rail installation and wide operating temperature (-40~75℃),
it can satisfied some kinds of industrial environment, it can
provide reliable and quickly solution for your Ethernet device

【Packing list】

Please check the packaging and accessories by your first using.
Industrial Ethernet switch(IES618-4D series)ⅹ 1
User manual ⅹ 1
CD ⅹ 1
Certificate of quality ⅹ 1
Warranty card ⅹ 1
Please inform us or our distributor if your equipment's have
been damaged or lost any accessories, we will try our best to
satisfy you.

【Features】

IEEE802.3, IEEE802.3u, IEEE 802.3x, IEEE802.1Q,
IEEE802.1p, IEEE802.1D, IEEE802.1W
Support SW-RingTM redundant network patent technology
(Faulty recovery time<20ms)
Support IEEE802.1Q VLAN configuration,
Control broadcast storm effectively
Support 802.1p _QOS
Support RSTP
Support SNMP
Support IGMP snooping, static multicast filter, port trunking
and port mirroring
Support port bandwidth limited
bandwidth utilize
Support 4 port RS-232/ RS-485/ RS-422 serial device server
Support based on socket application access
Support Sever, Client, UDP based mode and Sever, UDP
advanced mode
Support Windows serial driver procedure mode
Support TCP, UDP, ARP, ICMP and DHCP protocol
Support cross-gateway and cross-router communication
Specific serial self-adapt function (Realcom)
Support Web, CLI, Telnet management
Support 2K MAC address table
Support 2 power supply input and 1 relay alarm output
Support port line and redundant network faulty/unusual,
local and remote alarm
High strength iron shell, IP40 protection
Industrial 4 class design
Redundant 24VDC power supply input(12～48VDC)
function, optimize
