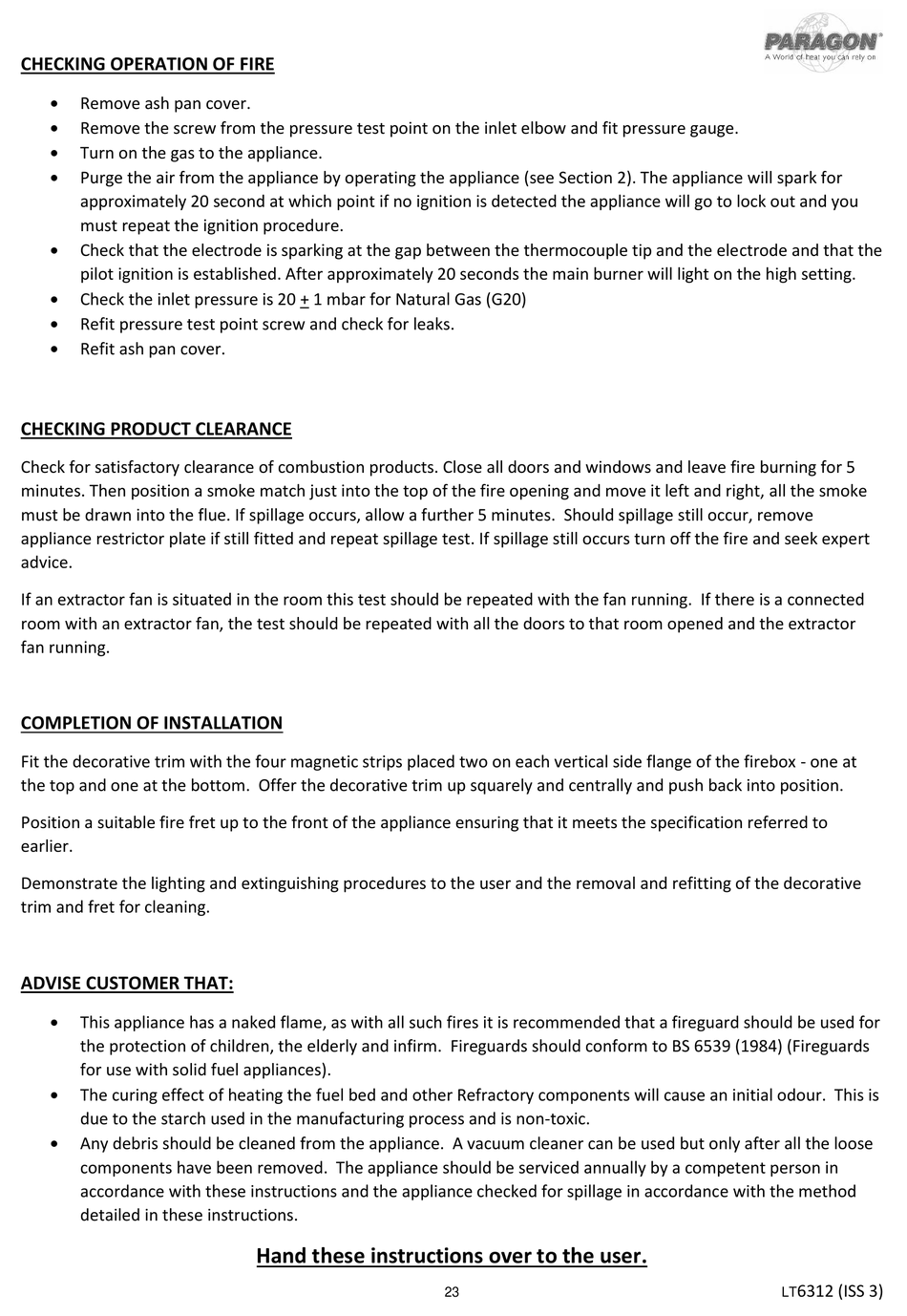

Charlton & Jenrick 2000 Plus Extra Remote Owner's Manual page 23

CHECKING OPERATION OF FIRE

Remove ash pan cover.

Remove the screw from the pressure test point on the inlet elbow and fit pressure gauge.

Turn on the gas to the appliance.

Purge the air from the appliance by operating the appliance (see Section 2). The appliance will spark for
approximately 20 second at which point if no ignition is detected the appliance will go to lock out and you
must repeat the ignition procedure.

Check that the electrode is sparking at the gap between the thermocouple tip and the electrode and that the
pilot ignition is established. After approximately 20 seconds the main burner will light on the high setting.

Check the inlet pressure is 20 + 1 mbar for Natural Gas (G20)

Refit pressure test point screw and check for leaks.

Refit ash pan cover.
CHECKING PRODUCT CLEARANCE
Check for satisfactory clearance of combustion products. Close all doors and windows and leave fire burning for 5
minutes. Then position a smoke match just into the top of the fire opening and move it left and right, all the smoke
must be drawn into the flue. If spillage occurs, allow a further 5 minutes. Should spillage still occur, remove
appliance restrictor plate if still fitted and repeat spillage test. If spillage still occurs turn off the fire and seek expert
advice.
If an extractor fan is situated in the room this test should be repeated with the fan running. If there is a connected
room with an extractor fan, the test should be repeated with all the doors to that room opened and the extractor
fan running.
COMPLETION OF INSTALLATION
Fit the decorative trim with the four magnetic strips placed two on each vertical side flange of the firebox - one at
the top and one at the bottom. Offer the decorative trim up squarely and centrally and push back into position.
Position a suitable fire fret up to the front of the appliance ensuring that it meets the specification referred to
earlier.
Demonstrate the lighting and extinguishing procedures to the user and the removal and refitting of the decorative
trim and fret for cleaning.
ADVISE CUSTOMER THAT:

This appliance has a naked flame, as with all such fires it is recommended that a fireguard should be used for
the protection of children, the elderly and infirm. Fireguards should conform to BS 6539 (1984) (Fireguards
for use with solid fuel appliances).

The curing effect of heating the fuel bed and other Refractory components will cause an initial odour. This is
due to the starch used in the manufacturing process and is non-toxic.

Any debris should be cleaned from the appliance. A vacuum cleaner can be used but only after all the loose
components have been removed. The appliance should be serviced annually by a competent person in
accordance with these instructions and the appliance checked for spillage in accordance with the method
detailed in these instructions.
Hand these instructions over to the user.
