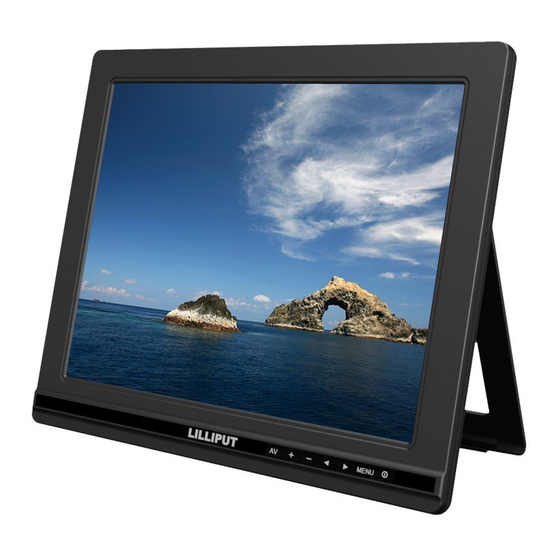

COLOR TFT LCD MONITOR

User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FA1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lilliput FA1000

Summary of Contents for Lilliput FA1000

  • Page 1: User Manual

    COLOR TFT LCD MONITOR User Manual...

  • Page 2: General Information

    GENERAL INFORMATION Thank you for choosing our TFT LCD(liquid crystal display) monitor. This product employs integrate circuits, low power consumption, and no radiation emission. It has fashion designed appearance and good portability. The TFT LCD monitor is your best choice. Moreover, this product is able to be used in office, at home, or other proper positions.

  • Page 3: Table Of Contents

    Table of Contents 1. PRODUCT DESCRIPTION ----------------------------------- 3 2. REMOTE CONTROL ------------------------------------------ 5 3. WIRING INSTRUCTIONS ------------------------------------5 4. SETTING MENU ----------------------------------------------- 6 5. ACCESSORIES ------------------------------------------------- 9 6. PARAMETER --------------------------------------------------- 10 7. TROUBLESHOOTING --------------------------------------- 10...

  • Page 4: Product Description

    1. PRODUCT DESCRIPTION Positive: 1. A/V: circularly switch among HDMI、PC、DVI、Video 1 and Video 2 2. –: Volume down, or value down while using menu setting functions. 3. +: Volume up, or value up while using menu setting functions. 4. ◄: Left selection key, to select items on OSD menu. Press to make “AUTO ADJUSTING”...
  • Page 5 Back: 9. Speakers 10. VESA mounts connector 11. Holder Bottom: 1. Mini USB interface(For touch function). 2. EAR: Earphone jack. 3. 14Pin SKS interface. 4. HDMI input. 5. HDMI to DVI interface. 6. DC 12V power input.

  • Page 6: Remote Control

    2. REMOTE CONTROL 1. Mute button. 2. Display switch among HDMI、PC、DVI、Video 1 and Video 2. 3.◄: Left move; or volume down; or increase the function values in menu settings. ▼: Down move. 5. Power. 6.▲: Up move, or change brightness among 6 levels. ►: Right move;...

  • Page 7: Wiring Instructions

    3. WIRING INSTRUCTIONS 1. 14Pin SKS signal interface. 2. Yellow RCA: Video signal 1 input. 3. Yellow RCA: Video signal 2 input. 4. VGA signal input. 5. DC 12V Power input 6. Audio: L and R channels signal input.

  • Page 8: Setting Menu

    4. SETTING MENU Before setting the menu functions, please make sure the device is connected correctly. When power on, press MENU on the device or on the remote control. The menu functions setting will display on the screen. Press buttons ►/◄ on the device or buttons ▼/▲ on the remote control to select items.
  • Page 9 HDMI MODE OSD miscellaneous setting under HDMI mode...
  • Page 10 Item Name Function BRIGHTNESS Brightness setting. CONTRAST Contrast setting. Saturation setting (NOT under SATURATION DVI/HDMI mode). Tint setting for image display (NOT under Tint DVI/HDMI mode). To adjust the OSD move in horizontal OSD H-position adjustment direction. To adjust the OSD move in vertical OSD V-position adjustment direction.

  • Page 11: Accessories

    direction. To adjust the picture position in vertical OSD V-POSITION direction. SHARPNESS To adjust the level of sharpness. To adjust the duration of OSD from5-100 OSD DURATION seconds. 5. ACCESSORIES 1. HDMI Type A-C 1 piece 2. 14Pin SKS cable 1 piece 3.
  • Page 12 With Touch Function Panel 9.7” Resolution 1024×768 Brightness 420cd/㎡ Contrast 900: 1 Viewing Angle 160°/ 174°(H/V) 1. Mini USB cable (For touch function) 1 piece 2. Drive disk 1 piece (Touch driver, please choose and install correct touch driver with your PC OS) 3.

  • Page 13: Parameter

    6. PARAMETER Input Voltage DC 7-24 V Input Signal HDMI,AV, PC,DVI HDMI Mode 480i/p、 576i/p、 720p、 1080i(50/60)、 1080p(50/60) Current 560mA Power Consumption ≤ 10W Dimension(LWD) 234.4mm×192.5mm×29mm Weight 625g 7. TROUBLESHOOTING 1. Only black-and-white display: Check whether the color saturation and brightness are properly setup. 2.
  • Page 14 Note: Due to constant effort to improve products and product features, specifications may change without notice.
