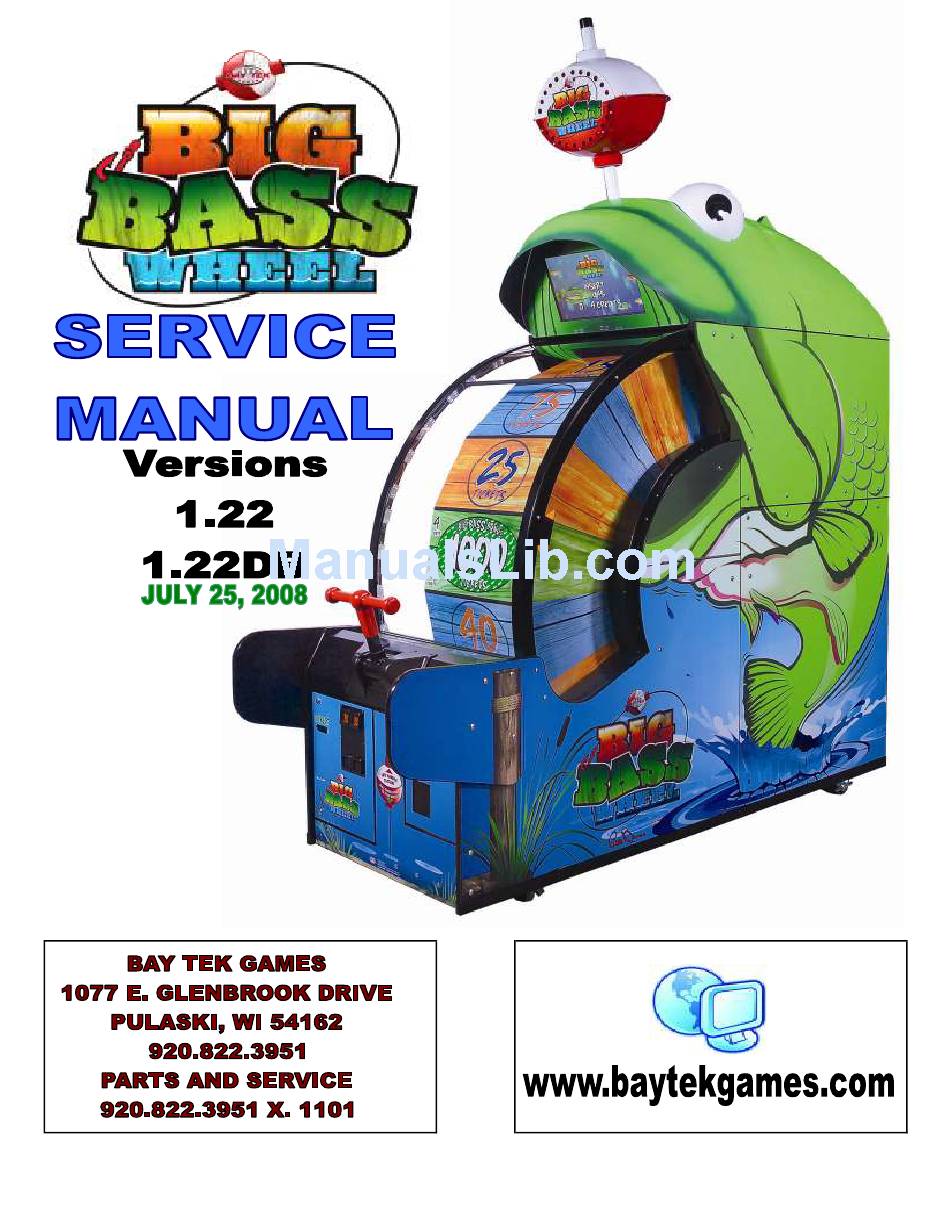

R. SCHREIBER
BAY TEK GAMES, INC.
BIG BASS WHEEL SERVICE MANUAL
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Big Bass Wheel and is the answer not in the manual?

Questions and answers

Related Manuals for Bay Tek Games Big Bass Wheel

Summary of Contents for Bay Tek Games Big Bass Wheel

  • Page 1 R. SCHREIBER BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 1...
  • Page 2 CIRCUIT BOARD WIRING PIN OUT PLAYER TIMEOUT MAINTENANCE CHECKLIST GAME HISTORY REPAIR LOG NOTES DOOR OPEN WARNING TECHNICAL SUPPORT MOTOR WATCHDOG ERROR WARRANTY OPTIONS SOFTWARE VERSION REPAIR OR NON-WARRANTY PARTS TOTAL CREDITS PARTS BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 2...
  • Page 3 One game per form. Extended warranty does not apply to used or close-out games. Bay Tek Games Inc. 1077 East Glenbrook Dr. Pulaski, WI 54162 Fax: 920.822.8936 Phone: 920.822.3951 www.baytekgames.com BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 3...
  • Page 4 OUR VISION BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 4...
  • Page 5 E-Mail: service@baytekgames.com SUITABLE FOR INDOOR USE ONLY Model: AAGM-1234 GAME Software Version: 5-678 VOLTAGE Game Serial Number: 9-1234 PCB Serial Number: 567,789 AMUSEMENT Manufacture Date: 7/07/2007 MACHINE Inspected By: R.S. BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 5...
  • Page 6 (920) 822-1496 8 A.M. - 5 P.M. CST MON. - FRI. Comments / Questions: (920) 822-3951 ext. 1101 8 A.M. - 5 P.M. CST MON. - FRI. Email : service@baytekgames.com BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 6...
  • Page 7 ABOUT THE GAME REEL IN the fun with Big Bass Wheel™ from Bay Tek Games. Players step up and pull the handle to spin the big wheel. When the wheel stops, players are awarded with tickets. For an even bigger catch – a Big Bass Bonus has been added...
  • Page 8 GAME MEASUREMENTS BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 8...
  • Page 9 ALL POWER TO THE GAME MUST BE TURNED OFF! CAUTION Lifting heavy objects can cause back, neck, or other injuries. Be sure adequate lifting and moving devices are available when unloading, unpacking, and moving this game. BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 9...
  • Page 10 SAFETY PRECAUTIONS BIG BASS WHEEL HAS THREE ACRYLIC SHIELDS INSIDE THE GAME TO PROTECT AGAINST PERSONAL INJURY. THESE GUARDS MUST REMAIN ON AT ALL TIMES. IF GAME REPAIR IS REQUIRED, SERVICE SHOULD BE PERFORMED BY AUTHORIZED PROFESSIONAL TECHNICIANS ONLY. THESE GUARDS ARE CLEARLY DECALED AND SHOULD REMAIN ON THE GAME AT ALL TIMES.
  • Page 11 (9) A5SCFH050 -SAFETY GUARDS HARDWARE AAKIT-BBW1-HDWR (8) A5BOCG140 (9) A5NUHX060 (9) A5WASI010 (1) A5BOHH115 (2) A5WAFL060 1 VACUUM FORM FISH HEAD 1 MONITOR ASSEMBLY 1 BOBBER ASSEMBLY 1 POWER CORD BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 11...
  • Page 12 SERVICE CONNECTIONS / POWER REQUIREMENTS All Bay Tek games are 110V unless specifically ordered 220V. The game will draw 2-3 AMPS at start up. Outlets should be rated for 20 AMPS or higher. The game voltage can be found on the serial number decal, see below.
  • Page 13 THERE ARE HOLES ON THE UNIT THAT WILL LINE UP WITH HOLES ON TOP OF THE GAME CABINET. PLUG IN THE MONITOR CABLES. THE OTHER TWO CABLES ARE FOR THE BOBBER. BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 13...
  • Page 14 THROUGH THE FISH HEAD. THERE IS A WOODEN HOLDER THAT THE PIPE WILL SIT IN BEHIND THE MONITOR. PLUG THE BOBBER CABLES INTO THE TAN CONNECTORS COMING FROM THE GAME. BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 14...
  • Page 15 REMOVE THE MOUNTING BOLT AND LOCKNUT. INSERT THE HANDLE INTO THE FRONT CONTROL BRACKET. FROM INSIDE THE GAME, INSERT THE BOLT THROUGH THE BRACKET ARM AND HANDLE. SECURE USING THE LOCKNUT. BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 15...
  • Page 16 CABINET ADD ONE FLAT WASHER, ONE SPLIT WASHER AND ONE LOCKNUT TO SECURE THE BOLT, SEE DIAGRAM. SLIDE THE FRONT GLASS CLOSED. LATCH THE GLASS SECURE. YOUR GAME IS READY FOR PLAY. BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 16...
  • Page 17 INCLUDES THE RAM AND FLASH DRIVE. THE FLASH DRIVE MAY VARY DEPENDING ON THE MANUFACTURE DATE OF YOUR GAME. EARLY MODELS MAY HAVE A CARD WHILE THE LATEST MODELS HAVE A STICK. BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 17...
  • Page 18 KEY COMPONENTS BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 18...
  • Page 19 ACCESS THE OPERATOR MENU BIG BASS WHEEL™ IS EQUIPPED WITH AN ONSCREEN OPERATOR MENU. THIS MENU WILL ALLOW YOU TO CONTROL ALL THE GAME FEATURES AND SETTINGS ALONG WITH MONITORING THE STATISTICS. TO ACCESS THE OPERATOR MENU OPEN THE LEFT SIDE TICKET DOOR.
  • Page 20 USE THE LEFT AND RIGHT RED BUTTONS TO NAVIGATE THE MENU. RESET TICKETS CLEARS TICKETS LEFT TO DISPENSE TO ZERO. THIS WILL NOT RESET THE MECHANICAL COUNTERS IN THE GAME. BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 20...
  • Page 21 RESET CREDITS RESET CREDITS CLEARS CREDITS (GAMES IN QUEUE) TO ZERO. THIS WILL NOT RESET THE MECHANICAL COUNTERS IN THE GAME. BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 21...
  • Page 22 7 CREDITS 1 CREDIT 8 CREDITS 1 CREDIT PER CARD SWIPE 9 CREDITS 2 CREDITS 10 CREDITS 3 CREDITS 12 CREDITS 4 CREDITS 20 CREDITS 5 CREDITS 6 CREDITS BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 22...
  • Page 23 GAME VOLUME GAME VOLUME THE RED ARROW SHOWS THE CURRENT SETTING. USE SLIDER TO ADJUST. THIS CONTROL IS ONLY FOR THE AUDIO PLAYED DURING GAME PLAY. BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 23...
  • Page 24 ATTRACT VOLUME ATTRACT VOLUME THE RED ARROW SHOWS THE CURRENT SETTING. USE SLIDER TO ADJUST. THIS CONTROL IS ONLY FOR THE AUDIO PLAYED DURING ATTRACT MODE. BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 24...
  • Page 25 RESET STATISTICS RESET STATISTICS CLEARS ALL STATS SHOWN UNDER THE "GAME STATISTICS" MENU (IN YELLOW BOX) TO ZERO. THIS WILL NOT RESET THE MECHANICAL COUNTERS IN THE GAME. BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 25...
  • Page 26 TO ORDER THE NEEDED DECALS TO CHANGE THE PATTERN FROM THE FACTORY DEFAULT PLEASE CALL THE BAY TEK GAMES PARTS DEPARTMENT AT 920-822-3951 X1101 THE NUMBERS LISTED AT THE BOTTOM OF EACH PATTERN ARE ESTIMATED TICKET PAYOUTS PER GAME BASED ON CUSTOMER FEEDBACK AND MAY VARY DEPENDING ON THE SKILL OF THE INDIVIDUAL PLAYER.
  • Page 27 AVAILABLE PATTERNS BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 27...
  • Page 28 AVAILABLE PATTERNS BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 28...
  • Page 29 MOTOR ASSIST: THE GAME WILL SPIN THE WHEEL IF THE PLAYER DOES NOT IN THE TIME ALLOTTED. ABANDON GAME: THE GAME ENDS IF THE PLAYER DOESN'T SPIN THE WHEEL IN THE TIME ALLOTTED. BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 29...
  • Page 30 GAME HISTORY GAME HISTORY SHOWS THE SCORES OF THE LAST 10-15 GAMES PLAYED. USE THIS FEATURE TO VERIFY A HIGH TICKET WIN. BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 30...
  • Page 31 IF THE GAME GOES INTO ATTRACT MODE AND THE ENCODER SENSOR DOES NOT "SEE" THE WHEEL MOVING THE GAME WILL GIVE YOU AN ERROR SUGGESTING THE MOTOR IS NOT WORKING. BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 31...
  • Page 32 SOFTWARE VERSION SOFTWARE VERSION SHOWS THE CURRENT INSTALLED SOFTWARE VERSION NUMBERS BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 32...
  • Page 33 TOTAL CREDITS TOTAL CREDITS SHOWS THE AMOUNT OF CREDITS IN QUEUE WAITING TO BE PLAYED. BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 33...
  • Page 34 TICKETS LEFT TO DISPENSE TICKETS LEFT TO DISPENSE SHOWS THE AMOUNT OF TICKETS THAT ARE WAITING TO BE DISPENSED. BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 34...
  • Page 35 THE SECOND VALUE DISPLAYS THE TICKET VALUE THE ENCODER IS READING. IT SHOULD MATCH WHERE THE WHEEL IS PHYSICALLY. THE THIRD VALUE SHOWS THE NOTCH POSITION ON THE ENCODER WHEEL. 1=INSIDE THE NOTCH 0=OUTSIDE THE NOTCH BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 35...
  • Page 36 INPUTS AND OUTPUTS INPUTS OUTPUTS SHOWS THE QUANTITY OF VARIOUS BUTTON INPUTS AND MECHANICAL OUTPUTS BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 36...
  • Page 37 BRAKE STATUS BRAKE STATUS ALLOWS YOU TO CHECK YOUR BRAKE DURING THE MAINTENANCE CYCLE, SEE PAGE 58. BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 37...
  • Page 38 WHEEL SPEED WHEEL SPEED INDICATION OF HOW FAST THE WHEEL IS SPINNING IN MILLISECONDS MEASURED BETWEEN NOTCHES IN THE ENCODER WHEEL. BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 38...
  • Page 39 TOTAL GAMES TOTAL GAMES THIS WILL DISPLAY THE TOTAL NUMBER OF GAMES PLAYED SINCE THE STATISTICS WERE LAST CLEARED. BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 39...
  • Page 40 TOTAL TICKETS TOTAL TICKETS THIS WILL DISPLAY THE TOTAL NUMBER OF TICKETS DISPENSED SINCE THE STATISTICS WERE LAST CLEARED. BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 40...
  • Page 41 TICKETS PER GAME TICKETS PER GAME THIS WILL DISPLAY AN AVERAGE OF TICKETS PAID PER GAME. BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 41...
  • Page 42 TOTAL MOTOR ASSISTS TOTAL MOTOR ASSISTS THIS WILL DISPLAY HOW MANY TIMES THE GAME HAD TO SPIN THE WHEEL FOR THE PLAYER. BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 42...
  • Page 43 NO AUDIO I/O BOARD TO THE MOTHER BOARD, C. FAULTY I/O BOARD SEE BELOW. D. FAULTY MOTHER BOARD C. REPLACE THE I/O BOARD (AACB1900). D. REPLACE THE MOTHER BOARD (AAMB6). BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 43...
  • Page 44 D. CHECK THE WIRING FROM THE ACCEPTOR DISCONNECTED WIRES. TO THE I/O BOARD. REPAIR OR REPLACE THE WIRE (AACE1611). E. ACCEPTOR PROBLEMS. E. REFER TO THE DBA MANUAL OR DECAL ON THE UNIT. BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 44...
  • Page 45 (RE-BOOT WIZARD" OR "Xorg". BOARD. REPLACE MONITOR (A5CBDI030). GAME TO SEE IF THE C. DISPLAY SHOWS "KERNEL PANIC- C. FAULTY OR LOOSE RAM. PROBLEM UNABLE TO MOUNT ROOT". REPEATS.) BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 45...
  • Page 46 C. I/O SERIAL CABLE UNPLUGGED C. ENSURE SERIAL CABLE IS TIGHT AND FROM I/O BOARD TO MOTHERBOARD. CONNECTED. REPLACE IF NEEDED (AACE1614). D. FAULTY I/O BOARD. D. REPLACE I/O BOARD (AACB1900). BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 46...
  • Page 47 C. MOTOR ASSIST SHOULD SPIN WHEEL FOR SLOW SPINS. C. GAME ENDS AFTER A SLOW SPIN, AND GIVES CHECK THE MENU, PAGE 27, ENSURE THE NO TICKETS. "ABANDON GAME" OPTION ISN'T SELECTED. BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 47...
  • Page 48 ENCODER SENSOR TO I/O BOARD (AACE1616) (FIG. 3). 2. GO TO "WHEEL ENCODER SENSOR", SEE PAGE 55, TO ADJUST THE SENSOR. REPLACE SENSOR IF NEEDED (AACB1901). 3. REPLACE I/O BOARD (AACB1900). BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 48...
  • Page 49 TO I/O BOARD. OTHER ISN'T. I/O BOARD. C. SWAP CABLES ON I/O BOARD TO C. IF YOU DISCOVER A FAULTY SOCKET, VERIFY FAULTY I/O BOARD. REPLACE I/O BOARD (AACB1900). BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 49...
  • Page 50 REPLACE DISPENSER. SHOWN ON D. NOTCH ON TICKETS CUT TOO D. FLIP THE TICKET PACK AND LOAD IN UPSIDE- SHALLOW. MONITOR. DOWN SO THE LARGER NOTCH IS TOWARD THE SENSOR. BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 50...
  • Page 51 CONNECTOR, IT BUILDS TO 12 VOLTS AS THE WHEEL GAINS SPEED. TO I/O BOARD: PHONE CABLES ARE DOUBLED UP FOR REDUNDANCY- MOTOR WILL STILL WORK WITH ONE WIRE OFF. BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 51...
  • Page 52 AS THE GAME STARTS, 12 VOLTS DC IS PRESENT AT THE SOLENOID. TO I/O BOARD: PHONE CABLES ARE DOUBLED UP FOR REDUNDANCY-SOLENOID WILL STILL WORK WITH ONE WIRE OFF. BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 52...
  • Page 53 2. TURN GAME OFF, THEN BACK ON, COIN UP BUT DO NOT SPIN THE WHEEL. LET THE GAME SPIN WHEEL. 3. ENTER THE MENU AND VERIFY THE "MOTOR WATCHDOG" ERROR IS NOT PRESENT. BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 53...
  • Page 54 If you replace the software in your game it is recommended that you note the changes made. Below is a chart you can use to track software upgrades. VERSION DATE CHIP REASON FOR CHANGE INTL. INSTALLED BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 54...
  • Page 55 VERIFYING THE DOOR OPEN MESSAGE IS DOOR OPEN NOT ON THE DISPLAY. MESSAGE CLEARS. B. IF A DOOR SWITCH SHOWS THE MESSAGE WHEN PUSHED IN, THAT SWITCH IS FAULTY. REPLACE (A5SW7000). BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 55...
  • Page 56 FRONT RIGHT AACE1604 AACE1600 LEFT SIDE SIDE DOOR DOOR AACE1600 AACE1619 AACE1601 AACE1619 LEFT SIDE RIGHT SIDE AACE1601 AACE1602 DOOR DOOR AACE1602 AACE1619 AACE1619 AACE1603 AACE1604 BACK DOOR AACE1603 AACE1619 BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 56...
  • Page 57 THE HOME POSITION SENSOR IS ON THE SAME BOARD AND READS A NOTCH TO CALIBRATE THE HOME POSITION. GREEN LED THE LOWER SENSOR READS THE 1 HOME POSITION NOTCH ON THE ENCODER WHEEL. NOTCH BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 57...
  • Page 58 TO GO A FULL REVOLUTION SO THE GAME CAN FIND THE HOME POSITION. SPIN THE WHEEL BY HAND, AS THE DISPLAY CHANGES IT SHOULD MATCH WHERE THE WHEEL POINTER IS AT THAT TIME. BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 58...
  • Page 59 D. LOOSEN THE TWO SCREWS TO SLIDE THE BRACKET. E. RE-TIGHTEN THE SCREWS AND RE-CHECK THE WHEEL POSITION. REPEAT THIS PROCESS IF NECESSARY UNTIL THE POINTER LINES UP CORRECTLY. BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 59...
  • Page 60 WILL SHOW "GOOD SPIN" AS THE WHEEL SPINS. ONCE THE WHEEL STOPS, THE DISPLAY WILL SHOW ONE OF THREE THINGS: -BRAKE OK -TIGHTEN BRAKE -LOOSEN BRAKE TO ADJUST THE BRAKE ASSEMBLY PLEASE SEE THE FOLLOWING PAGE. BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 60...
  • Page 61 YOU ONLY NEED TO DO 2 REVOLUTIONS TO ALTER THE PRESSURE. YOU MUST SPIN BOTH LOCK-NUTS EQUALLY. "TIGHTEN BRAKE": DOWN "LOOSEN BRAKE": UP SEE FIG 2. 4. RE-SPIN TO CHECK THE BRAKE AFTER ADJUSTMENT. BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 61...
  • Page 62 TOOLS NEEDED: 1/2 INCH SOCKET 1/2 WRENCH THERE IS A BOLT, LOCK- WASHER, AND A LOCK-NUT LOCATED UNDER THE SPEAKER BRACKET. REMOVE THE NUT AND BOLT TO RELEASE THE HANDLE. BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 62...
  • Page 63 5. ONCE DONE, SLIDE THE FRONT WINDOW CLOSED AND SECURE THE 2 CLASP'S, FIG. 1. 6. CLEAN THE OUTSIDE OF THE WINDOWS WITH A CLEAN TOWEL AND WINDOW CLEANER. BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 63...
  • Page 64 SHOULD BE FAN IS GOING SUPPLY POWER BLACK AND YELLOW SWITCH, FIG 2. WIRES 6. CHECK TO MAKE SURE THE FAN IS GOING ON THE MOTHER BOARD, FIG 3. BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 64...
  • Page 65 OF THE BLACK ARM BRACKET. USE A 7/16" SOCKET TO RE- TIGHTEN ANY NUTS THAT MAY HAVE COME LOOSE OVER TIME. 3. ONCE ALL 6 BOLTS ARE TIGHTEN, REATTACH THE ACRYLIC SHIELD. BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 65...
  • Page 66 COUNTERS 2 BOBBER CHASE 2 TICKET (AACO1000) LIGHTS DISPENSERS USED (AACE1624) (AACE1609) AAMB6 SERIAL PORT TO MOTHERBOARD (AACE1614 MONITOR CABLE (A5CORD11 SPEAKER LINE OUT (A5CEAU010) ACTUAL COLORS MAY VARY BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 66...
  • Page 67 Clean front glass with glass cleaner and a clean lint free cloth. WEEKLY See page 61. Blow paper dust from the ticket dispenser outside the game. MONTHLY Clean more often if conditions dictate. BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 67...
  • Page 68 If you need to make repairs or order replacement parts it is a good idea to keep a log. Below is a chart you can use to track repairs and maintenance. DATE MAINTENANCE PERFORMED PARTS ORDERED INTL. BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 68...
  • Page 69 NOTES BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 69...
  • Page 70 Bay Tek games. Many of our games share the same main-board electronics. This means you can buy one set of spare electronics to support many of your Bay Tek games. Spare boards allow you to get your game up and running the quickest and provide you a valuable troubleshooting option. Call...
  • Page 71 WARRANTY OPTIONS Bay Tek Games warrants to the original purchaser that the game will be free of defects in workmanship and materials for a period of 6 months from the date of installation. Register your new game for an extra 3 months on your warranty.
  • Page 72 AAGU4159 RIGHT GUARD ASSEMBLY AAGU5158 LEFT GUARD ASSEMBLY AACO1000 COUNTER AAJP9090 BILL ACCEPTOR JUMPER A5CORD11 15 FOOT SVGA EXT. CABLE A5ER0001 EXTRUSION FOR WHEEL A5ME4150 METAL LEFT WHEEL GUARD BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 72...
  • Page 73 GREEN SIDE WHEEL DECAL A5DE4166-O ORANGE SIDE WHEEL DECAL AADE1601 TICKET DECAL SET #1 AADE1602 TICKET DECAL SET #2 AADE1603 TICKET DECAL SET #3 AADE1604 TICKET DECAL SET #4 BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 73...
  • Page 74 BOBBER FACEPLATE WABBW0026 ACRYLIC SIDE WINDOWS WABBW0027 FRONT WINDOW CIRCUIT BOARDS A5CBDI030 19 INCH LCD MONITOR AACB1900 AUXILIARY BOARD AACB1901 ENCODER SENSOR AACB1905 BOBBER CHASE LIGHT BOARD AAMB6 MAIN BOARD BAY TEK GAMES, INC. BIG BASS WHEEL SERVICE MANUAL Page 74...
