FIG.G
FIG.H
FIG.I
IFC22007.01 www.powercommander.com

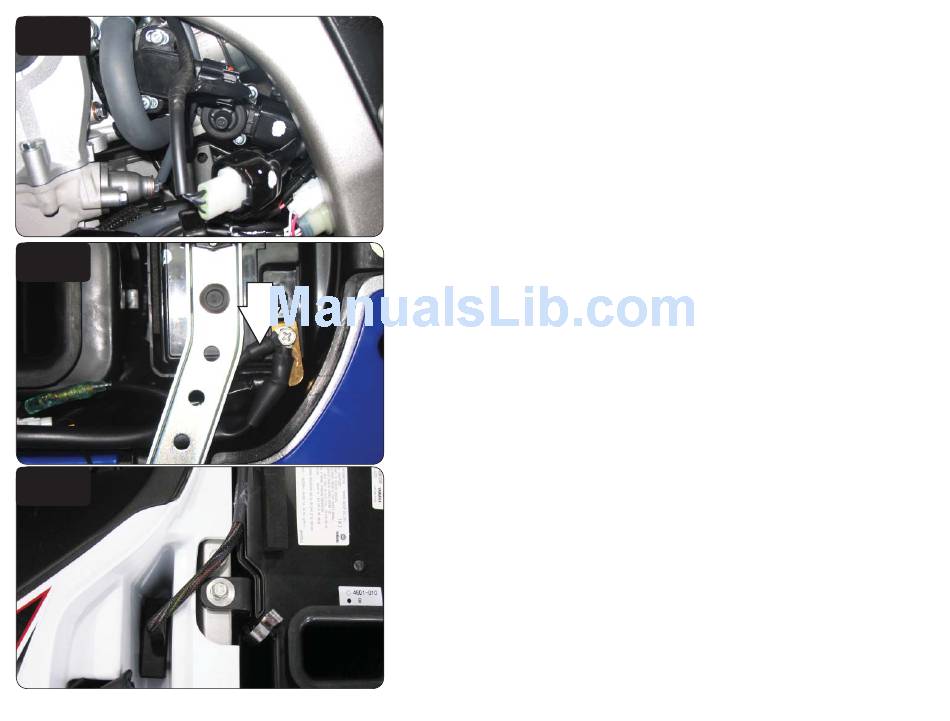

11 Attach the PCFC wiring harness to the stock TPS and wiring harness as
shown in Figure G.
12 Attach the ground wire from the PCFC to the negative side of the battery as
shown in Figure H.
13 Using the supplied velcro, secure the PCFC in the pocket of the rear fender on
the left side as shown in Figure I.
Make sure to clean both surfaces with the alcohol swab before attaching.
14 Reinstall the fuel tank.
Verify the wiring harness will not get pinched or damaged.
15 Reinstall the side covers.
16 Reinstall the seat.
2009-2014 Yamaha YFZ450 R/X - 5
