Figure B; Figure C; Figure D; Figure E - Dynojet Power Commander FC Installation Instructions

FIG.D
FIG.E
FIG.F
IFC22007.01 www.powercommander.com
TPS

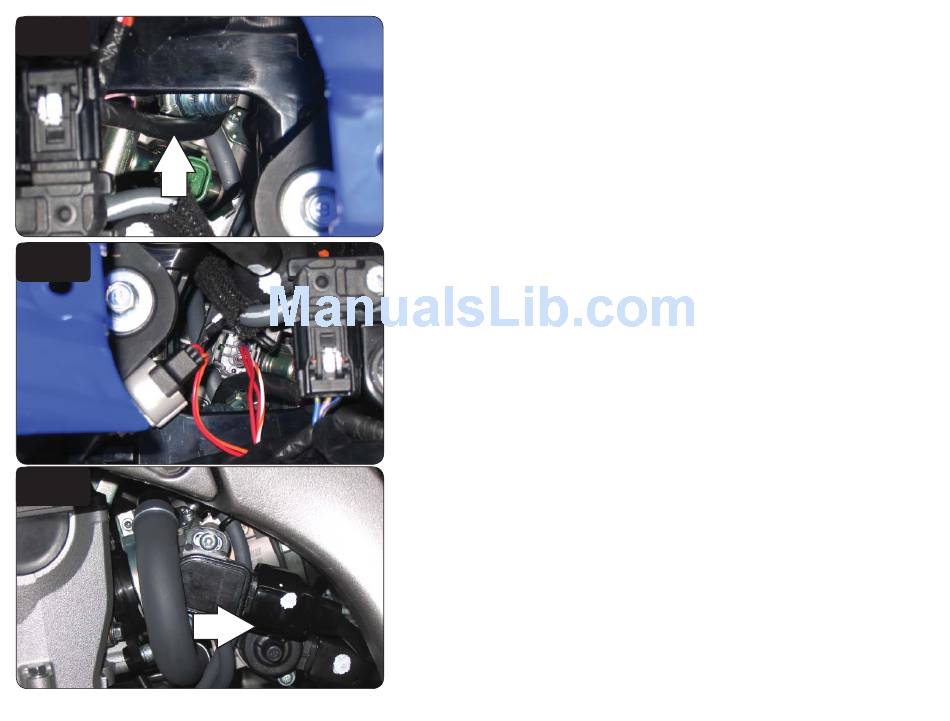

8 Route the 3-pin connectors from the PCFC harness down the left side of the
throttle body as shown in Figure D.
9 Attach the PCFC wiring harness to the fuel injector and the stock wiring
harness as shown in Figure E.
10 Unplug the throttle position sensor (TPS) connector from the left hand side of
the throttle body as shown in Figure F.
This connector is covered with a black rubber boot.
2009-2014 Yamaha YFZ450 R/X - 4
